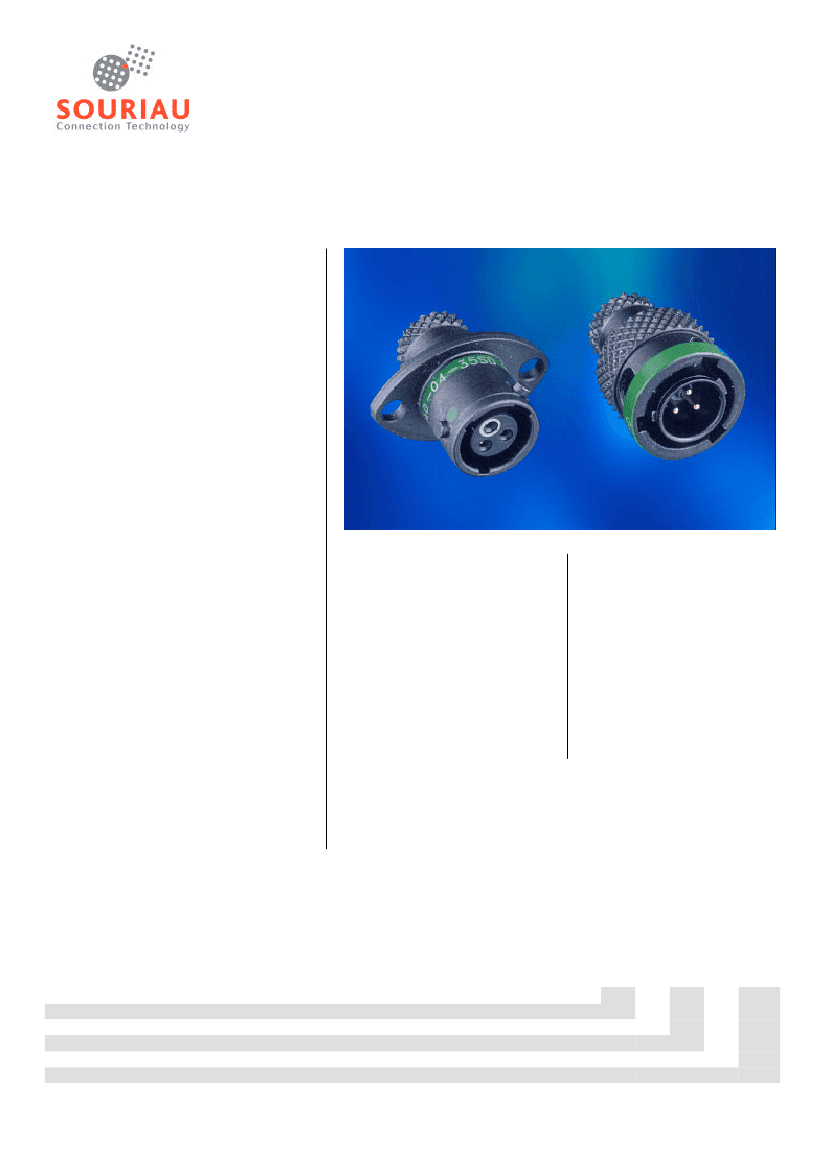

8STA size 04
Circular miniature connector
Souriau has extended the 8STA connector range with the launch of the smallest shell size connector in two layouts
Description
?
?
Small size connector (shell size 04) suitable
for sensor connections in limited space
2 layouts available:
?
3 contacts size 22
?
5 contacts size 26
Rugged aluminium body to ensure a long
service life in the harshest environment
Light connector: 5.85g for a set of the 5
contact layout, contacts included
Share the design and performance of the race
proven 8STA connector range as successfully
used in F1, WRC , IRL, CART and MotoGP
?
?
?
Technical features
Mechanical
?
?
?
?
?
?
?
?
?
Electrical
Aluminium alloy, black
conductive plated
Thermoplastic
Silicone elastomer
Copper alloy, gold
plated
500 mating/unmating
operations
300g for 3 ms and
MIL-S-901 grade A
147m/s
2
, 10 to 2000 Hz
> 2mn at 600ºC
35N (size 22)
45N (size 26)
?
?
?
?
?
Environmental
400 Vrms (size 26)
1000 Vrms (size 22)
?
?
?
?
Shell
Insulator:
Grommet and seal:
Contact:
Endurance
Shock
Vibration:
Flash fire:
Contact retention:
Test voltage:
Temperature range: -55ºC +175ºC
Sealing, mated connector: IP67
Salt spray: 48 hours
Resistance to fluids:
?
?
Lubricant (oil) : Motul 300
competition
Unleaded petrol (SP95)
Motor car brake fluid :
Lockheed DOT5
Contact rating: 3A (size 26)
5A (size 22)
Shell continuity:<60mOhm
Insulation resistance: >5000 MOhm
Contact resistance:
?
<16 mOhm (size 26)
?
<14.6 mOhm (size 22)
?
Ordering information
(
The contacts have to be ordered separately)
Plug
Basic series
Shell style
Shell size
Contact layout
Type of contacts
Orientations
8STA
0:Oval
flange receptacle;
1:
In line receptacle;
6:
Plug
04
05:
5 contacts size 26;
35:
3 contacts size 22
P:
Male;
S:
Female
N:red; A:
Yellow;
B:
Blue;
C:
Orange;
D:
Green;
U:
none
0
04
05
P
N
