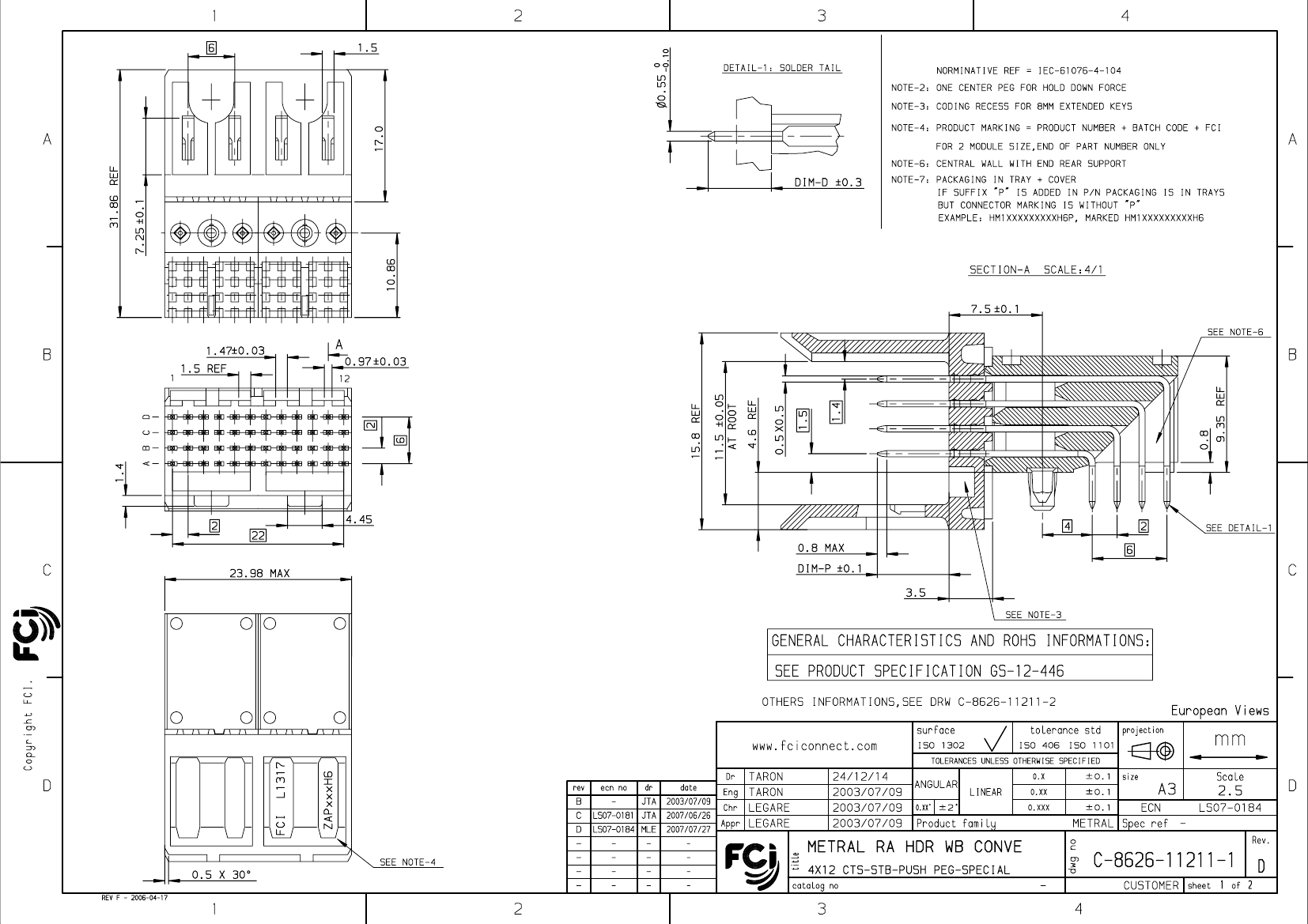

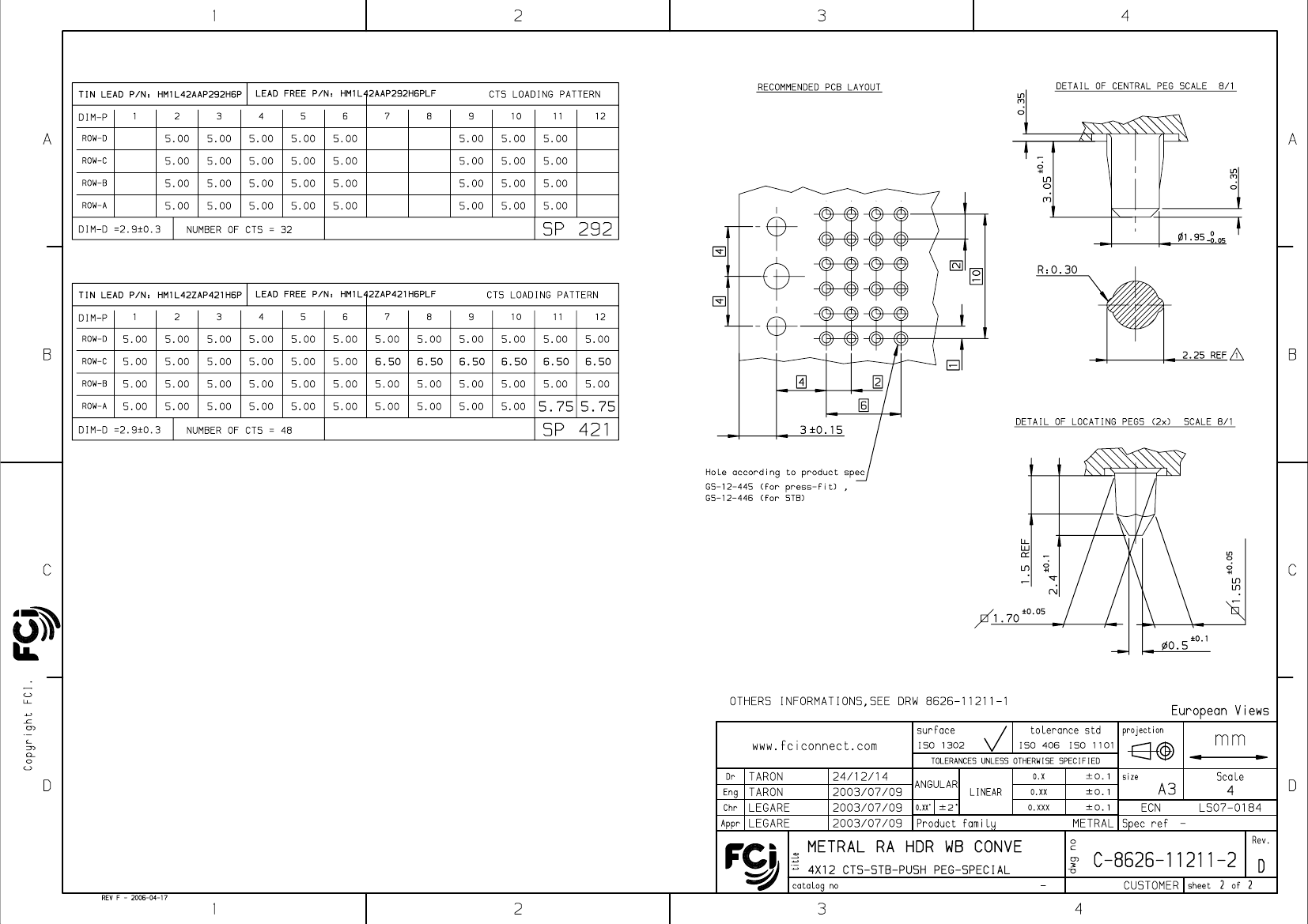

HM1L42ZAP421H6P: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size199KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM1L42ZAP421H6P Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	HM1
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48

PDM: Rev:D

STATUS:

Released

Printed: Sep 29, 2009

.

	HM1L42ZAP421H6P	HM1L42AAP292H6PLF	HM1L42ZAP421H6PLF	HM1L42AAP292H6P
Description	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 32 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 48 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 32 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	unknown	compliant	compliant	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	HM1	HM1	HM1	HM1
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	48	32	48	32
