661/662/663/664 SERIES
661 - 664 SERIES ORDERING CODE
Example:
661-025-264-013

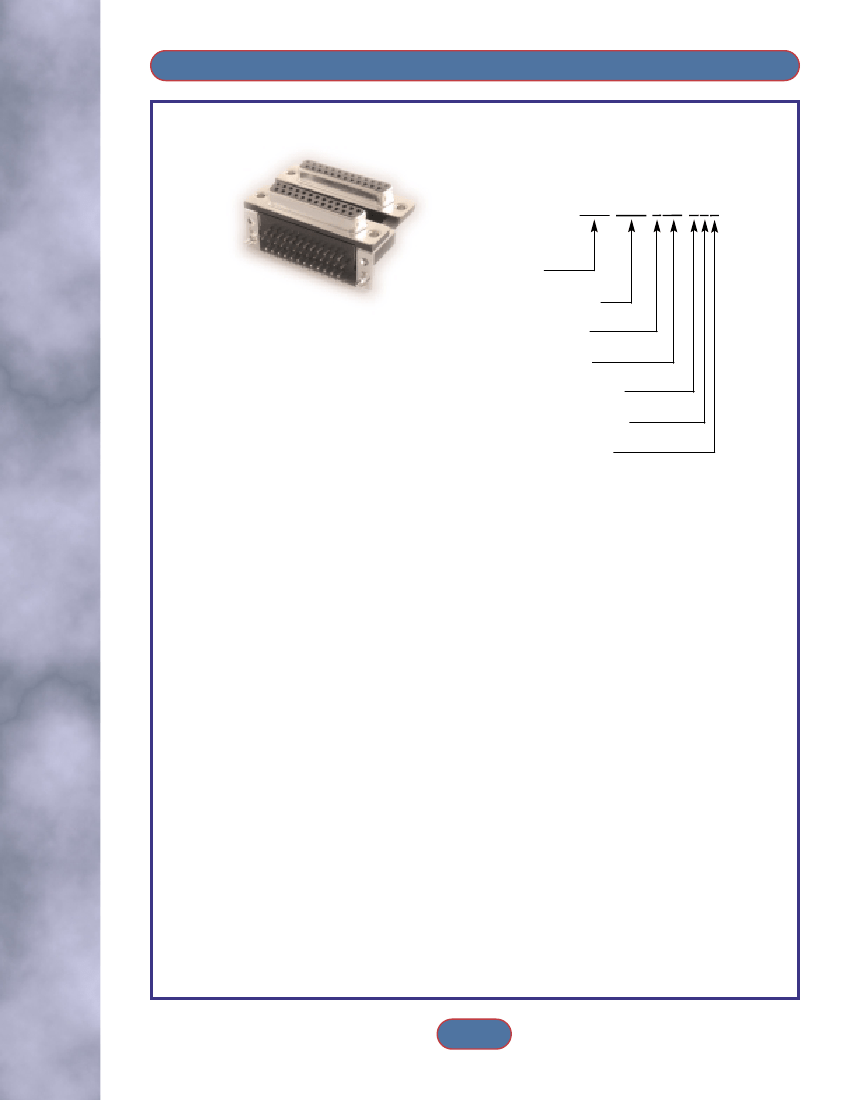

Plug and Receptacle Combination, Dual Port, Right Angle Connectors
SERIES
TOTAL CONTACTS
FEATURES
•
Two contact rows per connector with right angle
bend.
•
Plug and receptacle in 9-, 15-, 25- or 37-pin
contact sizes.
•
Pin and socket contact mating design with PC tail
termination.
•
Metal shell provides EMI/RFI shielding. Plug shell
indents provide grounding and additional mating
retention.
•
Grounding features include grounding bracket and
two-prong boardlock for exceptional retention to
PC board.
•
Mounting options for panel mount or connector
mating include through-hole, threaded inserts
and threaded standoffs.
•
D-shaped connector mating outline provides
polarization design based on requirements of
MIL-C-24308, EIA RS-232 and RS-449.
PLATING CODE
CONTACT CODE
EDAC INTERNAL USE
GROUNDING FEATURE
MOUNTING OPTION
SERIES
661
.................................................Plug over plug
662...............................Receptacle
over receptacle
663
........................................Plug over receptacle
664
.......................................Receptacle over plug
TOTAL CONTACTS
009, 015, 025, 037, 050
PLATING CODE
2
............................................Gold Flash (Class 3)
3
.....................................15µ” (0.38µm) (Class 2)
6
.....................................30µ” (0.76µm) (Class 1)
CONTACT CODE
64.................................Regular
density connectors
67.........................25-pin
female/SCSI II 50 female
68
.........................Ferrite filter (9- and 25-pin only)
69
..............Any high-density connector combination
EDAC INTERNAL USE
0...
.150” (3.81mm) between upper/lower contact rows
0
....... .160” (4.06mm) between upper/lower contact rows
GROUNDING FEATURE
1.......................
.125” (3.18mm) dia. through-hole
3........................Two-prong
boardlocks for PCB hole
5....................
#4-40 UNC threaded mounting hole
7
........................... Rear only two-prong boardlocks
SPECIFICATIONS
•
Insulator Material: Thermoplastic polyester,
UL 94V-0; chemical resistant; colour - black.
•
Ferrite Specifications: Attenuation - 20dB MIN @
30Mhz, 30dB MIN @ 50Mhz and 50dB MIN @
100Mhz.
•
Contact Material: Plug contacts - brass;
receptacle contacts - phosphor bronze.
•
Contact Plating: Gold (see
Ordering Code)
over
nickel for the mating area, tin/lead plating on
contact tails.
•
Shell Material: Tin/lead plated steel.
•
Current Rating: 5 amperes.
•
Contact Resistance: 10 milliohms maximum.
•
Dielectric Withstanding Voltage: 1000V AC rms
at sea level.
•
Insulation Resistance: 5000 megohms minimum.
•
Operating Temperature: -55° to +125° C.
•
Engagement and Separation Force: 1 to 10 oz.
(0.28 to 2.78 N) per contact position.
22

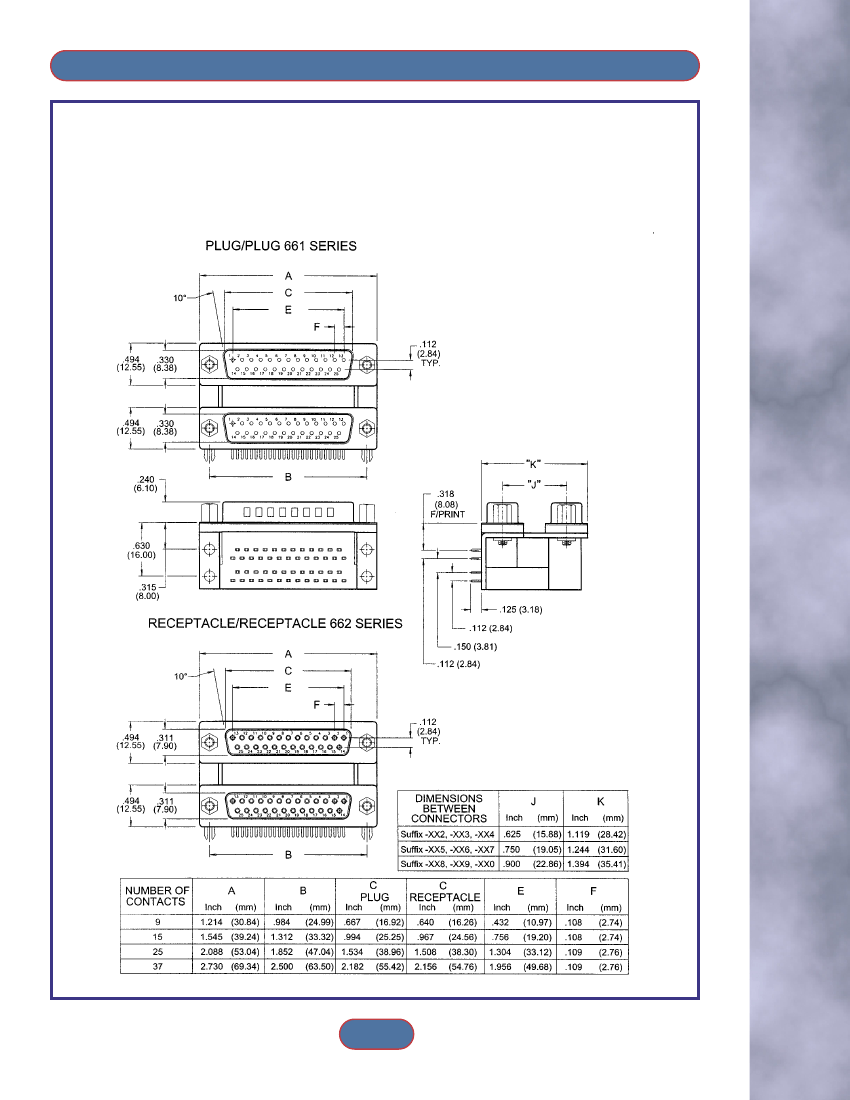

661/662/663/664 SERIES
MOUNTING OPTION
2
...... .625” (15.88mm) #4-40 unified threaded insert
3
.. .625” (15.88mm) #4-40 unified threaded hex standoff
4.............
.625” (15.88mm) .125” clear hole insert
5
...... .750” (19.05mm) #4-40 unified threaded insert
6
.. .750” (19.05mm) #4-40 unified threaded hex standoff
7
................ .750” (19.05mm) .125” clear hole insert
8
...... .900” (22.86mm) #4-40 unified threaded insert
9
.. .900” (22.86mm) #4-40 unified threaded hex standoff
0......................
.900” (22.86) .125” clear hole insert
Plug and Receptacle Combination, Dual
P
ort, Right Angle Connectors
Plug and Receptacle Combina
ti
on, Dual
Po
rt, Right Angle Connectors
23
