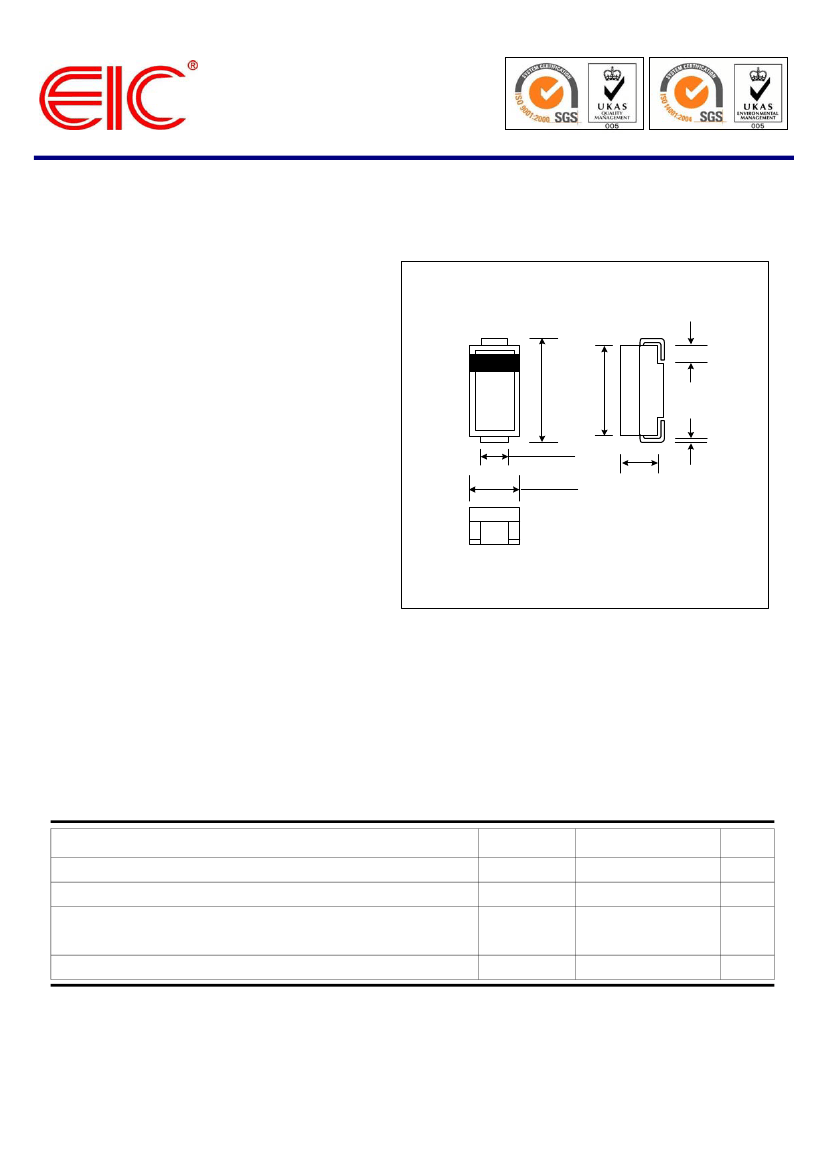

3.0SMCJ11 - 220A
Stand-off Voltage :
11 to 220V
Peak Pulse Power :
3000 W
SURFACE MOUNT TRANSIENT
VOLTAGE SUPPRESSOR
SMC (DO-214AB)
1.1
±
0.3
FEATURES :
* 3000W peak pulse power capability with
a 10/1000µs waveform
* Excellent clamping capability
* Low inductance
* High temperature soldering : 250 °C/10
seconds at terminals.
* Built-in strain relief
* Pb / RoHS Free
3.0
±
0.2
5.8
±
0.15
2.3
±
0.2
0.2
±
0.07
MECHANICAL DATA
*
*
*
*
*
Case : SMC Molded plastic
Epoxy : UL94V-O rate flame retardant
Lead : Lead Formed for Surface Mount
Mounting position : Any
Weight : 0.21 gram
Dimensions in millimeter
DEVICES FOR BIPOLAR APPLICATIONS
For Bi-directional use C or CA Suffix
Electrical characteristics apply in both directions
MAXIMUM RATINGS
Rating at 25
°
C ambient temperature unless otherwise specified.
Rating
Peak Pulse Power Dissipation on 10/1000 µs waveform
Peak Pulse Current on 10/1000 s waveform
(2)(3)
(1)
(1) (2)
Symbol
P
PPM
I
PPM
I
FSM
T
J
, T
STG
7.5
±
0.15
8.0
±
0.15
Value
3000
See Next Table
200
- 55 to + 150
Unit
W
A
A
°
C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load
Operating Junction and Storage Temperature Range
Notes :
(1) Non-repetitive Current pulse, per Fig. 3 and derated above Ta = 25 °C per Fig. 1
(2) Mounted on 5.0 mm2 (0.013 thick) land areas.
(3) Measured on 8.3 ms , single half sine-wave or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Page 1 of 4
Rev. 05 : June 10, 2006
Certificate TH97/10561QM
Certificate TW00/17276EM

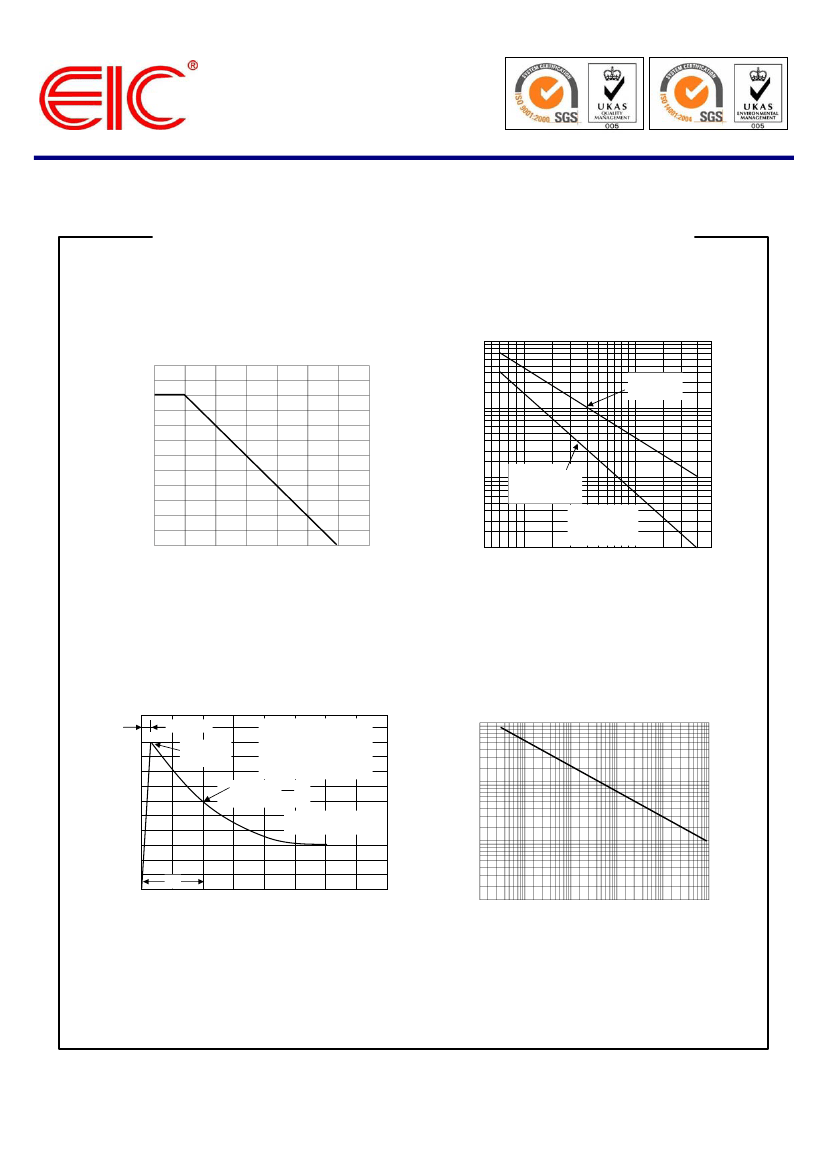

RATING AND CHARACTERISTIC CURVES ( 3.0SMCJ11 - 220A )
FIG.1 - PULSE DERATING CURVE
PEAK PULSE POWER OR CURRENT
DERATING IN PERCENTAGE
120
FIG.2 - TYPICAL JUNCTION CAPACITANCE
10
4
100
C
J
, CAPACITANCE, pF
Measured at
Zero Bias
10
3
80
60
10
2
40
Measured at
Stand-off Voltage
Voltage V
WM
T
J
= 25
°
C
f = 1.0 MHz
Vsig = 50 mV
P-P
5
10
100
500
20
0
0
25
50
75
100
125
150
175
10
Ta, AMBIENT TEMPERATURE, (
°
C)
V
RWM
, REVERSE STAND-OFF VOLTAGE, (V)
FIG.3 - PULSE WAVEFORM
I
PPM
, PEAK PULSE CURRENT, %
tr = 10μs
100
Peak Value
I
PPM
Ta=25
°C
Pulse Width (td) is defined
as that point where the peak
current decays to 50%
of I
PPM
Half Value - I
PPM
2
50
10/1000
μs.
Waveform
as defined by R.E.A.
FIG.4 - PEAK PULSE POWER RATING CURVE
100
P
PPM
,PEAK POWER (kW)
4.0
10
1.0
0
0
td
1.0
2.0
3.0
0.1
0.1
1.0
10
100
1ms
10ms
t, TIME(ms)
td, PULSE WIDTH (μs)
Page 4 of 4
Rev. 05 : June 10, 2006
