Ordering number : ENA0002A
LB1906CL
Overview
Monolithic Digital IC
Stepping Motor Driver IC
LB1906CL is IC with forward/reverse motor drive 2-channel in which low saturation voltage and low voltage operation
possible. Its small sized package is optimal for 2 phase excitation drive of 2 phase bipolar stepping motors for various
portable devices such as digital still cameras.
Features
•
Low saturation voltage, VO (sat) = 0.2V typ at IO = 100mA.
•
Built-in shoot-through current protection circuit.
•
No standby current consumption (or zero).
•
Built-in thermal shutdown circuit.
•
ECSP2828-10 ultraminiature leadless package (2.8mm×2.8mm×0.8mm typ).
Specifications
Absolute Maximum Ratings
at Ta = 25°C
Parameter
Maximum power source voltage
Applied output voltage
Applied input voltage
GND pin outflow current
Allowable power consumption
Operating temperature
Storage temperature
Symbol
VCC max
VOUT max
VIN max
IGND
Pd max
Topr
Tstg
OUT1, OUT2, OUT3, OUT4 pin
IN1, IN2, IN3, IN4 pin
Per channel
With substrate*
Conditions
Ratings
-0.3 to +8.0
VCC+VSF
-0.3 to +8.0
400
450
-20 to +75
-40 to +150
Unit
V
V
V
mA
mW
°C
°C
* Specified substrate : 20.0mm×10.0mm×0.8mm, paper phenol.
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer
'
s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer
'
s products or
equipment.
60607 MS PC / O2505 MS OT B8-7757 No.A0002-1/7
LB1906CL
Allowable Operating Range
at Ta = 25°C
Parameter
Source voltage
Input high level voltage
Input low level voltage
Symbol
VCC
VIH
VIL
IN1, IN2, IN3, IN4 pin
Conditions
Ratings
2.2 to 7.5
1.8 to 7.5
-0.3 to +0.7
Unit
V
V
V
Electric Characteristics
at Ta = 25°C, VCC = 3.3V
Parameter
Power source current
Symbol
ICC0
ICC1
Output saturation voltage
VOUT1
VOUT2
Input current
Spark killer diode
Reverse current
Forward voltage
IS (leak)
VSF
IOUT = 200mA
[Design guarantee]
1
1.7
µA
V
IIN
Conditions
min
IN1 = IN2 = IN3 = IN4 = 0V
IN1 = IN3 = 3V, IN2 = IN4 = 0V
VIN = 3V or 0V IOUT = 100mA
VIN = 3V or 0V IOUT = 200mA [Design guarantee]
VIN = 3V
Ratings
typ
0.1
13
0.2
0.4
40
max
1
19
0.3
0.6
60
µA
mA
V
V
µA
Unit
* Note: Items marked as "Design guarantee" are not tested in individual units.
Package Dimensions
unit : mm (typ)
3301A
600
Pd max -- Ta
Specified substrate: 20.0×10.0×0.8mm
3
Peper phenol
TOP VIEW
2.8
1
2
SIDE VIEW
BOTTOM VIEW
Allowable power dissipation, Pd max -- mW
(0.2)
0.325
10
1
500
450
400
0.3
2.8
0.6
300
270
200
6
0.075
SIDE VIEW
5
0.05
100
(0.8)
0.8
0
-20
0
20
40
60
80
100
(0.015)
Ambient temperature, Ta --
°C
SANYO : ECSP2828-10
Pin Assignment
No.A0002-2/7

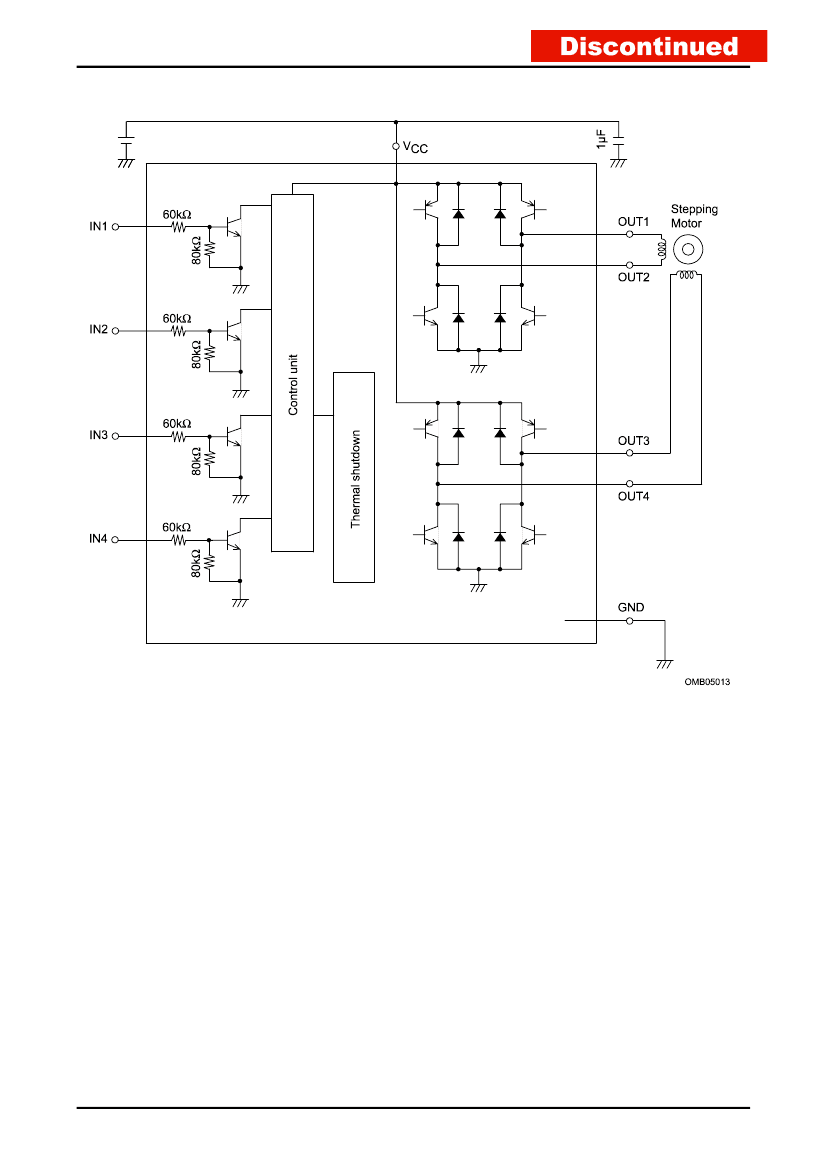

LB1906CL
Input
IN1
L
H
H
L
L
L
L
L
H
H
-
IN2
L
L
L
L
H
H
H
L
L
H
-
IN3
L
L
H
H
H
L
L
L
L
-
H
IN4
L
L
L
L
L
L
H
H
H
-
H
OUT1
OFF
H
H
OFF
L
L
L
OFF
H
OUT2
OFF
L
L
OFF
H
H
H
OFF
L
Output
OUT3
OFF
OFF
H
H
H
OFF
L
L
L
OUT4
OFF
OFF
L
L
L
OFF
H
H
H
Remarks
Standby mode.
2-phase excitation.
The logic output is determined according to which H state is input first. (See note 2.)
Note 1. The "-" symbol in the table indicates a "don't care" value.
Note 2. If H/H values (both high) are input to IN1 and IN2 with the timing shown in (1) below, the IN2 high state, which
is input later than the IN1 high state, will be ignored, and that input state will be handled as an IN1/IN2 = H/L
input state. Similarly, the case shown in (2) below is handled as an IN1/IN2 = L/H input state.
Test Circuit
Supply Current (ICC0)
Supply Current (ICC1)
No.A0002-4/7
LB1906CL

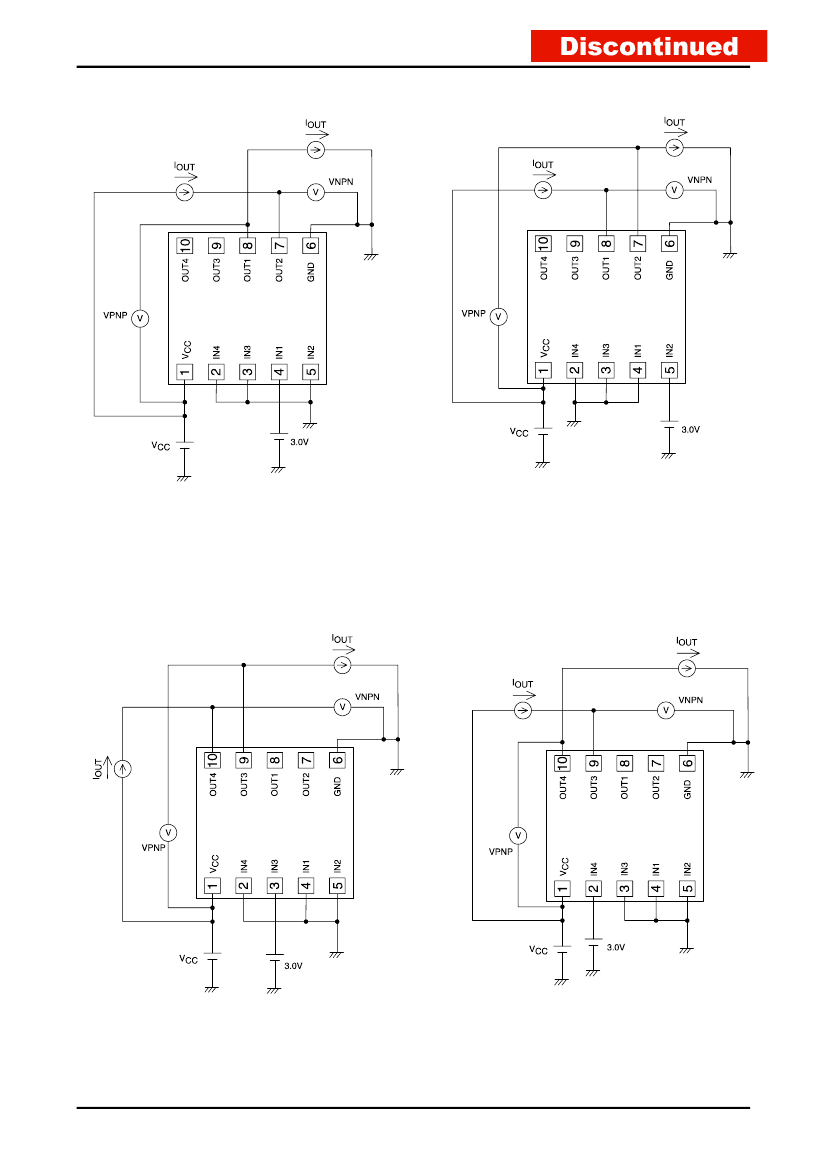

Output Saturation Voltage (1)
Output Saturation Voltage (2)
1) VCC = 3.3V, IOUT = 100mA.
VOUT1 = VPNP + VNPN.
2) VCC = 3.3V, IOUT = 200mA.
VOUT2 = VPNP + VNPN (Design guarantee).
1) VCC = 3.3V, IOUT = 100mA.
VOUT1 = VPNP + VNPN.
2) VCC = 3.3V, IOUT = 200mA.
VOUT2 = VPNP + VNPN (Design guarantee).
Output Saturation Voltage (3)
Output Saturation Voltage (4)
1) VCC = 3.3V, IOUT = 100mA.
VOUT1 = VPNP + VNPN.
2) VCC = 3.3V, IOUT = 200mA.
VOUT2 = VPNP + VNPN (Design guarantee).
1) VCC = 3.3V, IOUT = 100mA.
VOUT1 = VPNP + VNPN.
2) VCC = 3.3V, IOUT = 200mA.
VOUT2 = VPNP + VNPN (Design guarantee).
No.A0002-5/7
