3.0x2.5mm SURFACE MOUNT LED LAMP
Part Number: KPB-3025ESGC-KM
High Efficiency Red
Super Bright Green
Features
3.0mmx2.5mm SMT LED, 1.1mm thickness.
Bi-color,Low power consumption.
Wide viewing angle.
Ideal for backlight and indicator.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Super Bright Green source color devices are made with
Gallium Phosphide Green Light Emitting Diode.

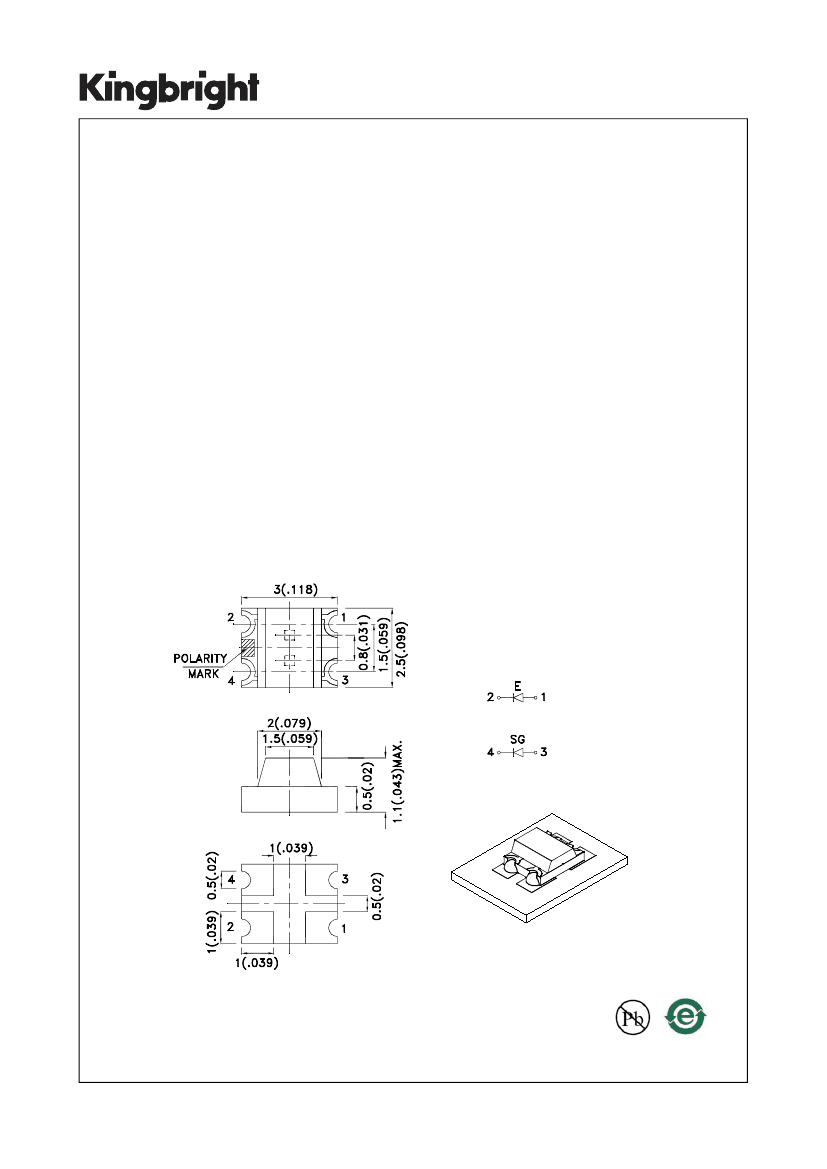

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.2(0.008") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4. The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAG6295
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: FEB/17/2011
DRAWN: Y.H.Wu
PAGE: 1 OF 6
ERP: 1203000696
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KPB-3025ESGC-KM
High Efficiency Red (GaAsP/GaP)
Super Bright Green (GaP)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
15
15
Water Clear
8
8

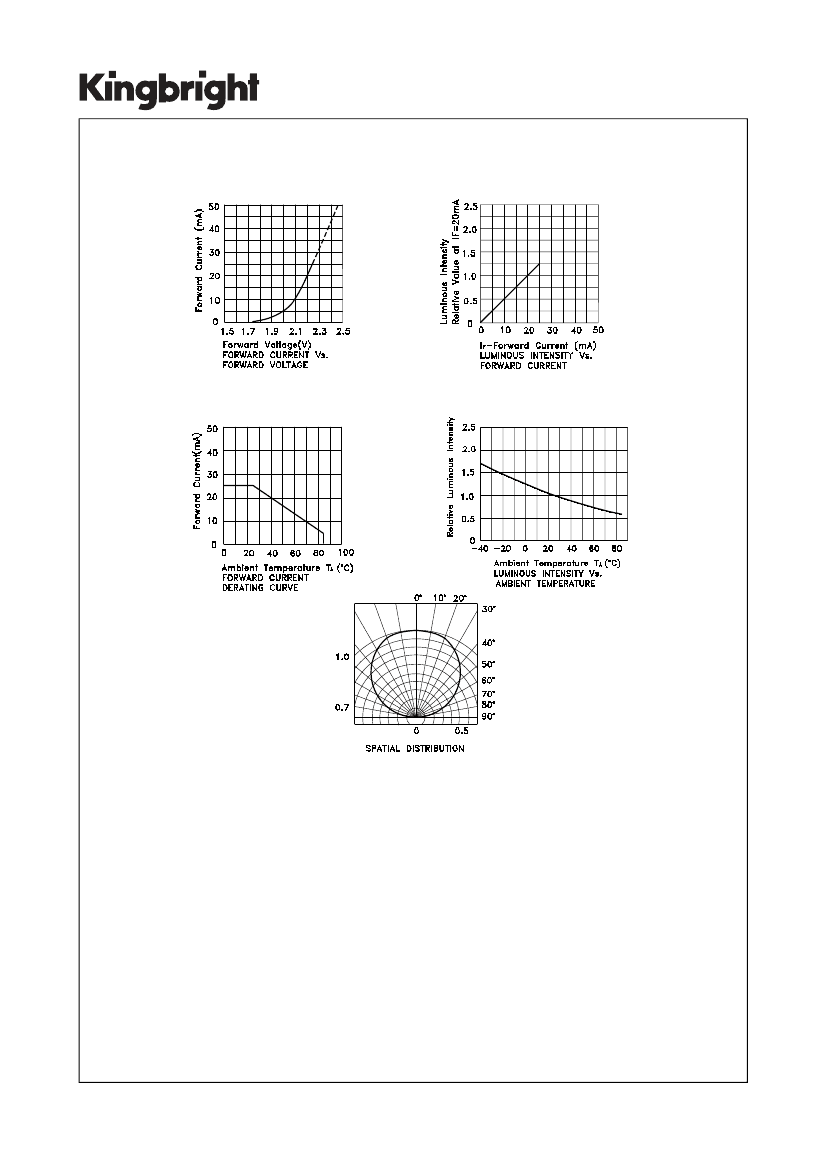

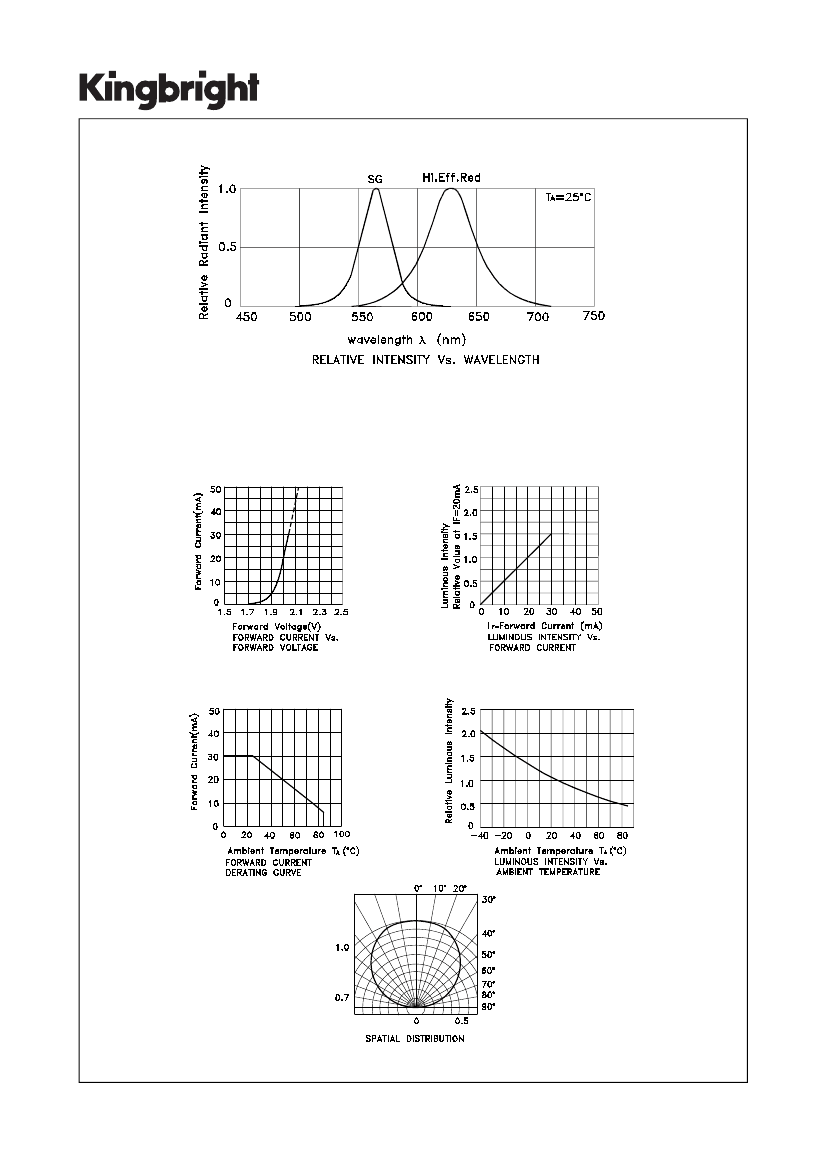

Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
High Efficiency Red
Super Bright Green
Typ.
627
565
625
568
45
30
15
15
2.0
2.2
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
High Efficiency Red
75
30
160
5
Super Bright Green
62.5
25
140
Units
mW
mA
mA
V
-40°C To +85°C
-40°C To +85°C
SPEC NO: DSAG6295
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: FEB/17/2011
DRAWN: Y.H.Wu
PAGE: 2 OF 6
ERP: 1203000696
KPB-3025ESGC-KM

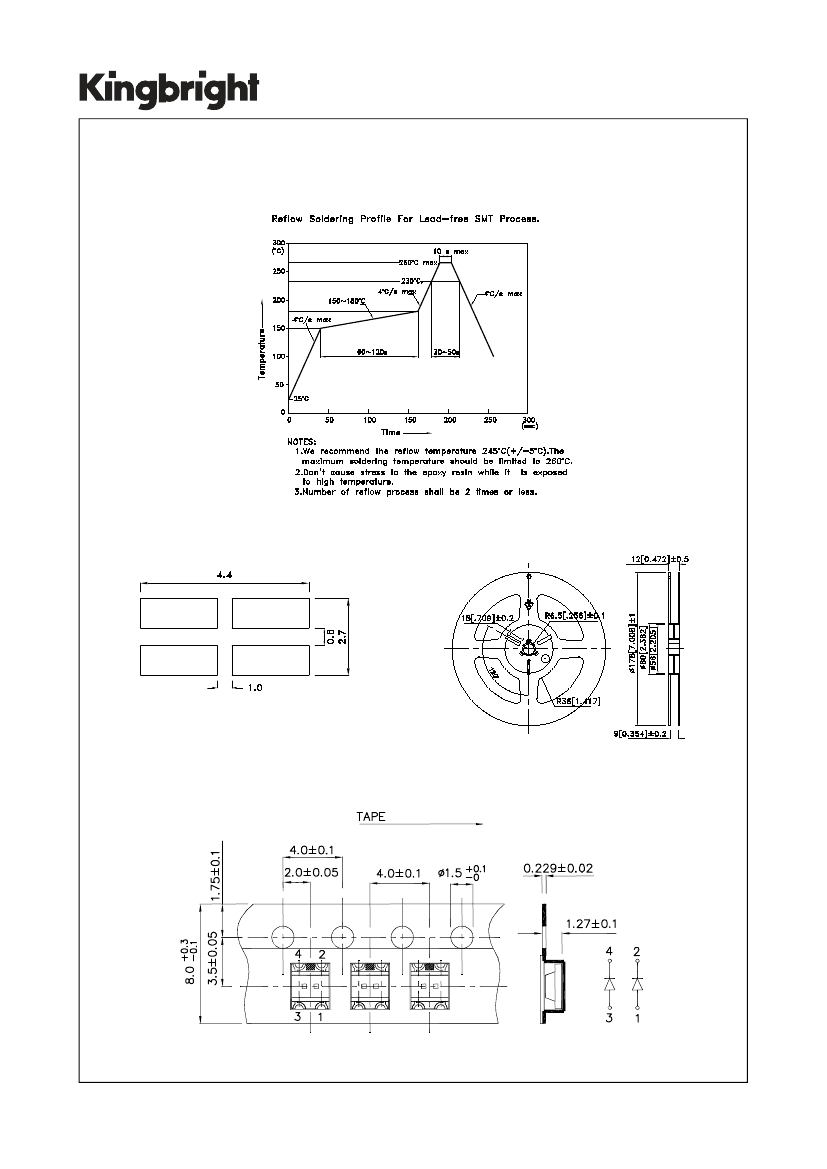

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAG6295
APPROVED: WYNEC
REV NO: V.3
CHECKED: Allen Liu
DATE: FEB/17/2011
DRAWN: Y.H.Wu
PAGE: 5 OF 6
ERP: 1203000696
