MR-25SRFD2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MR-25SRFD2

MR-25SRFD2: DescriptionRectangular Connector,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

MR-25SRFD2 Overview

Rectangular Connector,

MR-25SRFD2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	Silver (Ag)
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

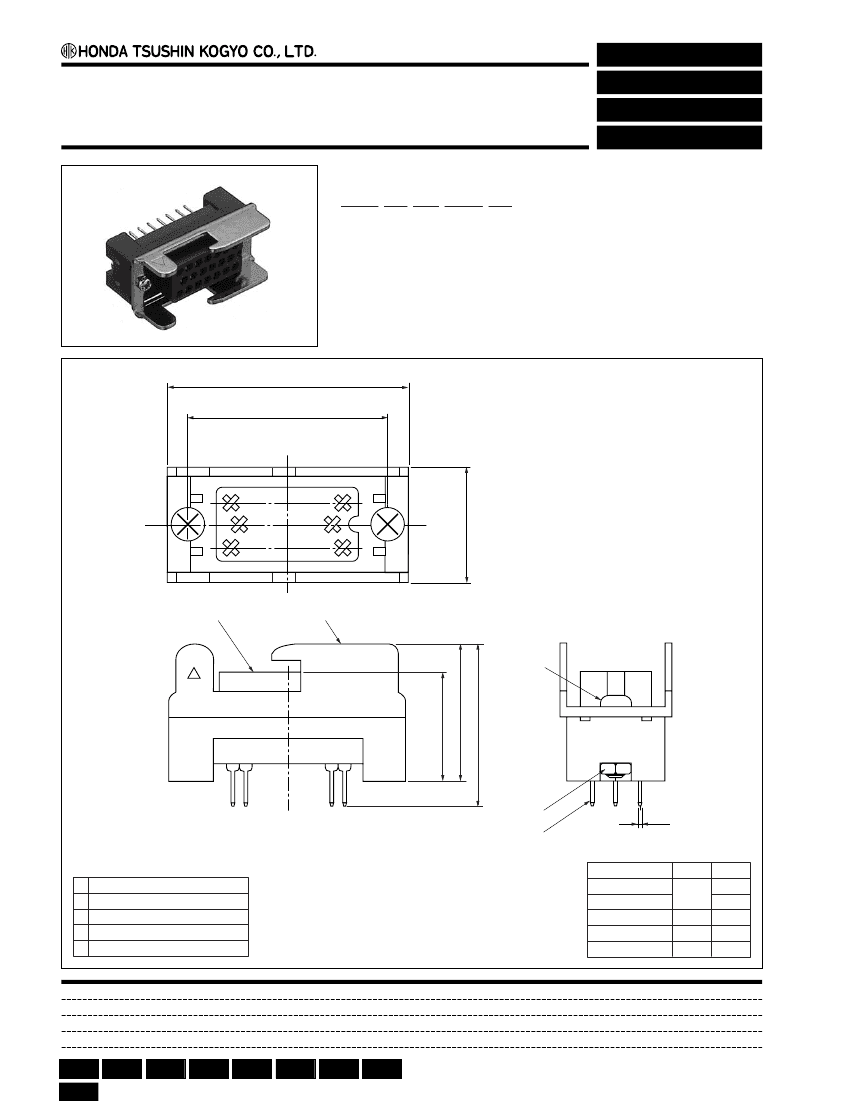

Rectangular connector

Straight DIP type female connector with brace for PCBs

MR-( )SRFD2( )

●

Configuration of product Part No.

For PCBs

Straight DIP

With brace

MR- ( ) SR FD2 ( )

➀

➁

➂

➃

➄

➀

Series name

➁

No. of contacts: 16, 20, 25, 34 or 50

➂

Brace for skew type case

➃

Form of contact: Straight DIP, female

➄

Contact plating:

None: Silver plate

: Gold plate

15.7

21.7 REF.

18.8

15.1

∞

™

œ0.5

Ω

Dimensions

●

Components

➀

Insulator

➁

Contacts

➂

Brace

➃

Small-sized Phillips head screws

➄

Hexagon nuts

Part No.

MR-16SRFD2( )

MR-20SRFD2( )

MR-25SRFD2( )

MR-34SRFD2N( )

MR-50SRFD2( )

33.0

40.0

45.0

67.0

25.2

27.8

33.0

40.8

56.4

Mating case:

MR-( )NSA

Mating connectors with case:

MR-( )NS2M( ) etc.

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

MR-25SRFD2 Related Products

	MR-25SRFD2	MR-16SRFD2	MR-16SRFD2G	MR-20SRFD2	MR-20SRFD2G	MR-25SRFD2G	MR-50SRFD2	MR-50SRFD2G	MR-34SRFD2NG	MR-34SRFD2N
Description	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR
Contact to complete cooperation	SILVER	SILVER	GOLD	SILVER	GOLD	GOLD	SILVER	GOLD	GOLD	SILVER
Contact completed and terminated	Silver (Ag)	Silver (Ag)	Gold (Au)	Silver (Ag)	Gold (Au)	Gold (Au)	Silver (Ag)	Gold (Au)	Gold (Au)	Silver (Ag)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
