P6KE91CTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> P6KE91CTR

P6KE91CTR: DescriptionTransient Suppressor,; CategoryDiscrete semiconductor diode; File Size74KB，3 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com

Download Datasheet Parametric View All

P6KE91CTR Overview

Transient Suppressor,

P6KE91CTR Parametric

Parameter Name	Attribute value
Maker	MDE Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

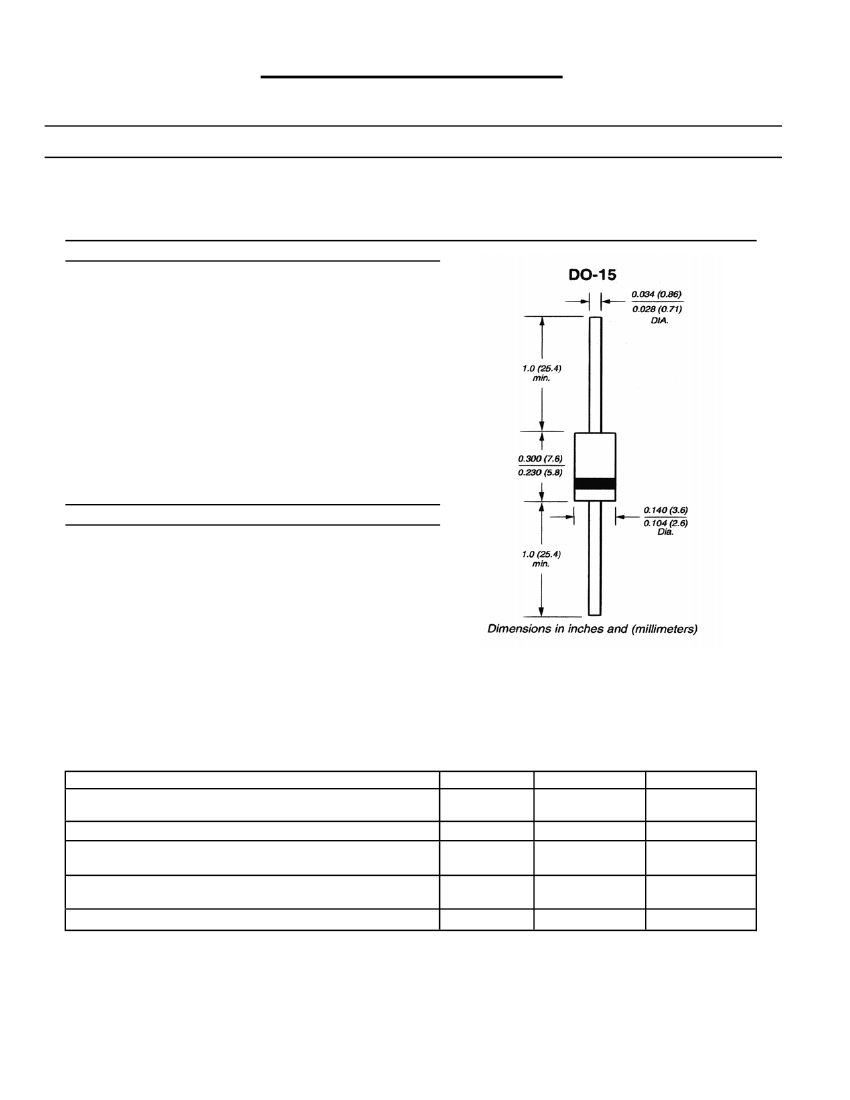

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414

1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

P6KE SERIES

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE - 6.8 TO 550 Volts

600 Watt Peak Power 5.0 Watt Steady State

FEATURES

• Plastic package has Underwriters Laboratory

Flammability Classification 94 V-O

• Glass passivated chip junction in DO-15

(DO-204AC) package

• 600W surge capability at 10/1000 µs

• Low zenen impedance

• Excellent clamping capability

• Fast response time: typically less than

1.0 ps from 0 volts to BV min.

• Typical IR less than 1µA above 10V

• High temperature soldering guaranteed:

265°C/10 seconds/ .375", (9.5mm) lead

length, 5lbs., (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-15 Molded plastic

Terminals: Plated Axial leads, solderable per

MIL-STD-750, Method 2026

Polarity: Color band denoted positive end (cathode)

except Bipolar

Mounting Position: Any

Weight: 0.015 ounces, 0.4 grams

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA Suffix for types P6KE6.80 thru types P6KE550 (e.g. P6KE6.8C, P6KE550CA)

Electrical characteristics apply in both directions.

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation at T

= 25 °C, T

= 1ms

(NOTE 1)

Peak Pulse Current of on 10/1000 µs waveform

(Note 1)

Steady State Power Dissipation at

= 75°C

Lead lengths .375", 9.5mm

(Note 2)

Peak Forward Surge Current, 8.3ms Single Half Sine-wave

Superimposed on Rated Load,

(JEDEC Method)(Note 3)

Operatings and Storage Temperature Range

SYMBOL

PPM

M(AV)

FSM

, T

STG

VALUE

Minimum 600

SEE TABLE 1

1.0

-55 +175

UNITS

Watts

Amps

Watts

Amps

°C

NOTES:

1. Non-repetitive current pulse, per Fig.3 and derated above Ta=25 °C per Fig.2.

2. Mounted on Copper Pad area of 1.6x1.6" (40x40mm) per Fig.5.

3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle=4 pulses per minutes maximum.

Certified RoHS Compliant

UL File # E223026
