DAC347LPC-12-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC347LPC-12-B

DAC347LPC-12-B: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,; CategoryAnalog mixed-signal IC converter; File Size97KB，2 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

DAC347LPC-12-B Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,

DAC347LPC-12-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
Reach Compliance Code	unknown
Maximum analog output voltage	5 V
Minimum analog output voltage	-5 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T18
JESD-609 code	e0
length	25.197 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Maximum stabilization time	20 µs
Maximum slew rate	12 mA
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

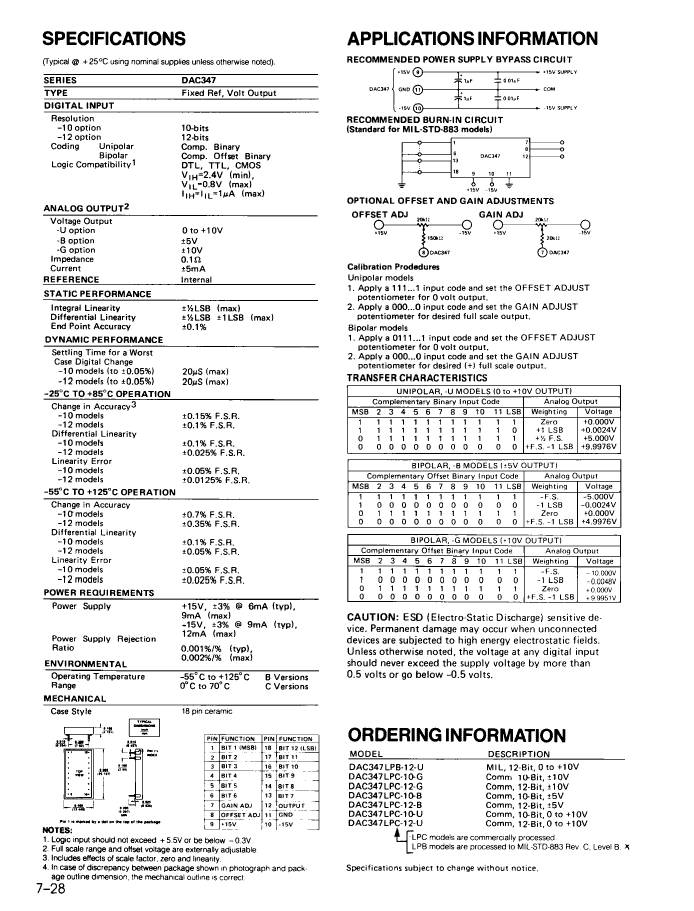

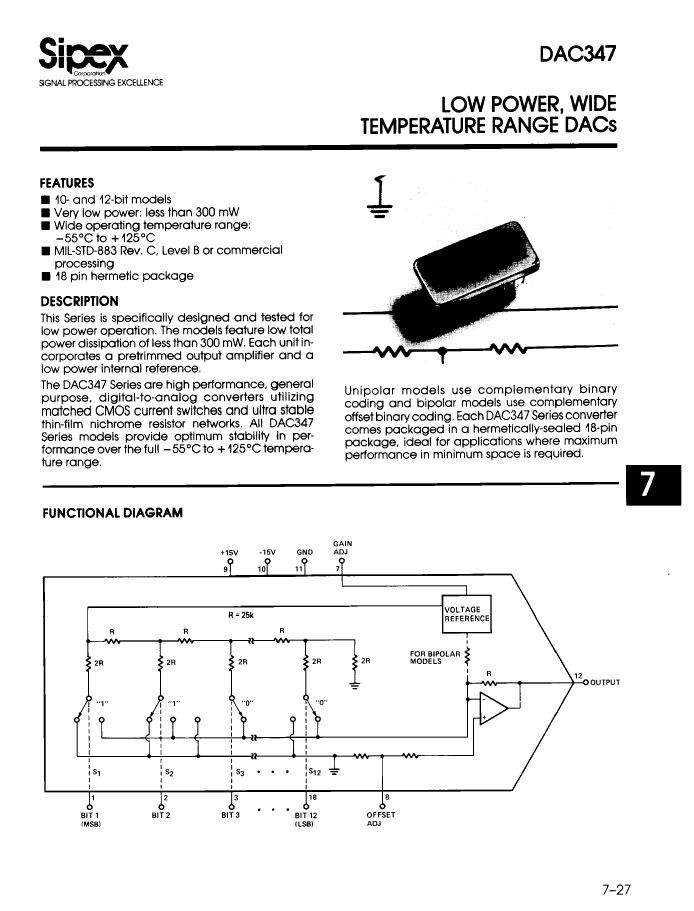

Preview

Download Datasheet

View All

DAC347LPC-12-B Related Products

	DAC347LPC-12-B	DAC347LPC-12-U	DAC347LPC-12-G	DAC347LPB-12-U	DAC347LPC-10-B	DAC347LPC-10-U	DAC347LPC-10-G
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	5 V	10 V	10 V	10 V	5 V	10 V	10 V
Minimum analog output voltage	-5 V	-	-10 V	-	-5 V	-	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY	COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18	R-CDIP-T18
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm	25.197 mm
Maximum linear error (EL)	0.012%	0.012%	0.012%	0.012%	0.049%	0.049%	0.049%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	10	10	10
Number of functions	1	1	1	1	1	1	1
Number of terminals	18	18	18	18	18	18	18
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	20 µs	20 µs	20 µs	20 µs	20 µs	20 µs	20 µs
Maximum slew rate	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	SIPEX	-	SIPEX	SIPEX	SIPEX	SIPEX	SIPEX
