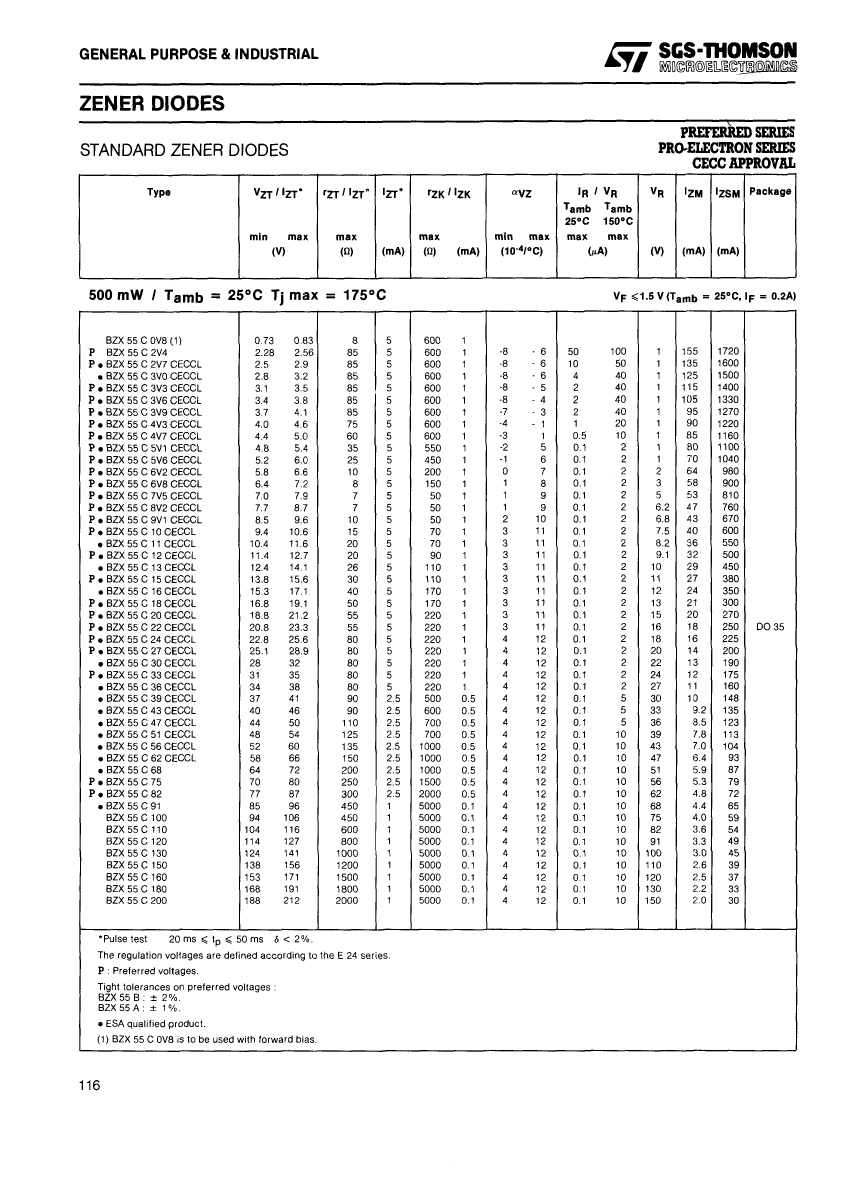

160V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JEDEC-95 code | DO-35 |
| JESD-30 code | O-LALF-W2 |
| JESD-609 code | e0 |
| Maximum knee impedance | 5000 Ω |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -55 °C |
| Package body material | GLASS |
| Package shape | ROUND |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 0.5 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 160 V |
| Maximum reverse current | 0.1 µA |
| surface mount | NO |
| technology | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE |
| Terminal location | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Voltage temperatureCoeff-Max | 192 mV/°C |
| Working test current | 1 mA |
| BZX55C160 | BZX55C200 | BZX55C100 | BZX55C120 | BZX55C130 | BZX55C150 | BZX55C180 | |
|---|---|---|---|---|---|---|---|
| Description | 160V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 200V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 100V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 120V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 130V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 150V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | 180V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JEDEC-95 code | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 | DO-35 |
| JESD-30 code | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 | O-LALF-W2 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum knee impedance | 5000 Ω | 5000 Ω | 5000 Ω | 5000 Ω | 5000 Ω | 5000 Ω | 5000 Ω |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS | GLASS |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W | 0.5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 160 V | 200 V | 100 V | 120 V | 130 V | 150 V | 180 V |
| Maximum reverse current | 0.1 µA | 0.1 µA | 0.1 µA | 0.1 µA | 0.1 µA | 0.1 µA | 0.1 µA |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE | WIRE |
| Terminal location | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL | AXIAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Voltage temperatureCoeff-Max | 192 mV/°C | 240 mV/°C | 120 mV/°C | 144 mV/°C | 156 mV/°C | 180 mV/°C | 216 mV/°C |
| Working test current | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA |
