DAC02N datasheet, PDF - EEWORLD Datasheet

DAC02N: DescriptionIC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, UUC18, 0.162 X 0.090 INCH, DIE-18, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size183KB，5 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

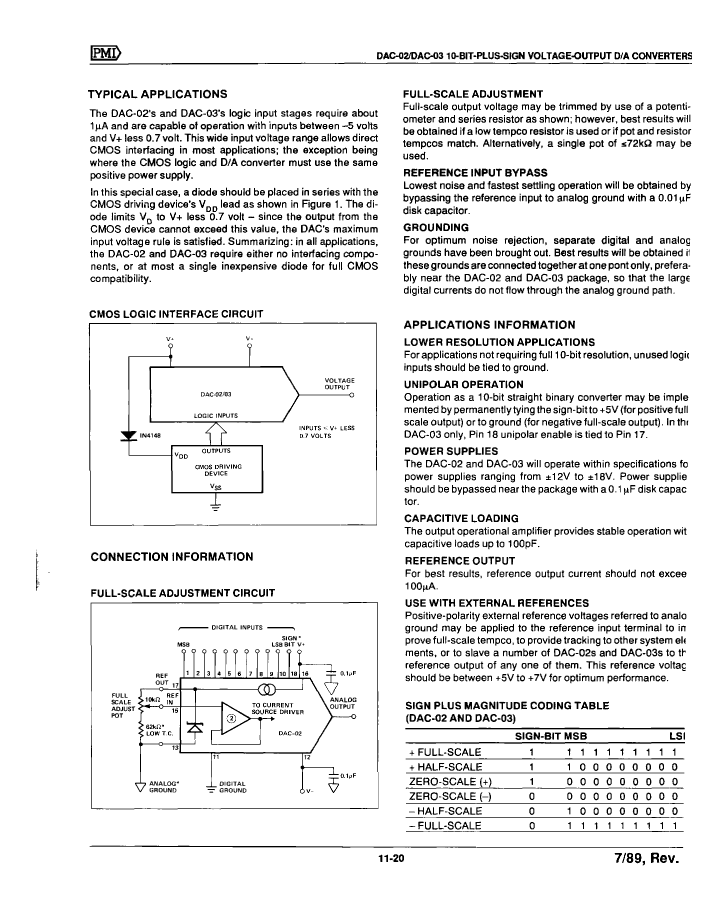

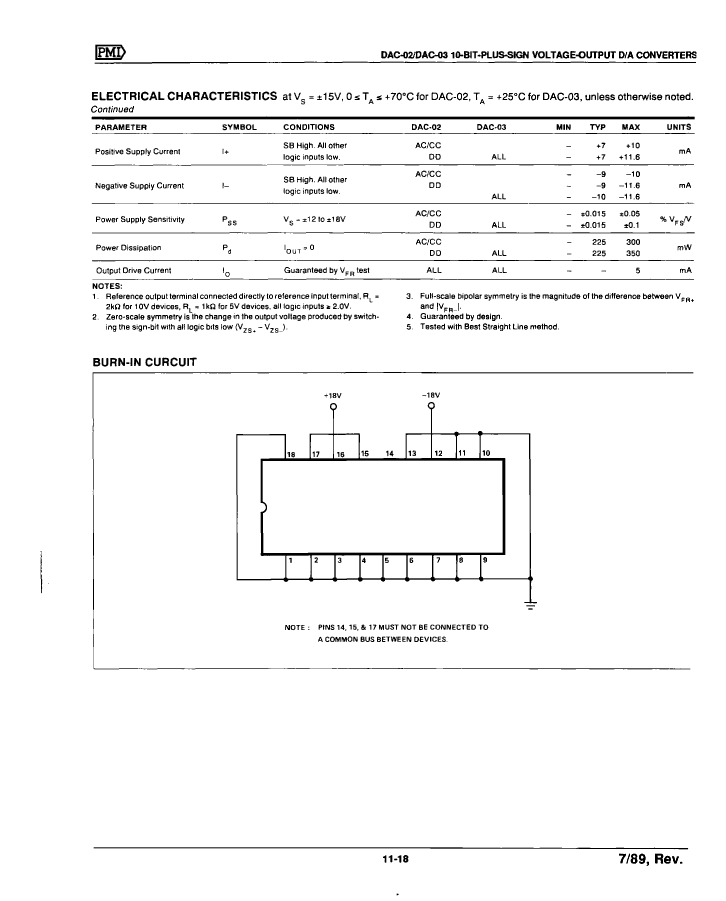

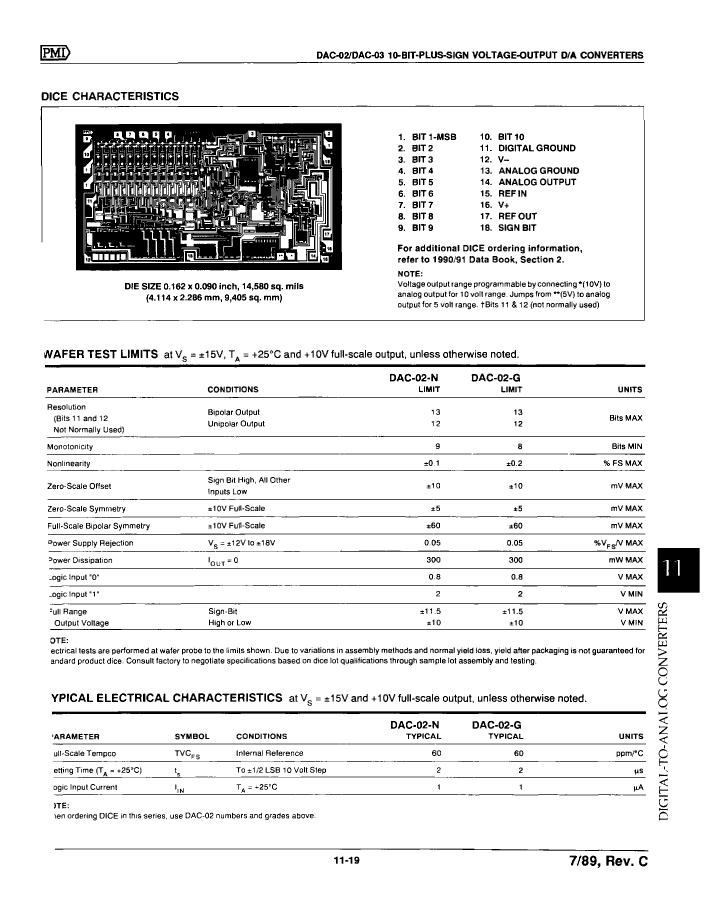

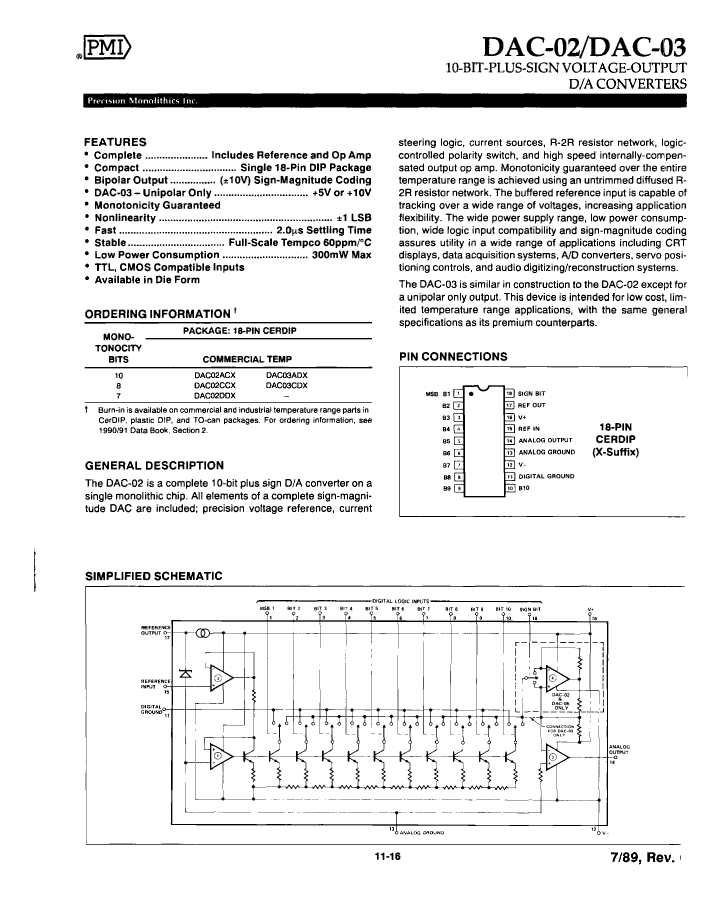

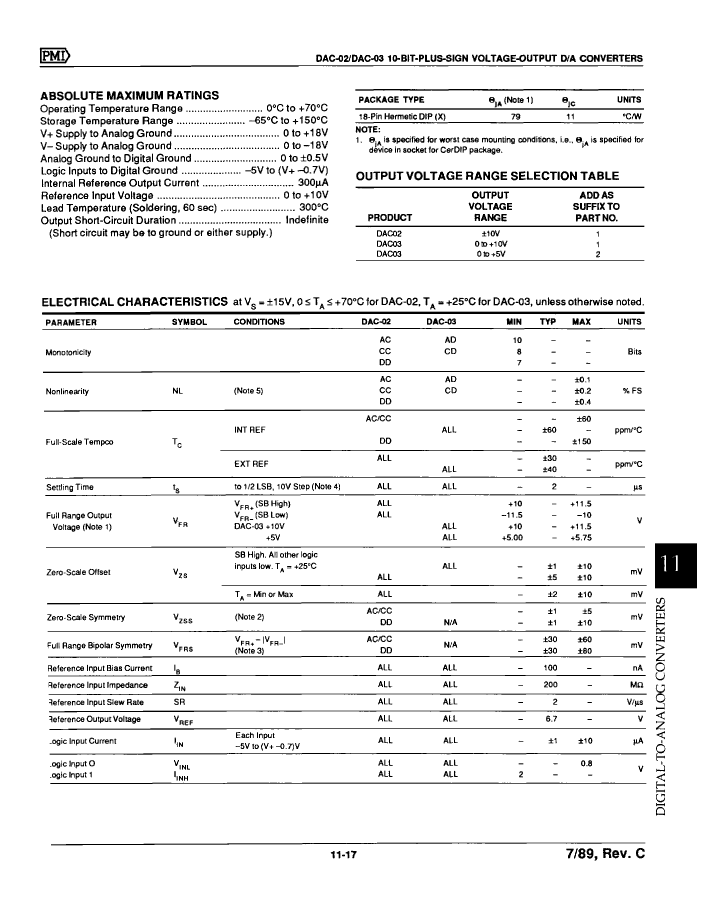

DAC02N Overview

IC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, UUC18, 0.162 X 0.090 INCH, DIE-18, Digital to Analog Converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIE
package instruction	0.162 X 0.090 INCH, DIE-18
Contacts	18
Reach Compliance Code	compliant
Maximum analog output voltage	11.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-XUUC-N18
JESD-609 code	e0
Maximum linear error (EL)	0.1%
Nominal negative supply voltage	-15 V
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Nominal settling time (tstl)	2 µs
Nominal supply voltage	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

	DAC02N	DAC02G
Description	IC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, UUC18, 0.162 X 0.090 INCH, DIE-18, Digital to Analog Converter	IC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, UUC18, 0.162 X 0.090 INCH, DIE-18, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible
Maker	ADI	ADI
Parts packaging code	DIE	DIE
package instruction	0.162 X 0.090 INCH, DIE-18	0.162 X 0.090 INCH, DIE-18
Contacts	18	18
Reach Compliance Code	compliant	compliant
Maximum analog output voltage	11.5 V	11.5 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-XUUC-N18	R-XUUC-N18
JESD-609 code	e0	e0
Maximum linear error (EL)	0.1%	0.2%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	10	10
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	70 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE
Package shape	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Nominal settling time (tstl)	2 µs	2 µs
Nominal supply voltage	15 V	15 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
