BR3501-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BR3501-C

BR3501-C: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size189KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

BR3501-C Overview

Rectifier Diode,

BR3501-C Parametric

Parameter Name	Attribute value
Maker	SECOS
Reach Compliance Code	compliant
ECCN code	EAR99

Preview

Download Datasheet

View All

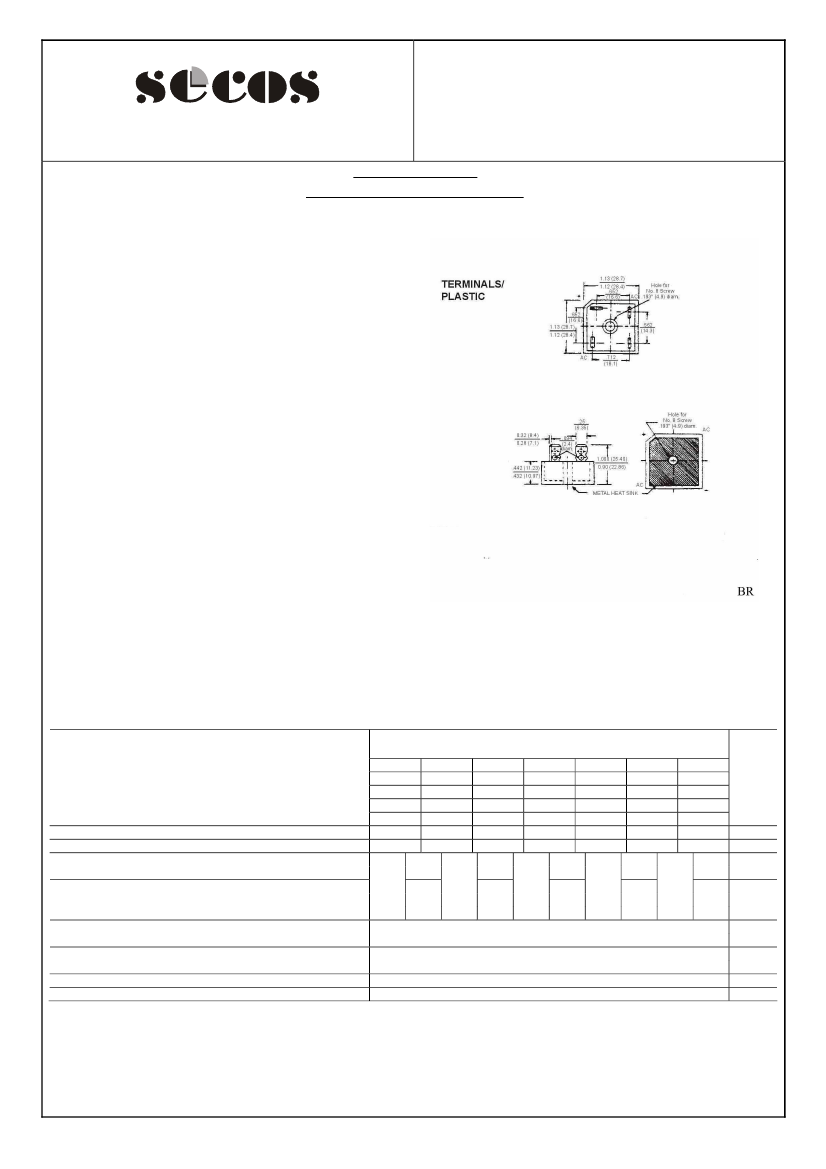

BR 10/15/25/35/50 Series

Elektronische Bauelemente

VOLTAGE 50V ~ 1000V

10 / 15 / 25 / 35 / 50 AMP Silicon Bridge Rectifiers

RoHS Compliant Product

A suffix of "-C" specifies halogen & lead-free

FEATURES

Surge overload 240 ~ 400 Amperes peak

Low forward voltage drop

Mounting Position : Any

Electrically isolated base – 2000 volts

Solderable 0.25” FASTON terminals

Materials used carries U/L recognition

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25

ambient temperature unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

TYPE NUMBER

10005

15005

25005

35005

50005

240

300

1.0

-40 to +125

1001

1501

2501

3501

5001

100

1002

1502

2502

3502

5002

200

140

300

1004

1504

2504

3504

5004

400

280

400

1006

1506

2506

3506

5006

600

420

1008

1508

2508

3508

5008

800

560

400

µA

1010

1510

2510

3510

5010

1000

700

UNITS

Maximum Recurrent Peak Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

Maximum Average Forward

Rectified Output Current @Tc=55

Peak Forward Surge Current

8.3ms single half sine-wave

Super imposed on rated load

Maximum Forward Voltage Drop per element

At 5.0/7.5/12.5/17.5/25.0A Peak

Maximum Reverse Current at Rate

DC Blocking Voltage per element @T

=25

Operating Temperature Range Tc

Storage Temperature Range T

http://www.SeCoSGmbH.com/

Any changing of specification will not be informed individual

01-Jun-2002 Rev. A

Page 1 of 2

BR3501-C Related Products

	BR3501-C	BR1506-C	BR2502-C	BR15005-C	BR2506-C	BR3502-C	BR5010-C	BR1002-C
Description	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,	Rectifier Diode,
Maker	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
