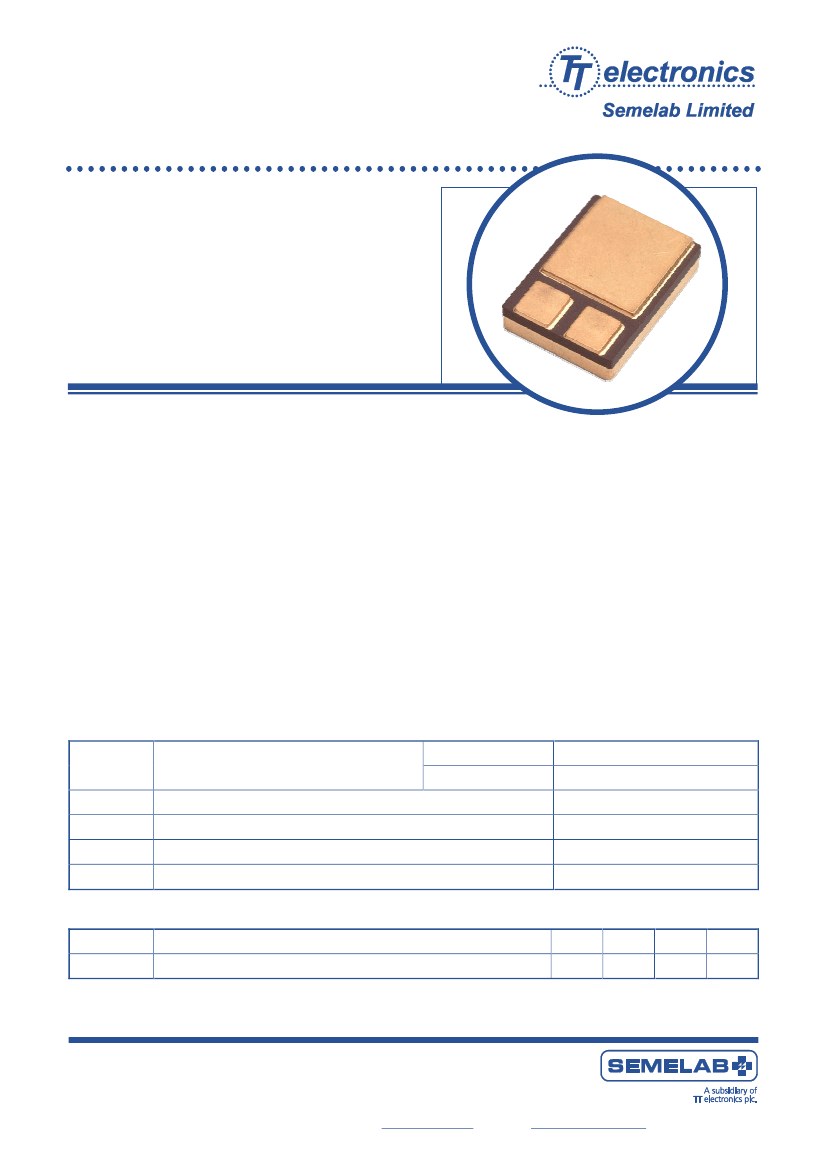

POSITIVE ADJUSTABLE
VOLTAGE REGULATOR
IP117SMD
/
IP117ASMD
/
IP117HVSMD /
IP117AHVSMD /
LM117SMD
LM117ASMD
LM117HVSMD
LM117AHVSMD
FEATURES
•
•
•
•
•
1.5A Output Current Guaranteed
Internal Thermal Overload Protection
Output Short Circuit Protected
Hermetic Ceramic Surface Mount Package
Screening Options Available
APPLICATIONS
•
•
•
Adjustable Power Supplies
System Power Supplies
Precision Voltage / Current Regulators
DESCRIPTION
The 117 Series regulators are adjustable 3 terminal voltage regulators capable of supplying in excess of 1.5A over an output
voltage range of 1.25V to 40V (HV Series, 60V). The regulators are exceptionally easy to apply requiring only 2 external resistors
to set the output voltage.
Every effort has been made to make these devices easy to use and difficult to damage. Internal current limiting and power
limiting coupled with true thermal limiting prevents damage due to overloads or shorts, even if the regulators are not fastened
to a heat sink.
ABSOLUTE MAXIMUM RATINGS
(TC = 25°C unless otherwise stated)
VI - VO
IO
PD
TJ
Tstg
Input – Output Voltage Differential
Standard
HV Series
Output Current
Power Dissipation
Operating Junction Temperature Range
Storage Temperature Range
40V
60V
Internally Limited
Internally Limited
-55 to +150°C
-65 to +150°C
THERMAL PROPERTIES
Symbols
R
θJC
Parameters
Thermal Resistance, Junction To Case
Min.
Typ.
Max.
3.5
Units
°C/W
** This datasheet supersedes document 2829
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 8371
Issue 1
Page 1 of 5
Website:
http://www.semelab-tt.com
POSITIVE ADJUSTABLE
VOLTAGE REGULATOR
ELECTRICAL CHARACTERISTICS(1)(3)
(TC = 25°C unless otherwise stated)
LM117, IP117, LM117HV, IP117HV
Symbols
VREF
Parameters
Reference Voltage
Test Conditions
IOUT = 10mA
10mA
≤
IOUT
≤
IMAX, P
≤
PMAX,
3V
≤
(VIN-VOUT)
≤
VMAX
3V
≤
(VIN-VOUT)
≤
VMAX,
IOUT = 10mA
VOUT
≤
5V
Min.
1.200
Typ
1.250
1.250
0.010
Max.
1.300
Units
V
•
1.200
1.300
0.020
0.050
15
0.3
50
1.0
0.070
∆
V
OUT
∆
V
IN
Line Regulation (2)
•
%/V
mV
%
mV
%
%/W
dB
0.020
5
0.1
∆
VOUT
∆
IOUT
Load Regulation (2)(3)
10mA
≤
IOUT
≤
IMAX
VOUT
≥
5V
VOUT
≤
5V
VOUT
≥
5V
•
•
20
0.3
0.030
65
66
80
50
0.2
3.5
3.5
1.5
0.3
2.2
0.5
0.1
1.0
0.3
0.001
Thermal Regulation
Ripple Rejection
IADJ
Adjust Pin Current
Adjust Pin Current Change
VIN = 7.92V, IOUT = 1.5A,
PD = 10W, TA = 25°C, 20ms Pulse
VOUT = 10V
f = 120Hz
CADJ = 0
CADJ = 10µF
•
•
10mA
≤
IOUT
≤
IMAX,
2.5V
≤
(VIN-VOUT)
≤
VMAX
(VIN - VOUT)
=
40V
(VIN - VOUT)
=
60V (HV Series)
(VIN - VOUT)
≤
15V
100
µA
5
5
7
∆
IADJ
IMIN
•
•
•
•
•
•
•
Minimum Load Current
mA
ICL
Current Limit
(VIN - VOUT) = 40V
(VIN - VOUT) = 60V (HV Series)
A
∆
VOUT
∆
TEMP
∆
VOUT
∆
TIME
en
Temperature Stability
Long Term Stability
RMS Output Noise
(% of VOUT)
TA = 125°C, 1000Hrs
TA = 25°C, 10Hz
≤
f
≤
10KHz
1.0
%
Notes
The
●
denotes the specifications which apply over the full operating temperature range.
(1)
(2)
Test conditions unless otherwise stated: VIN - VOUT = 5V, IOUT = 0.5A, PMAX = 10W, IMAX = 1.5A
Regulation is measured at constant junction temperature, using pulse testing at a low duty cycle. Changes in output voltage due to heating
effects are covered under thermal regulation specifications. Load regulation is measured at the junction of the wide and narrow portion of
the output lead.
VMAX = 40V for LM117, IP117, LM117A, IP117A
VMAX = 60V for LM117HV, IP117HV, LM117AHV, IP117AHV
(3)
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Website:
http://www.semelab-tt.com
Document Number 8371
Issue 1
Page 2 of 5
POSITIVE ADJUSTABLE
VOLTAGE REGULATOR
ELECTRICAL CHARACTERISTICS(1)(3)
(TC = 25°C unless otherwise stated)
LM117A, IP117A, LM117AHV, IP117AHV
Symbols
VREF
Parameters
Reference Voltage
Test Conditions
IOUT = 10mA
10mA
≤
IOUT
≤
IMAX, P
≤
PMAX,
3V
≤
(VIN-VOUT)
≤
VMAX
3V
≤
(VIN-VOUT)
≤
VMAX,
IOUT = 10mA
VOUT
≤
5V
Min.
1.238
Typ
1.250
1.250
0.005
Max.
1.262
Units
V
●
1.225
1.270
0.010
0.020
15
0.3
50
1.0
0.020
mV
%
mV
%
%/W
%/V
∆
V
OUT
∆
V
IN
Line Regulation (2)
●
0.010
5
0.1
∆
VOUT
∆
IOUT
Load Regulation (2)(3)
10mA
≤
IOUT
≤
IMAX
VOUT
≥
5V
VOUT
≤
5V
VOUT
≥
5V
●
●
15
0.3
0.002
65
66
80
50
0.2
3.5
3.5
1.5
0.3
2.2
0.5
0.1
1.0
0.3
0.001
Thermal Regulation
VIN = 7.92V, IOUT = 1.5A,
PD = 10W, TA = 25°C, 20ms Pulse
VOUT = 10V
f = 120Hz
CADJ = 0
CADJ = 10µF
●
Ripple Rejection
IADJ
Adjust Pin Current
Adjust Pin Current Change
dB
100
µA
5
5
7
●
10mA
≤
IOUT
≤
IMAX,
2.5V
≤
(VIN-VOUT)
≤
VMAX
(VIN - VOUT)
=
40V
(VIN - VOUT)
=
60V (HV Series)
(VIN - VOUT)
≤
15V
∆
IADJ
IMIN
●
●
●
●
●
●
●
Minimum Load Current
mA
ICL
Current Limit
(VIN - VOUT) = 40V
(VIN - VOUT) = 60V (HV Series)
A
∆
VOUT
∆
TEMP
∆
VOUT
∆
TIME
en
Temperature Stability
Long Term Stability
RMS Output Noise
(% of VOUT)
TA = 125°C, 1000Hrs
TA = 25°C, 10Hz
≤
f
≤
10KHz
2
1.0
%
Notes
The
●
denotes the specifications which apply over the full operating temperature range.
(1)
(2)
Test conditions unless otherwise stated: VIN - VOUT = 5V, IOUT = 0.5A, PMAX = 10W, IMAX = 1.5A
Regulation is measured at constant junction temperature, using pulse testing at a low duty cycle. Changes in output voltage due to heating
effects are covered under thermal regulation specifications. Load regulation is measured at the junction of the wide and narrow portion of
the output lead.
VMAX = 40V for LM117, IP117, LM117A, IP117A
VMAX = 60V for LM117HV, IP117HV, LM117AHV, IP117AHV
(3)
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Website:
http://www.semelab-tt.com
Document Number 8371
Issue 1
Page 3 of 5
POSITIVE ADJUSTABLE
VOLTAGE REGULATOR

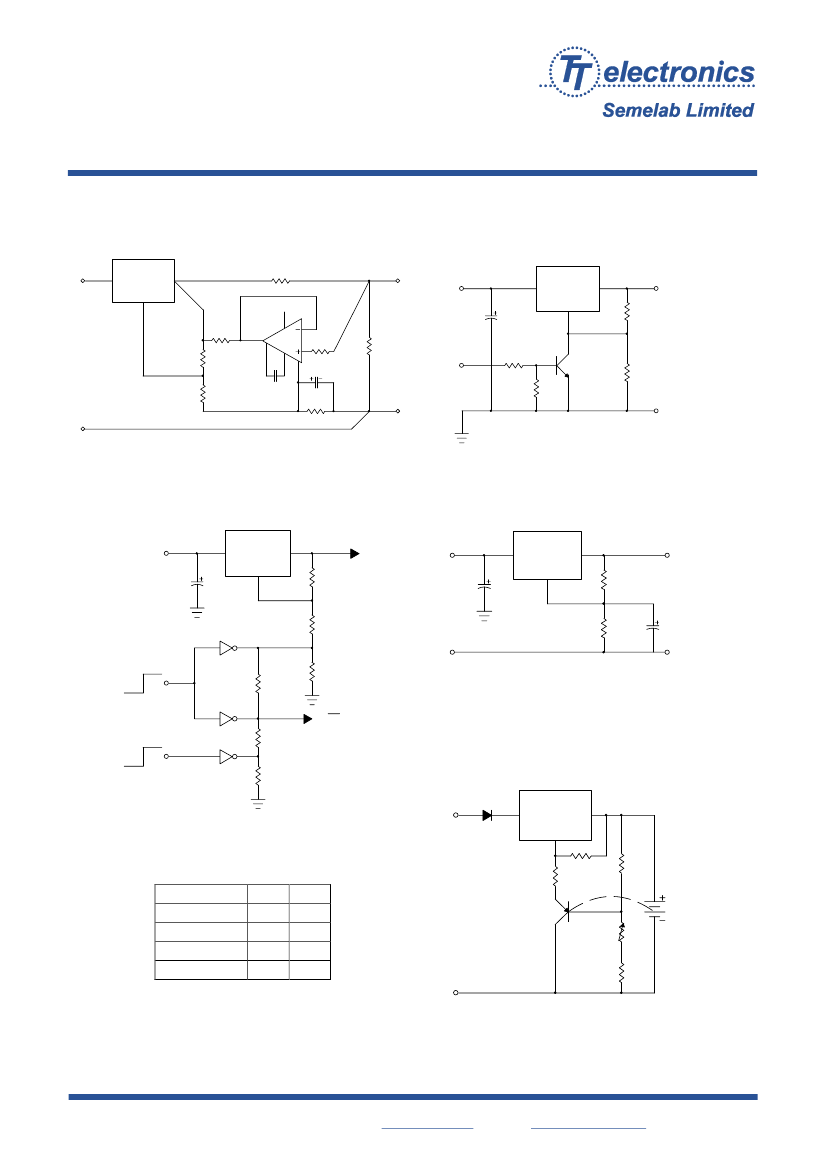

APPLICATIONS INFORMATION
IP117
IP317A
V
IN
V
IN
ADJ
V
O U T
R
P
(Max Drop 300mV)
OUTPUT
IP117
IP 317A
V
IN
V
IN
ADJ
1µF
2
V
O U T
121Ω
5V
V
O U T
V
IN
7
25
Ω
121
Ω
6
1
LM301A
3
8
4
1k
Ω
R
L
5µF
TTL
1kΩ
2N3904
1kΩ
383Ω
383
Ω
25
Ω
RETURN
RETURN
Remote Sensing
5V Regulator with Shut Down
IP117
IP317A
+24V
V
IN
ADJ
1µF
IP117
IP317A
V
O U T
249
Ω
1%
To V
PP
V
IN
V
IN
ADJ
1µF
V
O U T
R1
121
Ω
5V
750
Ω
1%
R2
383
Ω
C1
10
µF
READ
39k
Ω
3.24k
Ω
1%
WRITE
To OE
BYTE ERASE
18k
Ω
C1 improves ripple rejection
Xc should be small compared to R2
Improving Ripple Rejection
All gates 7406.
V
IN
1N4001
V
IN
ADJ
243
Ω
10k
Ω
50
Ω
CHIP ERASE
100k
Ω
IP317A
IP117
V
O U T
READ
WRITE
BYTE
CHIP ERASE
OE
0V
Vpp
5V
2N3906
THERMALLY
COUPLE
12V
20k
Ω
5V
21V
12V 21V
50k
Ω
2816 EEPROM Supply Programmer for
Read / Write Control
Temperature Compensated
Lead-Acid Battery Charger
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Website:
http://www.semelab-tt.com
Document Number 8371
Issue 1
Page 4 of 5
POSITIVE ADJUSTABLE
VOLTAGE REGULATOR
MECHANICAL DATA
Dimensions in mm (inches)
0.89
(0.035)
min.
3.70 (0.146)
3.41 (0.134)
3.70 (0.146)
3.41 (0.134)
3.60 (0.142)
Max.
4.14 (0.163)
3.84 (0.151)
1
3
0.76
(0.030)
min.
10.69 (0.421)
10.39 (0.409)
2
9.67 (0.381)
9.38 (0.369)
11.58 (0.456)
11.28 (0.444)
16.02 (0.631)
15.73 (0.619)
0.50 (0.020)
0.26 (0.010)
SMD1 (TO276AB)
Pin 1 = ADJ.
Pin 2 = VOUT Pin 3 = VIN
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Website:
http://www.semelab-tt.com
Document Number 8371
Issue 1
Page 5 of 5
