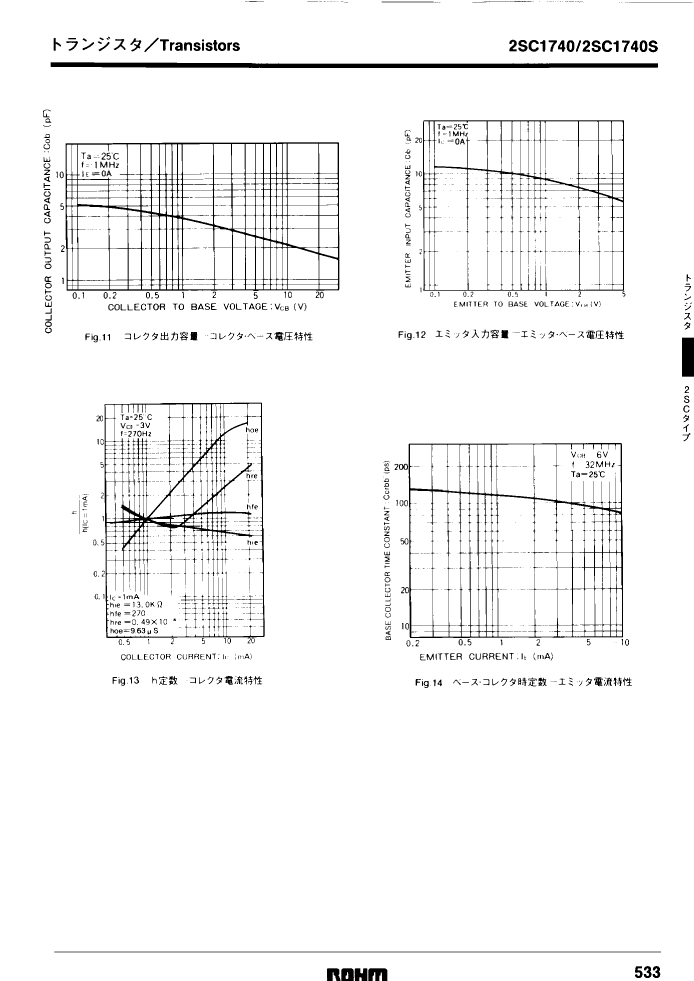

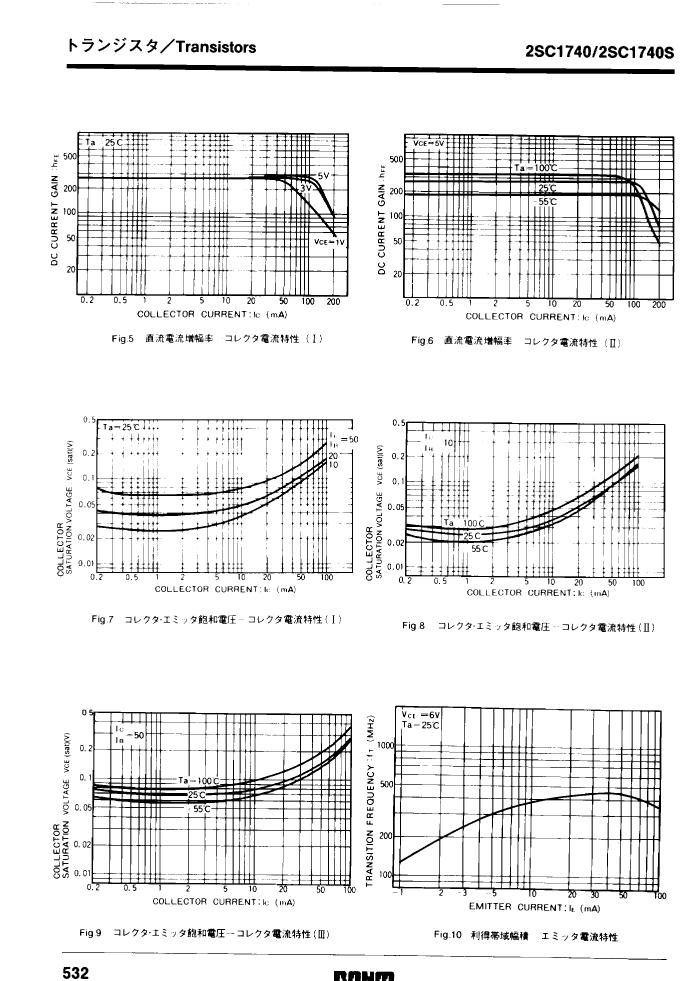

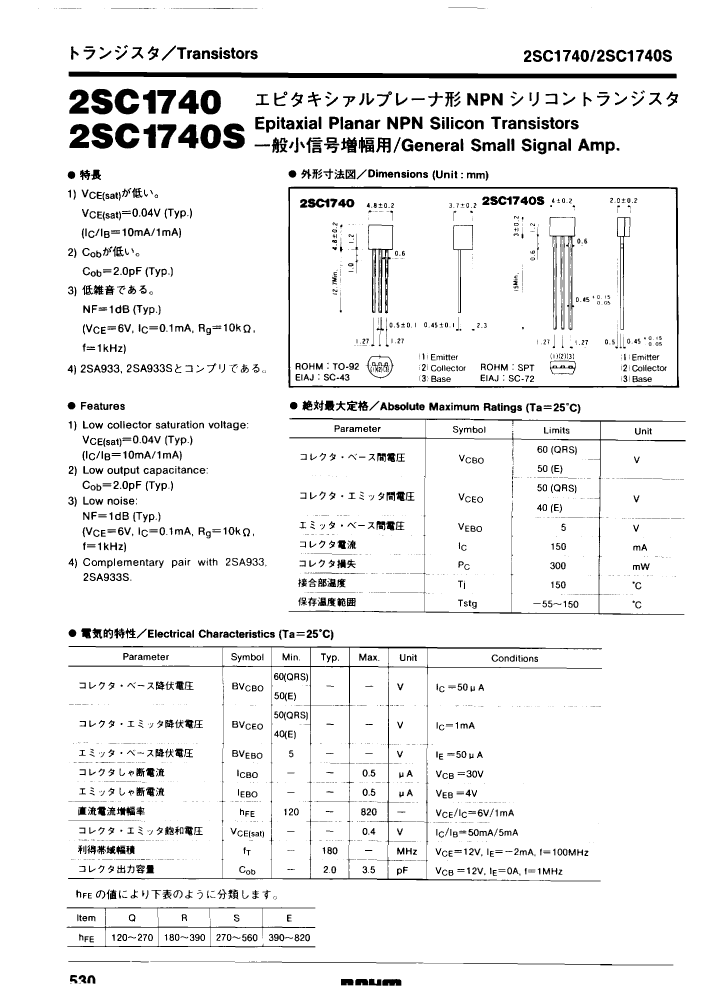

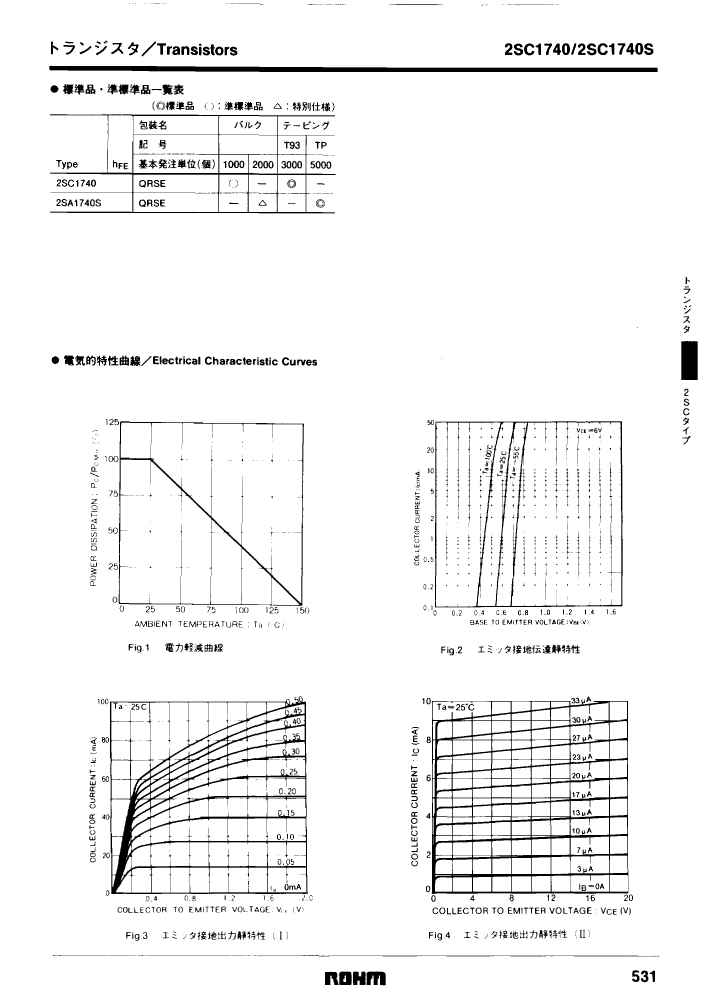

Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon
| Parameter Name | Attribute value |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | LOW NOISE |
| Maximum collector current (IC) | 0.15 A |
| Collector-based maximum capacity | 3.5 pF |
| Collector-emitter maximum voltage | 40 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 270 |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 180 MHz |
| VCEsat-Max | 0.4 V |
| Base Number Matches | 1 |
| 2SC1740S/SE | 2SC1740STP/RE | 2SC1740S/RE | 2SC1740STP/SE | 2SC1740T93/SE | 2SC1740T93/RE | 2SC1740/RE | |
|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 | Small Signal Bipolar Transistor, 0.15A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-92 |
| package instruction | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | LOW NOISE | LOW NOISE | LOW NOISE | LOW NOISE | LOW NOISE | LOW NOISE | LOW NOISE |
| Maximum collector current (IC) | 0.15 A | 0.15 A | 0.15 A | 0.15 A | 0.15 A | 0.15 A | 0.15 A |
| Collector-based maximum capacity | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF | 3.5 pF |
| Collector-emitter maximum voltage | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 270 | 180 | 180 | 270 | 270 | 180 | 180 |
| JESD-30 code | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | ROUND | ROUND | ROUND |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | BOTTOM | BOTTOM | BOTTOM |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 180 MHz | 180 MHz | 180 MHz | 180 MHz | 180 MHz | 180 MHz | 180 MHz |
| VCEsat-Max | 0.4 V | 0.4 V | 0.4 V | 0.4 V | 0.4 V | 0.4 V | 0.4 V |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
