B02B-VT: DescriptionRectangular Power Connector, 2 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size119KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

B02B-VT Overview

Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal

B02B-VT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	VT
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

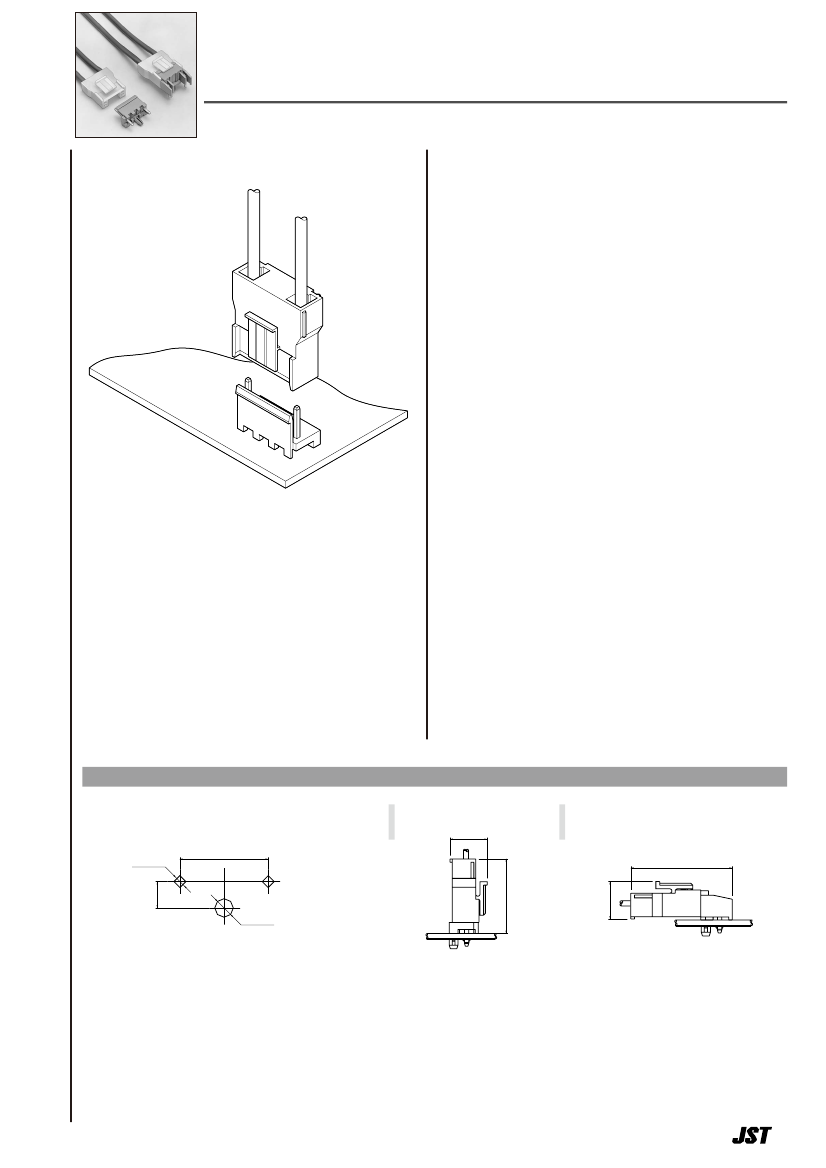

CONNECTOR

11.88mm pitch/Disconnectable Crimp style connectors

The VT connector is a 11.88mm pitch

disconnectable crimp style connector with

current rating of 12A. It has features such as

the PC board locking device, misinsertion

preventive construction and arm-lock

mechanism. Its header is applicable to

reinforced PC boards with eyelets.

• Connectable to vinyl insulated flat cables

• Use of PC board locking device

• Correct and secure mating

• Applicable to reinforced PC boards with eyelets

PC board layout (viewed from component side) and Assembly layout

Top entry type

10.3

φ1.6

＋0.1

3.6

±0.05

11.88

±0.05

（21.6）

26.6

φ2.5

＋0.1

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.

10.3

Specifications –––––––––––––––––––

• Current rating: 12A AC, DC (AWG #16)

• Voltage rating: 250V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/10m

Ω

max.

After environmental testing/20m

Ω

max.

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG #20 to #16

• Applicable PC board thickness: 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

R50068570

Side entry type

B02B-VT Related Products

	B02B-VT	B02B-VT(LF)(SN)	S02B-VT(LF)(SN)	S02B-VT
Description	Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal	Number of Pins: 2 Connector Type: Header Series: - Pitch: 0.468"(11.88mm) Contact Type: Male Pins	Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal, ROHS COMPLIANT	Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	JST	JST	JST	JST
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	TOP ENTRY	TOP ENTRY	SIDE ENTRY	SIDE ENTRY
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN	TIN	NOT SPECIFIED
Contact completed and terminated	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE
Contact material	COPPER	COPPER	COPPER	COPPER
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	VT	VT	VT	VT
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	2	2	2
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
