DATA SHEET
SILICON POWER TRANSISTOR

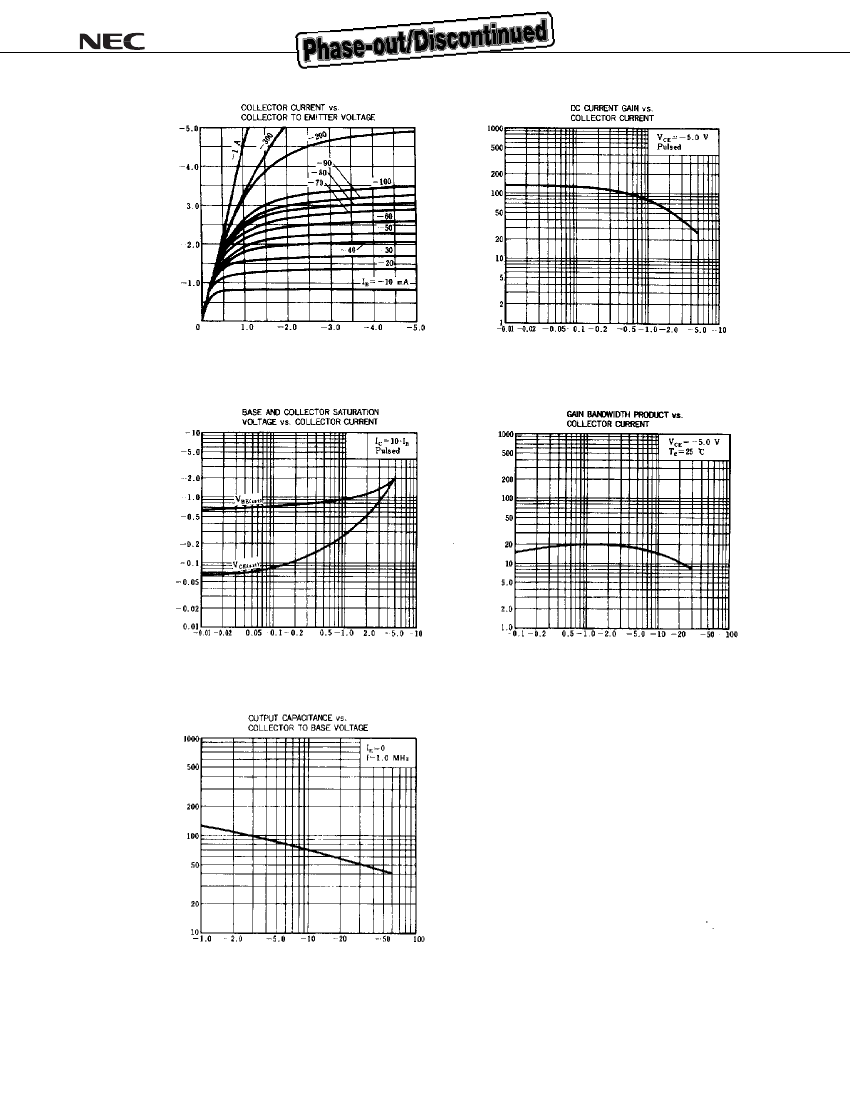

2SB1094
PNP SILICON EPITAXIAL TRANSISTOR
FOR LOW-FREQUENCY POWER AMPLIFIER
FEATURES
• The 2SB1094 features ratings covering a wide range of
applications and is ideal for power supplies or a variety of drives
in audio and other equipment.:
V
CEO
≥ −60
V, V
EBO
≥ −7.0
V, I
C(DC)
≤ −3.0
A
• Mold package that does not require an insulating board or
insulation bushing
• Complementary transistor with 2SD1585

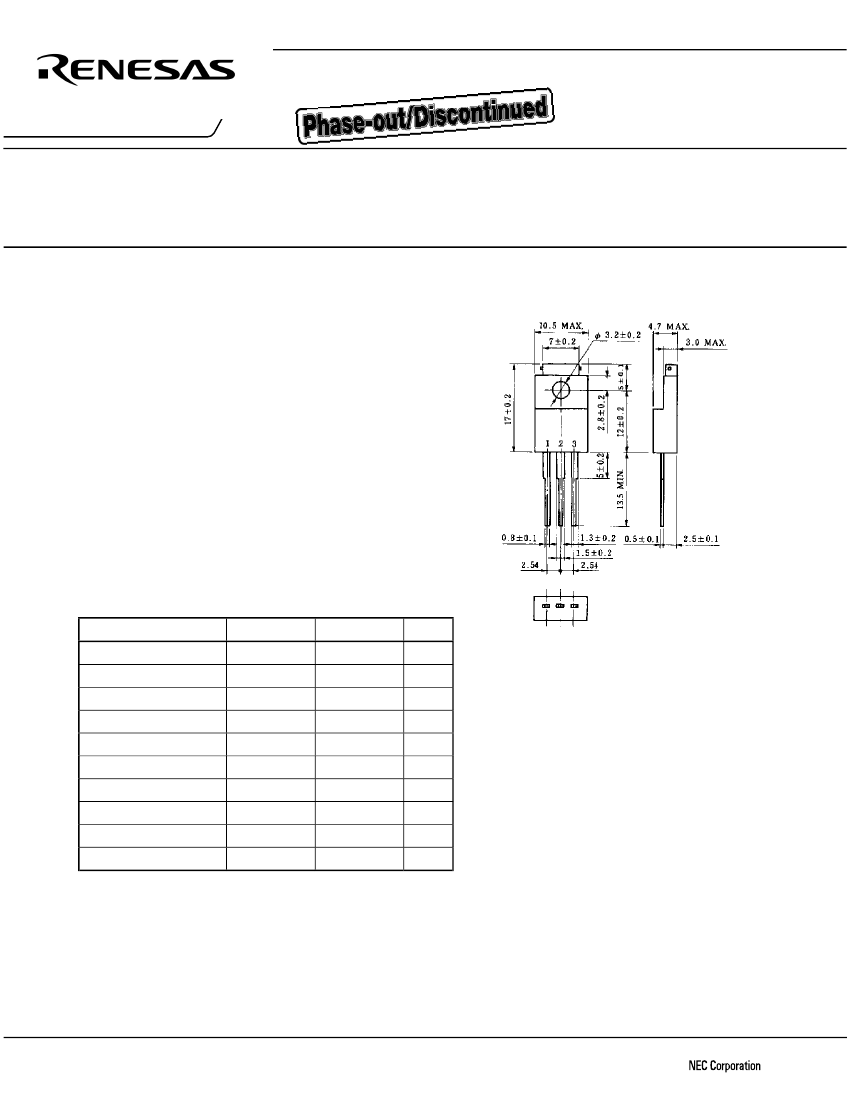

PACKAGE DRAWING (UNIT: mm)
QUALITY GRADES
• Standard
Please refer to “Quality Grades on NEC Semiconductor Devices”
(Document No. C11531E) published by NEC Corporation to know
the specification of quality grade on the devices and its
recommended applications.

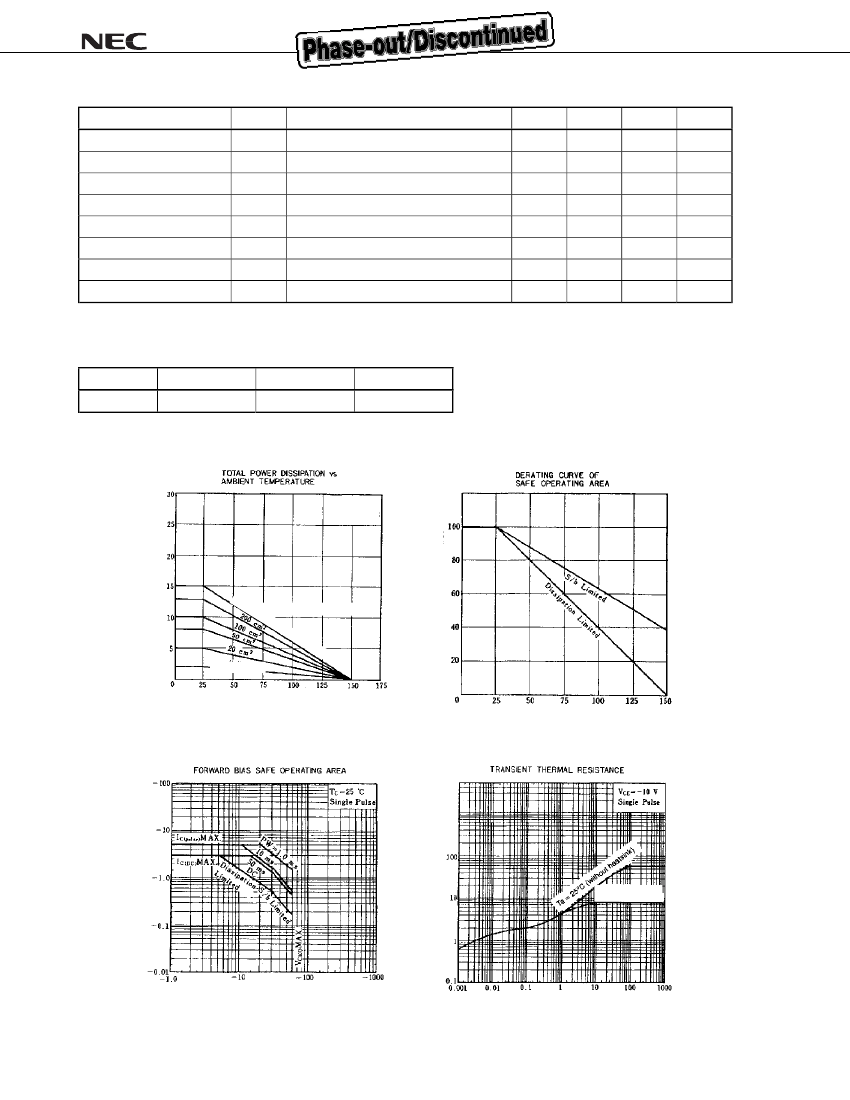

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
°
Parameter
Collector to base voltage
Collector to emitter voltage
Emitter to base voltage
Collector current (DC)
Collector current (pulse)
Base current (DC)
Total power dissipation
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C(DC)
I
C(pulse)
*
I
B(DC)
P
T
(Tc = 25°C)
P
T
(Ta = 25°C)
T
j
T
stg
Ratings
−60
−60
−7.0
−3.0
−5.0
−0.6
15
2.0
150
−55
to +150
Unit
V
V
V
A
A
A
W
W
°C
°C
Electrode Connection
1. Base
2. Collector
3. Emitter
* PW
≤
10 ms, duty cycle
≤
50%
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D16186EJ2V0DS00 (2nd edition)
Date Published April 2002 N CP(K)
Printed in Japan
©
2002
1998
