IDT7MP4104S25M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT7MP4104S25M

IDT7MP4104S25M: DescriptionSRAM Module, 1MX32, 25ns, CMOS; Categorystorage storage; File Size155KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT7MP4104S25M Overview

SRAM Module, 1MX32, 25ns, CMOS

IDT7MP4104S25M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.A
Maximum access time	25 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON
JESD-30 code	R-XSMA-N80
memory density	33554432 bit
Memory IC Type	SRAM MODULE
memory width	32
Humidity sensitivity level	1
Number of functions	1
Number of terminals	80
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM80
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum standby current	0.08 A
Minimum standby current	4.5 V
Maximum slew rate	1.2 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

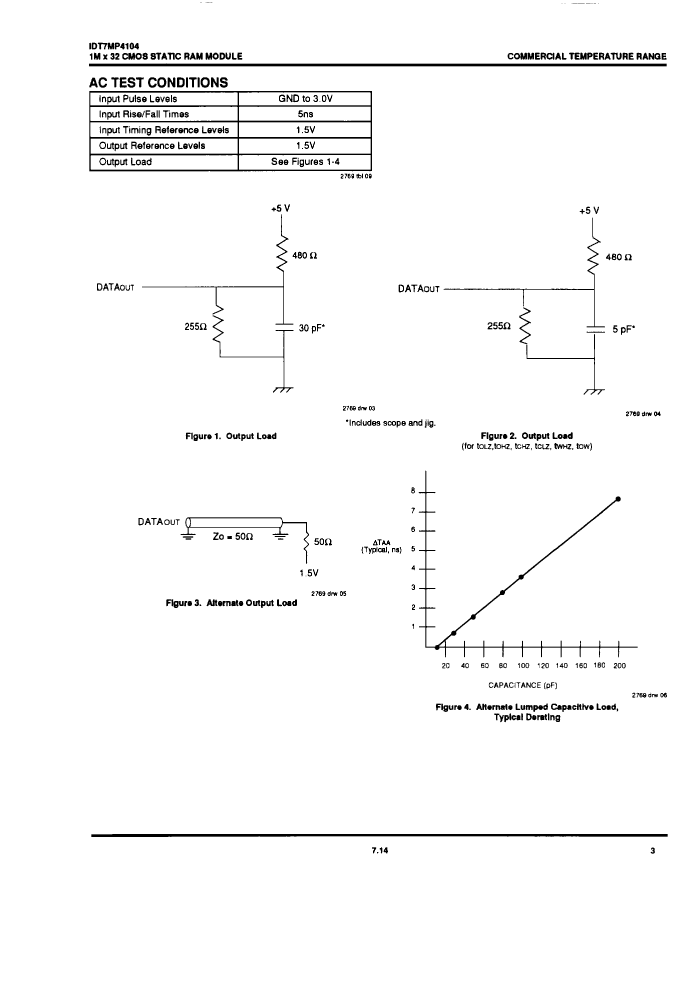

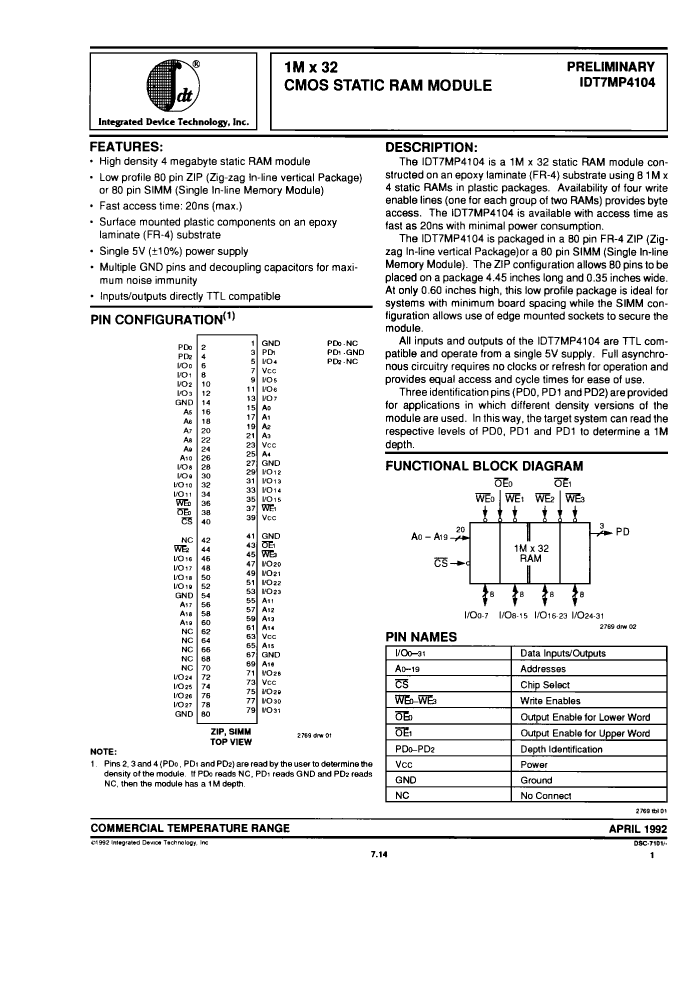

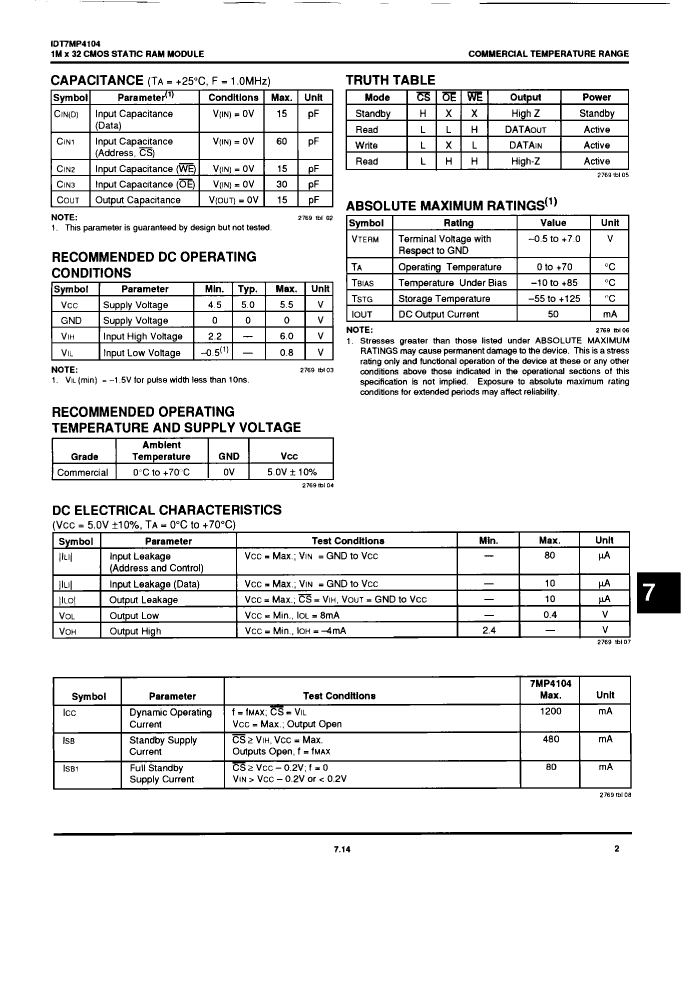

Preview

Download Datasheet

View All

IDT7MP4104S25M Related Products

	IDT7MP4104S25M	IDT7MP4104S25Z	IDT7MP4104S35M	IDT7MP4104S20Z	IDT7MP4104S35Z	IDT7MP4104S20M
Description	SRAM Module, 1MX32, 25ns, CMOS	SRAM Module, 1MX32, 25ns, CMOS	SRAM Module, 1MX32, 35ns, CMOS	SRAM Module, 1MX32, 20ns, CMOS	SRAM Module, 1MX32, 35ns, CMOS	SRAM Module, 1MX32, 20ns, CMOS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	25 ns	25 ns	35 ns	20 ns	35 ns	20 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XSMA-N80	R-XZMA-T80	R-XSMA-N80	R-XZMA-T80	R-XZMA-T80	R-XSMA-N80
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1
Number of terminals	80	80	80	80	80	80
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	SIMM	ZIP	SIMM	ZIP	ZIP	SIMM
Encapsulate equivalent code	SSIM80	ZIP80(UNSPEC)	SSIM80	ZIP80(UNSPEC)	ZIP80(UNSPEC)	SSIM80
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	225	NOT SPECIFIED	NOT SPECIFIED	225
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A	0.08 A
Minimum standby current	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	1.2 mA	1.2 mA	1.2 mA	1.2 mA	1.2 mA	1.2 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal location	SINGLE	ZIG-ZAG	SINGLE	ZIG-ZAG	ZIG-ZAG	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
