AD518SH/883B datasheet, PDF - EEWORLD Datasheet

AD518SH/883B: DescriptionIC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size61KB，2 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

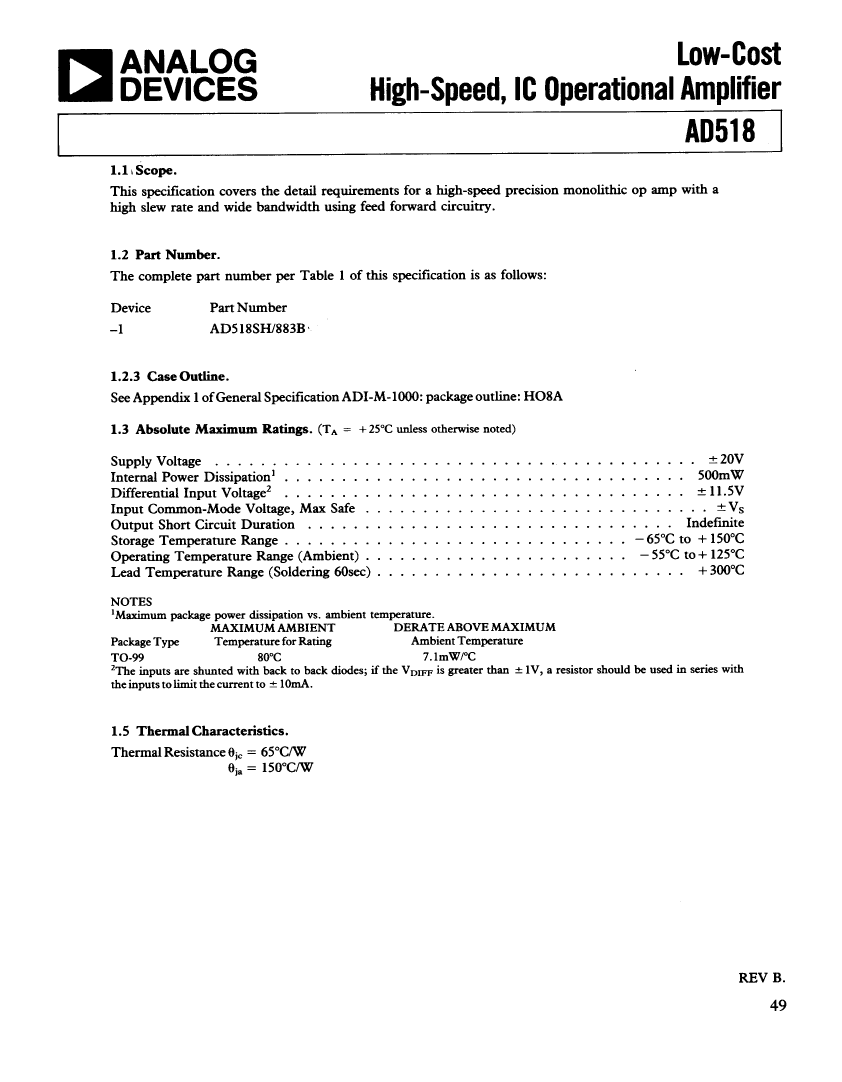

AD518SH/883B Overview

IC IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL, Operational Amplifier

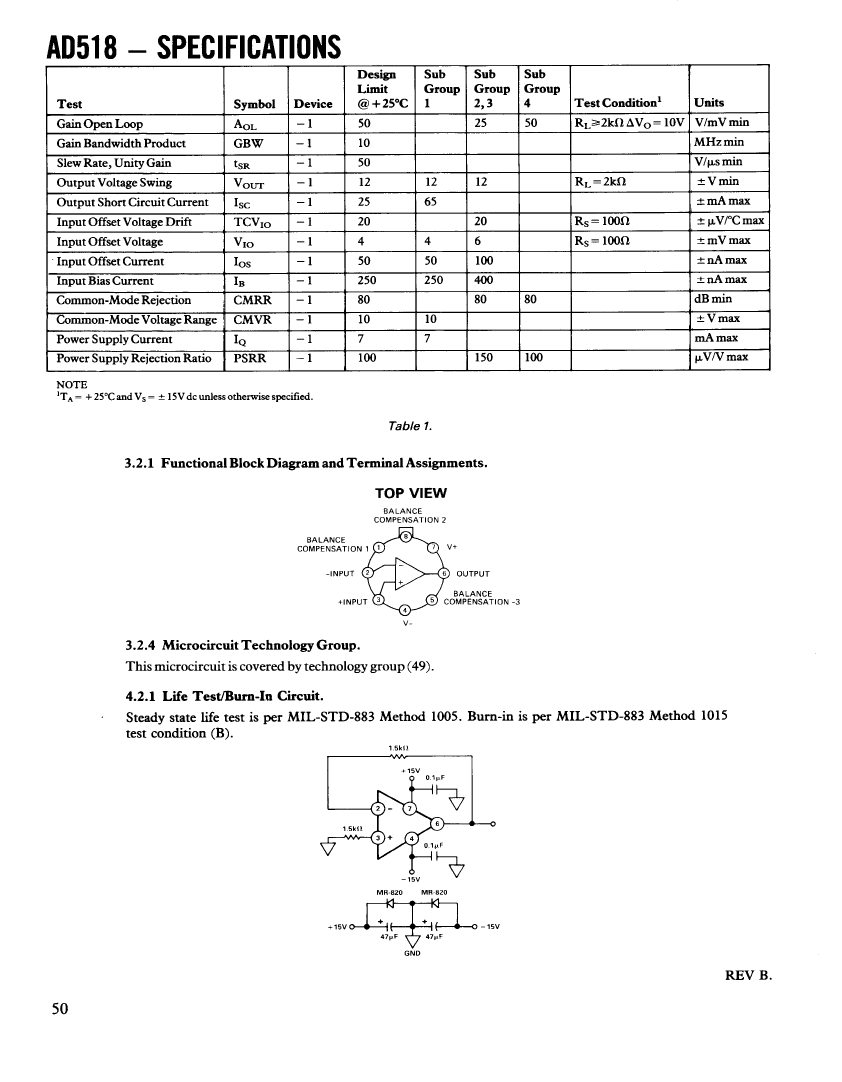

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	TO-99
package instruction	, CAN8,.2
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.4 µA
Maximum bias current (IIB) at 25C	0.25 µA
Nominal Common Mode Rejection Ratio	80 dB
frequency compensation	YES
Maximum input offset voltage	6000 µV
JESD-30 code	O-XBCY-W8
JESD-609 code	e0
low-dissonance	NO
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
minimum slew rate	50 V/us
Nominal slew rate	50 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	10000 kHz
Minimum voltage gain	25000
