1847.3041 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1847.3041

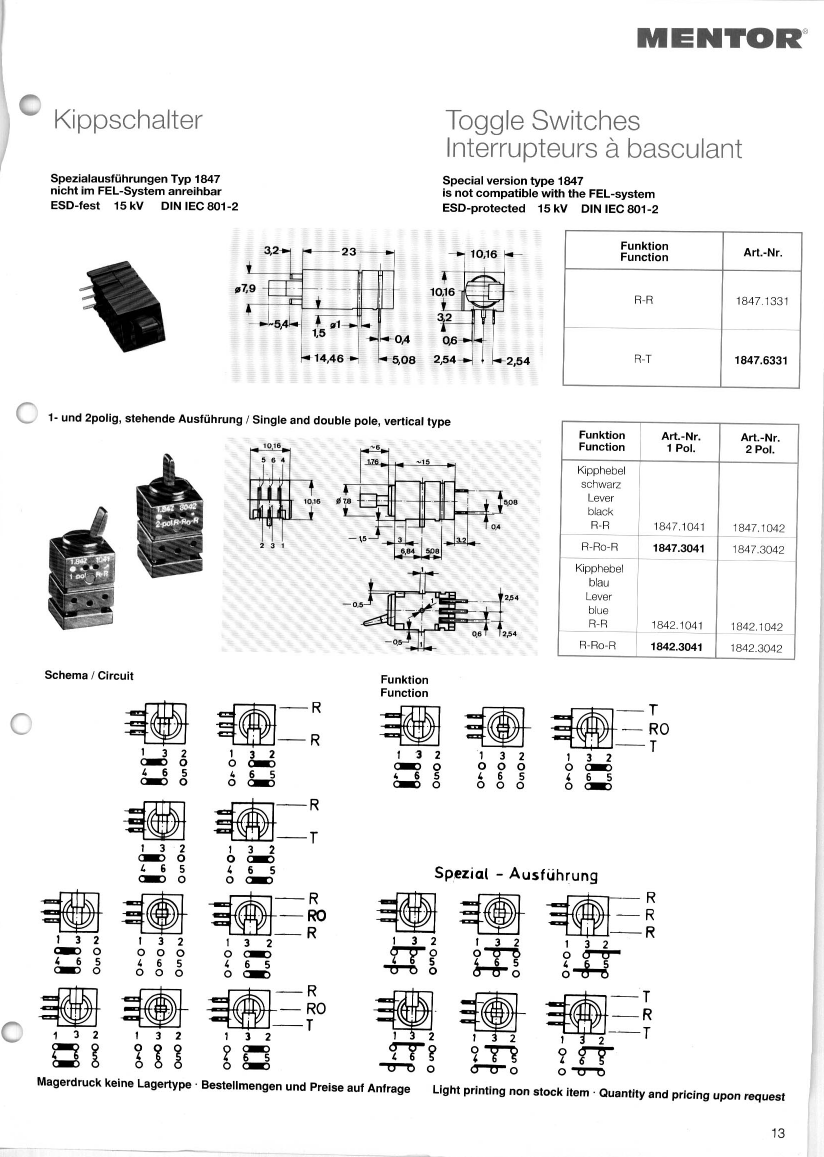

1847.3041: DescriptionToggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size408KB，1 Pages; ManufacturerElma Electronic Inc

Download Datasheet Parametric Compare View All

1847.3041 Overview

Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight

1847.3041 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Actuator type	LEVER
body width	10.16 mm
body height	15 mm
Body length or diameter	10.16 mm
Contact (AC) maximum rated R load	.5A@60VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@60VDC
Maximum contact voltage (AC)	60 V
Maximum contact voltage (DC)	60 V
Electrical life	20000 Cycle(s)
Manufacturer's serial number	1847
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	5 N
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

1847.3041 Related Products

	1847.3041	1842.3041	1842.1042	1847.1042	1847.3042	1842.1041	1847.1331	1842.3042	1847.1041	1847.6331
Description	Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, DPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, DPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, DPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle	Toggle Switch, DPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, SPDT, Latched, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-straight	Toggle Switch, SPDT, Latched And Momentary, 0.5A, 60VDC, Solder Terminal, Lever Actuator, Through Hole-right Angle
Reach Compliance Code	compli	compli	compli	compli	compli	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER	LEVER
body width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
body height	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	10.16 mm	15 mm	15 mm	10.16 mm
Body length or diameter	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	23 mm	10.16 mm	10.16 mm	23 mm
Contact (AC) maximum rated R load	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC	.5A@60VAC
Maximum contact current (AC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Maximum contact current (DC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Contact (DC) maximum rated R load	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC	.5A@60VDC
Maximum contact voltage (AC)	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V
Maximum contact voltage (DC)	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V	60 V
Electrical life	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)	20000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	5 N	5 N	5 N	5 N	5 N	5 N	5 N	5 N	5 N	5 N
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED AND MOMENTARY
switch function	SPDT	SPDT	DPDT	DPDT	DPDT	SPDT	SPDT	DPDT	SPDT	SPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1	1	1
Manufacturer's serial number	1847	1847	1847	1847	1847	1847	-	1847	1847	1847
