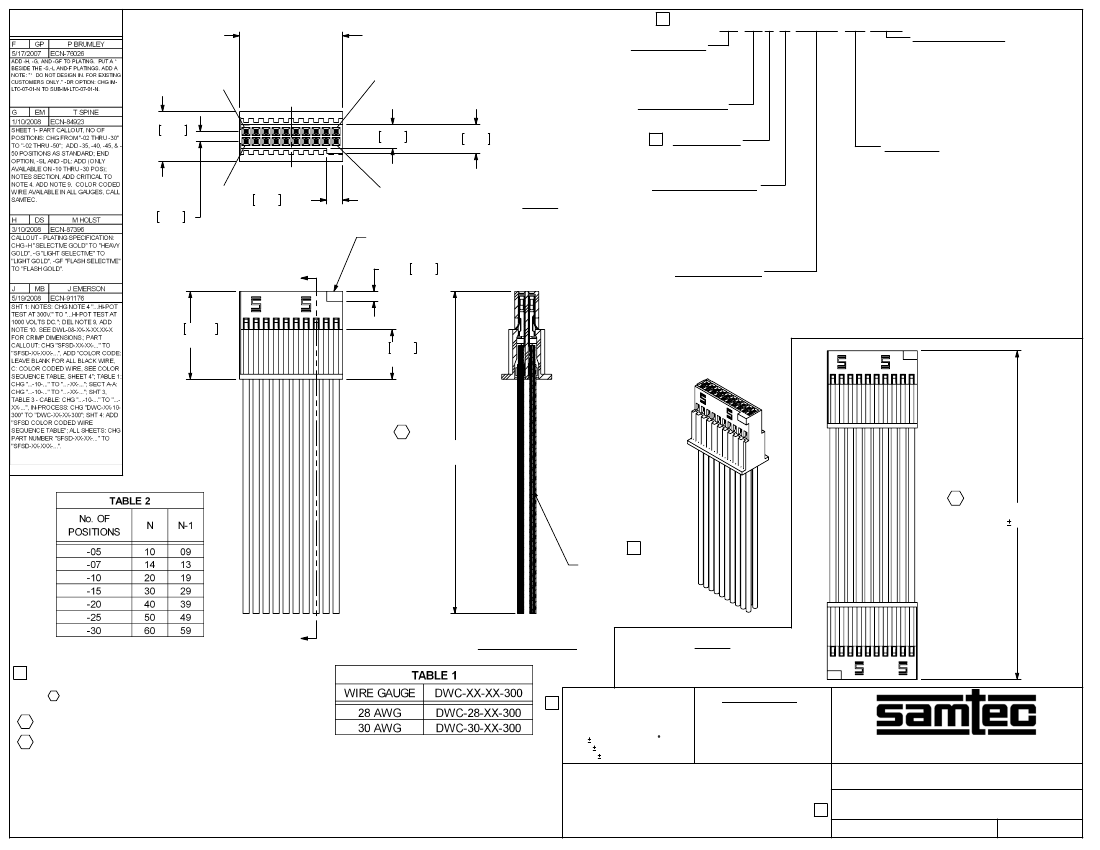

REVISION
J
(No OF POS x .050[1.27])
+ .015[0.38] REF
N-1 (SEE TABLE 2)
C
L
SFSD-XX-XXX-X-XX.XX-XX-XXX
01
No OF POSITIONS
-05, -07, -10, -15, -20, -25,
-30 -35 -40, -45, & -50 (PER ROW)
AVAILABLE AS STANDARD
-02 THRU -50 AVAILABLE AS ASO
WIRE GAUGE (AWG)
-28
-30
.250 6.35
REF
.120 3.05 REF .145 3.68 REF
02
N (SEE TABLE 2)
.080 2.03 REF
.050 1.27
REF
ISDF-XX-D
J
COLOR CODE:
LEAVE BLANK FOR ALL BLACK WIRE
C: COLOR CODED WIRE, SEE COLOR
SEQUENCE TABLE, SHEET 4
PLATING SPECIFICATION
FLASH SELECTIVE
FIG. 1
*
-F: LIGHT SELECTIVE
*
-L: SELECTIVE
-S: SINGLE END
*
-S: HEAVY GOLD
(SFSD-10-28-X-XX.XX-S SHOWN)
-H:
-G: LIGHT GOLD
-GF: FLASH GOLD
(SEE TABLE 4, SHEET 3)
ASSEMBLED LENGTH
SPECIFY IN INCHES
(SINGLE END: 03.00 INCH [76.2mm] MINIMUM,
DOUBLE END: 03.25 INCH [82.6mm] MINIMUM)
-NXX OPTION (END 2)
(ONLY AVAILABLE WITH -D, -DL, -DR)
-NUS: NOTCH UP, STRAIGHT
(PIN 1 TO PIN N-1)
-NDS: NOTCH DOWN, STRAIGHT
(PIN 1 TO PIN 2)
-NUX: NOTCH UP, CROSSED
(PIN 1 TO PIN N)
-NDX: NOTCH DOWN, CROSSED
(PIN 1 TO PIN 1)
"A"
.050 1.27 REF
.440 11.18
REF
END OPTION
(END OPTION COMBINATIONS NOT AVAILABLE)
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE FROM -NXX OPTIONS)
-SL: SINGLE ENDED WITH FRICTION LOCK
(SEE SHEET 2, FIG. 3) (ONLY AVAILABLE
ON -10 THRU -30 POSITION)
-DL: DOUBLE ENDED WITH FRICTION LOCK
(SEE SHEET 2, FIG. 4) (ONLY AVAILABLE
ON -10 THRU -30 POSITION)
(MUST CHOOSE FROM -NXX OPTIONS)
-SR: SINGLE ENDED WITH RETENTION LATCH
(SEE SHEET 4, FIG. 5)(USE SUB-IM-LTC-07-01-N)
(ONLY AVAILABLE ON -05 THRU -30 POS)
-DR: DOUBLE ENDED WITH RETENTION LATCH
(SEE SHEET 4, FIG. 6)(USE SUB-IM-LTC-07-01-N)
(ONLY AVAILABLE ON -05 THRU -30 POS)
(MUST CHOOSE FROM -NXX OPTIONS)
.249 6.32
REF
*
DO NOT DESIGN IN.
FOR EXISTING CUSTOMERS ONLY.
C1
ASSEMBLED LENGTH:
(SEE NOTE 8)
C2
ASSEMBLED LENGTH:
XX.XX .125[3.18]
J
DWC-XX-XX-300
"A"
J
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PULLOUT FORCE: 3.0 LBS [13.3 N].
3. CONTACT MUST BE INSERTED UNTIL
C3
RETENTION FEATURE LOCKS INTO PLACE.
4. ALL FINISHED GOODS ARE TO BE ELECTICAL
C4
TESTED INCLUDING HI-POT TEST AT 1000 VOLTS DC.
5. TINNED COPPER WIRE IS RoHS COMPLIANT.
6. PARTS TO BE LAYER PACKAGED.
7. END OF DISCRETE WIRE MUST BE IN THE RANGE AFTER CRIMP.
8. FOR LENGTHS LESS THAN 12 in, TOLERANCE SHALL BE +/-.125.
FOR OTHER LENGTHS, TOLERANCE SHALL BE +/-2%.
9. NOTE DELETED.
10. SEE DWL-08-XX-X-XX.XX-X FOR CRIMP DIMENSIONS.
SECTION "A"-"A"
-D: DOUBLE END
(SFSD-10-28-X-XX.XX-D-NUS SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 2
J
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
CONTACT: BeCu
CABLE INSULATION: PVC
WIRE: TINNED COPPER
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
J
F:\DWG\SW\Exisprod\ASSEMBLY\Cable\SFSD-XX-XX-X-XX.XX-XX-XXX-ASM.SLDDRW
BY:
BRATCHER 5/5/2005
SFSD-XX-XXX-X-XX.XX-XX-XXX
SHEET
1
OF
4
REVISION J
(SEE TABLE 2)
N-1
N
02
01
(SEE TABLE 2)
N-1
N
(SEE TABLE 2)
N
N-1
01
01
02
02

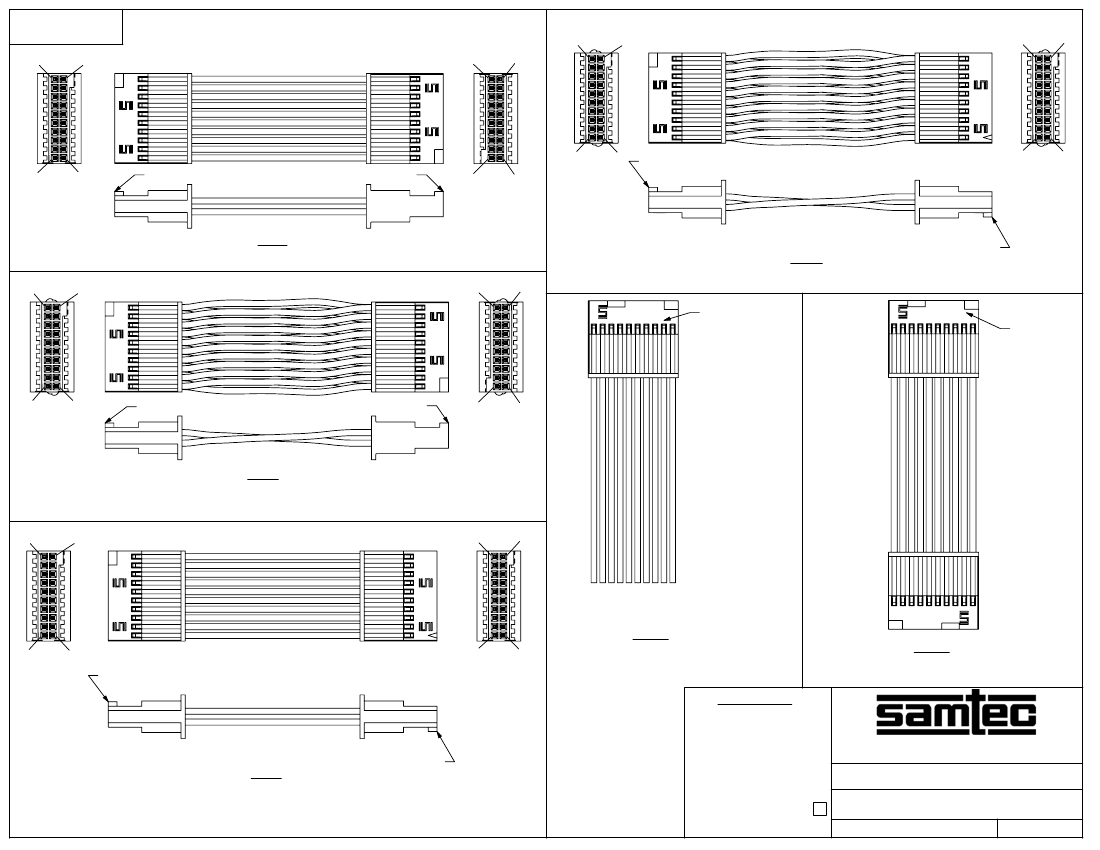

NOTCH END 1
NOTCH END 2
NOTCH END 1
01
02
N
N-1
(SEE TABLE 2)
(END 2 NOTCH UP, CABLE STRAIGHT)
(PIN 1 TO PIN N-1)
(SEE TABLE 2)
N-1
N
02
01
-NUS
(END 2 NOTCH DOWN, CABLE CROSSED)
(PIN 1 TO PIN 1)
ISDF-XX-D-L
ISDF-XX-D-L
-NDX
NOTCH END 2
01
02
NOTCH END 1
NOTCH END 2
N
N-1
(SEE TABLE 2)
(END 2 NOTCH UP, CABLE CROSSED)
(PIN 1 TO PIN N)
(SEE TABLE 2)
N-1
N
(SEE TABLE 2)
N-1
N
-NUX
01
02
01
02
-SL: SINGLE END RETENTION LOCK
(SFSD-10-28-X-XX.XX-SL SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 3
NOTCH END 1
-DL: DOUBLE END RETENTION LOCK
(SFSD-10-28-X-XX.XX-DL-NUS SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 4
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
(END 2 NOTCH DOWN, CABLE STRAIGHT)
(PIN 1 TO PIN 2)
F:\DWG\SW\Exisprod\ASSEMBLY\Cable\SFSD-XX-XX-X-XX.XX-XX-XXX-ASM.SLDDRW
-NDS
NOTCH END 2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.571429
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
J
SFSD-XX-XXX-X-XX.XX-XX-XXX
BY:
BRATCHER 5/5/2005
SHEET
2
OF
4
REVISION J

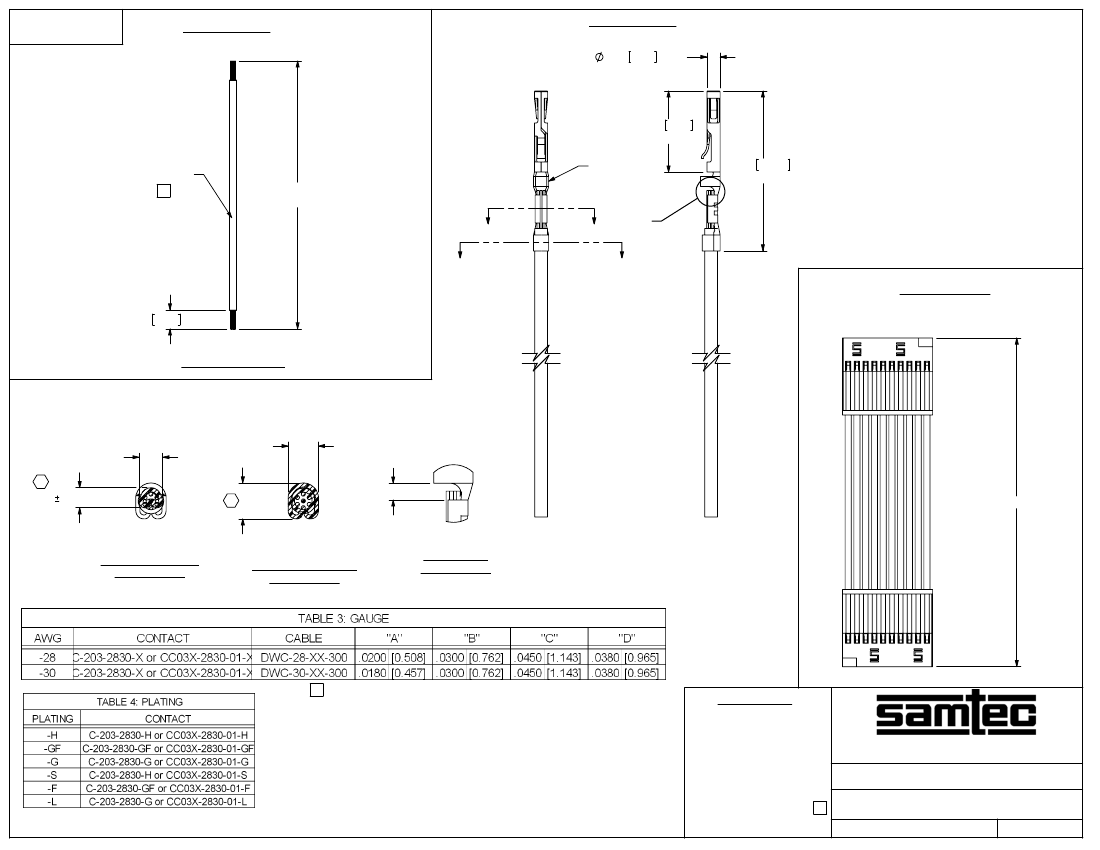

IN-PROCESS 1
(TYP BOTH END FOR -D: DOUBLE END)
.033 0.84 REF
IN-PROCESS 2
.203 5.16
REF
DWC-XX-XX-300
SEE TABLES
3&4
.400 10.16
REF
J
ASSEMBLED LENGTH
- .55[14.0]
"B"
"C"
"B"
"C"
'D'
(SFSD-10-28-X-XX.XX-D-NUS SHOWN)
.095 2.41 (TYP)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
-S IN-PROCESS
-D: DOUBLE END
"B"
C4
"D"
"A" .0010[0.025]
C5
"C"
SEE NOTE 7
2 x ASSEMBLED LENGTH
SECTION "B"-"B"
SCALE 8 : 1
SECTION "C"-"C"
SCALE 8 : 1
DETAIL 'D'
SCALE 8 : 1
J
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
*
*
*
F:\DWG\SW\Exisprod\ASSEMBLY\Cable\SFSD-XX-XX-X-XX.XX-XX-XXX-ASM.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
J
SFSD-XX-XXX-X-XX.XX-XX-XXX
BY:
BRATCHER 5/5/2005
SHEET
3
OF
4
REVISION J

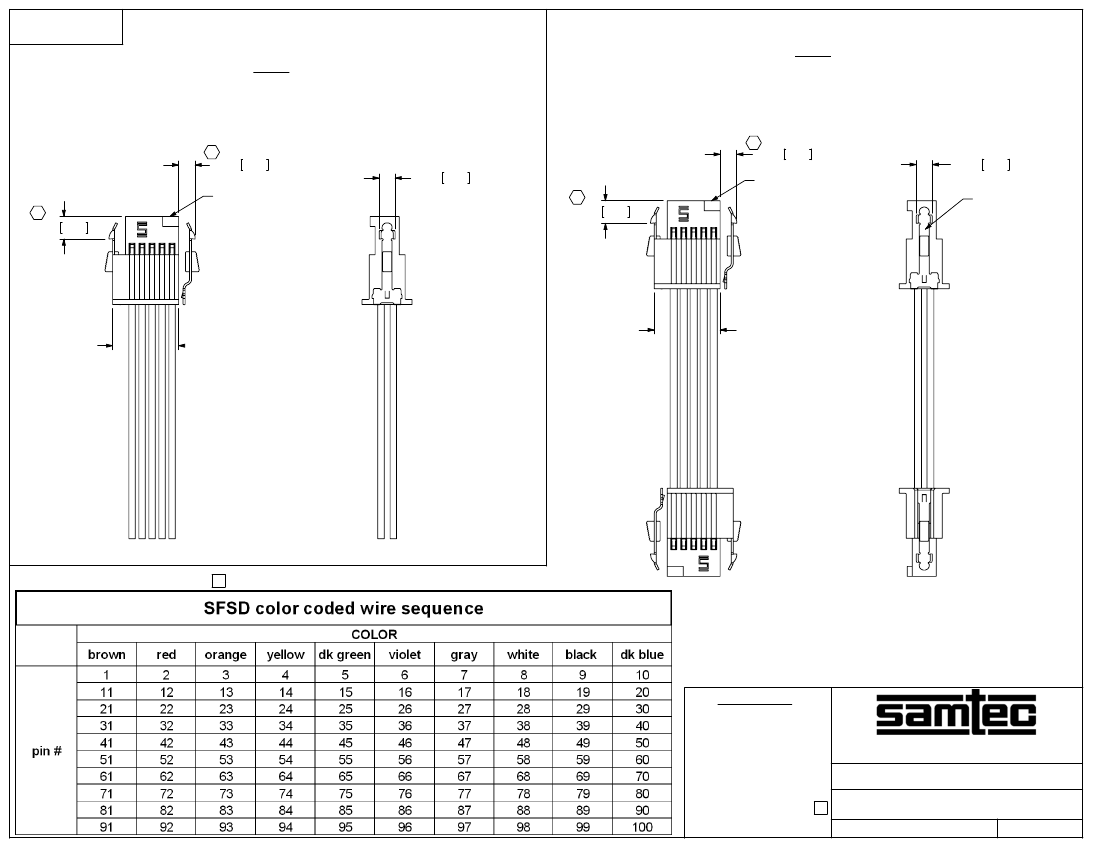

-SR: SINGLE END WITH RETENTION LATCH
(SFSD-10-28-X-XX.XX-SR SHOWN)
(ONLY AVAILABLE ON -05 THRU -30 POS)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 5
-DR: DOUBLE END WITH RETENTION LATCH
(SFSD-10-28-X-XX.XX-DR SHOWN)
(ONLY AVAILABLE ON -05 THRU -30 POS)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
FIG. 6
C7
C9
.083 2.11 (TYP)
ISDF-XX-D-R
C6
.083 2.11 (TYP)
.080 2.03 REF
C8
.080 2.03 REF
SUB-IM-LTC-07-01-N
ISDF-XX-D-R
.113 2.86
.113 2.86
(No OF POS x .050[1.27])
+ .145[3.68] REF
(No OF POS x .050[1.27])
+ .145[3.68] REF (TYP)
J
F:\DWG\SW\Exisprod\ASSEMBLY\Cable\SFSD-XX-XX-X-XX.XX-XX-XXX-ASM.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY
J
SFSD-XX-XXX-X-XX.XX-XX-XXX
BY:
BRATCHER 5/5/2005
SHEET
4
OF
4
