SENSITRON
SEMICONDUCTOR
TECHNICAL DATA
DATA SHEET 4701, REV. A
SHD124634
SHD124634P
SHD124634N
SHD124634D
HERMETIC POWER SCHOTTKY RECTIFIER
Low Forward Voltage
Applications:
•
Switching Power Supply
•
Converters
•
Free-Wheeling Diodes
•
Polarity Protection Diode
Features:
•
•
•
•
•
•
Soft Reverse Recovery at Low and High Temperature
Low Forward Voltage Drop
Low Power Loss, High Efficiency
High Surge Capacity
Guard Ring for Enhanced Durability and Long Term Reliability
Guaranteed Reverse Avalanche Characteristics
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
Max. Thermal Resistance
Max. Junction Temperature
Max. Storage Temperature
Symbol
V
RWM
I
F(AV)
I
FSM
R
θJC
T
J
T
stg
Condition
-
50% duty cycle, rectangular
wave form (Single/Doubler)
8.3 ms, half Sine wave
(per leg)
(Common Cathode/Common
Anode/Doubler) (per leg)
-
-
Max.
100
45
200
0.33
-65 to +200
-65 to +200
Units
V
A
A
°C/W
°C
°C
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
Symbol
V
F1
V
F2
Max. Reverse Current
I
R1
I
R2
Max. Junction Capacitance
C
T
Condition
@ 45A, Pulse, T
J
= 25
°C
(per leg)
@ 45A, Pulse, T
J
= 125
°C
(per leg)
@V
R
= 100V, Pulse,
T
J
= 25
°C
(per leg)
@V
R
= 100V, Pulse,
T
J
= 125
°C
(per leg)
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz,
V
SIG
= 50mV (p-p) (per leg)
Max.
1.04
0.86
0.6
6
3000
Units
V
V
mA
mA
pF
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD124634
SHD124634P
SHD124634N
SHD124634D
SENSITRON
TECHNICAL DATA
DATA SHEET 4701, REV. A

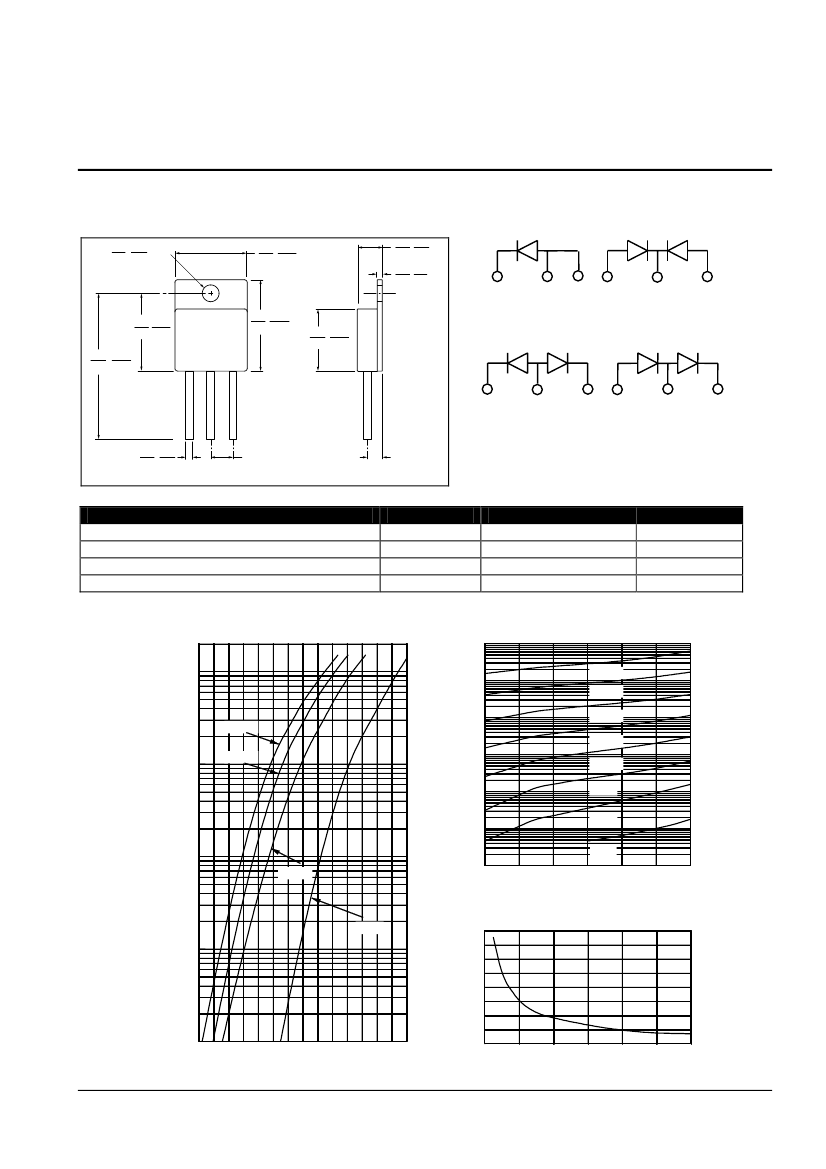

Mechanical Dimensions: In Inches / mm
.165 (4.19
Dia.
.155 3.94)
.695 (17.65
.685 17.40)
.270 (6.86
.240 6.10)
.045 (1.14
.035 0.89)
SINGLE
COMMON CATHODE
.707 (17.96
.697 17.70)
1.302 (33.07
1.202 30.53)
.835 (21.21
.815 20.70)
1
.550 (13.97
.530 13.46)
2
3
1
2
DOUBLER
3
COMMON ANODE
1
2
3
1
.065 (1.65
.055 1.40)
3 Places
.200(5.08) BSC
2 Places
.140(3.56) BSC
2
3
1
2
3
TO-258
PIN 2
ANODE
COMMON CATHODE
COMMON ANODE
CATHODE/ANODE
PIN 3
ANODE
ANODE 2
CATHODE 2
CATHODE
PINOUT TABLE
TYPE
PIN 1
SINGLE RECTIFIER
CATHODE
DUAL RECTIFIER, COMMON CATHODE (P)
ANODE 1
DUAL RECTIFIER, COMMON ANODE (N)
CATHODE 1
DUAL RECTIFIER, DOUBLER (D)
ANODE
Note:
The V
f
curves shown are for the unpackaged die only.
Typical Forward Characteristics
10
2
10
2
Instantaneous Reverse Current - I
R
(mA)
Typical Reverse Characteristics
10
1
200 °C
175 °C
150 °C
125 °C
200 °C
175 °C
10
0
Instantaneous Forward Current - I
F
(A)
10
1
10
-1
100 °C
75 °C
50 °C
10
-2
10
-3
10
0
25 °C
10
-4
125 °C
0
20
40
60
80
Reverse Voltage - V
R
(V)
100
120
Typical Junction Capacitance
25 °C
10
-1
Junction Capacitance - C
T
(pF)
2500
2000
1500
1000
500
0
20
40
60
80
100
Reverse Voltage - V
R
(V)
120
10
-2
0.1
0.2
0.3
0.4
0.5
0.6
Forward Voltage Drop - V
F
(V)
0.7
0.8
•
221 WEST INDUSTRY COURT
•
DEER PARK, NY 11729-4681
•
PHONE (631) 586-7600
•
FAX (631) 242-9798
•
•
World Wide Web - http://www.sensitron.com
•
E-mail Address - sales@sensitron.com
•
SHD124634
SHD124634P
SHD124634N
SHD124634D
SENSITRON
TECHNICAL DATA
DATA SHEET 4701, REV. A
