MS3450W20-15PZ-CO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS3450W20-15PZ-CO

Preview

MS3450W20-15PZ-CO: DescriptionMIL Series Connector, 7 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

MS3450W20-15PZ-CO Overview

MIL Series Connector, 7 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

MS3450W20-15PZ-CO Parametric

Parameter Name	Attribute value
Maker	Aero-Electric Connector
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-5015 SERIES III, COMPATIBLE CONTACT: M39029/29-213
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	20
Termination type	CRIMP
Total number of contacts	7

Preview

Download Datasheet

View All

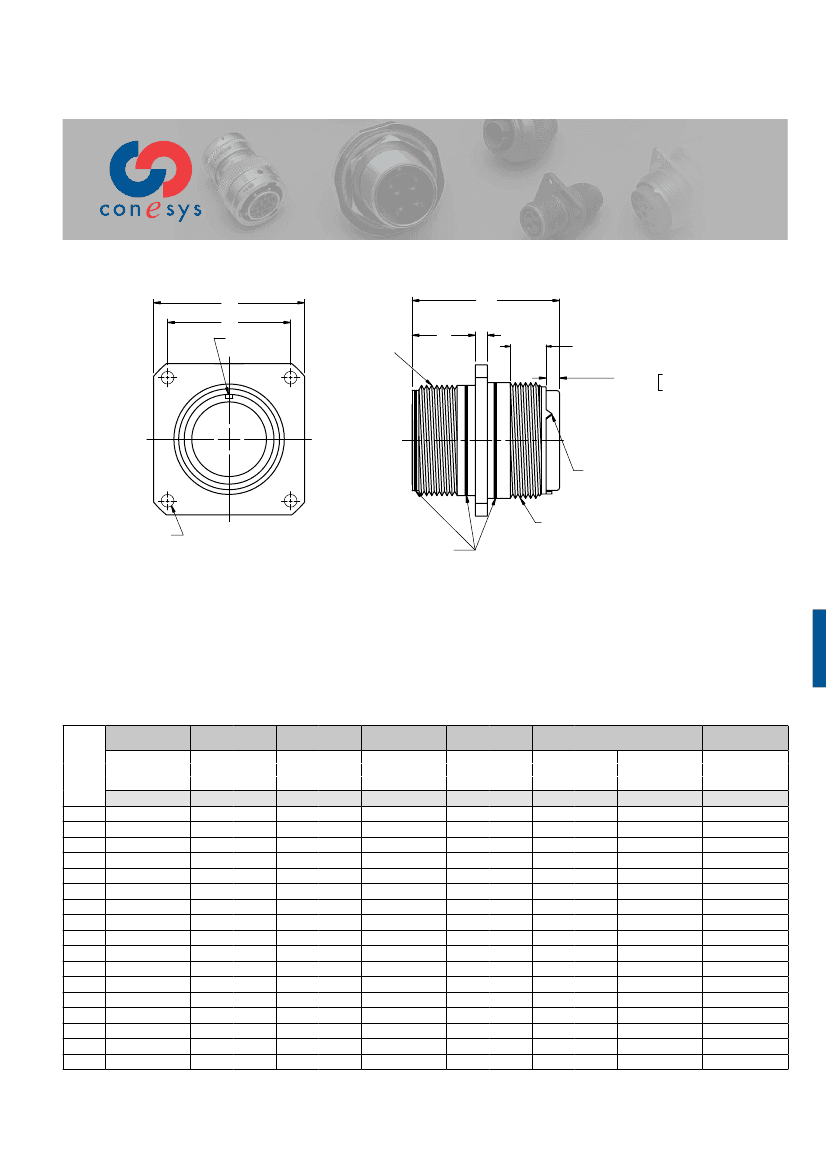

MS3450 per AS34501

Wall Mount Receptacle

AE550

Threaded Coupling, Crimp Removable, Rear Release

G

F

POLARIZING KEY

MAX

L

A

MATING THREAD

D

B

MIN FULL THREAD

.290(7.37) FOR 8S-24

.467(11.86) FOR 28-40

.340(8.64)

.130(3.30)

FOR 8,4, AND 0 CONTACTS

GROMMET

EXTENSION .190(4.83)

.130(3.30)

FOR 16 AND 12 CONTACTS

3 ACCESSORY TEETH

4x

H

HOLES

BLUE COLOR BANDS

J

ACCESSORY THREAD

Page 65

Page 75

Pages 82–87

Page 64

Pages 77–81

Page 77

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Specifications

Insert Availability and Contact Information

Polarization

A

B

±.015

inch

.083

.125

±.38

mm

2.11

3.18

+.031

-.000

inch

.562

.750

.562

.750

.562

.750

.562

.750

.812

.875

Note 1:

L max is same as L max for AE551 on next page.

Note 2:

Maximum grommet O.D. is same as

Ø

E max for

AE551 on next page.

F

G

±.031

inch

.875

1.000

1.094

1.188

1.281

1.375

1.500

1.625

1.750

2.000

2.250

2.500

2.750

±.79

mm

22.23

25.40

27.79

30.18

32.54

34.93

38.10

41.28

44.45

50.80

57.15

63.50

69.85

Ø

H

Classes L, LS, W

+.010

+.25

-.005

-.13

inch

mm

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.120

3.05

.147

3.73

.147

3.73

.173

4.39

.173

4.39

.173

4.39

Classes KS, KT

+.010

+.25

-.005

-.13

inch

mm

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.150

3.81

.177

4.50

.177

4.50

.177

4.50

.177

4.50

.177

4.50

.209

5.31

.209

5.31

.209

5.31

D

+.79

-.00

mm

14.27

19.05

14.27

19.05

14.27

19.05

14.27

19.05

20.62

22.23

J

Accessory

Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-3/4-18UNS

2-18UNS

2-1/4-16UN

2-1/2-16UN

Shell

Size

8S

10S

10SL

12

12S

14

14S

16

16S

18

20

22

24

28

32

36

40

Mating

Thread

Class 2A

1/2-28 UNEF

5/8-24 UNEF

3/4-20 UNEF

7/8-20 UNEF

1-20 UNEF

1 1/8-18 UNEF

1 1/4-18 UNEF

1 3/8-18 UNEF

1 1/2-18 UNEF

1 3/4-18 UNS

2-18 UNS

2 1/4-16 UN

2 1/2-16 UN

(TP)

inch

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.562

1.750

1.938

2.188

mm

15.09

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

39.67

44.45

49.23

55.58

www.conesys.com
