2SB1294F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SB1294F

2SB1294F: DescriptionPower Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size140KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

2SB1294F Overview

Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN

2SB1294F Parametric

Parameter Name	Attribute value
Parts packaging code	TO-220FP
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	100 V
Configuration	SINGLE
Minimum DC current gain (hFE)	160
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	12 MHz
Base Number Matches	1

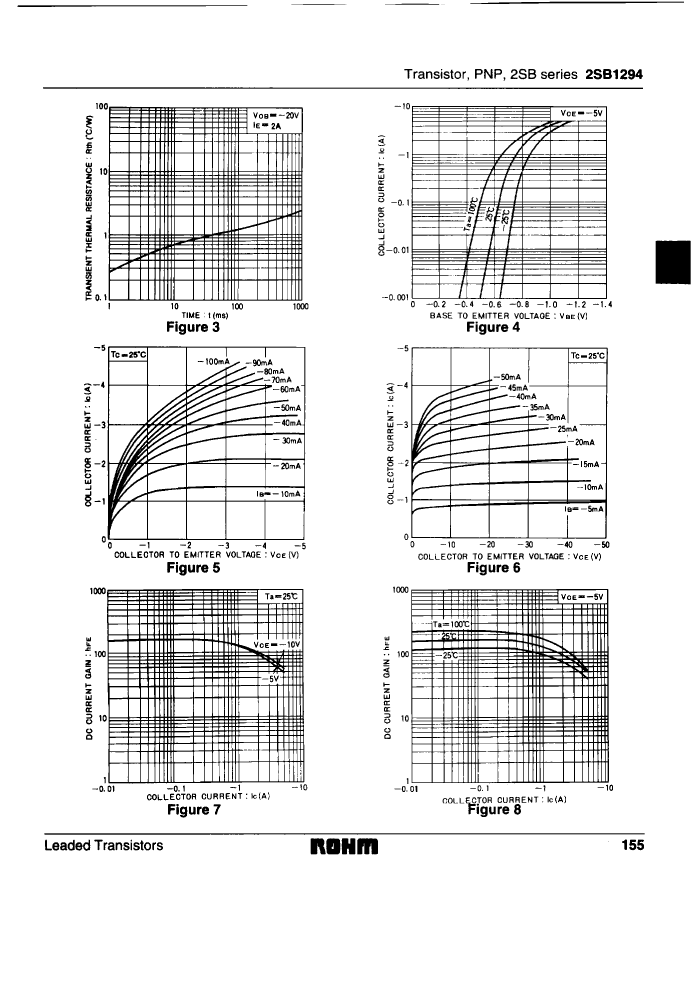

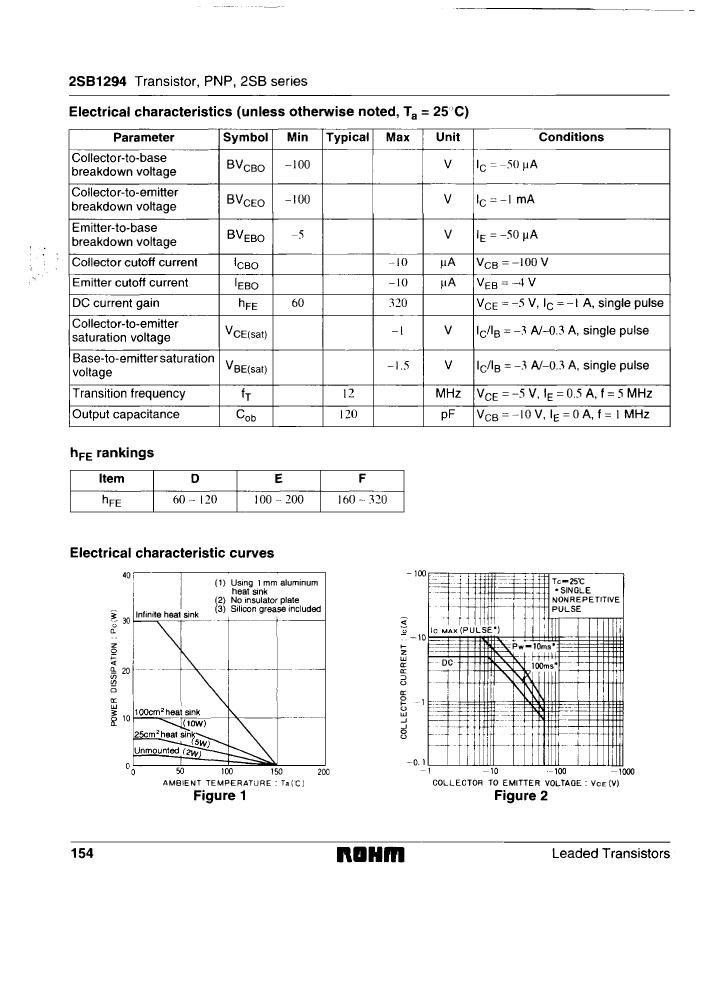

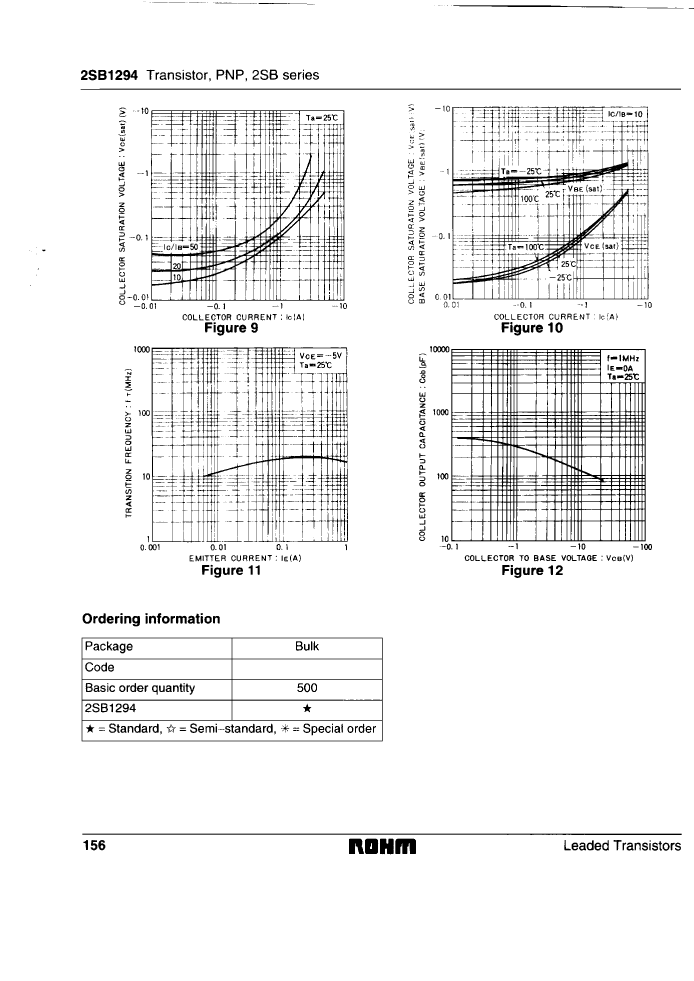

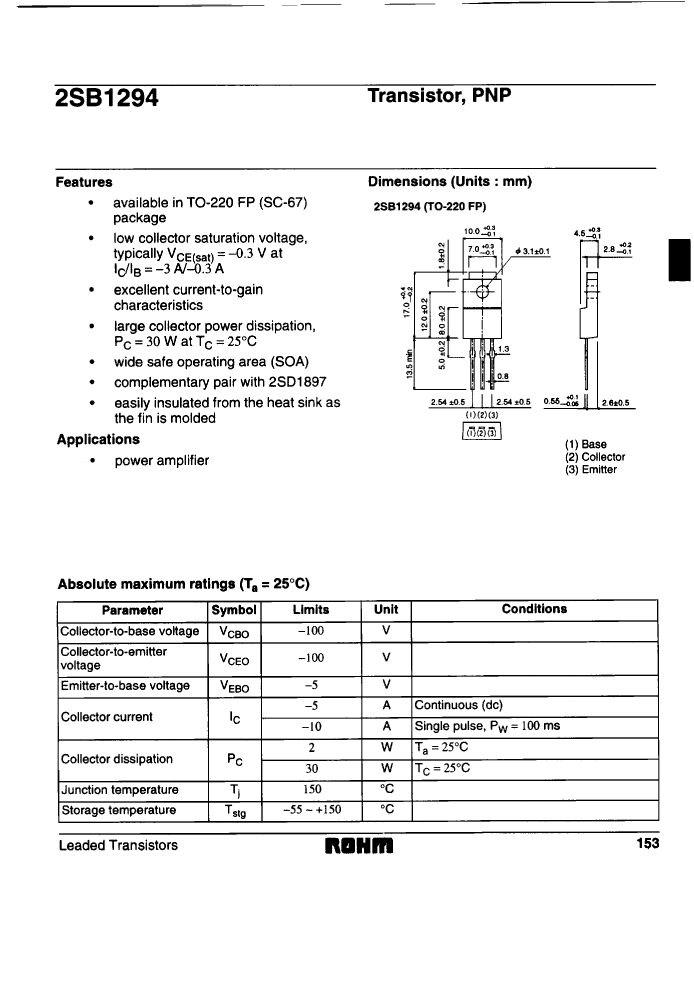

Preview

Download Datasheet

View All

2SB1294F Related Products

	2SB1294F	2SB1294/D	2SB1294/E	2SB1294E	2SB1294D	2SB1294/F
Description	Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	5A, 100V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	5A, 100V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN	Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220FP, 3 PIN	5A, 100V, PNP, Si, POWER TRANSISTOR, TO-220FP, TO-220FP, 3 PIN
Parts packaging code	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum collector current (IC)	5 A	5 A	5 A	5 A	5 A	5 A
Collector-emitter maximum voltage	100 V	100 V	100 V	100 V	100 V	100 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	160	60	100	100	60	160
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	AMPLIFIER	SWITCHING	SWITCHING	AMPLIFIER	AMPLIFIER	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz	12 MHz
Base Number Matches	1	1	1	1	1	1
