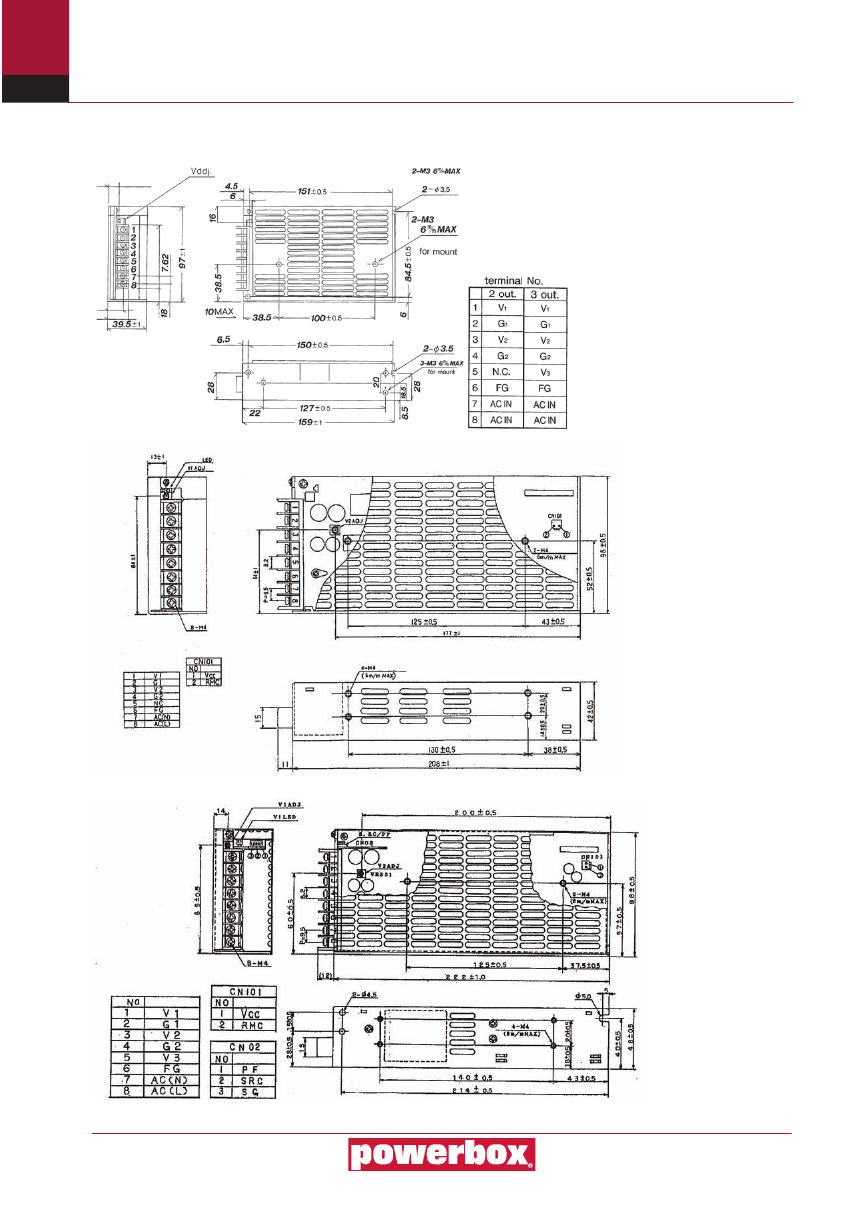

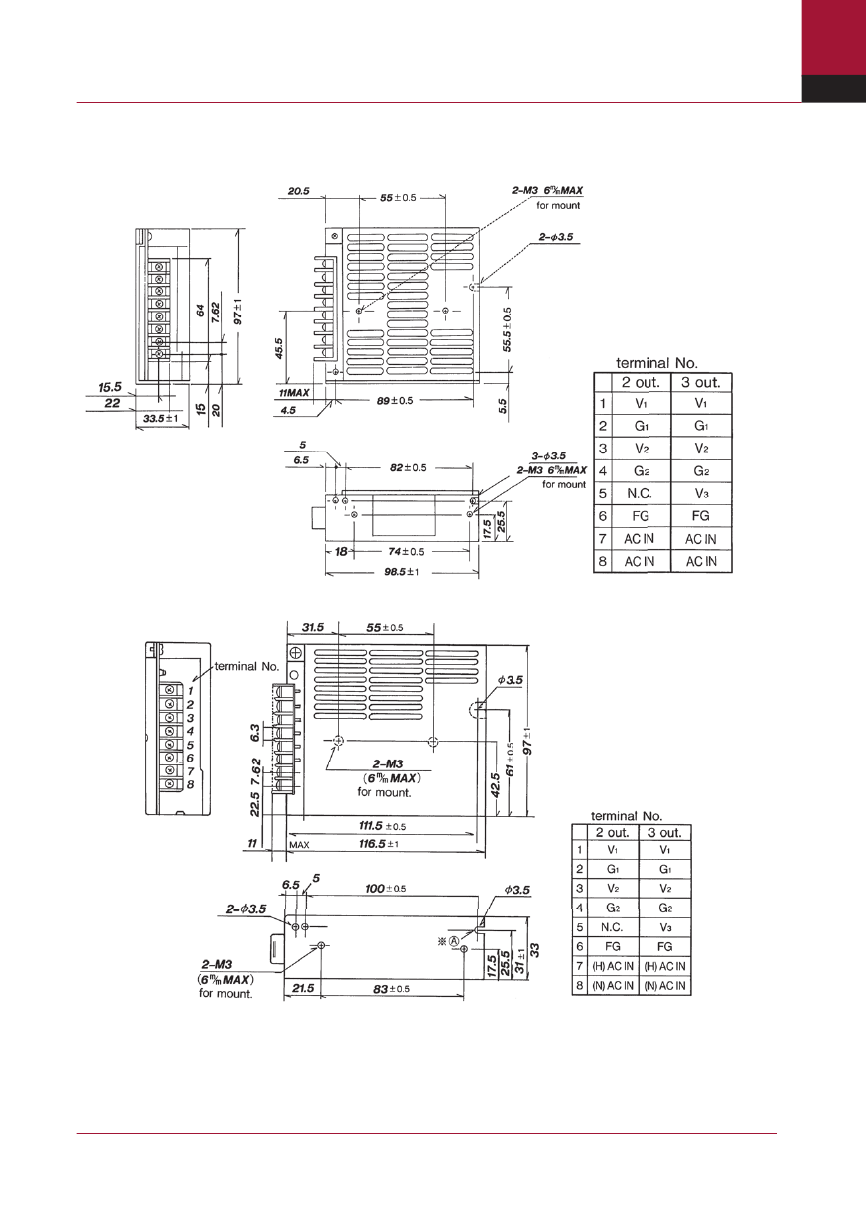

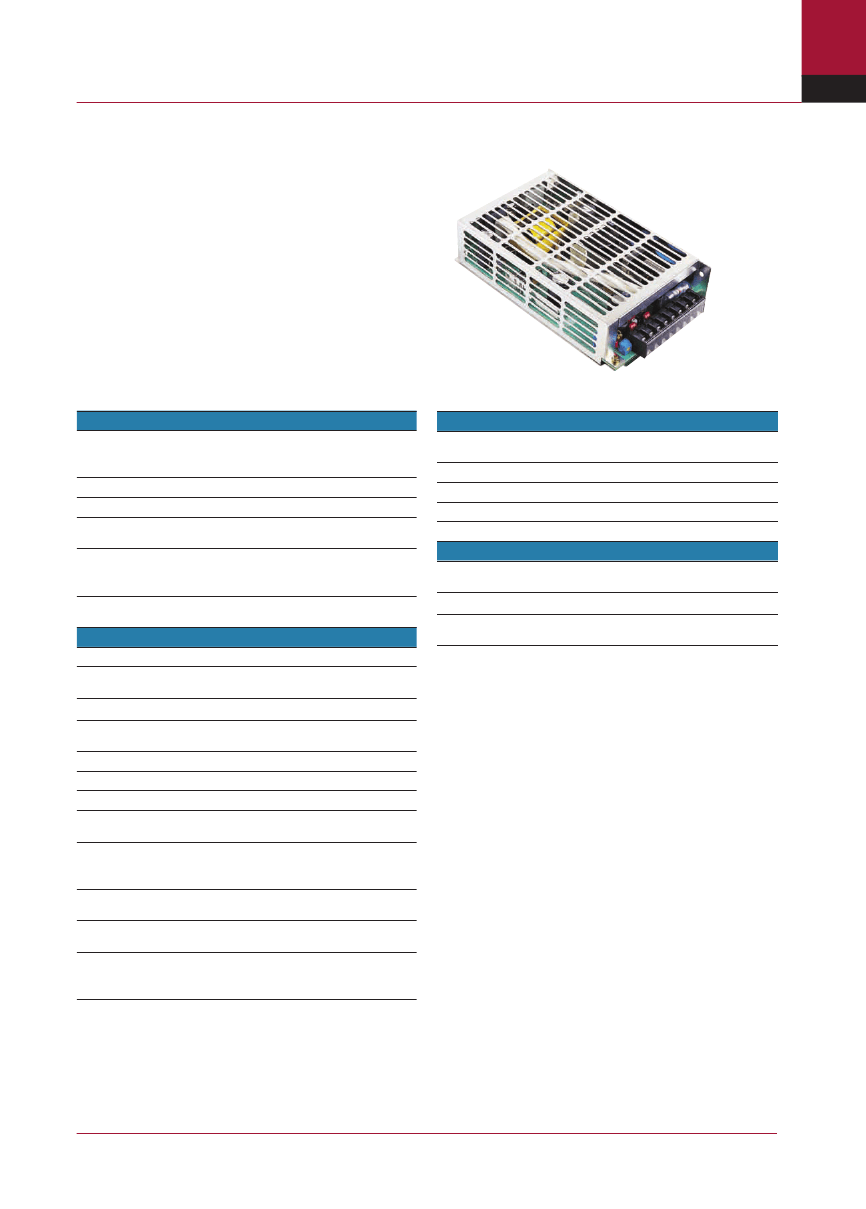

PBIC Series
1 5 - 1 1 0 W AT T S - A C / D C & M U LT I P L E D U A L O U T P U T
OPEN FRAME & ENCLOSED
FEATURES
• Worldwide inputs
• Compact size
• High efficiency and reliability
• 100% full load burn-in test
• Output voltage adjustable
• Overvoltage protection
SPECIFICATIONS
INPUT
ENVIRONMENTAL
Voltage
PBIC-F, G, J models: 85–264VAC
PBIC-L, N models 85–132VAC/170–264VAC
with auto select.
47Hz–440Hz.
Typically 20A–30A @ 100VAC
66%-79% depending on model, at nominal
input and full load.
Input – Output: 3000VAC(1 min).
Input – Case: 2500VAC(1 min).
Output – Case: 500VAC (1 min).
PBIC-F, G, J. models: 50MOhm, in – out – case.
PBIC-L, N models: 100MOhm, in – out – case.
See table.
PBIC-F, G, L models: ±5% V1, V2 & V3 fixed.
PBIC-L, N models: ±5% V1, ±5% V2, V3 fixed.
See table.
PBIC-F, G, L models: Output V x 1% + 50mV.
PBIC-L, N models: Output V x 1% + 100mV.
0.5% over input range.
0.03%–1% (0%-100% load) typical.
0.3% per °C, -5°C to +50°C.
Output V x 0.1% +15mV per 8 hours
after 1 hr
PBIC-F, G models: 0V clamp, V1 only
PBIC-J model: Output shutdown V1 only PBIC-
L, N models: Output shutdown, V1 and V2
PBIC-F, G, J models: Fold back current limit
PBIC-L, N models: Automatic reset
PBIC-F, G, J. models: 200mS max.
PBIC-L, N models: 550mS max.
PBIC-F, G, J. models: 10mS (norm. input &
output)
PBIC-L, N models: 20mS (min, full load)
Operating temperature
Storage temperature
Humidity
Vibration
Shock
STANDARDS
0° to 40°C with cover & vertical mount 0° to
50°C without cover & horizontal mount.
-20°C to +85°C.
85%.
(5Hz–10Hz) 10mm, (10Hz–55Hz) 2G.
PBIC-F, J: 30G; PBIC-G: 10G.
Meets UL1950, EN60950, CE LVD 73/23/EEC,
VDE805, CSA234.
AS/NZS CISPR11 Group 1, Class A
Built to meet FCC part 15 class B & VDE0871
class B (up to 150kHz) EN55022-B.
Frequency
Inrush current
Efficiency
Isolation
Safety standards
C-Tick
EMI standards
Insulation resistance
OUTPUT
Voltage
Voltage adjustment
Output current
Ripple & noise
Line regulation
Load regulation
Temperature coefficient
Drift
Overvoltage protection
Overcurrent protection
Rise time
Holdup time
Doc. No. PBC9 Rev.C 28-4-11
Powering Progress – www.powerbox.com.au
59
