HSEC8-190-01-H-DV-A-WT datasheet, PDF

Datasheet> All Categories > The connector> The connector> HSEC8-190-01-H-DV-A-WT

HSEC8-190-01-H-DV-A-WT: DescriptionCard Edge Connector, 90 Contact(s), 2 Row(s), Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size1MB，8 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

HSEC8-190-01-H-DV-A-WT Overview

Card Edge Connector, 90 Contact(s), 2 Row(s), Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator

HSEC8-190-01-H-DV-A-WT Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
body width	0.28 inch
subject depth	0.314 inch
body length	3.323 inch
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	BERYLLIUM COPPER
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.032 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	2.8 A
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	180

Preview

Download Datasheet

View All

REVISION BF

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS

(INCHES FOR REFERENCE ONLY)

(No OF POS x 0.800 [.0315]) + 4.600 [.1811] 1.126

(No OF POS x 0.800 [.0315]) + 1.400[.0551] REF

(No OF POS -1 ) x 0.800 [.0315]±0.100

HSEC8-1XXX-XX-XX-DV-X-XX

No OF POSITIONS (PER ROW)

-10, -20, -30 (SEE FIG 1)

■-09, -13, -25, -37, -49, -40, -50, -60, -70,

-80, -90, -100 (SEE FIG 2, SHT 2)

CARD THICKNESS

(SEE TABLE 9, SHT 3)

-01: 1.57 [.062] CARD

***

-02: 2.00 [.079] CARD

(10-60 POS, MULTIPLES OF 10 ONLY)

(-K & -TR ONLY FOR OPTION 2)

(USE HSEC8A-XXX-02-DV-XX)

-03: 2.36 [.093] CARD

(10-100 POS, MULTIPLES OF 10 ONLY)

(-K & -TR ONLY FOR OPTION 2)

(USE RHSEC8-XXX-03-DV-XX)

(SEE NOTE 7 & 10)

PLATING SPECIFICATION

-SM: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

◆

REF

-H: 30µ" HEAVY GOLD IN CONTACT

"T"'

AREA, 3µ" GOLD TAIL)

-S: 30µ" SELECTIVE GOLD IN CONTACT

AREA, MATTE TIN ON TAIL

-L: 10µ" LIGHT SELECTIVE GOLD IN

CONTACT AREA, MATTE TIN ON TAIL

ROW SPECIFICATION

-DV: DOUBLE VERTICAL

OPTION 2

**-PE: PASS THROUGH (SHT 7, FIG 7)

(10, 13, & 20 POS ONLY)

(-A OPTION ONLY)

(NOT AVAILABLE WITH ANY OTHER OPTION

2, EXCEPT -K AND/OR -TR)

**-BL: BOARD LOCK (SHT 5, FIG 5) (SEE NOTE 11)

**-GR: GUIDE RAILS (SHT 6, FIG 6)

(10-60 POS, MULTIPLES OF 10 ONLY)

(SEE NOTE 11)(-TR PACKAGING ONLY)

****-WT: WELD TAB (SHT 7, FIG 8)

(-A OPTION ONLY)

**-L: LATCHING (SHT 4, FIG 4)

(13, 25, 37, & 49 POS ONLY) (SEE NOTE 11)

**-L2: ECDP LATCHING (SHT 8, FIG 9)

(09, 13, 25, & 49 POS ONLY) (SEE NOTE 11)

-K: POLYIMIDE FILM PAD (SEE SHT 2, FIG 3)

-TR: TAPE & REEL

(09 THRU 70 POS ONLY)

(LEAVE BLANK FOR TRAY)

OPTION 1

-A: ALIGNMENT PIN

(USE XHSEC8X-XXX-XX-DV-A)

(LEAVE BLANK FOR NO ALIGNMENT PIN,

USE XHSEC8-XXX-01-DV-LC, NOT

AVAILABLE FOR CARD THICKNESS -02 &

-03 SEE FIG 10, SHT 3)

2.70 .106

REF

0.800±0.100 .0315±.0039

(TOL NON ACCUM)

"A"

◆

P" REF

◆

"Q" REF

POSITION #1

INDICATOR

"A"

XHSEC8X-XXX-XX-DV-XX

◆

** = AVAILABLE ONLY WITH -01 CARD THICKNESS

*** = FOR EXISTING CUSTOMER ONLY

****=AVAILABLE ONLY WITH -01 AND -03 CARD THICKNESS.

-03 CARD THICKNESS NOT RELEASED FOR PRODUCTION.

■ = AVAILABLE ONLY WITH END OPTIONS -BL, -WT, & -L2

7.80 .307

REF

1.32 .052 REF

(2 PLCS)

(SOME FEATURES

NOT SHOWN FOR

CLARITY)

C-188-XX-XX

◆

"V"

-0.26[.010]

◆

"W" REF

◆

+0.09[.004]

3.60 .142

REF

1.50 .059

REF

1.12 .044 REF (TYP)

(No OF POS x 0.800[.0315]) + 2.200[.0866] REF

2.92 .115

REF

3.03 .119

REF

SEE TABLE 1

7.98±0.15 .314±.006 (TYP)

0.800±0.100 .0315±.0039

(TOL NON ACCUM)

"Y" 0.20[.008]

◆

((No OF POS -1 ) x 0.800 [.0315])±0.08

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.04[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 2.2 NEWTONS.

4. ALL TAIL TO TAIL DIMENSIONS MEASURED TIP TO TIP.

5. ASSEMBLIES TO BE PACKAGED IN TRAYS, UNLESS -TR IS SPECIFIED.

6. NOTE DELETED.

MATING EDGE CARD THICKNESS TOLERANCE TO BE ±0.15 [.006] OF NOMINAL.

8. NOTE DELETED.

9. NOTE DELETED.

10.

MATING CARD MUST HAVE LEAD-IN. SEE SAMTEC FOOTPRINT FOR SPECIFICATIONS.

11. L, L2, & BL IS NOT APPLICABLE FOR GUIDE RAIL TYPE USE. GR NOT APPLICABLE FOR L,

L2, OR BL TYPE USE.

FOR POSITIONS -10, -20 & -30

HSEC8-130-01-XX-DV-A SHOWN

(SOME FEATURES NOT SHOWN FOR CLARITY)

◆

=(SEE TABLE 9, SHT 3)

FIG 1

SECTION "A"-"A"

F:\DWG\MISC\MKTG\HSEC8-1XXX-XX-XX-DV-X-XX-MKT.SLDDRW

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

TOLERANCES ARE:

DECIMALS

.X: .3 [.01]

.XX: .13 [.005]

.XXX: .051 [.0020]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2.5:1

INSULATOR: LCP,

COLOR: -01

CARD THICKNESS

BLACK,

-02 THRU -04

CARD THICKNESS

NATURAL

CONTACT: BeCu

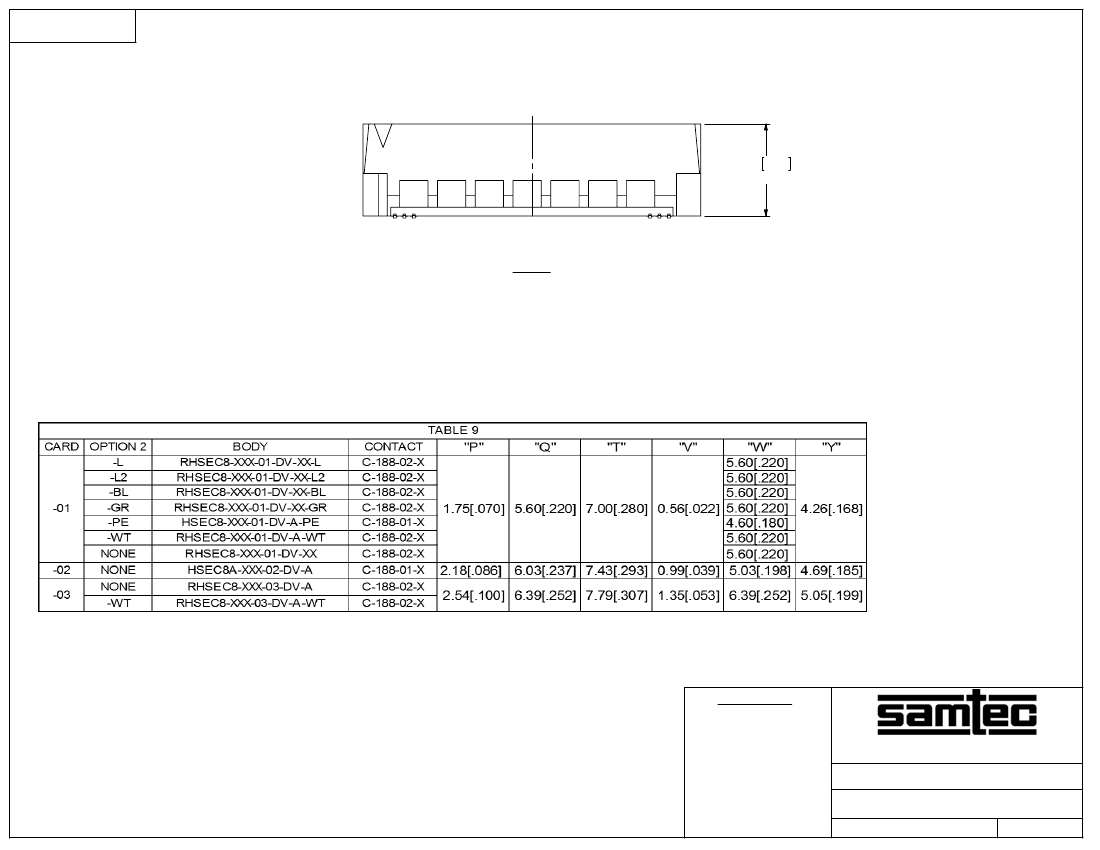

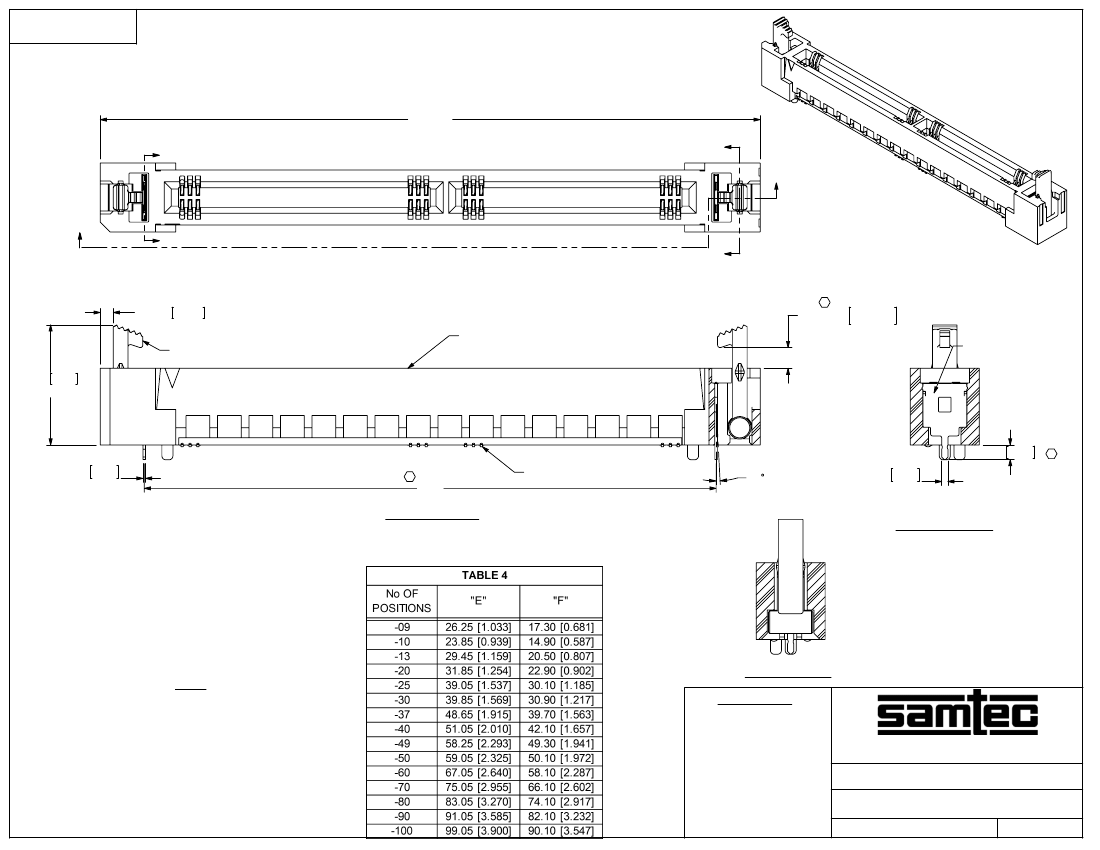

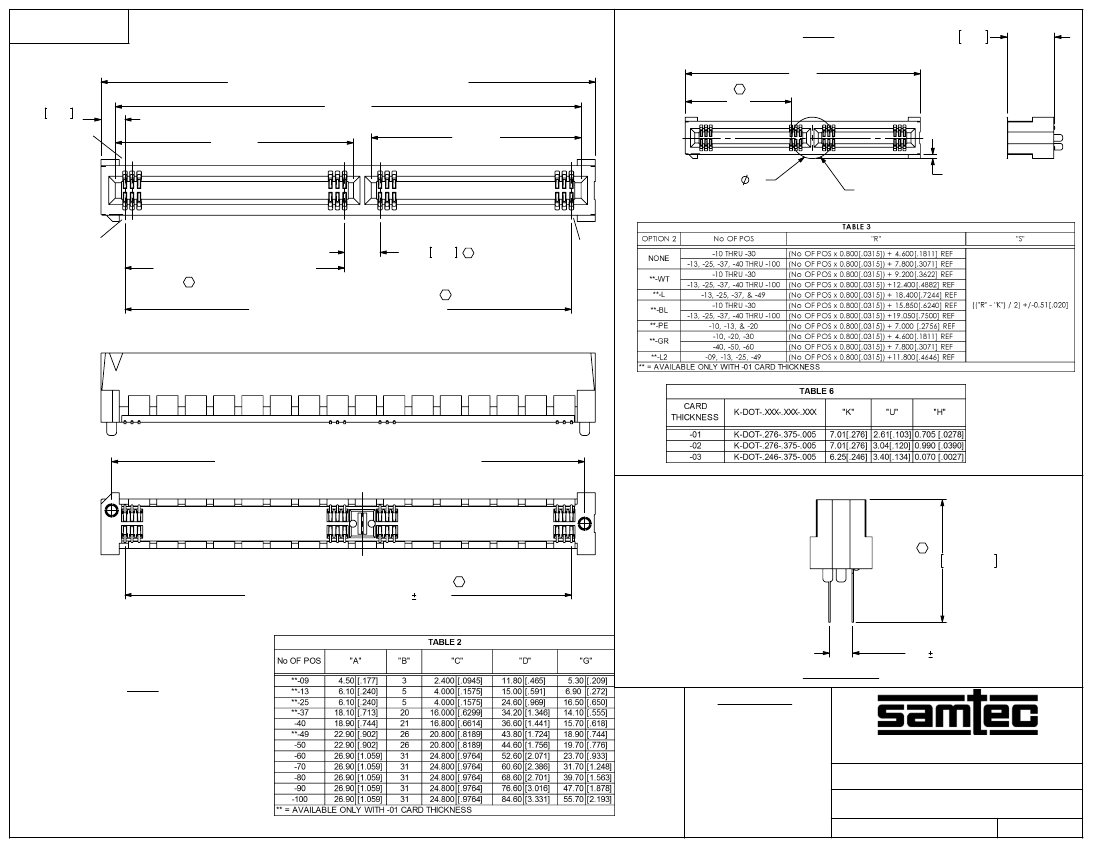

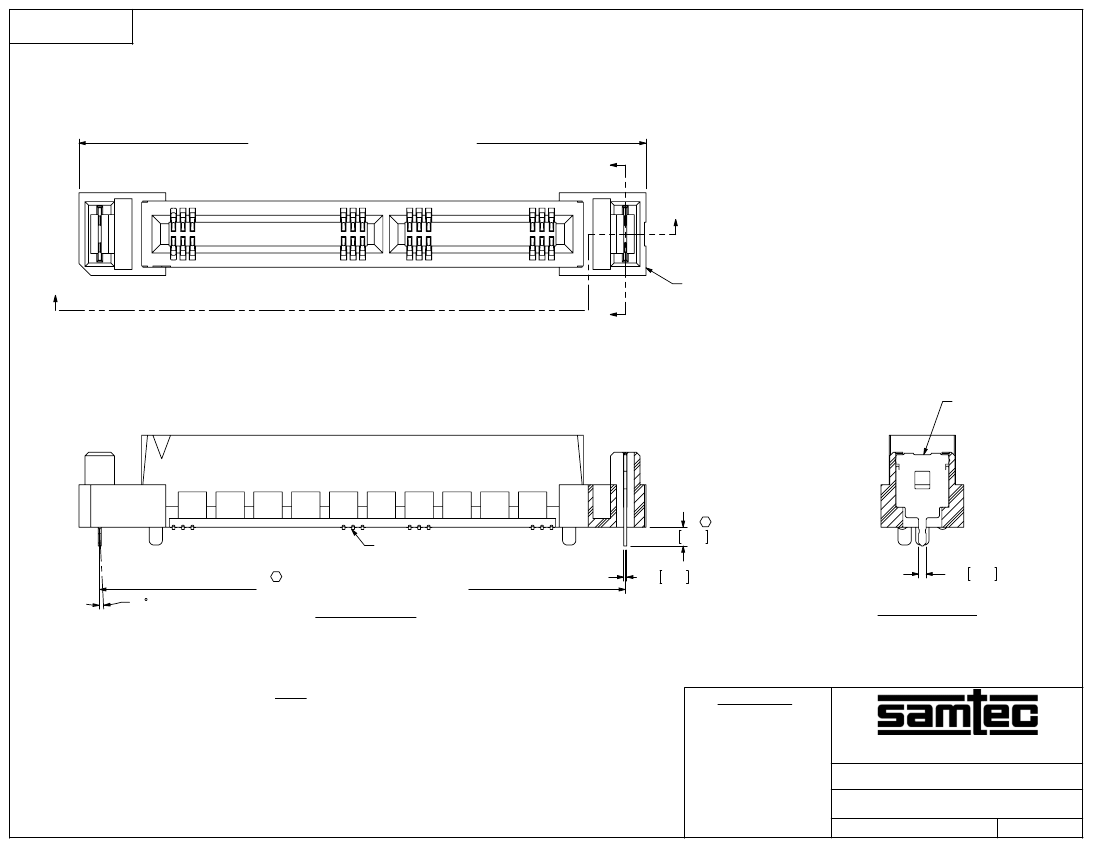

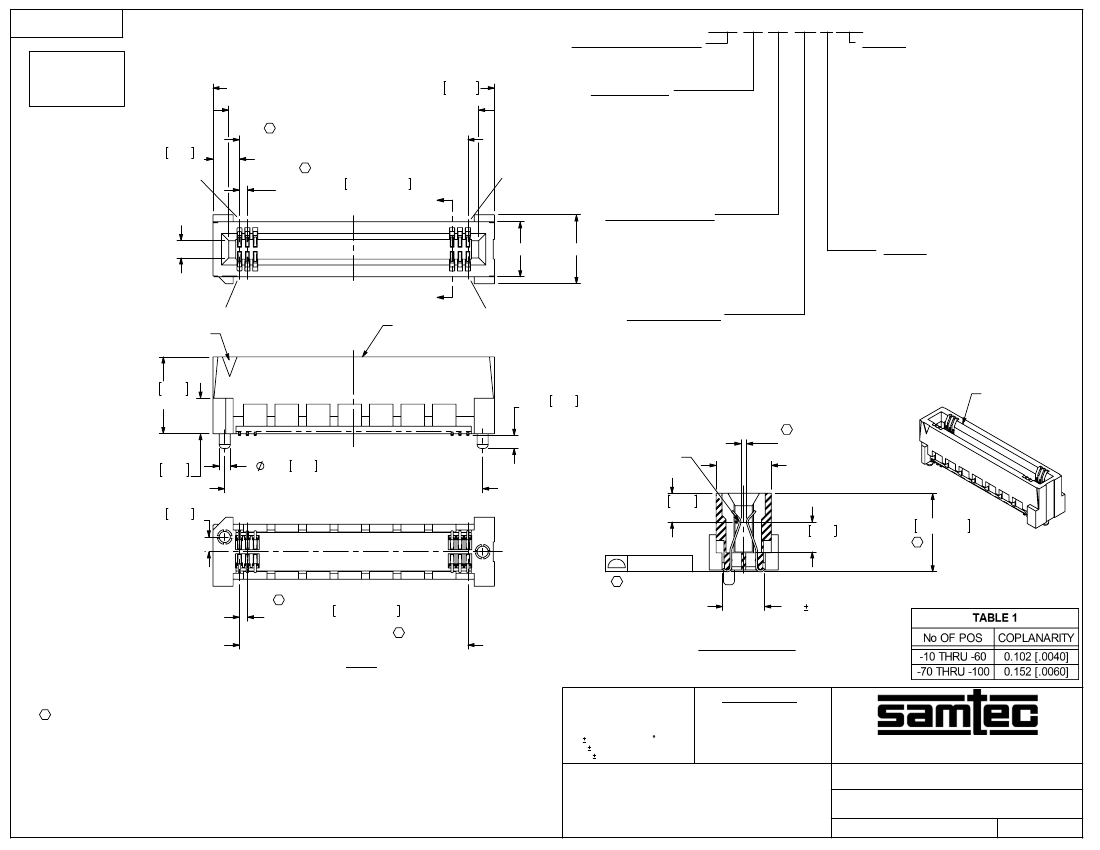

0.8mm HIGH SPEED EDGE CARD ASSEMBLY

BY:

BRATCHER 01/24/03

HSEC8-1XXX-XX-XX-DV-X-XX

SHEET
