BAV23S Small Signal Diode
September 2006
BAV23S
Small Signal Diode
Connection Diagram
3
3
3
2
1
1
tm
L30
2
1
2

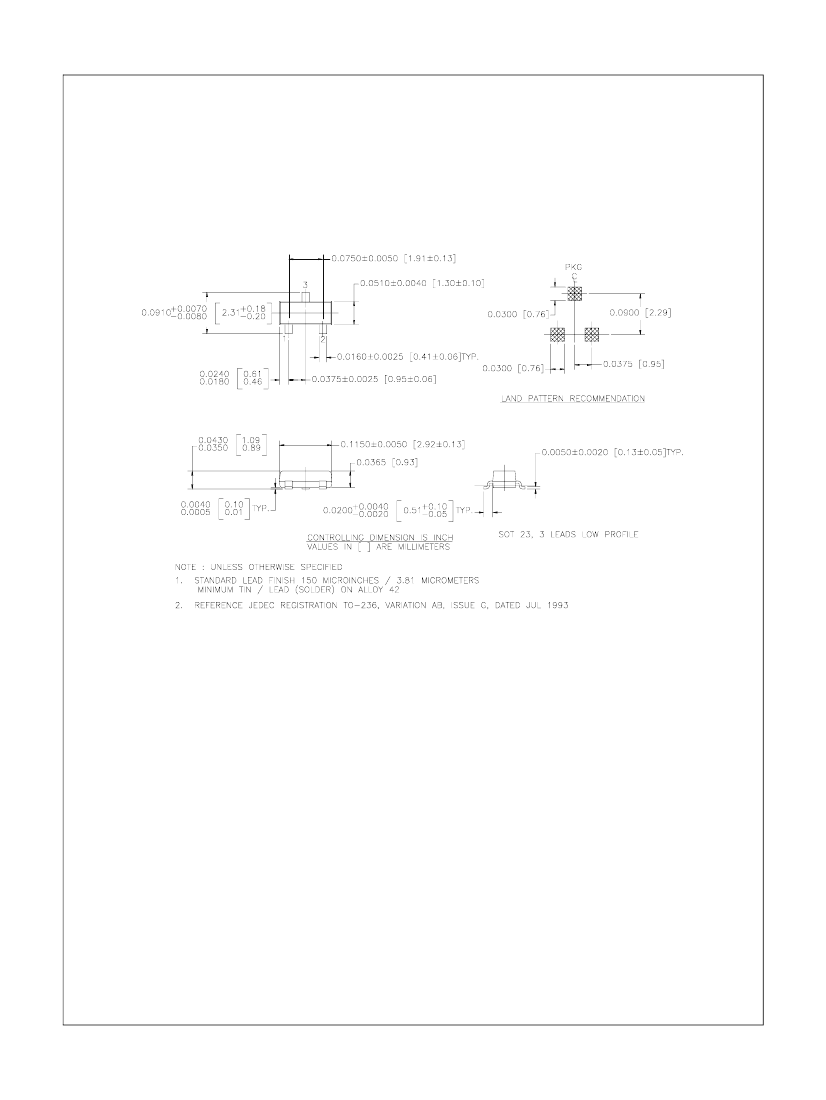

SOT-23
Absolute Maximum Ratings *
Symbol
V
RRM
I
F(AV)
I
FSM
T
a
= 25°C unless otherwise noted
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non-repetitive Peak Forward Surge Current
Pulse Width = 1.0 microsecond
Pulse Width = 100 microsecond
Storage Temperature Range
Operating Junction Temperature
Value
250
200
9.0
3.0
-55 to +150
150
Unit
V
mA
A
A
°C
°C
T
STG
T
J
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics
Symbol
P
D
R
θJA
Power Dissipation
Thermal Resistance, Junction to Ambient*
Parameter
Value
350
357
Unit
mW
°C/W
Electrical Characteristics
Symbol
V
R
V
F
I
R
t
rr
T
C
= 25°C unless otherwise noted
Parameter
Breakdown Voltage
Forward Voltage
Reverse Leakage
Reverse Recovery Time
Conditions
I
R
= 100µA
I
F
= 100mA
I
F
= 200mA
V
R
= 250V
V
R
= 250V, T
A
= 150°C
I
F
= I
R
= 30mA, I
RR
= 3.0mA,
R
L
= 100Ω
Min.
250
Max
1.0
1.25
100
100
50
Units
V
V
V
nA
µA
ns
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
BAV23S Rev. E

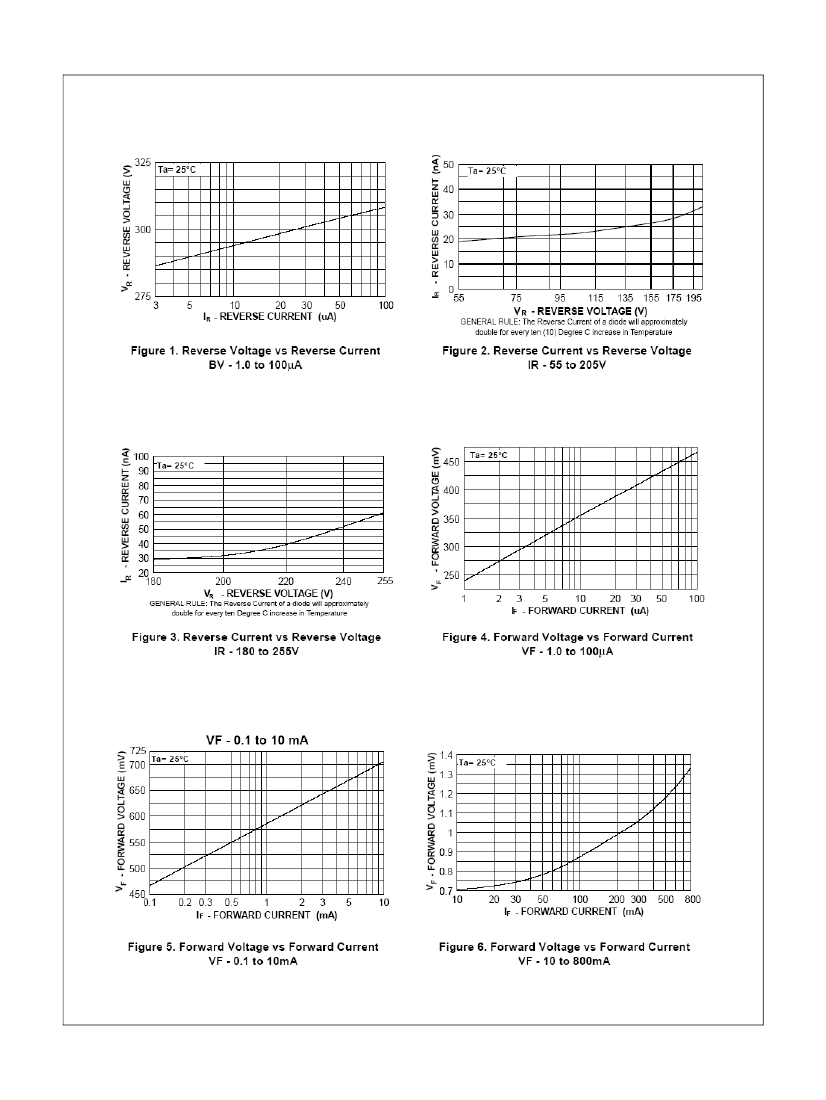

BAV23S Small Signal Diode
Typical Performance Characteristics
(Continued)
P - POWER DISSIPATION (mW)
400
300
250
I
F
- CURRENT (mA)
0
25
50
75
100
125
o
300
200
150
100
50
0
200
100
150
0
25
50
75
100
125
o
150
T
A
- A M B IEN T TEM PE R A TU R E ( C )
T
A
- AMBIENT TEMPERATURE ( C)

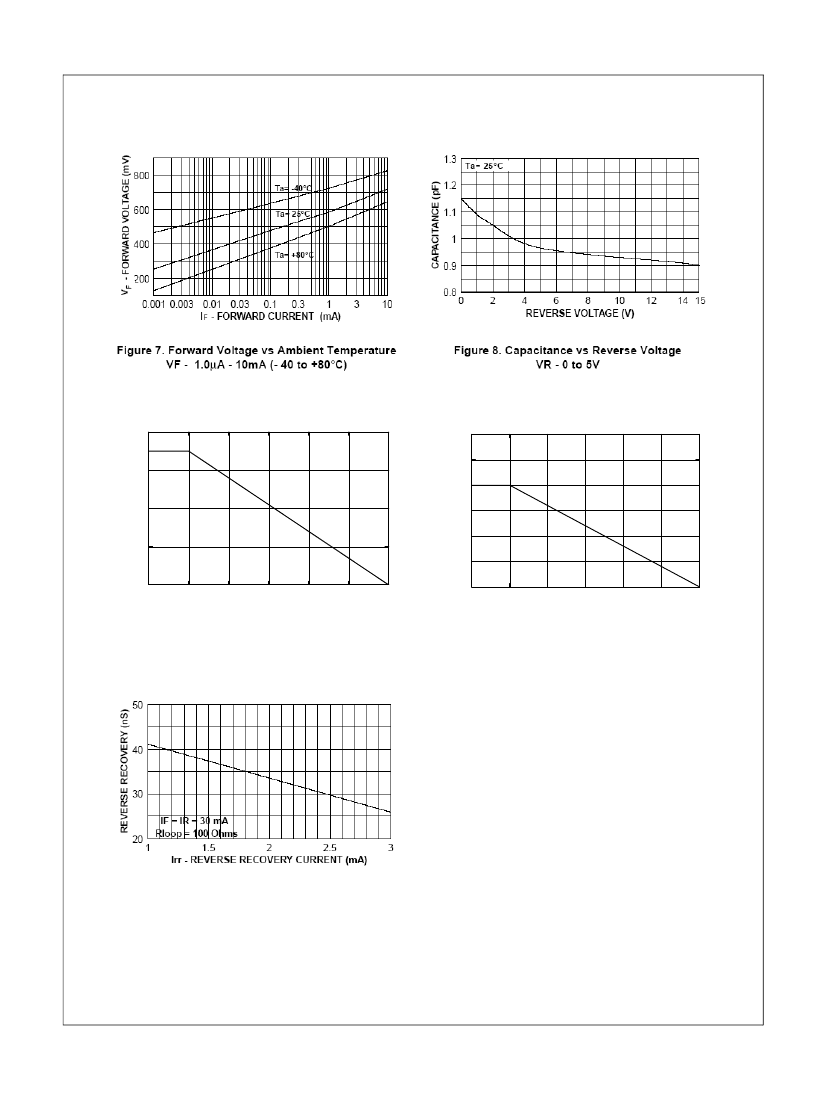

Figure 9. Power Derating Curve
Figure 10. Average Rectified Current(I
O
)
vs Ambient Temperature(T
A
)
Figure 11. Reverse Recovery Time vs
Reverse Recovery Current (Irr)
3
BAV23S Rev. E
www.fairchildsemi.com
