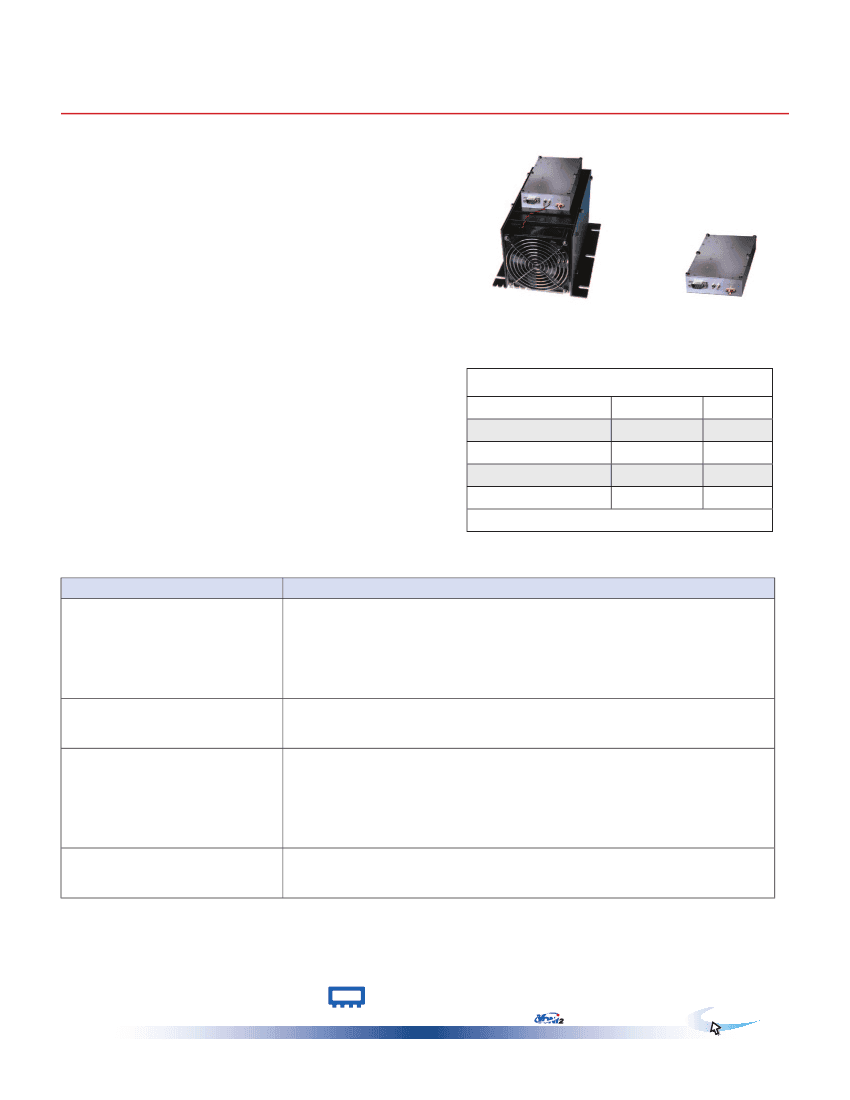

Mini-Circuits ZHL-16W-43+ offers high power (16W) with
rugged reliability over a broad frequency range from 1800
to 4000 MHz. This model includes temperature sensing
circuits for automatic shutdown and output load protection to
operate into a short or an open load making it ideal for use
in laboratory or field applications.
Summary Performance at 2 GHz
P
OUT
@ 3dB (P
SAT
)
Gain
IP3
P
OUT
(at 1dB)
DC Current (at 28V)
16
45
+47
+41
4.3
W, typ.
dB, typ.
dBm, typ.
dBm, typ.
A, max.
Operating Frequency: 1800 to 4000 MHz
Key Features
Feature
Advantages
Offering a unique combination of output power over a broad frequency range, the ZHL-16W-43+ is
ideal for laboratory and other test applications which require a high degree of flexibility to delivery
power over a wide array of applications including
• PCS, UMTS, LTE and wireless
• WiMAX
• Radar
• Microwave radio and ISM
With 1.3:1 output VSWR, the ZHL-16W-43+ is designed for use in driving circuits with a variety of
impedances and still provide consistent, reliable output power.
The ZHL-16W-43+ includes internal temperature monitoring circuits to automatically shut down the
amplifier in the event of over temperature operation. Set for approximately +85°C shutdown (with
auto recovery at 70°C), this feature ensures that users who have difficulty in controlling their ther-
mal environment or need to operate in a remote mode and cannot monitor the amplifier real time,
can function with the security that a thermal run-away condition will be avoided through this self
management feature. Furthermore, the ZHL-16W-43+ provides a TTL output to indicate thermal
shutdown for remote automated systems.
A high root cause for damage to power amplifiers is the operation into highly reflective loads. The
ZHL-16W-43+ power amplifier includes circuits to enable the amplifier to operate without damage
in the presence of an open or short over all phases.
Combination of Power and Bandwidth
Excellent Input and Output VSWR
Over Temp Shutdown
Output Load Protection
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
Page 1 of 3

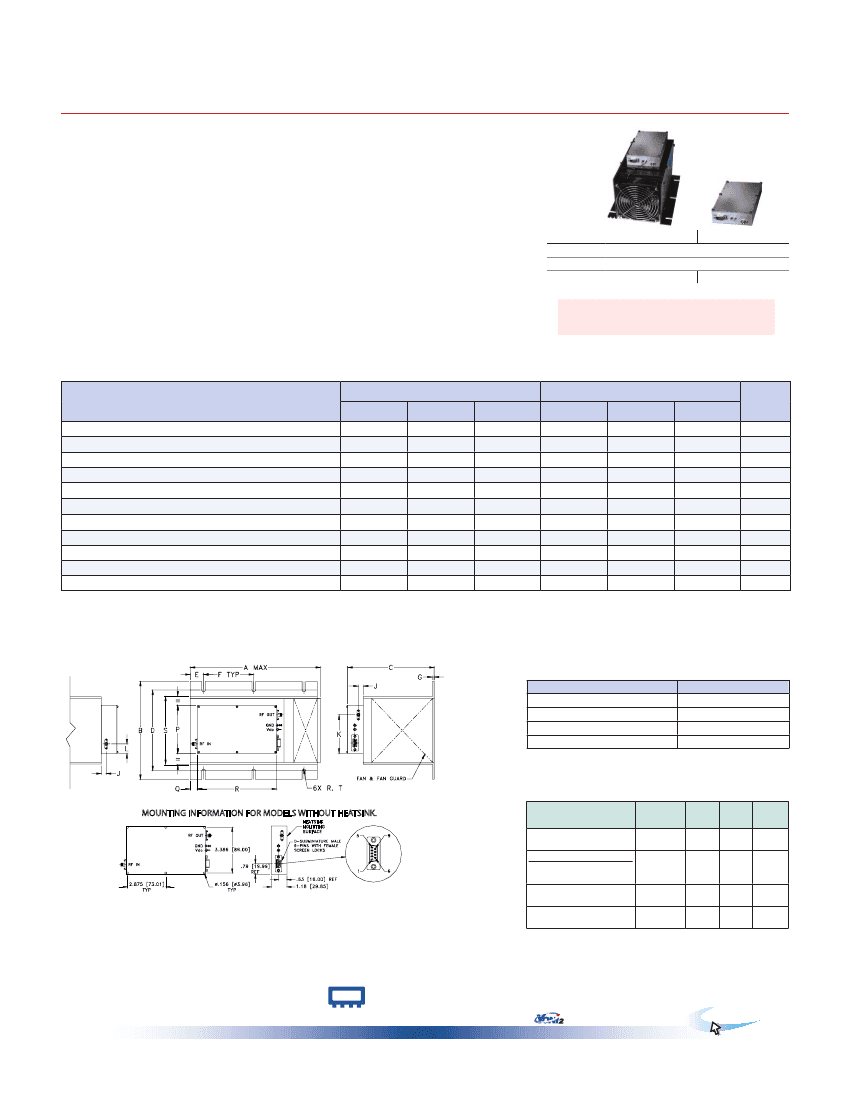

Coaxial
50Ω
High Power Amplifier
16W
1800 to 4000 MHz
General Description
Mini-Circuits ZHL-16W-43+, is a wide band High Power Amplifier providing 16W saturated output power over
more than an octave up to 4000 MHz. It supports a variety of applications from communication or radar to criti-
cal test and measurement systems and includes over-temperature self-protect and alarming circuits as well as
internal protection circuits to prevent damage due to operation into an open or short under full RF power.
ZHL-16W-43+
Features
• High power, 16 Watt
• Low Current consumption, 3A typ.
• High IP3, +47 dBm typ.
• Usable over 800 to 4200 MHz
• Good gain flatness, ±1.5 dB typ.
• No damage with an open or short output load under full
CW output power
• Overheat-protection automatic shuts off when base plate
temperature exceeds +80°C
Applications
• PCN
• GSM
• ISM
• WiMax
• Lab test
Model No.
Case Style
Connectors
Price (Qty.)
ZHL-16W-43-S+
ZHL-16W-43X-S+
▲
BT1344
SMA / D-Sub Male
$1595.00 ea. (1-9)
$1545.00 ea. (1-9)
+ RoHS compliant in accordance
with EU Directive (2002/95/EC)
The +Suffix has been added in order to identify RoHS
Compliance. See our web site for RoHS Compliance
methodologies and qualifications.
Electrical Specifications
ZHL-16W-43-S+
Parameter
Frequency Range
Gain
Gain Flatness
Output Power at 1dB compression
Saturated Output Power at 3dB compression
Noise Figure
Output third order intercept point
Input VSWR
Output VSWR
DC Supply Voltage
Supply Current
+39
+40
+41
+42
6.0
+47
1.5
1.3
28
30
4.3
▲
ZHL-16W-43X-S+
▲
Max.
4000
50
±2.0
+39
+40
+41
+42
6.0
+47
1.5
1.3
28
30
4.0
Min.
1800
40
Typ.
45
Min
1800
40
Typ.
45
Max.
4000
50
±2.0
Units
MHz
dB
dB
dBm
dBm
dB
dBm
:1
:1
V
A
Outline Drawing
Heat sink and fan not included. Alternative heat sinking and heat removal
must be provided by the user to limit maximum base-plate temperature to
60°C, in order to ensure proper performance. For reference, this requires
thermal resistance of user’s external heat sink to be 0.109°C/W max. at
47°C ambient.
Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Base Plate Temperature
Input RF Power (no damage)
1
Ratings
-20°C to 47°C
-55°C to 100°C
60°C
+9 dBm
1. Peak envelop power. (Refer to Application Note AN-60-037 for PEP calculation).
Permanent damage may occur if any of these limits are exceeded.
D-Sub Male Connector Pin Connections**
MOUNTING INFORMATION FOR MODELS WITHOUT HEATSINK.
Pin Function
None
Thermal Shut-Off Indication:
Shut-Off: 2 to 5V
Not Shut-Off: 0 to 0.8V
DC Input (+)
Label on
unit
Pin # Color Gauge
None
Orange
Red
Black
None
26
AWG
18
AWG
18
AWG
N/C1, N/C2
1,2,4,5
N/C4, N/C5
TTL Out
Vdc
GND
3
6,7
8,9
Outline Dimensions (
inch
)
mm
A
B
C
D
9.85
7.3
6.5
6.00
250.19 185.42 165.10 152.40
E
1.00
25.40
F
3.75
95.25
G
.13
3.30
J
.37
9.40
K
2.87
72.90
L
.71
18.03
P
3.58
90.93
Q
R
S
T
wt
.5
5.95
5.1
.135 grams*
12.70 151.13 129.54
3.43
4265
*580 grams without heatsink
Ground
**Each amplifier will come packaged with an additional D-Sub
connector for mating with the amplifier.
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
REV. A
M124708
ZHL-16W-43+
ED-13557
110406
Page 2 of 3
Typical Performance Data/Curves
ZHL-16W-43+
FREQUENCY
(MHz)
GAIN
(dB)
DIRECTIVITY
(dB)
VSWR
(:1)
NOISE
FIGURE
(dB)
POUT
(dBm)
at 28V
1 dB
Compr.
41.96
43.36
42.86
42.11
42.08
42.08
42.96
42.80
42.26
42.00
43.55
41.91
OUTPUT
IP3
(dBm)
28V
1800.00
2000.00
2200.00
2400.00
2600.00
2800.00
3000.00
3200.00
3400.00
3600.00
3800.00
4000.00
44.98
45.59
44.40
44.13
44.62
45.59
46.48
45.96
44.84
44.42
45.36
45.13
28V
46.72
39.51
47.84
44.94
38.25
50.27
52.87
45.87
48.76
52.45
46.80
48.58
IN
1.74
1.41
1.20
1.03
1.28
1.56
1.60
1.36
1.34
1.48
1.47
1.21
OUT
1.33
1.23
1.12
1.22
1.07
1.06
1.25
1.23
1.26
1.16
1.13
1.13
28V
5.15
5.13
5.04
5.26
5.30
5.41
5.33
5.76
5.50
5.72
5.82
6.18
3 dB
Compr.
42.36
43.49
43.04
42.76
42.77
43.09
43.47
43.38
42.94
43.26
44.24
42.87
28V
46.75
48.47
49.45
48.98
48.61
48.29
48.45
48.76
49.01
49.11
49.56
47.76
50
48
GAIN (dB)
at 28V
ZHL-16W-43+
GAIN
60
DIRECTIVITY (dB)
at 28V
ZHL-16W-43+
DIRECTIVITY
2.0
1.8
VSWR
at 28V
ZHL-16W-43+
VSWR
IN
OUT
55
50
45
40
35
30
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
46
44
42
40
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
1.6
1.4
1.2
1.0
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
ZHL-16W-43+
OUTPUT POWER
ZHL-16W-43+
NOISE FIGURE
6.5
NOISE FIGURE (dB)
at 28V
OUTPUT POWER (dBm)
45
44
43
42
41
at 28V
55
53
IP3 (dBm)
at 28V
ZHL-16W-43+
IP3
6.0
51
49
47
5.5
1dB Compr.
3dB Compr.
40
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
5.0
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
45
1800 2075 2350 2625 2900 3175 3450 3725 4000
FREQUENCY (MHz)
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
®
Provides ACTUAL Data Instantly at
minicircuits.com
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
Page 3 of 3
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
As the title says, how to use the capacitive touch button counting of msp430f5529 to realize the operation of adding and subtracting points (two buttons can be used) and display them on the LCD. Pleas...
China's choice for 3G cell phones is the TD-SCDMA system. This article presents a detailed block diagram of a cell phone transceiver, in which the MAX2361 is the transmitter IC, the MAX2291 is the pow...
People often say that the longer you live, the richer your experience, and the older you are, the clearer you see things. In fact, this is deceptive. When old people get older, they have no advantages...
[size=4][size=16px]From 2006 to this year, the power supply industry has been turbulent, and many factories have gone through a lot of trials and tribulations. Some have closed down, while others have...
[hide]The quality of a full-color display can be judged from the following aspects: 1. Flatness The surface flatness of the display should be within ±1mm to ensure that the displayed image is not di...
1) Title of the work: Handheld Bluetooth Car Diagnostic Instrument (2) Functional description of the work: Through data communication with the Bluetooth module of the in-vehicle multimedia navigation ...
With the booming electronics industry, vision systems have become a leader in the electronics automation sector. However, the delicate nature of electronic products often affects product yields due...[Details]
If the ultimate form of a car is a silicon-based life form, then in
the field of
intelligent driving
, it has gradually taken on the appearance of a "veteran driver." In
the field of
the ...[Details]
Nios II is a configurable 16-/32-bit RISC processor. Combined with a rich set of peripheral-specific instructions and hardware acceleration units, it provides a highly flexible and powerful SOPC sy...[Details]
On August 24th, media outlets reported, citing sources, that NavInfo, a listed company on the A-share market, is nearing completion in its acquisition of the intelligent driving c...[Details]
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
Today's security industry has entered the era of massive networking. Many enterprises, especially financial institutions, have established multi-level video surveillance networking platforms. Lever...[Details]
Zos Automotive Research Institute released the "2025
Smart Cockpit
Tier 1 Research Report (Domestic Edition)."
This report analyzes the operating conditions of more than a dozen ...[Details]
On August 20th, Tiantai Robotics Co., Ltd., along with strategic partners including Shandong Future Robotics Technology Co., Ltd., Shandong Future Data Technology Co., Ltd., and Gangzai Robotics Gr...[Details]
For autonomous vehicles to safely navigate the road, they must identify far more complex objects than just traffic lights, pedestrians, and other familiar objects. Among these obstacles is a crucia...[Details]
The automotive industry in 2025 is undergoing a thorough intelligent reshuffle.
Geely wants to make changes in the field of AI cockpits: in the future, there will be no traditional smart...[Details]
Industrial computers with GPUs leverage powerful parallel processing to build deep learning models to analyze and respond to optical inputs. The systems develop an understanding of visual data to i...[Details]
The MCX E series is the most reliability- and safety-focused series in NXP's extensive MCX product portfolio.
With the launch of this series, NXP has further enriched its 5V-compatible MCU pr...[Details]
In the period after the switching power supply achieved the "20 kHz" revolution in the 1970s, although improvements and enhancements were made in circuit technology, the development level of the se...[Details]
Charging is an essential topic for electric vehicles. Batteries are a core component of new energy vehicles. So, what's the optimal charge level for electric vehicles? Based on current battery tech...[Details]
As a pioneer in the new smart home concept, robot vacuums have captured a significant market share. Robot vacuums, also known as automatic sweepers, smart vacuums, or robot vacuums, are smart home ...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
