4409AS-10: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size179KB，2 Pages; ManufacturerSPC Multicomp; Environmental Compliance

Download Datasheet Parametric View All

4409AS-10 Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

4409AS-10 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SPC Multicomp
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.136 inch
body length	0.678 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	4409
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	10

Preview

Download Datasheet

View All

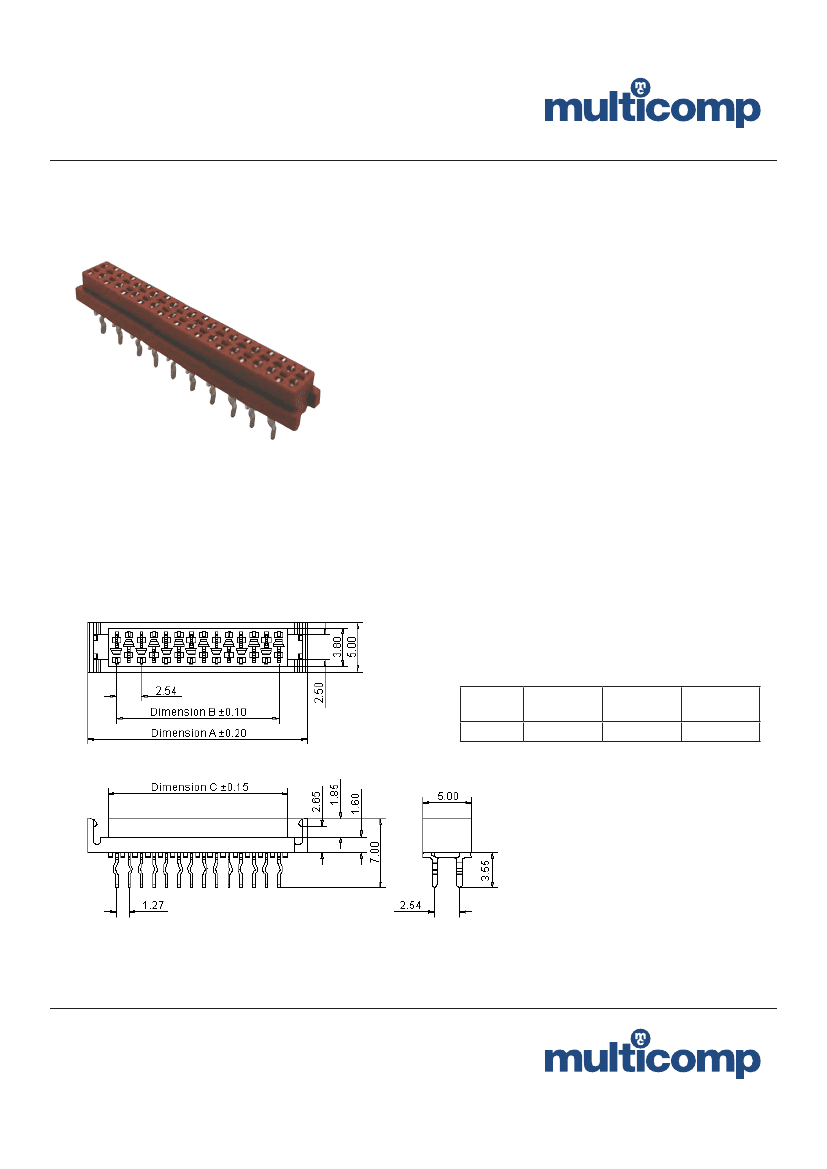

Top Entry Socket

10Way

Specifications:

Current Rating

Voltage Rating

Maximum Contact Resistance

Minimum Insulation Resistance

Withstanding Voltage

Operating Temperature Range

Pitch Spacing

No. of Rows

No. of Contacts

Pitch

Gender

Contact Termination

Connector Type

Material and Finish

Insulator

Contact

Plating

: 1A AC/DC

: 30V AC/DC

: 20mΩ

: 1,000MΩ

: 500V AC for one minute

: -40°C to +105°C

: 1.27mm

:2

: 10

: 2.54mm

: Receptacle

: Solder

: Wire to Board

: High temperature plastic

: Copper alloy

: Selective plated

Circuits

10

Dimension

A

17.22

Dimension

B

11.43

Dimension

C

13.22

Dimensions : Millimetres

www.element14.com

www.farnell.com

www.newark.com

Page <1>

30/11/12

V1.0
