CDRH60D28RNP-150MB

Description
General Purpose Inductor, 15uH, 20%, 1 Element, SMD,
CategoryPassive components    inductor
File Size192KB,2 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

CDRH60D28RNP-150MB Overview

General Purpose Inductor, 15uH, 20%, 1 Element, SMD,

CDRH60D28RNP-150MB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
Reach Compliance Codeunknown
ECCN codeEAR99
DC Resistance0.111 Ω
Nominal inductance(L)15 µH
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDRH60D28R
Number of functions1
Number of terminals2
Maximum rated current1.75 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%

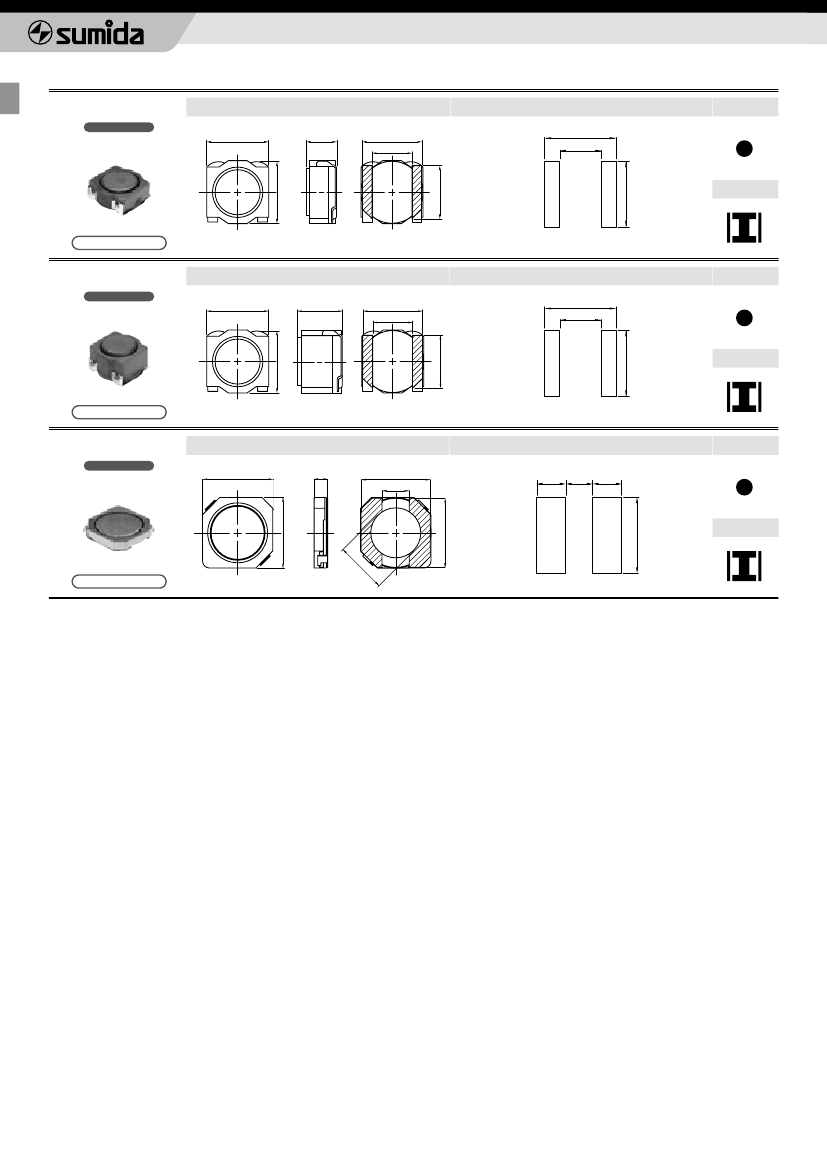

SMD Shielded Type : CDRH
**
D
**
R Series (Cost Competitive)
CDRH60D28R
NEW
Max. 6.3
DIMENSIONS (mm)
外½寸法図
LAND PATTERNS (mm)
推奨ラン
ド寸法
WIRE
線種
Max. 6.3
5.3
5.9
Max. 10.0
10.2
9.6
Low Cost SMD Shielded Type
Max. 3.0
5.8
3.8
6.2
3.6
Max. 6.3
5.3
5.9
CONSTRUCTION
磁気構造図
( 2.2µH - 150µH )
PROVISIONAL
CDRH60D43R
NEW
Max. 6.3
DIMENSIONS (mm)
外½寸法図
LAND PATTERNS (mm)
推奨ランド寸法
WIRE
線種
Max. 4.5
5.8
3.8
6.2
3.6
CONSTRUCTION
磁気構造図
( 1.5µH - 330µH )
PROVISIONAL
CDRH98D18R
NEW
Max. 10.0
DIMENSIONS (mm)
外½寸法図
LAND PATTERNS (mm)
推奨ランド寸法
WIRE
線種
Max. 2.0
9.6
3.8
3.3
3.6
3.3
CONSTRUCTION
磁気構造図
( 4.3µH - 47µH )
.
ø7
00
PROVISIONAL
20
