Datasheet> All Categories > Discrete semiconductor> The transistor> DTA114YCA

DTA114YCA: DescriptionSmall Signal Bipolar Transistor, 0.07A I(C), 1-Element, PNP, Silicon,; CategoryDiscrete semiconductor The transistor; File Size172KB，5 Pages; ManufacturerGalaxy Semi-Conductor Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

DTA114YCA Overview

Small Signal Bipolar Transistor, 0.07A I(C), 1-Element, PNP, Silicon,

DTA114YCA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Semi-Conductor Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.07 A
Minimum DC current gain (hFE)	68
Number of components	1
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Transistor component materials	SILICON

Preview

Download Datasheet

View All

Galaxy Electrical

Digital Transistor

FEATURES

Epitaxial planar die construction.

Complementary NPN types available(DTC).

Built-in biasing resistors,R

≠R

Also available in lead free version.

Production specification

DTA(R

≠R

SERIES)CA

Lead-free

APPLICATIONS

The PNP style digital transistor.

SOT-23

ORDERING INFORMATION

Type No.

DTA113ZCA

DTA114WCA

DTA114YCA

DTA123JCA

DTA123YCA

DTA143XCA

DTA143ZCA

Marking

E11

E32

E13

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

Parameter

Supply Voltage

Input Voltage

DTA113ZCA

DTA114WCA

DTA114YCA

DTA123JCA

DTA123YCA

DTA143XCA

DTA143ZCA

DTA113ZCA

DTA114WCA

DTA114YCA

DTA123JCA

DTA123YCA

DTA143XCA

DTA143ZCA

ALL

Value

-50

+5 to-10

+10 to-30

+6 to -40

+5 to-12

+7 to-20

+5 to-30

-100

-70

-100

200

Units

Output Current

(Max.)

Output current

Power Dissipation

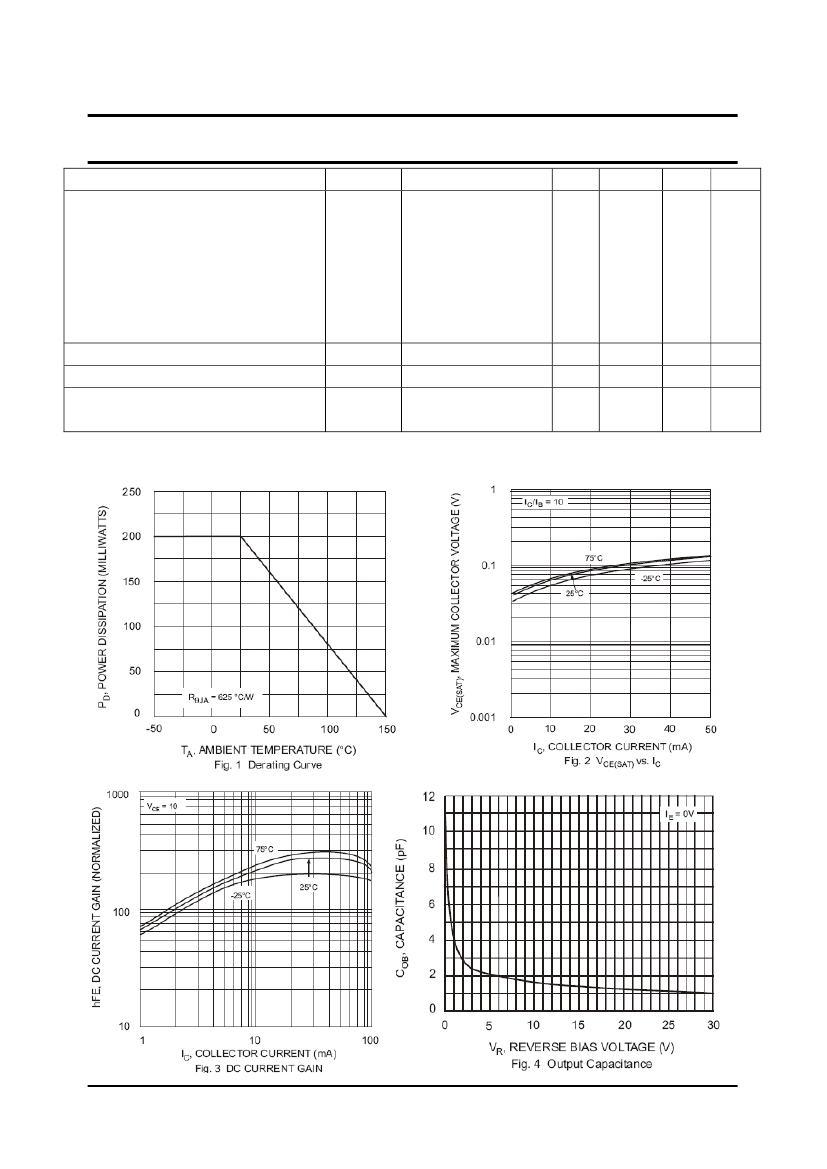

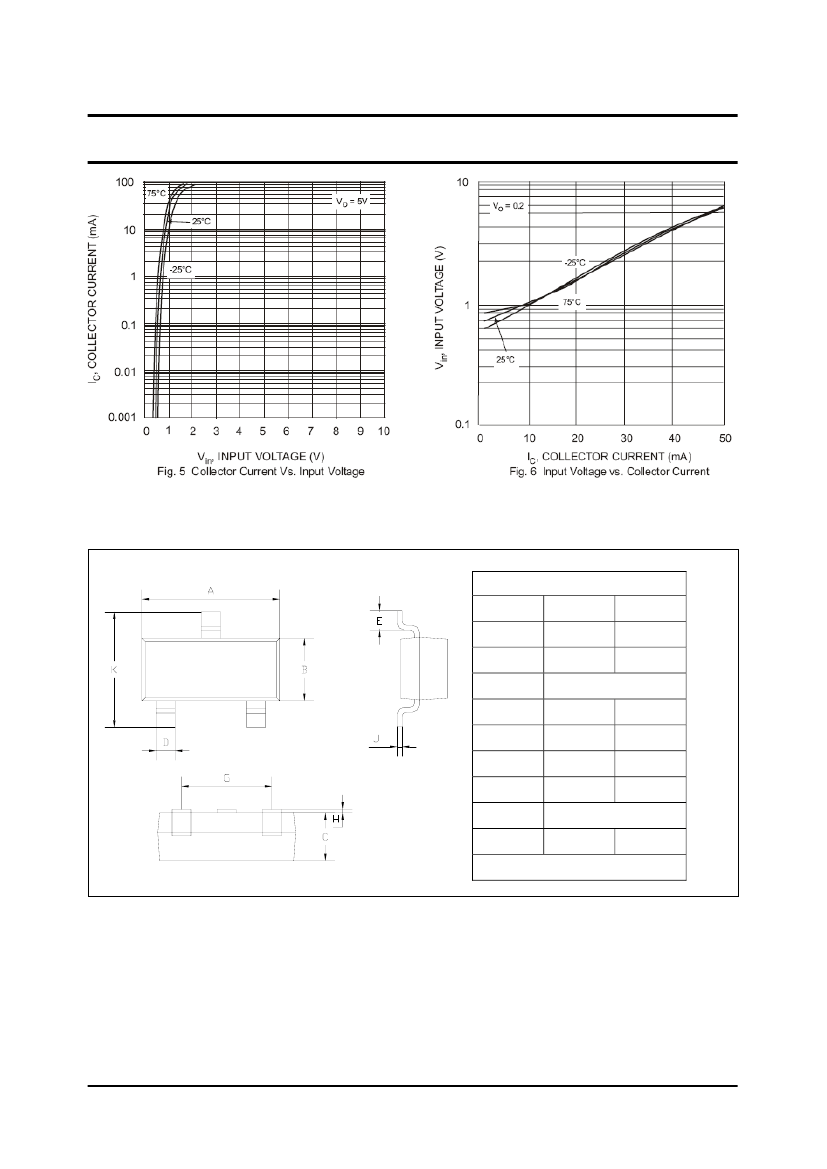

Document number: BL/SSDTC145

Rev.A

www.galaxycn.com

DTA114YCA Related Products

	DTA114YCA	DTA113ZCA	DTA143ZCA	DTA123YCA	DTA143XCA
Description	Small Signal Bipolar Transistor, 0.07A I(C), 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon,	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.07 A	0.1 A	0.1 A	0.1 A	0.1 A
Minimum DC current gain (hFE)	68	33	80	33	30
Number of components	1	1	1	1	1
Polarity/channel type	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
surface mount	YES	YES	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Galaxy Semi-Conductor Co., Ltd.	-	Galaxy Semi-Conductor Co., Ltd.	Galaxy Semi-Conductor Co., Ltd.	Galaxy Semi-Conductor Co., Ltd.
