CDRH103RNP-150NB: DescriptionGeneral Purpose Inductor, 15uH, 30%, 1 Element, SMD,; CategoryPassive components inductor; File Size201KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH103RNP-150NB Overview

General Purpose Inductor, 15uH, 30%, 1 Element, SMD,

CDRH103RNP-150NB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.091 Ω
Nominal inductance(L)	15 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH103R
Number of functions	1
Number of terminals	2
Maximum rated current	2.05 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

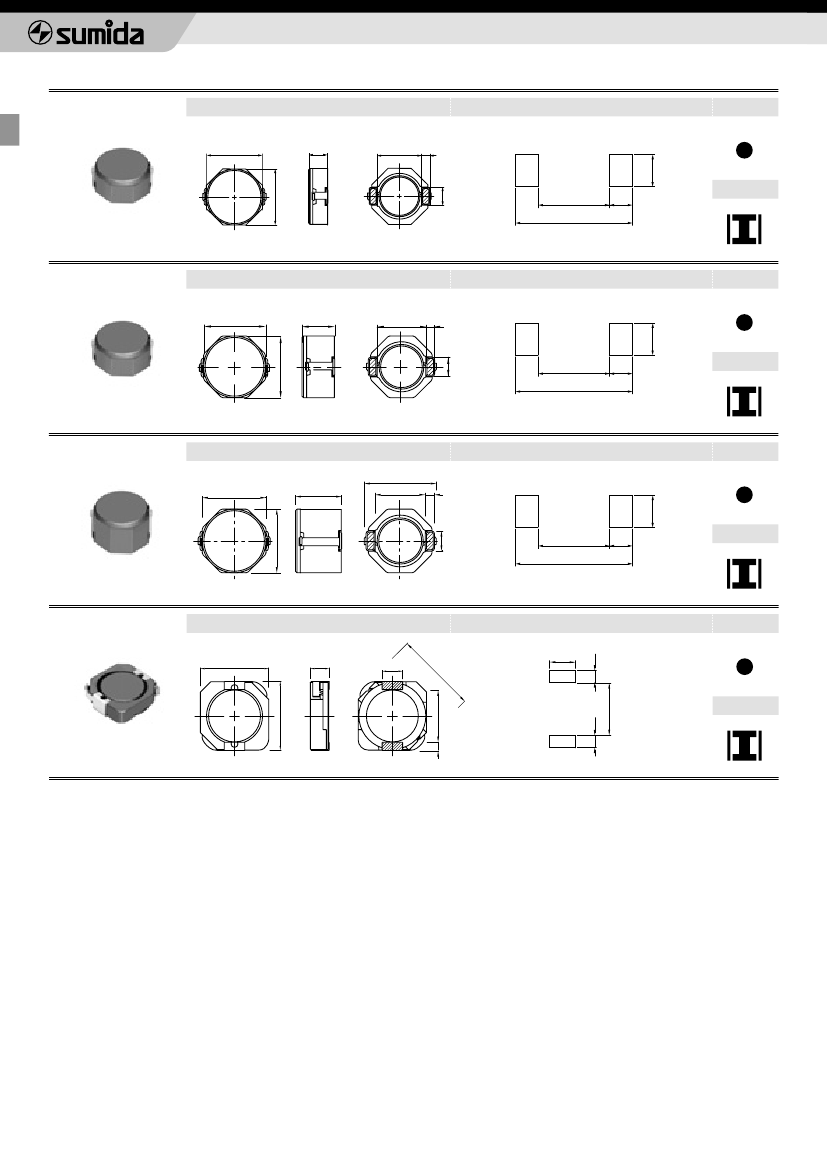

SMD Shielded Type : CDRH

**

D

**

( /

**

) Standard Series

CDRH8D43

Max. 8.3

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

ド寸法

推奨ラン

WIRE

線種

Max. 4.5

6.3

1.2

Max. 8.3

2.8

2.5

Max. 8.3

2.8

2.5

Max. 10.3

Max. 3.1

3.0

1.6

Max. 10.5

7.3

7.7

( 0.8µH - 150µH )

52

1.2

1.6

SMD Shielded Type

2.8

Max. 8.3

2.5

CONSTRUCTION

6.1

10.1

2.0

磁気構造図

( 0.68µH - 100µH )

CDRH8D43/HP

Max. 8.3

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

WIRE

線種

Max. 4.7

6.3

1.2

6.1

10.1

2.0

CONSTRUCTION

磁気構造図

( 1.2µH - 68µH )

CDRH8D58/LD

Max.

8.3

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

推奨ラン

ド寸法

WIRE

線種

Max.

6.0

(11.0)

6.3

1.2

6.1

10.1

2.0

CONSTRUCTION

磁気構造図

( 2.8µH - 100µH )

CDRH103R

DIMENSIONS (mm)

外½寸法図

LAND PATTERNS (mm)

ド寸法

推奨ラン

WIRE

線種

3.2

5

M

ax

.1

3.

CONSTRUCTION

磁気構造図
