D72FY4D1

Description
Small Signal Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-251AA
CategoryDiscrete semiconductor    The transistor
File Size91KB,4 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric Compare View All

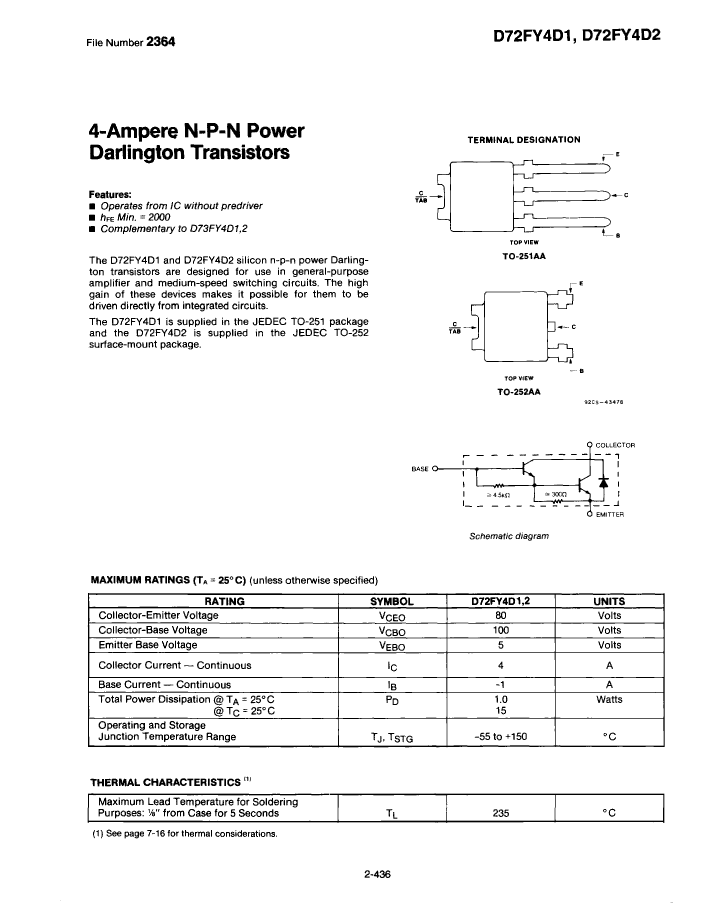

D72FY4D1 Overview

Small Signal Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-251AA

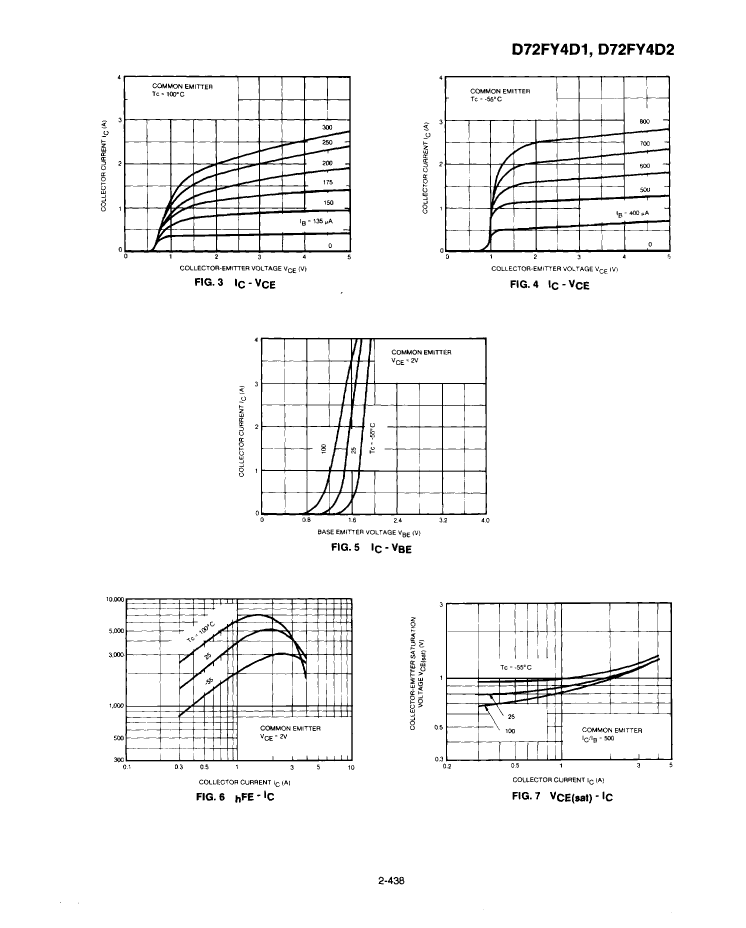

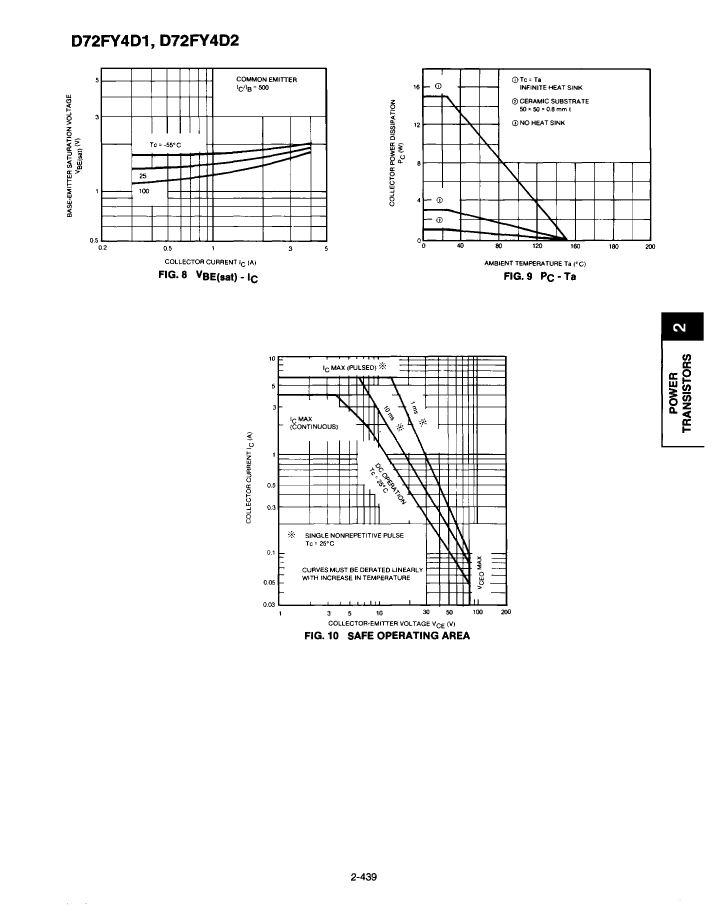

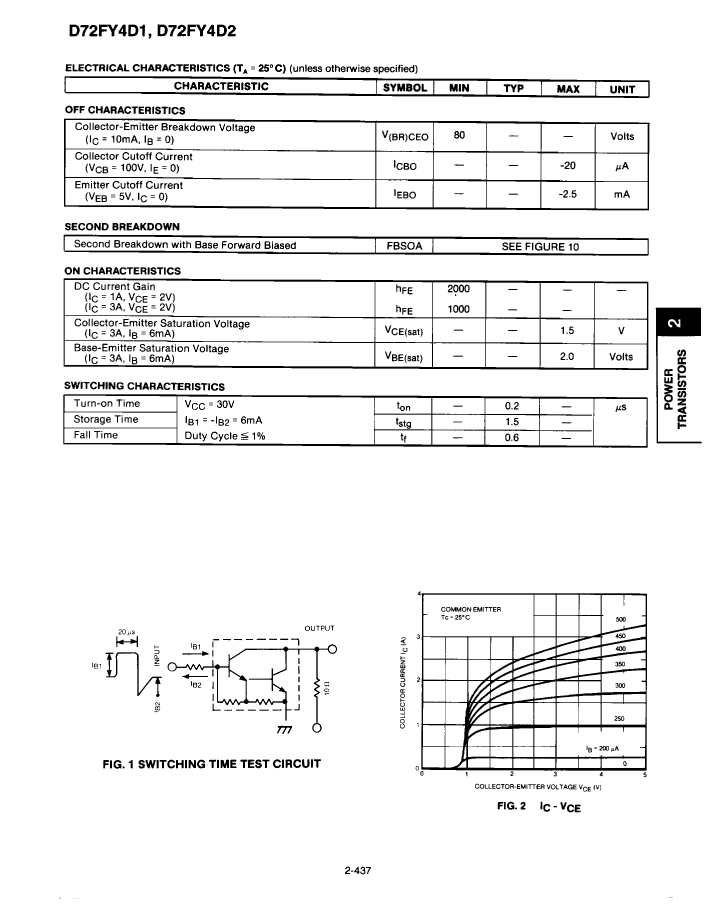

D72FY4D1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarris
package instructionIN-LINE, R-PSIP-T3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCOLLECTOR
Maximum collector current (IC)4 A
Collector-emitter maximum voltage80 V
ConfigurationDARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)1000
JEDEC-95 codeTO-251AA
JESD-30 codeR-PSIP-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeNPN
Maximum power consumption environment15 W
Maximum power dissipation(Abs)15 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
VCEsat-Max1.5 V

D72FY4D1 Related Products

D72FY4D1 D72FY4D2
Description Small Signal Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-251AA Small Signal Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-252AA
Is it Rohs certified? incompatible incompatible
package instruction IN-LINE, R-PSIP-T3 SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection COLLECTOR COLLECTOR
Maximum collector current (IC) 4 A 4 A
Collector-emitter maximum voltage 80 V 80 V
Configuration DARLINGTON WITH BUILT-IN DIODE AND RESISTOR DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE) 1000 1000
JEDEC-95 code TO-251AA TO-252AA
JESD-30 code R-PSIP-T3 R-PSSO-G2
JESD-609 code e0 e0
Number of components 1 1
Number of terminals 3 2
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
Polarity/channel type NPN NPN
Maximum power consumption environment 15 W 15 W
Maximum power dissipation(Abs) 15 W 15 W
Certification status Not Qualified Not Qualified
surface mount NO YES
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE GULL WING
Terminal location SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
VCEsat-Max 1.5 V 1.5 V
