XF0013T5A: DescriptionT1 / CEPT / DS3 MAGNETICS - DUAL THRU HOLE; File Size35KB，1 Pages; ManufacturerXFMRS, Inc.; Websitehttp://xfmrs.com/

Download Datasheet Compare View All

XF0013T5A Overview

T1 / CEPT / DS3 MAGNETICS - DUAL THRU HOLE

Preview

Download Datasheet

View All

XFMRS

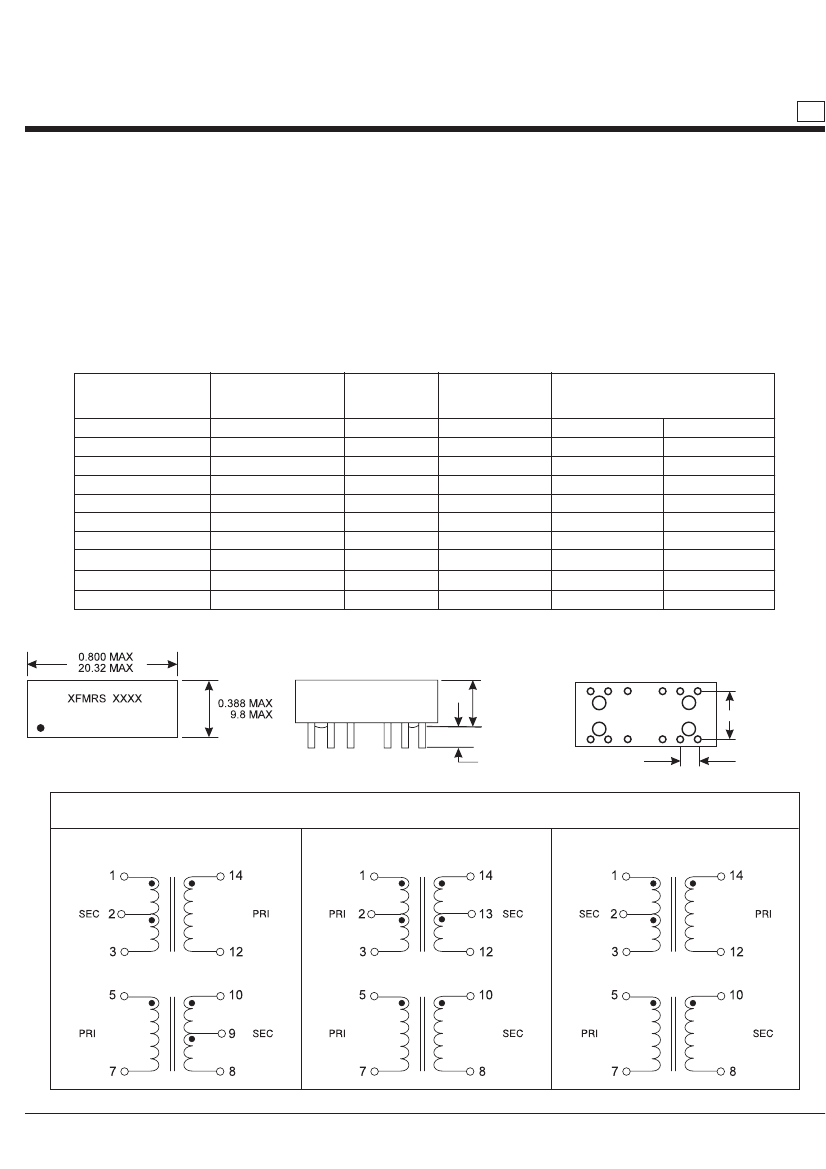

T1 / CEPT / DS3 MAGNETICS — DUAL THRU HOLE

ELECTRICALS @ 25°C

PRI OCL

ISOLATION

CMRR @ 1MHz

1.2mH TYP.

2,000 VRMS

50db

Cw/w TX

RCV

INSULATION RESISTANCE

35pF MAX.

10,000 M0HMS

PART

NUMBER

XF0013T4

XF0013T5

*XF0013T5A

XF0013T6

XF0013T6C

XF0013T7

XF0013T8

*XF0013T8A

XF0013T9

XF0123TD1

TURNS

PRI:SEC (±3%)

1:2CT & 1:2CT

1:1/1.26 & 1:2CT

1:2CT & 1:1.36CT

1:2CT & 1:1.36

1:1CT & 1:2CT

1:1.15CT & 1:2CT

1:1.26CT & 1:2CT

1CT:2CT &1:1

CIRCUIT

SCHEMATIC

PRI.

(µh MAX.)

0.4/0.4

0.8/0.8

0.4/0.4

0.5/0.8

0.4/0.4

0.8/0.8

0.4/0.4

DCR

(PRI/SEC OHMS MAX)

0.7/1.2

0.7/0.7

0.9/1.0

0.7/1.2

0.8/1.2

0.7/1.2

0.7/0.8

1.0/1.7

0.7/0.9

0.7/1.2

0.9/1.10

0.9/1.7

0.7/1.0

0.8/1.0

0.7/0.7

0.7/1.2

1.0/1.7

0.7/1.2

0.7/0.7

*PRI OCL (14-12) = 1.5mH MIN

.250 MAX

6.35 MAX

.120 TYP

3.04 TYP

.300

7.62

.100 TYP.

2.54 TYP.

Circuit Schematic

XFMRS

XFMRS, INC.

1940 Landersdale Road • Camby, Indiana 46113 • Tel. (317) 834-1066 • Fax: (317) 834-1067
