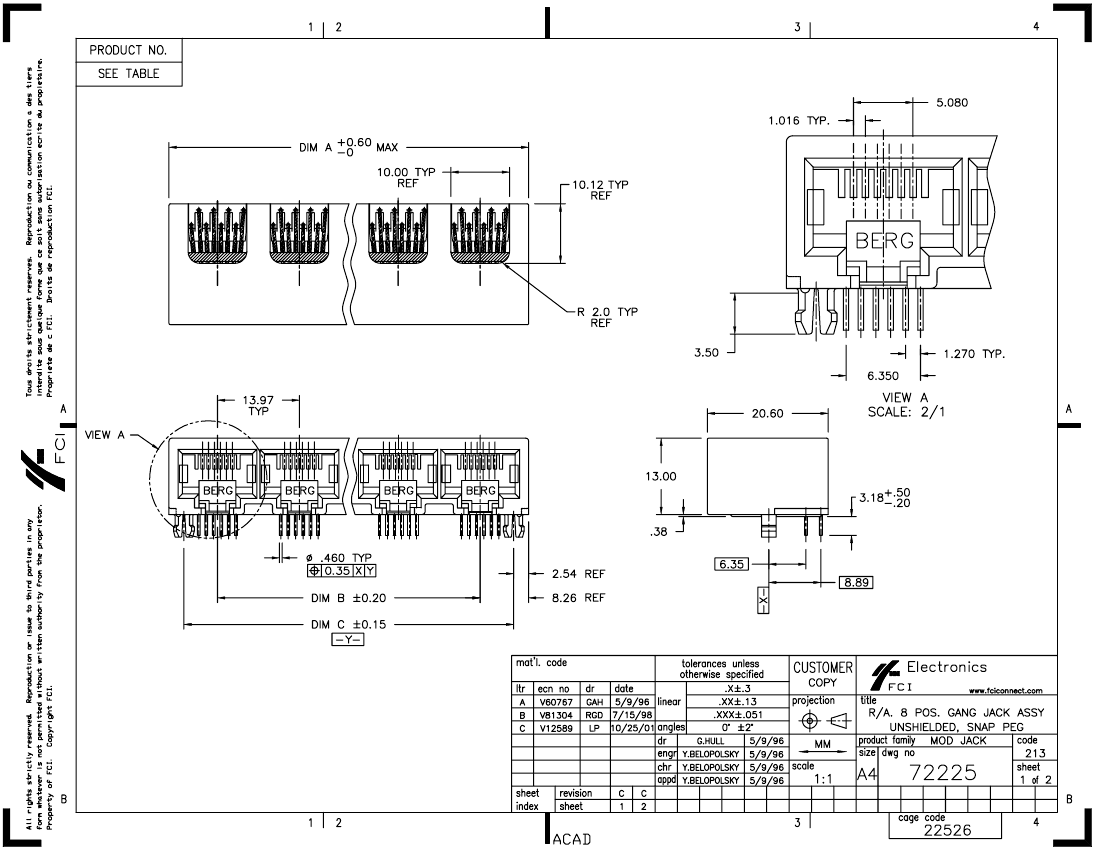

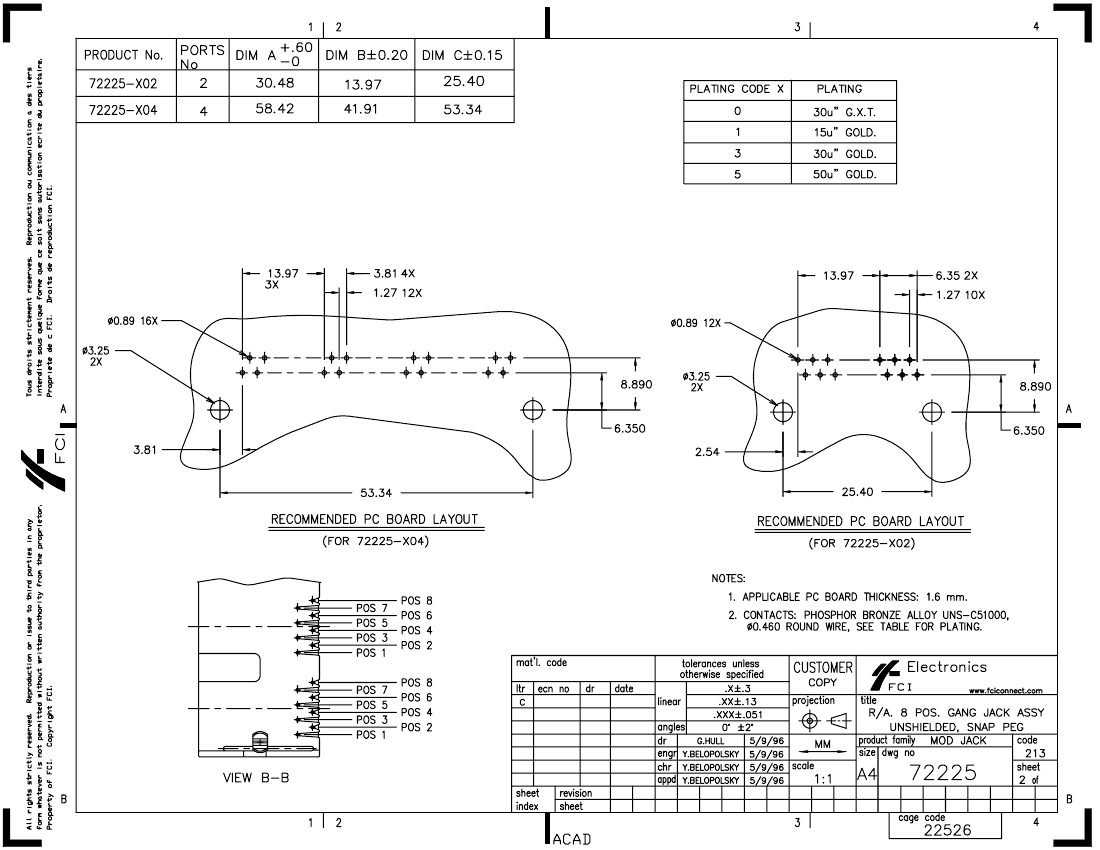

72225-104: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack; CategoryThe connector The connector; File Size135KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

72225-104 Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack

72225-104 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	4 PORT, 8-POSITION EACH
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	GOLD (15)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Aug 01, 2008

.

72225-104 Related Products

	72225-104	72225-502	72225-504	72225-002	72225-004	72225-102	72225-302	72225-304
Description	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack,	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Solder Terminal, Jack,	Telecom and Datacom Connector, 16 Contact(s), Female, Right Angle, Solder Terminal, Jack	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	4 PORT, 8-POSITION EACH	2 PORT, 8-POSITION EACH	4 PORT, 8-POSITION EACH	2 PORT, 8-POSITION EACH	4 PORT, 8-POSITION EACH	2 PORT, 8-POSITION EACH	2 PORT, 8-POSITION EACH	4 PORT, 8-POSITION EACH
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (50)	GOLD (50)	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (15)	GOLD (30)	GOLD (30)
Contact completed and terminated	GOLD (15)	GOLD (50)	GOLD (50)	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (15)	GOLD (30)	GOLD (30)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	16	32	16	32	16	16	32
Maker	Amphenol	Amphenol	Amphenol	-	-	-	Amphenol	Amphenol
Number of ports	4	2	4	-	4	2	2	4
