HDMP-1638 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> HDMP-1638

HDMP-1638: DescriptionEthernet Transceiver, Bipolar, PQFP64,; CategoryWireless rf/communication Telecom circuit; File Size255KB，20 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric View All

HDMP-1638 Overview

Ethernet Transceiver, Bipolar, PQFP64,

HDMP-1638 Parametric

Parameter Name	Attribute value
Maker	Hewlett Packard Co.
package instruction	,
Reach Compliance Code	unknown
JESD-30 code	S-PQFP-G64
Number of functions	1
Number of terminals	64
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Nominal supply voltage	3.3 V
surface mount	YES
technology	BIPOLAR
Telecom integrated circuit types	ETHERNET TRANSCEIVER
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	QUAD

Preview

Download Datasheet

View All

Gigabit Ethernet Transceiver Chip

with Dual Serial I/O and

Differential PECL Clock Inputs

Technical Data

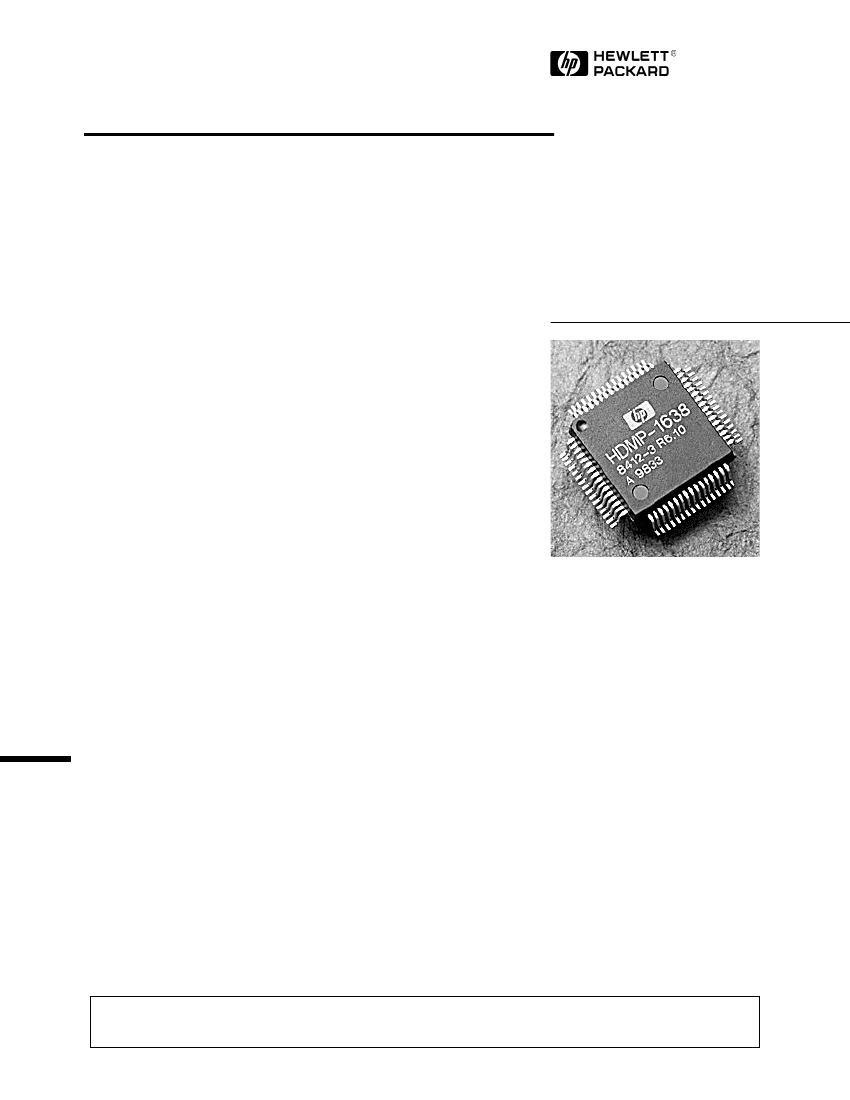

HDMP-1638 Transceiver

Features

• IEEE 802.3z Gigabit Ethernet

compatible, Supports

1250 MBd Gigabit Ethernet

• Based on X3T11 “10-Bit

Specification”

• Low Power Consumption

• Transmitter and Receiver

Functions Incorporated

Onto a Single IC

• 10 mm, 64-Pin Plastic

Package

• 5 Volt Tolerant I/Os

• 10-Bit Wide Parallel TTL

Compatible I/Os

• Single +3.3 V Power Supply

• Differential PECL Clock

Inputs

• Dual Serial I/O With

Receive Select

• 2kV ESD Protection on

All Pins

Description

The HDMP-1638 transceiver is a

single silicon bipolar integrated

circuit packaged in a plastic QFP

package. It provides a low-cost,

low-power physical layer solution

for 1250 MBd Gigabit Ethernet

or proprietary link interfaces.

It provides complete Serialize/

Deserialize (“SerDes”) for copper

transmission, incorporating both

the Gigabit Ethernet transmit and

receive functions into a single

device.

This chip is used to build a high

speed interface (as shown in

Figure 1) while minimizing

board space, power and cost.

It is compatible with the IEEE

802.3z specification.

The transmitter section accepts

10-bit wide parallel TTL data

and serializes this data into two

high speed serial data streams.

The parallel data is expected to

be “8B/10B” encoded data, or

equivalent. This parallel data is

latched into the input register

of the transmitter section on

the rising edge of the 125 MHz

reference clock (used as the

transmit byte clock).

The transmitter section’s PLL locks

to this user supplied 125 MHz

byte clock. This clock is then

multiplied by 10, to generate the

1250 MHz serial signal clock used

to generate the high speed

outputs. The high speed outputs

are capable of interfacing directly

to copper cables for electrical

transmission or to a separate

fiber optic module for optical

transmission.

The receiver section allows

for the selection of one of two

serial electrical data streams

at 1250 MBd and recovers the

original 10-bit wide parallel data.

The receiver PLL locks onto

the incoming serial signal and

recovers the high speed serial

clock and data. The serial data

is converted back into 10-bit

parallel data, recognizing the

8B/10B comma character to

establish byte alignment.

Applications

• 1250 MBd Gigabit Ethernet

Interface

• High Speed Proprietary

Interface

• Backplane Serialization/Bus

Extender

CAUTION: As with all semiconductor IC’s, it is advised that normal static precautions be taken in handling

and assembly of this component to prevent damage and/or degradation which may be induced by

electrostatic discharge (ESD).
