Ledman Optoelectronic Co., Ltd.
DATA
MODEL No :
DOC. No :
Revision:
SHEET
LL6601TLHR4-C02
LMS-66-005
02
Description:
■
■
■
■
■
Fanlike lamp
Lens Color: Colored Diffused
Emitting Color: Highr Red
Viewing Angle :120°
Stopper
Dice Material: AlGalnP
CUSTOMER APPROVED
PREPARED BY
CHECKED BY
APPROVED BY
SIGNATURES
Dan yang
Zhensheng Xie
Yanshan Liu
ATTENTION
OBSERVE PRECAUTIONS
ELECTROSTATIC
SENSITIVE DEVICES
Add:
Building 8,Block 2,Baimang Baiwangxin Industrial Park,
Xili Area,Nanshan District,Shenzhen, P.R.China
Tel:
86-755-86139688
Fax:
86-755-86139001
Model No.
Doc. No.
Revision:
LL6601TLHR4-C02
LMS-66-005
02
Applications:
Dimension Drawing
Absolute Maximum Ratings at Ta = 25
°C
Items
Forward Current
Peak Forward Current*
Reverse Voltage
Power Dissipation
Operation Temperature
Storage Temperature
Lead Soldering
Temperature
Symbol
I
F
I
FP
V
R
P
D
T
opr
T
stg
T
sol
Absolute maximum
Rating
50
200
5
130
-40 ~ +95
-40 ~ +100
Unit
mA
mA
V
mW
°C
°C
Max.260
°C
for 3 sec Max.
(3mm from the base of the epoxy bulb)
Notes:
1.All dimensions are in
0.25MM unless otherwise
2.An epoxy meniscus may
the leads.
3.Burr around bottom of
MM.Tolerance is ±
noted.
extend about 1.5MM down
epoxy may be 0.5MM max.
*pulse width <=0.1msec duty <=1/10
Typical Electrical & Optical Characteristics ( Ta = 25
°C
)
Items
Forward Voltage
Reverse Current
Dominant Wavelength
Luminous Intensity
50% Power Angle
Symbol
V
F
I
R
λ
D
I
V
2θ½H-H
2θ½V-V
Condition
I
F
= 20mA
V
R
= 5V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
Min.
1.7
---
---
---
---
---
Typ.
2.0
---
624
250
120
--
Max.
2.6
10
---
---
---
---
Unit
V
μA
nm
mcd
deg
deg
Important Notes:
1) All ranks will be included per delivery, rank ratio will be determined by LEDMAN.
2) Tolerance of measurement of luminous intensity is ±15%.
3) Tolerance of measurement of dominant wavelength is ±1nm.
4) Tolerance of measurement of Vf is ±0.05 V.
5) Packaging methods are available for selection, please refer to PACKAGING STANDARD.
6) Please refer to LED LAMP RELIABILITY TEST STANDARD for reliability test conditions.
Model No.
Doc. No.
Revision:
LL6601TLHR4-C02
LMS-66-005
02

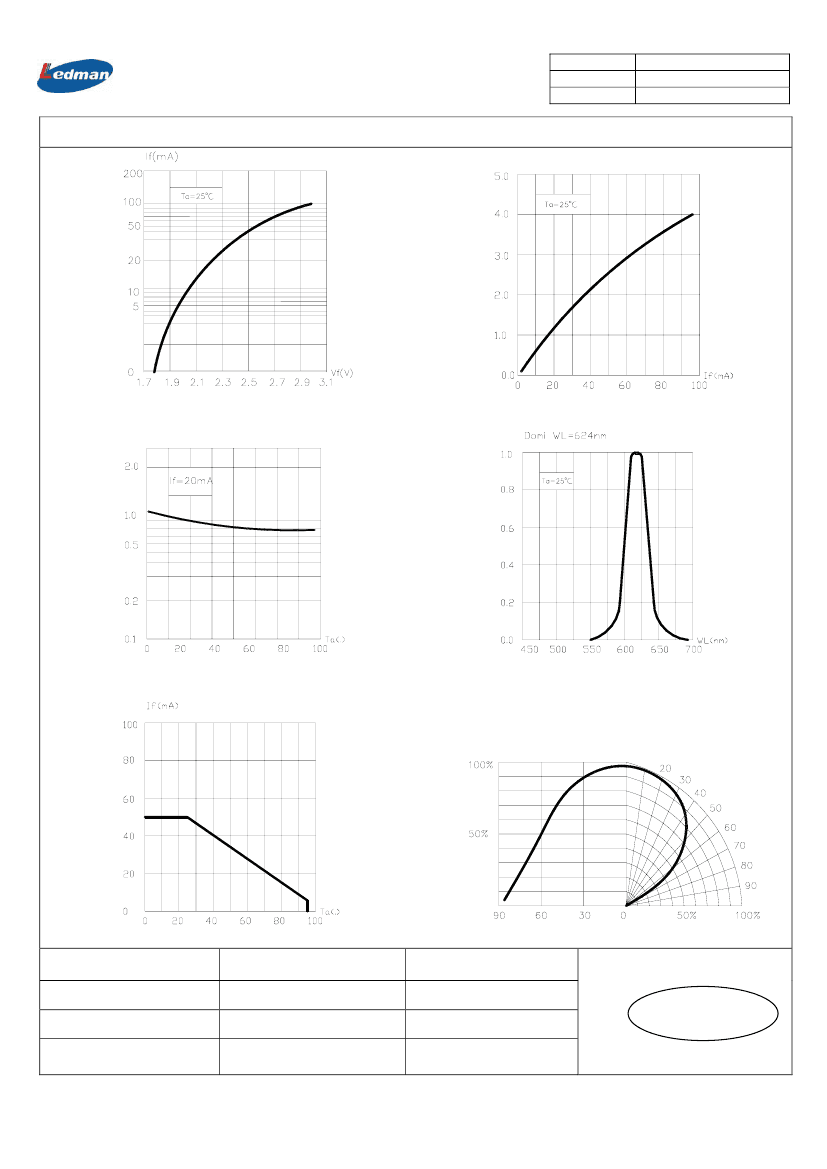

Typical Optical-Electronic Characteristic Curves
Fig.1 Forward Current vs. Forward Voltage
Fig.2 Relative Luminous Intensit vs. Forward Current
Fig.3 Relative Luminous Intensity
vs. Ambient Temperature
Fig.4 Relative Luminous Flux vs. Wavelength
°
°
°
°
°
°
°
°
°
Fig.5 Maximum Forward Current vs. Ambient Temperature
°
°
°
Fig.6 Relative Luminous Intensity vs.Radiation Angle
Items
Prepared by
Checked by
Approved by
Signatures
Dan yang
Zhensheng Xie
Date
1-01-2008
1-01-2008
1-01-2008
R&D ISSUE
Yanshan Liu
