F6L-4GLF-200.000MHZ-BE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> F6L-4GLF-200.000MHZ-BE

Preview

F6L-4GLF-200.000MHZ-BE: DescriptionPECL 10KH Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size325KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

F6L-4GLF-200.000MHZ-BE Overview

PECL 10KH Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, DIP-14/4

F6L-4GLF-200.000MHZ-BE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPLEMENTARY OUTPUT
maximum descent time	1.5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e1
Manufacturer's serial number	F5L-4GLF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	200 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	PECL 10KH
Output load	50 OHM
physical size	20.8mm x 13.2mm x 7.24mm
longest rise time	1.5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	60/40 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

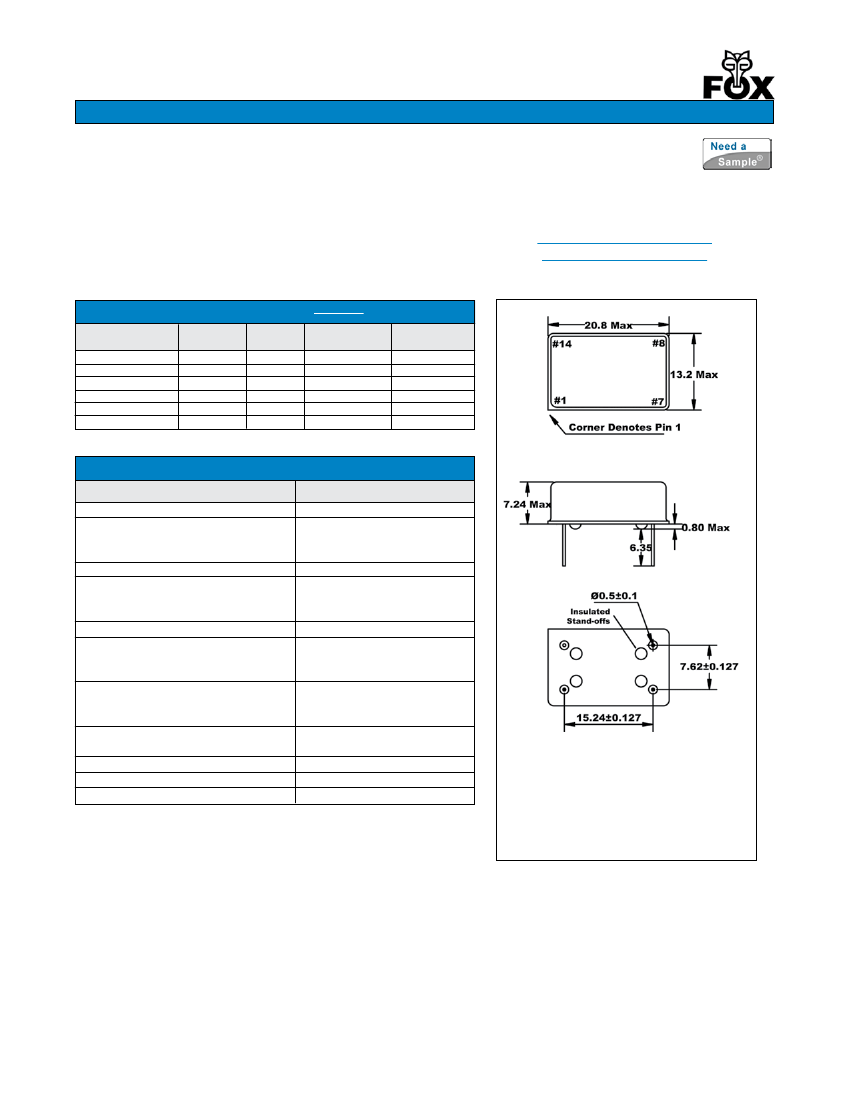

14-Pin Dip, 5.0V, PECL Oscillator

Model: F5l-4GlF Series

RoHS compliant / Pb Free

Rev. 9/18/2006

http://www.foxonline.com/need_a_sample.htm

FEATURES

• 5.0V Operation

• PECL Output

• 10 KH Logic Output

• Complementary Output

OPTiOnS

•

Single-Ended Output

Pullup/Down Internal Resistors

Various Pin Connections

-5.2V ECL Version

learn more about:

Part Marking Identification

Mechanical Specification

internet required

• PART nUMbER SElEcTiOn

Learn More - Internet Required

Part Number

161LF-Freq-xxxxx

162LF-Freq-xxxxx

370LF-Freq-xxxxx

189LF-Freq-xxxxx

207LF-Freq-xxxxx

451LF-Freq-xxxxx

Model

Number

F5L-4GLF

F5L-4GRLF

F6L-4GLF

F6L-4GRLF

F7L-4GLF

F8L-4GLF

Frequency

Operating

Stability

1

Temperature (ºC)

±100PPM

-10 ~ +70

±100PPM

-40 ~ +85

±50PPM

-10 ~ +70

±50PPM

-40 ~ +85

±25PPM

-10 ~ +70

±20PPM

-10 ~ +70

Frequency

Range (MHz)

30.000 ~ 200.000

• ElEcTRicAl cHARAcTERiSTicS

Frequency Range (F

o

)

Temperature Range

Operating

(T

opr

)

Storage

(T

stg

)

Supply Voltage

(V

ee

)

Input Current

(I

dd

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Symmetry (50% Vp-p Level)

Rise Time (20% ~ 80%Vp-p) (T

r

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Fall Time (80% ~ 20%Vp-p) (T

f

)

30.000 ~ 170.000 MHz

170.000+ ~ 200.000 MHz

Output Voltage

(V

ol

)

(V

oh

)

Output Load

Overlap Time

(50% Vp-p (Complementary Only))

Start-up Time

(T

s

)

1

PARAMETERS

MAX

(unless otherwise noted)

30.000 ~ 200.000 MHz

-10ºC ~ +70ºC

-55ºC ~ +125ºC

5.0V ± 10%

50mA

60mA

40% ~ 60%

2.0nS

1.5nS

2.0nS

1.5nS

+3.05V ~ +3.42V

+4.00V ~ +4.45V

50

Ω

0.5nS

10mS

Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,

shock, and vibration.

All specifications subject to change without notice.

#1 Output 1

#7 GND

Pin Connection

#8 Output 2

#14 +5.0V

All dimensions are in millimeters.

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

|

Japan

Tel: +81.3.3374/2079 Fax: +81.3.3374.5221

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

F6L-4GLF-200.000MHZ-BE Related Products

	F6L-4GLF-200.000MHZ-BE	F5L-4GRLF-200.000MHZ-AM	F8L-4GLF-30.000MHZ-EE	F5L-4GRLF-30.000MHZ-AM	F6L-4GRLF-200.000MHZ-BM	8231-8239	F6L-4GRLF-30.000MHZ-BM	F6L-4GLF-30.000MHZ-BE
Description	PECL 10KH Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, DIP-14/4	PECL 10KH Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, DIP-14/4	PECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4	PECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4	PECL 10KH Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, DIP-14/4	10 Base-T Surface Mount Interface Modules	PECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4	PECL 10KH Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT, DIP-14/4
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to
Maker	FOX [Fox Electronics]	-	-	FOX [Fox Electronics]	FOX [Fox Electronics]	-	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	-	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Other features	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	-	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT
maximum descent time	1.5 ns	1.5 ns	2 ns	2 ns	1.5 ns	-	2 ns	2 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	-	NO	NO
frequency stability	50%	100%	20%	100%	50%	-	50%	50%
JESD-609 code	e1	e1	e1	e1	e1	-	e1	e1
Manufacturer's serial number	F5L-4GLF	F5L-4GLF	F5L-4GLF	F5L-4GLF	F5L-4GLF	-	F5L-4GLF	F5L-4GLF
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	200 MHz	200 MHz	30 MHz	30 MHz	200 MHz	-	30 MHz	30 MHz
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	85 °C	-	85 °C	70 °C
Minimum operating temperature	-10 °C	-40 °C	-10 °C	-40 °C	-40 °C	-	-40 °C	-10 °C
Oscillator type	PECL 10KH	PECL 10KH	PECL 10KH	PECL 10KH	PECL 10KH	-	PECL 10KH	PECL 10KH
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	-	50 OHM	50 OHM
physical size	20.8mm x 13.2mm x 7.24mm	20.8mm x 13.2mm x 7.24mm	20.8mm x 13.2mm x 7.24mm	20.8mm x 13.2mm x 7.24mm	20.8mm x 13.2mm x 7.24mm	-	20.8mm x 13.2mm x 7.24mm	20.8mm x 13.2mm x 7.24mm
longest rise time	1.5 ns	1.5 ns	2 ns	2 ns	1.5 ns	-	2 ns	2 ns
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	NO	NO	NO	-	NO	NO
maximum symmetry	60/40 %	60/40 %	60/40 %	60/40 %	60/40 %	-	60/40 %	60/40 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
