ISL59830
True Single Supply Video Driver
GN S
D ES I
N EW 3
FO R
ED
5983
MEND ER TO ISL GRADE
P
F
EC O M
OT R LEASE RE PATIBLE U
N
P
C OM
A PIN
F OR
DATASHEET
FN7489
Rev.1.00
May 4, 2006
The ISL59830 is a revolutionary device that allows true single-
supply operation of video amplifiers. The device runs off a
single 3.3V supply and generates the required negative
voltage internally. This allows for DC-accurate coupling of
video onto a 75 double-terminated line. Since the buffers
have an integrated 6dB gain, no external gain setting resistors
are required. An input reference voltage can be supplied to
shift the analog video level down by an amount equal to the
reference (typically 0.6V).
Features
• Triple single-supply buffer
• Operates from single +3.3V supply
• No output DC blocking capacitor needed
• Fixed gain of 2 output buffer
• Output three-statable
• Enable/disable function
• 50MHz 0.1dB bandwidth
Ordering Information
PART NUMBER
ISL59830IA
ISL59830IA-T7
ISL59830IA-T13
ISL59830IAZ
(See Note)
ISL59830IAZ-T7
(See Note)
PART
TAPE &
MARKING REEL
59830IA
59830IA
59830IA
59830IAZ
59830IAZ
-
7”
13”
-
7”
13”
PACKAGE
PKG.
DWG. #
• 200MHz -3dB bandwidth
• Pb-free plus anneal available (RoHS compliant)
16 Ld QSOP M16.15A
16 Ld QSOP M16.15A
16 Ld QSOP M16.15A
16 Ld QSOP M16.15A
(Pb-Free)
16 Ld QSOP M16.15A
(Pb-Free)
16 Ld QSOP M16.15A
(Pb-Free)
Applications
• Driving video
Pinout
ISL59830
(16 LD QSOP)
TOP VIEW
RIN 1
GIN 2
BIN 3
REF 4
VEE 5
GND 6
VEEOUT 7
DGND 8
16 ROUT
15 GOUT
14 BOUT
13 VCC
12 EN
11 VCC
10 NC
9 DVCC
ISL59830IAZ-T13 59830IAZ
(See Note)
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
FN7489 Rev.1.00
May 4, 2006
Page 1 of 15
ISL59830
Absolute Maximum Ratings
(T
A
= 25°C)
V
CC
, Supply Voltage between V
S
and GND . . . . . . . . . . . . . . . . .5V
V
IN
, V
REF
. . . . . . . . . . . . . . . . . . . . . . . . . . . .VCC+0.3V, VEE-0.3V
Voltage between V
IN
and V
REF
. . . . . . . . . . . . . . . . . . . . . . . . . .±2V
Maximum Continuous Output Current . . . . . . . . . . . . . . . . . . . 30mA
Operating Temperature . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Lead Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the
device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typical values are for information purposes only. Unless otherwise noted, all tests
are at the specified temperature and are pulsed tests, therefore: T
J
= T
C
= T
A
AC Electrical Specifications
PARAMETER
BW -3dB
3dB Bandwidth
V
CC
= DV
CC
= +3.3V, REF = GND, T
A
= 25°C, R
L
= 150, unless otherwise specified.
CONDITIONS
V
OUT
= 200mV
PP
V
OUT
= 2V
PP
MIN
TYP
200
100
50
500
0.07
0.06
6MHz
6MHz
-90
-70
20
168
I
EE
= 0mA to 10mA
12
30
With Bead Core to DV
CC
10
60
MAX
UNIT
MHz
MHz
MHz
V/µs
%
°
dB
dB
nV/Hz
MHz
mV
mV
mV
DESCRIPTION
BW 0.1dB
S
R
d
G
d
P
X
T
I
V
N
Fcp
Load Reg
V
RIPPLE
0.1dB Bandwidth
Slew Rate
Differential Gain
Differential Phase
Hostile Crosstalk
Input to Output Isolation
Input Noise Voltage
Charge Pump Switch Frequency
V
OUT
= 2V
PP
V
OUT
= 2V
PP
Output Amp Ripple Voltage
DC Electrical Specifications
PARAMETER
V+
V
G
%
G
R
IN
V
OS
I
OUT +
I
OUT -
Z
OUT
Supply Range
Gain Error
Gain Matching
Input Resistance
Output Offset Voltage
Output Current
Output Current
Output Impedance
V
CC
= D
VCC
= +3.3V, REF = GND, T
A
= 25°C, R
L
= 150, unless otherwise specified.
CONDITIONS
MIN
3.0
R
L
= 150, V
IN
= +2.5V to -1V
R
L
= 150
V
IN
= 0V to 1.5V
V
REF
= 0
R
L
= 10, V
IN
= 1.2V
R
L
= 10, V
IN
= -0.3V
Enabled
Three-stated
1
10
60
Amp Enabled
Amp Disabled
90
120
80
4
5
6
150
1.0
-25
50
-18
0.5
1.7
7
15
+25
TYP
MAX
3.6
1.5
UNIT
V
%
%
M
mV
mA
mA
M
dB
mA
mA
k
DESCRIPTION
PSRR
I
S
Power Supply Rejection Ratio
Supply Current
R
REF
Input Reference Resistor
FN7489 Rev.1.00
May 4, 2006
Page 2 of 15
ISL59830
Pin Descriptions
PIN NUMBER
1
PIN NAME
RIN
PIN FUNCTION
Analog input
EQUIVALENT CIRCUIT
V
CC
V
EE
CIRCUIT 1
2
3
4
GIN
BIN
REF
Analog input
Analog input
Reference input
Reference Circuit 1
Reference Circuit 1
V
CC
R
IN
G
IN
B
IN
3
R
OUT
G
OUT
B
OUT
+
-
REF
V
EE
CIRCUIT 2
5
VEE
Chip substrate
V
CC
V
EE OUT
- +
D
VCC
CHARGE
PUMP
D
GND
CIRCUIT 3
V
EE
6
7
8
9
10
11, 13
12
GND
VEE OUT
DGND
DVCC
NC
VCC
EN
Analog ground
Charge pump output
Charge pump ground
Charge pump supply voltage
Not connected
Positive power supply
Chip enable
V
CC
Reference Circuit 3
Reference Circuit 3
Reference Circuit 3
V
EE
CIRCUIT 4
FN7489 Rev.1.00
May 4, 2006
Page 3 of 15
ISL59830
Pin Descriptions
(Continued)
PIN NUMBER
14
PIN NAME
BOUT
PIN FUNCTION
Analog output
EQUIVALENT CIRCUIT
V
CC
V
EE
CIRCUIT 5
15
16
GOUT
ROUT
Analog output
Analog output
Reference Circuit 5
Reference Circuit 5
Typical Performance Curves
3
2
1
0
-1
-2
-3
1M
150
75
10M
100M
1G
-5
100K
1M
10M
FREQUENCY (Hz)
100M
1G
A
V
=+2
C
L
=0pF
NORMALIZED GAIN (dB)
5
A
V
=+2
R
L
=500
9pF
4.7pF
2.2pF
1
0pF
NORMALIZED GAIN (dB)
3
1k
500
-1
-3
FREQUENCY (Hz)
FIGURE 1. GAIN vs FREQUENCY FOR VARIOUS R
LOAD
FIGURE 2. GAIN vs FREQUENCY FOR VARIOUS C
LOAD
5
NORMALIZED OUTPUT (dB)
0
-5
-10
-15
-20
-25
-30
-35
1
100
200
300
GAIN ROLL-OFF (MHz)
A
V
=+2
C
L
=0pF
R
L
=500
300
A
V
=+2
R
L
=500
240
-3dB ROLL-OFF
180
120
60
-0.1dB ROLL-OFF
400
500
0
2.25
2.8
3.35
3.9
4.45
5
FREQUENCY (MHz)
TOTAL SUPPLY VOLTAGE, V
CC
- V
EE
(V)
FIGURE 3. V
REF
PIN OUTPUT FREQUENCY RESPONSE
FIGURE 4. GAIN ROLL-OFF
FN7489 Rev.1.00
May 4, 2006
Page 4 of 15
ISL59830

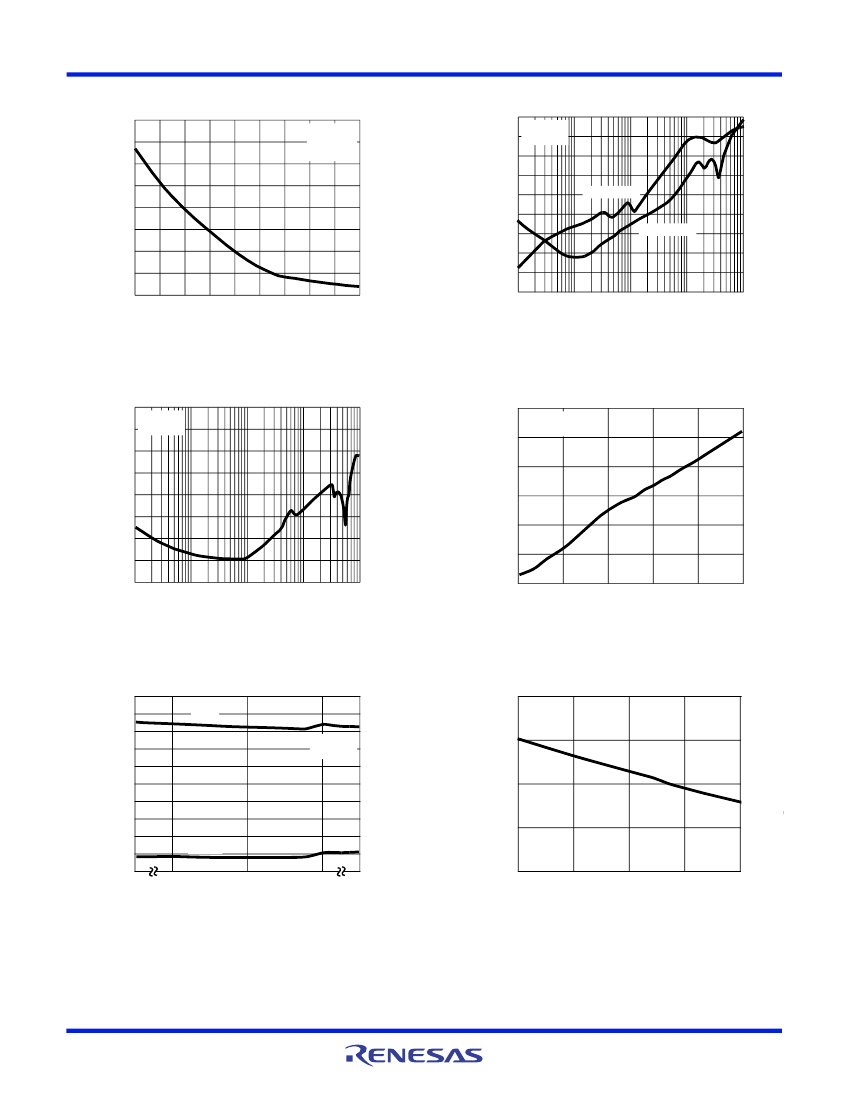

Typical Performance Curves
(Continued)
1.6
-30
A
V
=+2
R
L
=500
C
L
=3.9pF
CROSS TALK (dB)
A
V
=+2
-40 R
L
=500
-50
-60
-70
-80
-90
-100
-110
0
2.2
2.4
2.6
2.8
3
3.2
3.4
3.6
3.8
4
-120
100K
1M
10M
FREQUENCY (Hz)
100M
1G
DISABLED
ENABLED
1.2
PEAKING (dB)
0.8
0.4
SUPPLY VOLTAGE (V)
FIGURE 5. PEAKING vs SUPPLY VOLTAGE
FIGURE 6. CROSS TALK CHANNEL TO CHANNEL (TYPICAL)
-20
A
V
=+2
-30 R
L
=500
-40
ISOLATION (dB)
-50
-60
-70
-80
-90
-100
100K
1M
10M
FREQUENCY (Hz)
100M
1G
SUPPLY CURRENT (mA)
120
100
80
60
40
20
0
A
V
=+2
R
L
=500
1
1.5
2
2.5
3
3.5
SUPPLY VOLTAGE (V)
FIGURE 7. INPUT TO OUTPUT ISOLATION vs FREQUENCY
FIGURE 8. SUPPLY CURRENT vs SUPPLY VOLTAGE
200
-3dB
BANDWIDTH (MHz)
A
V
=+2
R
L
=500
SUPPLY CURRENT (mA)
160
95
90
A
V
=+2
R
L
=500
V
CL
=3.3V
120
85
80
40
-0.1dB
0
25
55
85
TEMPERATURE (°C)
115
145
80
75
25
55
85
115
145
TEMPERATURE (°C)
FIGURE 9. BANDWIDTH vs TEMPERATURE
FIGURE 10. SUPPLY CURRENT vs TEMPERATURE
FN7489 Rev.1.00
May 4, 2006
Page 5 of 15
