87824-001HLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87824-001HLF

87824-001HLF: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size112KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

87824-001HLF Overview

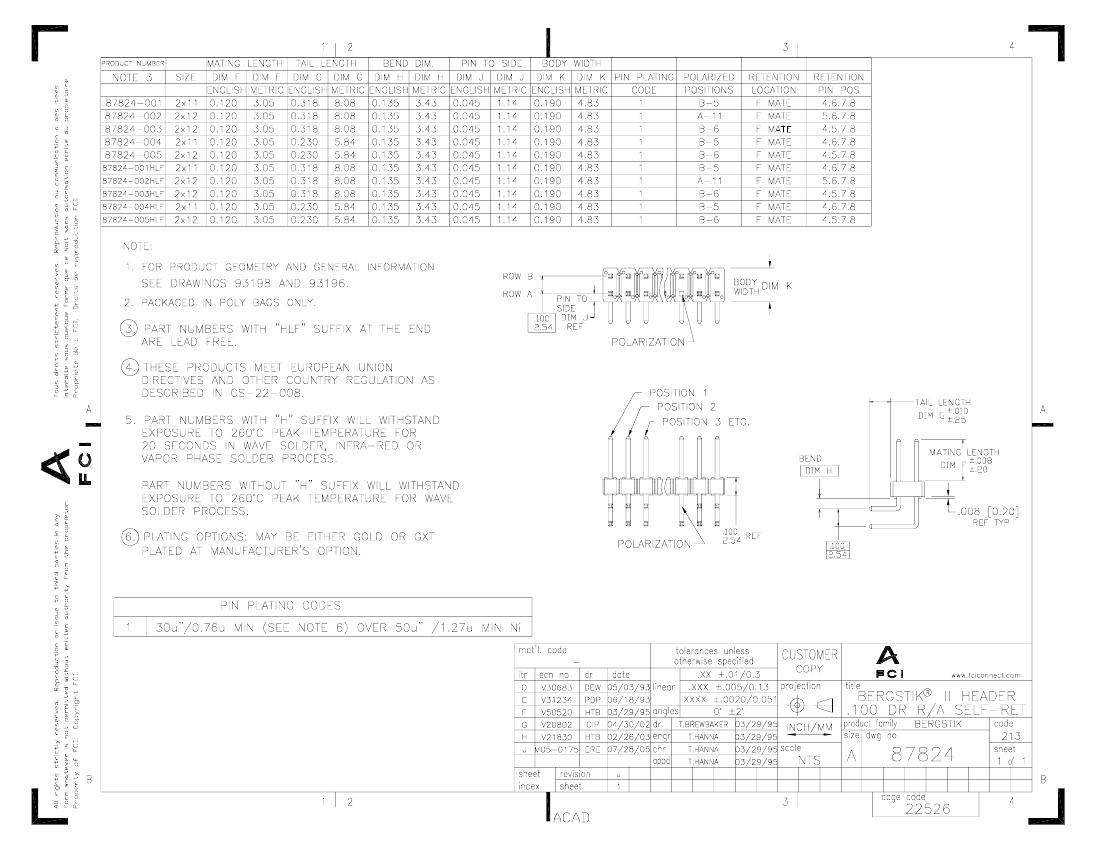

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE

87824-001HLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	87824
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Dec 01, 2010

87824-001HLF Related Products

	87824-001HLF	87824-003HLF	87824-005	87824-001	87824-002HLF	87824-002	87824-003	87824-004HLF	87824-004	87824-005HLF
Description	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE	Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)/GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	87824	87824	87824	87824	87824	87824	87824	87824	87824	87824
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	22	24	24	22	24	24	24	22	22	24
