LD2-330K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LD2-330K

LD2-330K: DescriptionGeneral Purpose Inductor, 33uH, 10%, 1 Element, Non-specified-Core; CategoryPassive components inductor; File Size15KB，1 Pages; ManufacturerInductor Supply Inc; Environmental Compliance

Download Datasheet Parametric View All

LD2-330K Overview

General Purpose Inductor, 33uH, 10%, 1 Element, Non-specified-Core

LD2-330K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Inductor Supply Inc
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

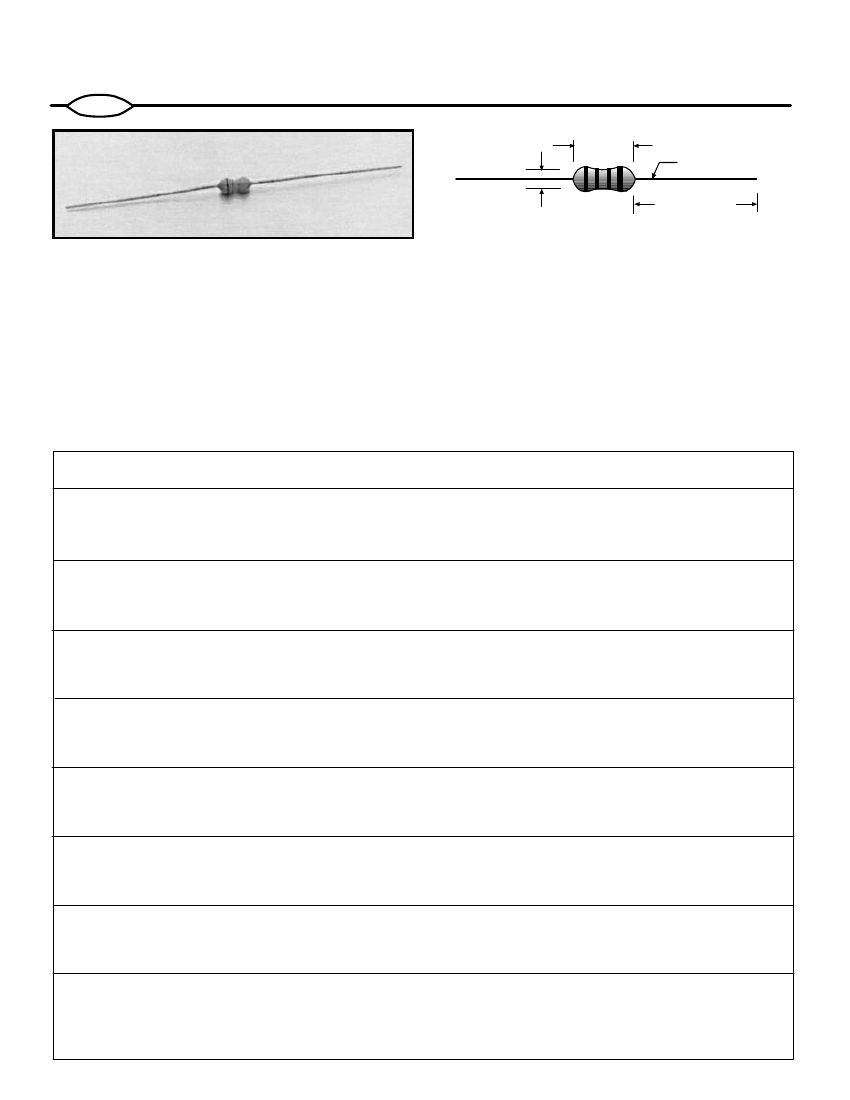

LD2

Conformal

Coated Inductors

.29" max

24 AWG/TCW

1.15"nominal

.110"

These axial-leaded inductors are conformal coated with an epoxy material, making them more durable than a laquer coated

models. They are cost effective and compact – ideal for automatic insertion.

INDUCTANCES 0.10µH to 1,000µH

OPERATING TEMPERATURE RANGE -55•C to +105•C

CURRENT RATING Based on 0.25 w power dissipation.

att

INDUCTANCE TOLERANCE ±10% o

ver entire inductance

range. (Special values and tighter tolerances available upon

request.)

PAR T

NUMBER

LD2-R10K

LD2-R12K

LD2-R15K

LD2-R18K

LD2-R22K

LD2-R27K

LD2-R33K

LD2-R39K

LD2-R47K

LD2-R56K

LD2-R68K

LD2-R82K

LD2-1R0K

LD2-1R2K

LD2-1R5K

LD2-1R8K

LD2-2R2K

LD2-2R7K

LD2-3R3K

LD2-3R9K

LD2-4R7K

LD2-5R6K

LD2-6R8K

LD2-8R2K

LD2-100K

LD2-120K

LD2-150K

LD2-180K

LD2-220K

LD2-270K

LD2-330K

LD2-390K

LD2-470K

LD2-560K

LD2-680K

LD2-820K

LD2-101K

LD2-121K

LD2-151K

LD2-181K

LD2-221K

LD2-271K

LD2-331K

LD2-391K

LD2-471K

LD2-561K

LD2-681K

LD2-821K

LD2-102K

TESTING Inductanceand Q measured withQ meterHP4342A

at specified frequency. DCR measured with Milliohm meter.

SRF measured on HP4191A Impedance Analyzer.

MARKING 4-BandColor Code.

PACKAGING

Bulk or Tape and Reel.

INDUCTANCE

µH ± 10%

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

1000

MINIMUM

TEST FREQUENCY

(MHz)

25.00

7.90

2.50

.79

SRF MINIMUM

(MHz)

380.00

360.00

350.00

320.00

300.00

280.00

250.00

200.00

180.00

165.00

150.00

125.00

110.00

95.00

70.00

65.00

50.00

40.00

30.00

28.00

22.00

20.00

16.00

15.00

13.00

11.00

10.00

9.50

8.50

7.50

6.50

6.00

5.50

5.40

4.75

4.35

4.00

3.70

3.40

2.80

2.55

2.35

2.00

1.50

1.20

DC RESIST ANCE

OHMS

MAXIMUM (Ω )

.075

.080

.090

.100

.110

.120

.150

.180

.200

.230

.250

.280

.300

.320

.350

.400

.450

.550

.720

.800

.880

1.000

1.200

1.350

1.500

1.700

2.300

2.600

2.900

3.200

3.500

3.800

4.400

5.000

5.700

6.500

9.500

10.500

11.600

13.000

18.000

23.000

26.000

RATED CURRENT

MAXIMUM

(mA)

1150

1110

1000

950

900

815

740

700

655

630

595

575

555

530

500

470

425

370

350

335

315

285

270

255

240

205

195

185

175

165

160

150

140

130

120

100
