RD-19240LS-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> RD-19240LS-200

RD-19240LS-200: DescriptionSynchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64; CategoryAnalog mixed-signal IC converter; File Size236KB，20 Pages; ManufacturerData Device Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

RD-19240LS-200 Overview

Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64

RD-19240LS-200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Device Corporation
Parts packaging code	MODULE
package instruction	9 X 9 MM, PLASTIC, LCC-64
Contacts	64
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION
Maximum analog input voltage	2.3 V
Maximum angular accuracy	10 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	S-PQCC-N64
JESD-609 code	e3
length	9 mm
Maximum negative supply voltage	-5.25 V
Minimum negative supply voltage	-4.75 V
Nominal negative supply voltage	-5 V
Number of digits	14
Number of functions	1
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HQCCN
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	0.75 mm
Signal/output frequency	10000 Hz
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum tracking rate	72 rps
width	9 mm

Preview

Download Datasheet

View All

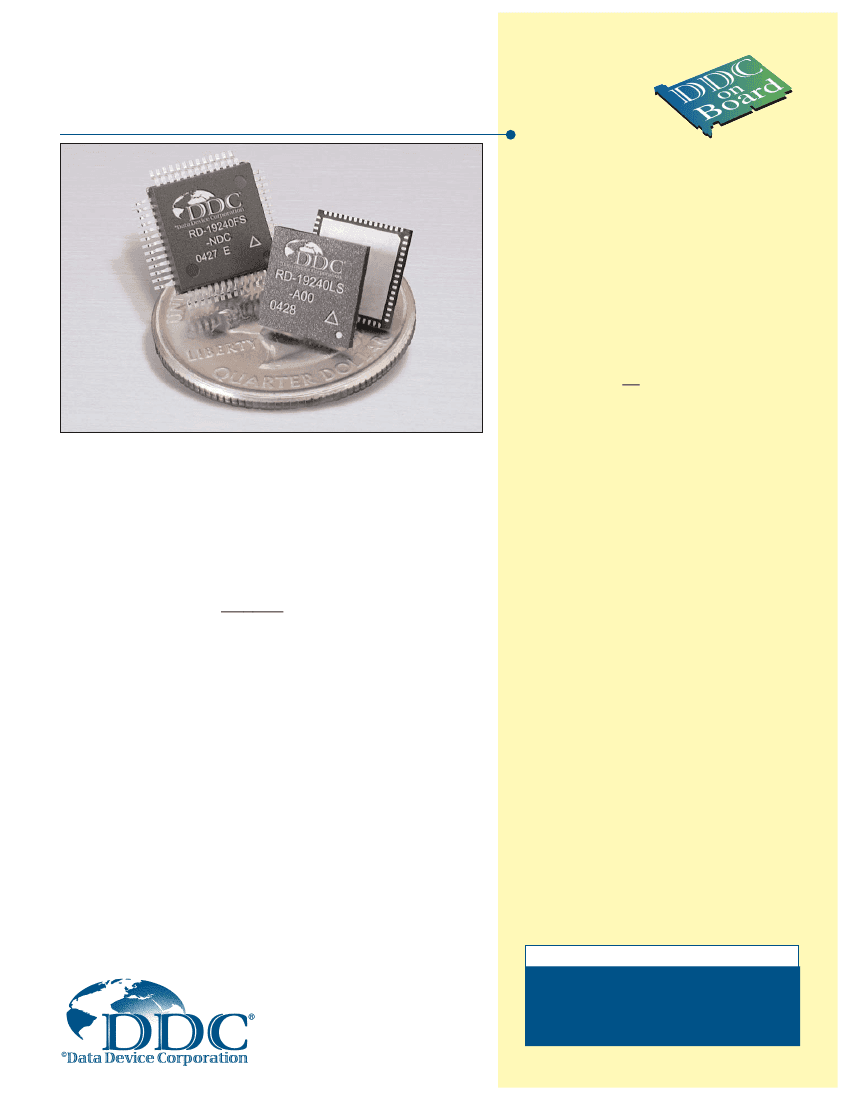

RD-19240

Make sure the next

Card you purchase

has...

14-BIT MONOLITHIC TRACKING

RESOLVER-TO-DIGITAL (R/D) CONVERTER

FEATURES

•

Accuracy to 8 Arc Minutes

•

Internal Synthesized Reference

•

+5 Volt Only Option

•

Programmable:

- Resolution: 10-, 12-, or 14-Bit

- Dual Bandwidth

- Tracking Rate

•

Differential Resolver Input Mode

•

Velocity Output Eliminates

Tachometer

•

Built-In-Test (BIT) Output,

No 180° Hangup with AC Reference

DESCRIPTION

The RD-19240 is a low-cost, versatile, state-of-the-art 14-bit monolithic

Resolver-to-Digital (R/D) Converter. This single chip converter offers pro-

grammable features such as resolution, bandwidth, velocity output scal-

ing, and encoder emulation.

Resolution programming allows selection of 10, 12, or 14 bits, with accu-

racies to 8 minutes. This feature combines the high tracking rate of a 10-

bit converter with the precision and low-speed velocity resolution of a 14-

bit converter in one package. The parallel digital data and the internal

encoder emulation signals (A QUAD B) have independent resolution con-

trol. Internal encoder emulation permits inhibiting (freezing) the parallel

digital data without interrupting the A and B outputs.

The internal Synthesized Reference section eliminates errors due to quadra-

ture voltage, ensuring operation with a phase shift up to 45°. The velocity out-

put is a 4 V signal referenced to ground, and can be used to replace a tachome-

ter. The full-scale velocity value is set by the user with a single resistor.

The converter provides the option of using a second set of filter compo-

nents which can be used in dual bandwidth or switch-on-the-fly applica-

tions. The RD-19240 converter is available with operating temperature

ranges of -40° to +85°C or -40° to +125°C.

•

-40° to +125°C Operating

Temperature Option

•

Internal Encoder Emulation with

Independent Resolution Control

•

Programmable for LVDT Input

APPLICATIONS

The low cost, small size, high accuracy, and versatile performance of the

RD-19240 converter make it ideal for use in modern high performance

industrial and automotive control systems. It is especially suited for users

who wish to use a resolver input in their encoder-based system. Typical

applications include motor control, factory automation, hybrid electric

vehicles, and steering.

Data Device Corporation

105 Wilbur Place

Bohemia, New York 11716

631-567-5600 Fax: 631-567-7358

www.ddc-web.com

FOR MORE INFORMATION CONTACT:

Technical Support:

1-800-DDC-5757 ext. 7771

2005 Data Device Corporation

RD-19240LS-200 Related Products

	RD-19240LS-200	RD-19240LG-A00T	RD-19240LS-A00T	RD-19240LS-A00	RD-19240LS-200T	RD-19240LG-A00	RD-19240LG-200	RD-19240LG-200T
Description	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, LEAD FREE, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, LEAD FREE, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, LEAD FREE, PLASTIC, LCC-64	Synchro or Resolver to Digital Converter, CMOS, PQCC64, 9 X 9 MM, LEAD FREE, PLASTIC, LCC-64
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
package instruction	9 X 9 MM, PLASTIC, LCC-64	9 X 9 MM, LEAD FREE, PLASTIC, LCC-64	9 X 9 MM, PLASTIC, LCC-64	HQCCN,	HQCCN,	9 X 9 MM, LEAD FREE, PLASTIC, LCC-64	HQCCN,	9 X 9 MM, LEAD FREE, PLASTIC, LCC-64
Contacts	64	64	64	64	64	64	64	64
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION	BUILT-IN-TEST; PROGRAMMABLE RESOLUTION
Maximum analog input voltage	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V	2.3 V
Maximum angular accuracy	10 arc min	10 arc min	10 arc min	10 arc min	10 arc min	10 arc min	10 arc mi	10 arc mi
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64	S-PQCC-N64
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
Maximum negative supply voltage	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V	-5.25 V
Minimum negative supply voltage	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V	-4.75 V
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of digits	14	14	14	14	14	14	14	14
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	64	64	64	64	64	64	64	64
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HQCCN	HQCCN	HQCCN	HQCCN	HQCCN	HQCCN	HQCCN	HQCCN
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG	CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
Signal/output frequency	10000 Hz	10000 Hz	10000 Hz	10000 Hz	10000 Hz	10000 Hz	10000 Hz	10000 Hz
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	INDUSTRIAL	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum tracking rate	72 rps	72 rps	72 rps	72 rps	72 rps	72 rps	72 rps	72 rps
width	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm	9 mm
