AP7217C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> AP7217C

AP7217C: Description1.25 V FIXED POSITIVE LDO REGULATOR, PDSO8; Categorysemiconductor Power management; File Size151KB，9 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

AP7217C Overview

1.25 V FIXED POSITIVE LDO REGULATOR, PDSO8

AP7217C Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	8
Maximum output current	0.1000 A
Maximum output voltage	1.28 V
Minimum output voltage	1.22 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
Processing package description	Green, SOP-8
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Craftsmanship	CMOS
packaging shape	Rectangle
Package Size	SMALL OUTLINE, HEAT SINK/SLUG
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	MATTE Tin
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Adjustment type	Fixed Positive Voltage Low Dropout Linear Regulator Regulator
Rated output voltage	1.25 V

Preview

Download Datasheet

View All

AP7217C

1.25V 600mA CMOS LDO

Features

•

Very Low Dropout Voltage

Low Current Consumption: Typ. 40µA

Output Voltage: 1.25V

Guaranteed 600mA (min) Output

Input Range up to 5.5V

Current Limiting

Stability with Low ESR Capacitors

Thermal shutdown Protection

Low Temperature Coefficient

SOP-8L-EP: Available in “Green” Molding Compound

(No Br, Sb)

Lead Free Finish / RoHS Compliant (Note 1)

General Description

The AP7217C low-dropout linear regulator operates from a 2.5V

to 5.5V supply and delivers a guaranteed 600mA (min)

continuous load current.

The space-saving SOP-8L-EP package is suitable for “pocket”

and hand-held applications.

Applications

•

CD and MP3 Players

Cellular and PCS Phones

Digital Still Camera

Hand-Held Computers

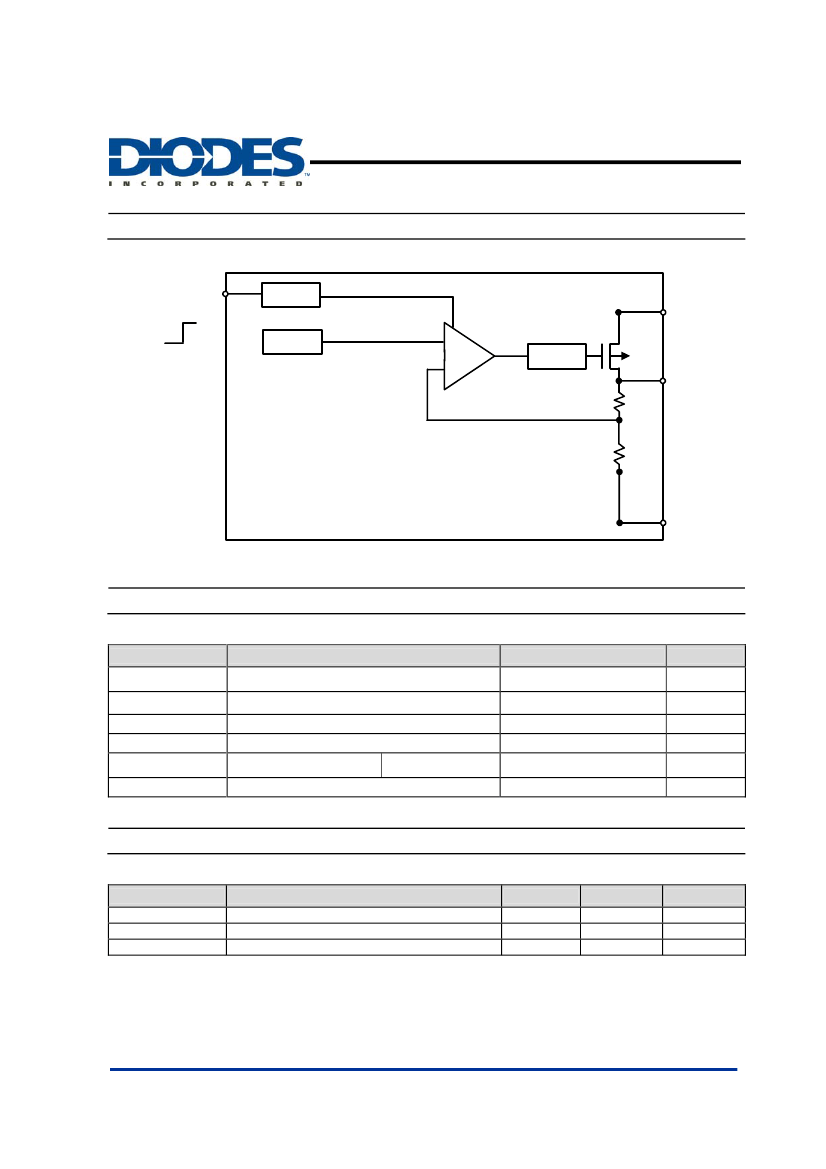

Typical Application

OUT

1uF

AP7217C

GND

OFF

OUT

1uF

AP7217C Rev. 3

DS31424

1 of 9

www.diodes.com

OCTOBER 2009

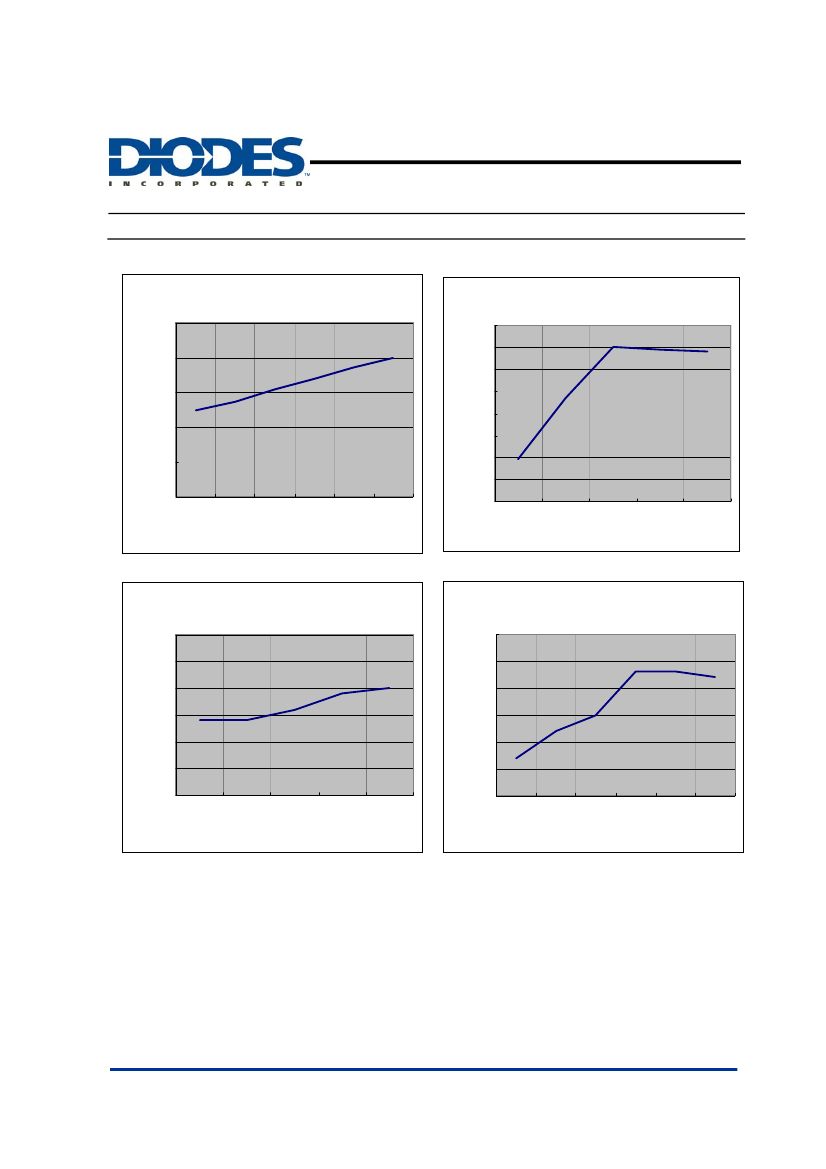

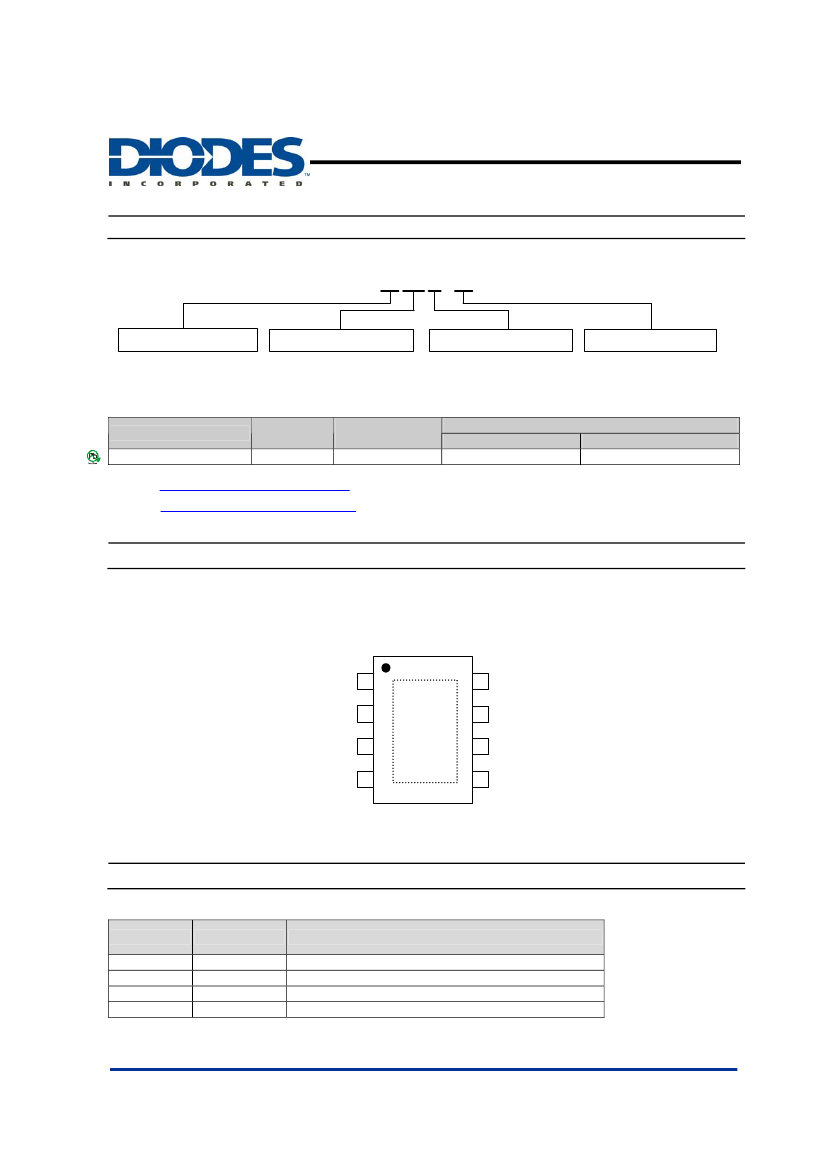

Diodes Incorporated
