ATS137
SINGLE HALL EFFECT SWITCH
Features
•
•
•
•
•
•
•
•
•
3.5V to 20V DC Operation Voltage
Temperature Compensation
Wide Operating Voltage Range
Open-Collector Pre-Driver
25mA Maximum Sinking Output Current
Reverse Polarity Protection
Lead Free Package: SIP-3L and SC59-3L (Commonly
known as SOT23 in Asia)
SIP-3L and SC59-3L: Available in “Green” Molding
Compound (No Br, Sb)
Lead Free Finish / RoHS Compliant (Note 1)
General Description
ATS137 is a switched Hall-Effect IC, which is for contactless
switching applications. The device includes an on-chip Hall
voltage generator for magnetic sensing, an amplifier that
amplifies the Hall voltage, a Schmitt trigger to provide switching
hysteresis for noise rejection, and an open-collector output. The
bandgap regulator allows a wide operating voltage range.
ATS137 is rated for operating temperature range from -20°C to
85°C and voltage range from 3.5V to 20V.
Applications
•
•
•
•
•
VCD/DVD Loader, CD/DVD ROM
Cover Detector
Speed Measurement
Home Appliances
Home Safety

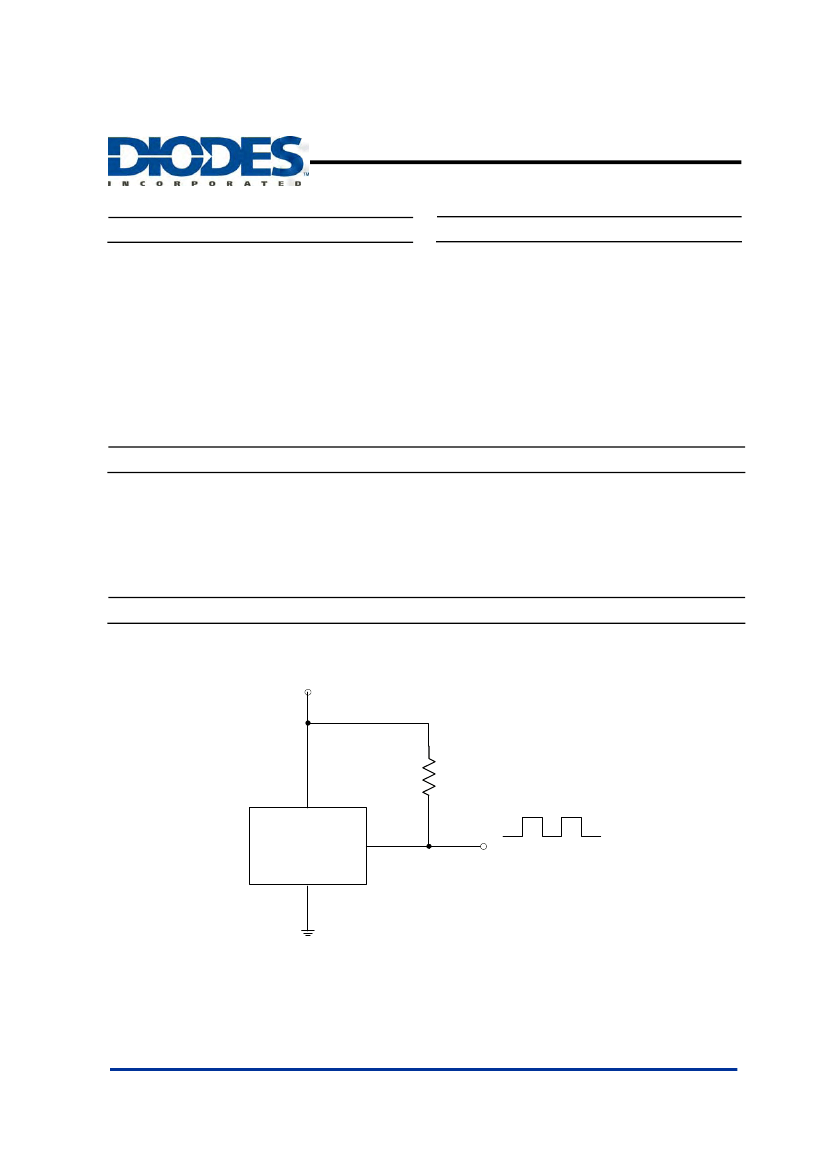

Typical Application Circuit
3.5V ~20V
V
cc
DO
R
L
ATS137
GND
Digital Output
ATS137 Rev. 10
DS31045
1 of 12
www.diodes.com
FEBRUARY 2010
©
Diodes Incorporated
ATS137
SINGLE HALL EFFECT SWITCH

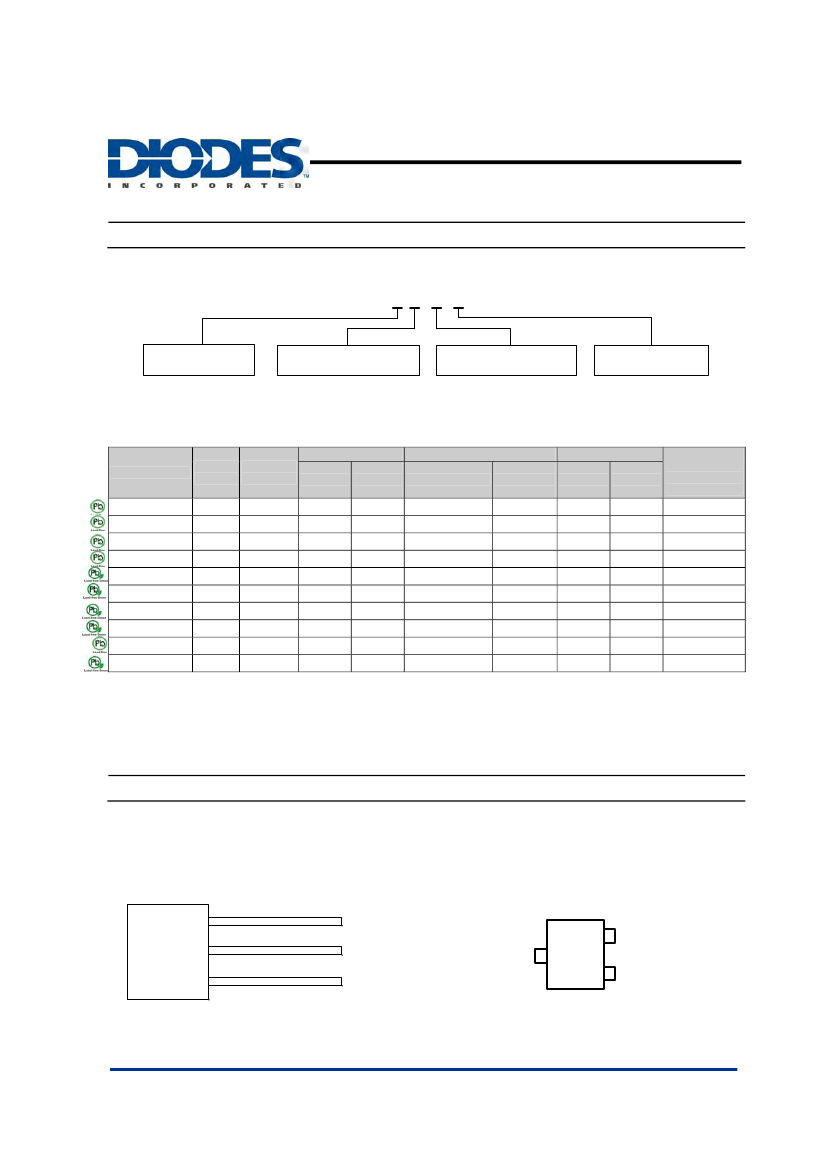

Ordering Information
ATS 137 - X X - X - X
Package
P : SIP-3L
W : SC59-3L
Lead Free
L : Lead Free
G : Green
Packing
A : Ammo Box (Note 3)
B : Bulk (Note 4)
7 : Tape & Reel
7” Tape and Reel
Quantity
NA
NA
NA
NA
NA
NA
NA
NA
3000/Tape & Reel
3000/Tape & Reel
Part
Number
Suffix
NA
NA
NA
NA
NA
NA
NA
NA
-7
-7
Magnetic
Characteristics
A or B (Note 5)
Bulk
Device
ATS137-PL-A-A
ATS137-PL-A-B
ATS137-PL-B-A
ATS137-PL-B-B
ATS137-PG-A-A
ATS137-PG-A-B
ATS137-PG-B-A
ATS137-PG-B-B
ATS137-WL-7-A
ATS137-WG-7-A
Notes:
Ammo Box
Quantity
4000/Box
4000/Box
NA
NA
4000/Box
4000/Box
NA
NA
NA
NA
Magnetic
Part
Number Characteristics
(Note 5)
Suffix
-A
A
-A
NA
NA
-A
-A
NA
NA
NA
NA
B
A
B
A
B
A
B
A
A
Package Packaging
Code
(Note 2) Quantity
P
P
P
P
P
P
P
P
W
W
SIP-3L
SIP-3L
SIP-3L
SIP-3L
SIP-3L
SIP-3L
SIP-3L
SIP-3L
SC59-3L
SC59-3L
NA
NA
1000
1000
NA
NA
1000
1000
NA
NA
Part
Number
Suffix
NA
NA
-B
-B
NA
NA
-B
-B
NA
NA
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied. Please visit our website at
http://www.diodes.com/products/lead_free.html
2. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
3. Ammo Box is for SIP-3L Spread Lead.
4. Bulk is for SIP-3L Straight Lead.
5. Please refer the Magnetic Characteristics table, B is available in SIP-3L package only.
Pin Assignment
(1) SIP-3L
(2) SC59-3L
( Top View )
( Top View )
3. DO
2. GND
1. Vcc
3. DO
GND 2.
1. Vcc
ATS137 Rev. 10
DS31045
2 of 12
www.diodes.com
FEBRUARY 2010
©
Diodes Incorporated
ATS137
SINGLE HALL EFFECT SWITCH
Pin Descriptions
Pin Name
Vcc
GND
DO
Pin #
1
2
3
Description
Positive Power Supply
Ground
Digital Output

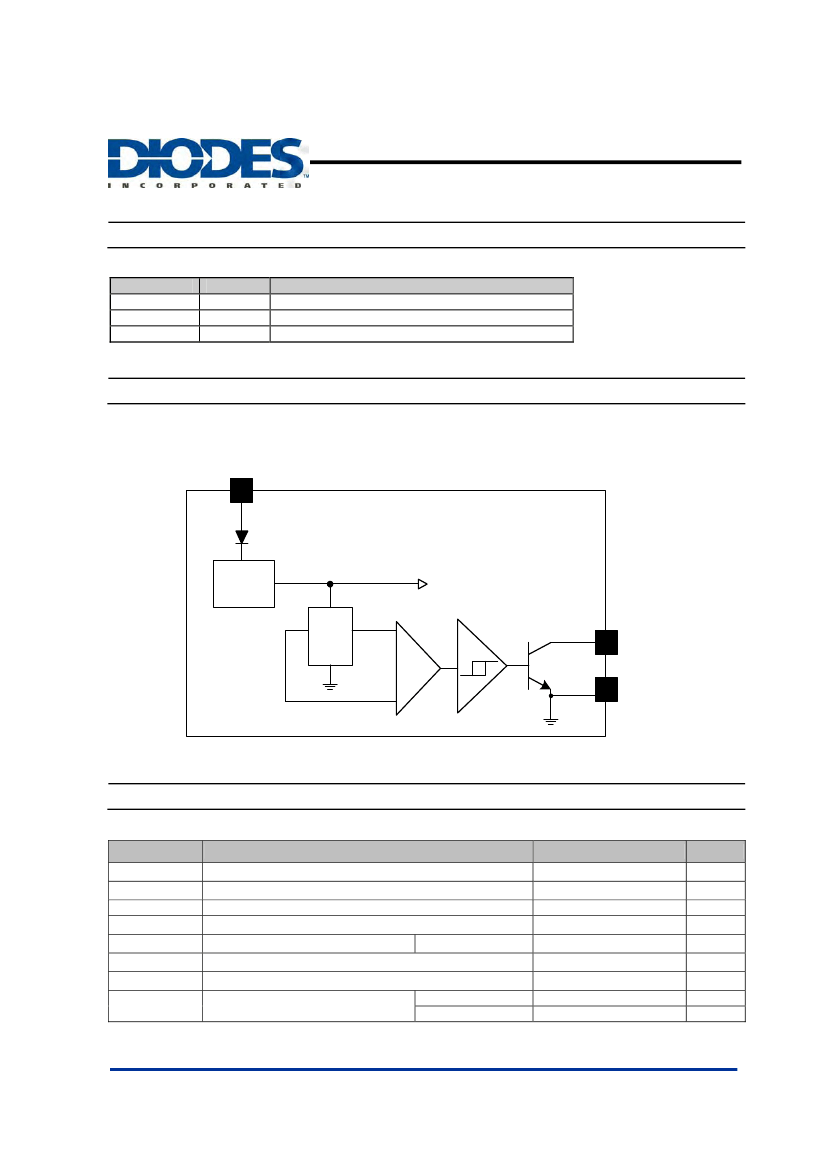

Functional Block Diagrams
V
CC
1
Regulator
Hall
Plate
Amp
3
DO
2
GND
Absolute Maximum Ratings
Symbol
V
CC
V
RCC
B
V
ce
I
C
T
ST
T
J(MAX)
P
D
(T
A
= 25
o
C)
Characteristics
Supply Voltage
Reverse V
CC
Polarity Voltage
Magnetic Flux Density
Output “OFF” Voltage
Output “ON” Current
Storage Temperature
Maximum Junction Temperature
Package Power Dissipation
Values
20
-20
Unlimited
30
25
-65~+150
150
550
230
Unit
V
V
V
mA
°C
°C
mW
mW
Continuous
SIP-3L
SC59-3L
ATS137 Rev. 10
DS31045
3 of 12
www.diodes.com
FEBRUARY 2010
©
Diodes Incorporated
ATS137
SINGLE HALL EFFECT SWITCH
Recommended Operating Conditions
Symbol
V
CC
T
A
Characteristic
Supply Voltage
Operating Ambient Temperature
Conditions
Operating
Operating
Min
3.5
-20
Max
20
85
Unit
V
°C

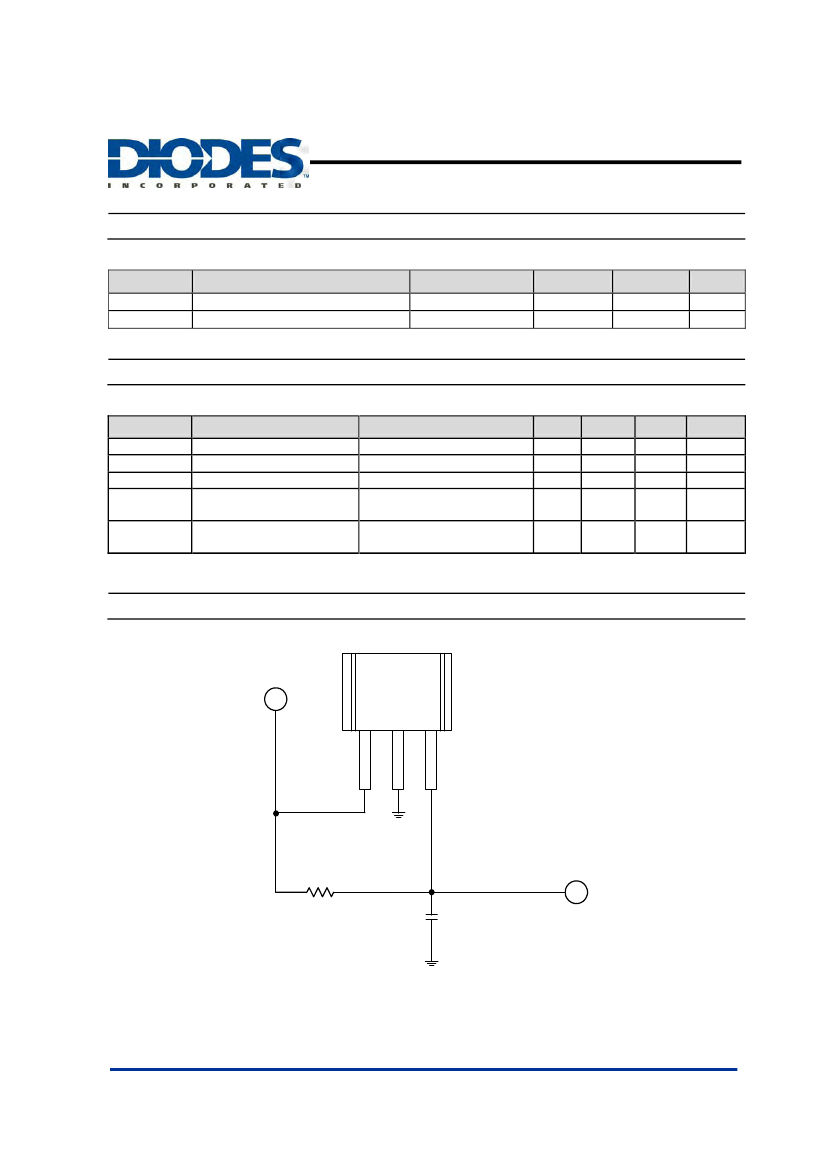

Electrical Characteristics
Symbol
V
ce(SAT)
I
cex
I
CC
tr
tf
Characteristic
Output Saturation Voltage
Output Leakage Current
Supply Current
Output Rise Time
Output Falling Time
(T
A
= + 25°C)
Test Conditions
V
CC
= 14V, I
CC
= 20mA
V
ce
= 14V, V
CC
= 14V
V
CC
=20V, Output Open
V
CC
= 14V, RL = 820Ω,
CL = 20pF
V
CC
= 14V, RL = 820Ω,
CL = 20pF
Min
-
-
-
-
-
Typ.
300
<0.1
5
0.3
0.3
Max
700
10
10
1.5
1.5
Unit
mV
uA
mA
us
us
Test Circuit
14V
DO
RL
RL = 820 Ohm
CL = 20 pF
CL
Test Circuit
ATS137 Rev. 10
DS31045
4 of 12
www.diodes.com
FEBRUARY 2010
©
Diodes Incorporated
ATS137
SINGLE HALL EFFECT SWITCH
Magnetic Characteristics
(T
A
= 25
o
C, Note 7)
(1mT = 10 Gauss)
A grade
Symbol
Bops(south pole to brand side)
Brps(south pole to brand side)
Bhy(
Bopx
−
Brpx
)
Parameter
Operation Point
Release Point
Hysteresis
Min
-
10
-
Typ.
-
-
80
Max
100
-
-
Unit
Gauss
Gauss
Gauss
B grade (for SIP-3L only)
Symbol
Bops(south pole to brand side)
Brps(south pole to brand side)
Bhy(
Bopx
−
Brpx )
Notes:
Parameter
Operation Point
Release Point
Min
-
10
Typ.
-
-
Max
130
-
Unit
Gauss
Gauss
Hysteresis
-
80
-
Gauss
7. Magnetic characteristics are for design information, which will vary with supply voltage, operating temperature and after soldering.
ATS137 Rev. 10
DS31045
5 of 12
www.diodes.com
FEBRUARY 2010
©
Diodes Incorporated
