BAS70/ -04/ -05/ -06
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Product Summary
V
R
(V)
70
I
F
(mA)
1.0
V
F MAX
(V)
@ +25°C
0.41
I
R MAX
(uA)
@ +25°C
0.1
Features and Benefits
•
•
•
•
•
•
Low Turn-On Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Description
70mA surface mount Schottky Barrier Diode in SOT23 package,
offers low forward voltage drop and fast switching capability,
designed with PN Junction Guard Ring for Transient and ESD
Protection.
Mechanical Data
•
•
•
•
•
•
•
Case: SOT23
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Solderable per MIL-STD-202, Method 208
e3
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe)
Polarity: See Diagrams Below
Weight: 0.008 grams (approximate)
Top View
BAS70
BAS70-04
BAS70-05
BAS70-06
Ordering Information
(Note 4 & 5)
Part Number
BAS70-7-F
BAS70-04-7-F
BAS70-04Q-7-F
BAS70-04Q-13-F
BAS70-05-7-F
BAS70-06-7-F
Notes:
Case
SOT23
SOT23
SOT23
SOT23
SOT23
SOT23
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
10000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Product manufactured with Data Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date Code
V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 24 - 2
1 of 5
www.diodes.com
August 2014
© Diodes Incorporated
BAS70/ -04/ -05/ -06
Marking Information
K=(SAT,Shanghai Assembly / Test site)
C=(CAT / DTC , ChengDu Assembly / Test site)
xx = Product Type Marking Code:
73, 7C = BAS70
74, 7D = BAS70-04
75, 7E = BAS70-05
76, 7F = BAS70-06
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
2012
Z
Jun
6
2013
A
Jul
7
2014
B
Aug
8
2015
C
2016
D
Sep
9
2017
E
Oct
O
2018
F
Nov
N
2019
G
Dec
D
YM
Cxx
Kxx
Date Code Key
Year
2001
Code
M
Month
Code
Jan
1
2002
N
Feb
2
2003
P
Mar
3
….
….
Apr
4
2011
Y
May
5
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Maximum Forward Continuous Current (Note 6)
Non-Repetitive Peak Forward Surge Current
@ t
≤
1.0s
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
70
49
70
100
Unit
V
V
mA
mA
Thermal Characteristics
Characteristic
Power Dissipation (Note 6)
Thermal Resistance Junction to Ambient Air (Note 6)
Operating Junction Temperature Range
Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
T
STG
Value
200
625
-55 to +125
-65 to +150
Unit
mW
°C/W
°C
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Forward Voltage
Reverse Current (Note 7)
Total Capacitance
Reverse Recovery Time
Reverse Recovery Time (for BAS70-04 only)
Notes:
6.
7.
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
t
rr
YM
Min
70
—
—
—
Max
—
410
1000
100
2.0
5.0
2.0
Unit
V
mV
nA
pF
ns
ns
I
R
= 10µA
Test Condition
t
p
<300µs, I
F
= 1.0mA
t
p
<300µs, I
F
= 15mA
t
p
<300µs, V
R
= 50V
V
R
= 0V, f = 1.0MHz
I
F
= I
R
= 10mA to I
R
= 1.0mA,
R
L
=100Ω
I
F
= I
R
= 10mA to I
R
= 1.0mA,
R
L
=100Ω
Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 24 - 2
2 of 5
www.diodes.com
August 2014
© Diodes Incorporated
BAS70/ -04/ -05/ -06
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
250
Note 6
100
T
A
= 125ºC
T
A
= 75ºC
T
A
= 25ºC
P
D
, POWER DISSIPATION (mW)
200
10
150
100
1.0
50
T
A
= 0ºC
0
0
40
120
160
80
200
T
A
, AMBIENT TEMPERATURE (°C)

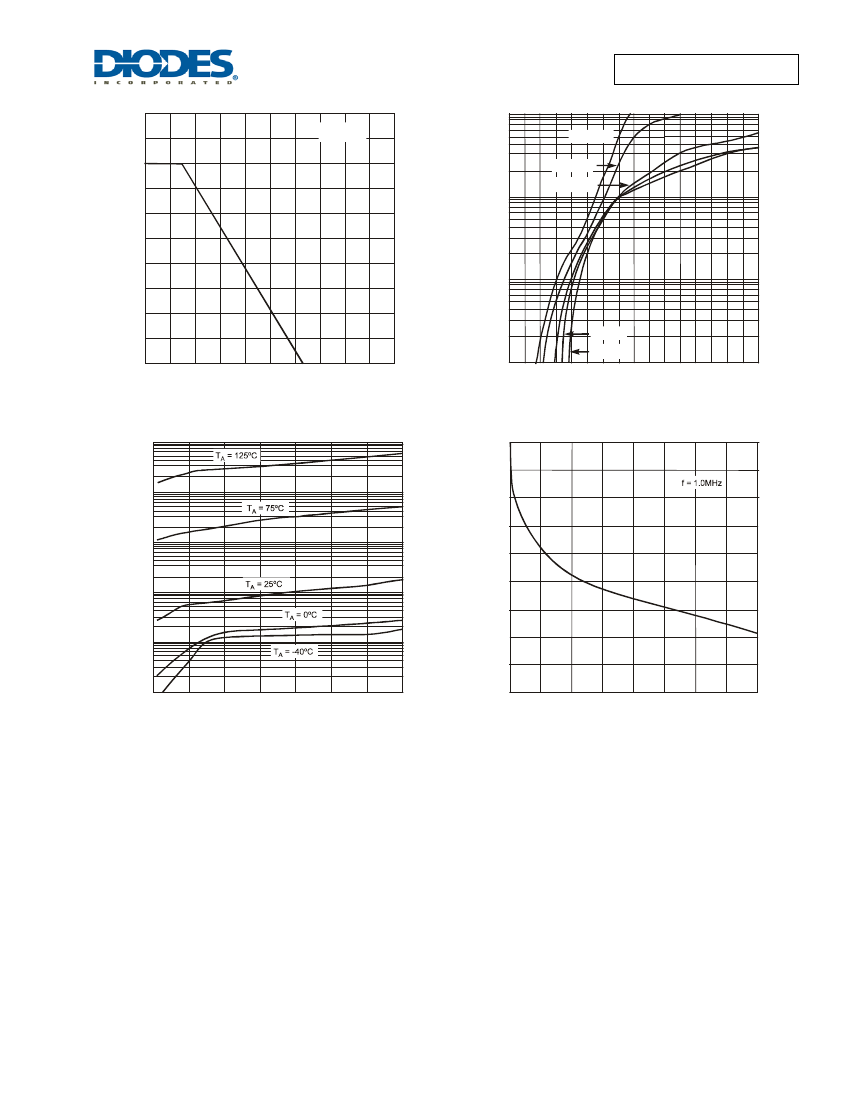

Figure 1 Power Derating Curve, Total Package
0.1
T
A
= -40ºC
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10,000
1.8
1.6
C
T
, TOTAL CAPACITANCE (pF)
0
40
50
10
20
30
60
70
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 3 Typical Reverse Characteristics
1,000
1.4
1.2
1.0
0.8
0.6
0.4
0.2
100
10
1
0.1
0
0
20
25
35 40
15
30
10
V
R
, DC REVERSE VOLTAGE (V)
Figure 4 Total Capacitance vs. Reverse Voltage
5
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 24 - 2
3 of 5
www.diodes.com
August 2014
© Diodes Incorporated
BAS70/ -04/ -05/ -06
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
All 7°
H
J
K1
K
a
A
M
L
L1
C
B
D
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.890 1.00 0.975
K1
0.903 1.10 1.025
L
0.45
0.61
0.55
L1
0.25
0.55
0.40
M
0.085 0.150 0.110
a
8°
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
2.0
C
1.35
E
X
E
BAS70/ -04/ -05/ -06
Document number: DS11007 Rev. 24 - 2
4 of 5
www.diodes.com
August 2014
© Diodes Incorporated
BAS70/ -04/ -05/ -06
