NPIS73T821MTRF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NPIS73T821MTRF

NPIS73T821MTRF: DescriptionGeneral Purpose Inductor, 820uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 2828, ROHS COMPLIANT; CategoryPassive components inductor; File Size122KB，9 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NPIS73T821MTRF Overview

General Purpose Inductor, 820uH, 20%, 1 Element, Amorphous Magnetic-Core, SMD, 2828, ROHS COMPLIANT

NPIS73T821MTRF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	2828
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	2828
structure	Shielded
core material	AMORPHOUS MAGNETIC
DC Resistance	6.7 Ω
Nominal inductance(L)	820 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	3 mm
Package length	7 mm
Package form	SMT
Package width	7 mm
method of packing	TR
Maximum rated current	0.17 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Not Recommended for New Designs

(Click to see EOL Notification)

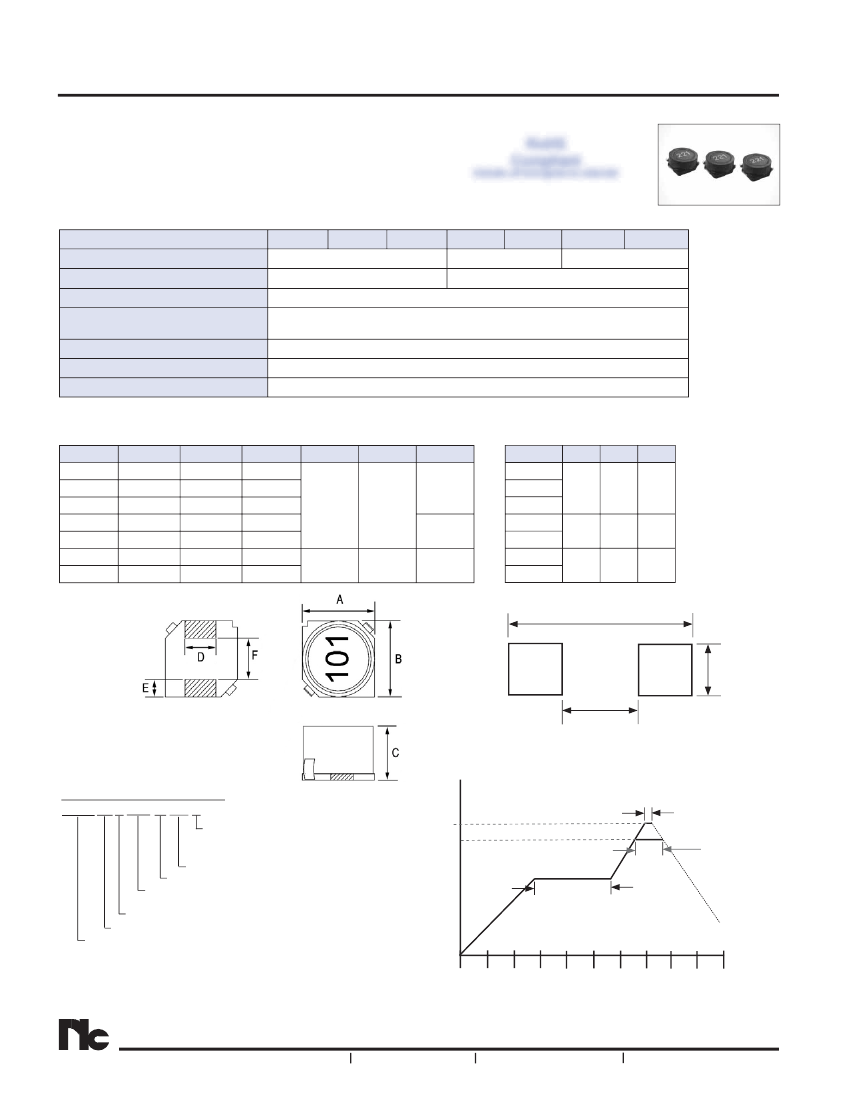

NPIS Power Inductors

FEATURES

• SHIELDED POWER INDUCTOR

• CURRENT RATINGS UP TO 5.0 AMPS

• SURFACE MOUNTABLE CONSTRUCTION

• LOW PROFILE (3.2mm ~ 4.9mm MAXIMUM HEIGHT)

• TAPED AND REELED FOR AUTOMATIC INSERTION

• FOR USE IN DC/DC CONVERTERS

CHARACTERISTICS

Case Size

Inductance Range

Inductance Tolerance

Ambient Operating Temperature Range

Maximum Component Temperature

(Ambient + Self-Heating)

Inductance Change at Isat

Temperature Rise at Irms

Resistance to Solder Heat

NPIS63T

NPIS64T

1.0 ~ 1,000μH

±20% (M)*

-40°C ~ +105°C

+145°C

-30% typ.

+40°C max.

260°C for 10 seconds (Inductance change ±10% max.)

NPIS65T

NPIS__T Series

RoHS

Compliant

includes all homogeneous materials

*See Part Number System for Details

NPIS73T

NPIS75T

NPIS103T

NPIS104T

1.0 ~ 1,000μH

1.8 ~ 1,000μH

±20% (M)*

*Other tolerance available special order - Contact NIC for details

CASE DIMENSIONS (mm)

Series

NPIS63T

NPIS64T

NPIS65T

NPIS73T

NPIS75T

6.0 ± 0.3

7.0 ± 0.3

6.0 ± 0.3

7.0 ± 0.3

10.0 ± 0.3

2.9 ± 0.3

3.9 ± 0.3

4.9 ± 0.3

3.0 ± 0.3

4.6 ± 0.3

3.0 ± 0.3

4.6 ± 0.3

2.4 ± 0.2

2.0 ± 0.2

1.5 ± 0.2

4.0 ± 0.2

6.0 ± 0.2

3.0 ± 0.2

LAND PATTERN DIMENSIONS (mm)

Series

NPIS63T

NPIS64T

NPIS65T

NPIS73T

NPIS75T

NPIS103T

NPIS104T

7.5

10.7

3.7

5.7

2.2

2.8

6.6

2.8

2.2

NPIS103T 10.0 ± 0.3

NPIS104T 10.0 ± 0.3

PART NUMBER SYSTEM

NPIS 64 T 220 M TR F

Temperature °C

Termination Finish:

F = RoHS Compliant (100%Sn)

Packaging: TR = Tape & Reel

Inductance Tolerance Code: M=±20%

Inductance Code (μH): 1st two digits are signiﬁcant,

3rd digit is multiplier for values from 10μH and up.

Construction Code (see drawing for details)

Size Code (see table for details)

Series

REFLOW SOLDERING PROFILE

300

250

200

150

100

90 120 150 180 210 240 270 300

Time - Seconds

Pre-Heat

150°C ~ 180°C

60 ~ 120 sec.

Time above 230°C

30 seconds max.

Soldering 260°C max.

5 seconds max.

Cool Down

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
