7914: DescriptionKEYPAD SWITCH, SPST, MOMENTARY, 0.1A, 16VDC, 3.92 N, SURFACE MOUNT-STRAIGHT; Categoryunclassified; File Size265KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

7914 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7914	-	-	View	Buy Now

7914 Overview

KEYPAD SWITCH, SPST, MOMENTARY, 0.1A, 16VDC, 3.92 N, SURFACE MOUNT-STRAIGHT

7914 Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.1000 A
Maximum DC contact voltage	16 V
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Processing package description	ROHS COMPLIANT
state	ACTIVE
seal	WATER PROOF
switch function	single pole single throw
Manufacturer Series	7914
width	5 mm
high	2.54 mm
length or diameter	5 mm
Circuit configuration	1×1
Installation features	Direct-mounted
Number of switches	1
maximum control	3.92 N
Switch action	Transient
Switch type	keyboard switch
Terminal type	welding

Preview

Download Datasheet

View All

PL

IA

NT

Features

■

Compatible with most surface mount

■

Meets EIA/EIAJ/IPC/VRCI SMD standard

CO

M

soldering processes

■

Compatible with popular vacuum pick-and

place equipment

■

J-hook, gull-wing & pinned conﬁgurations

■

Sealed for board washing

outlne dimensions

■

Top or side actuated

■

RoHS compliant*

*R

oH

S

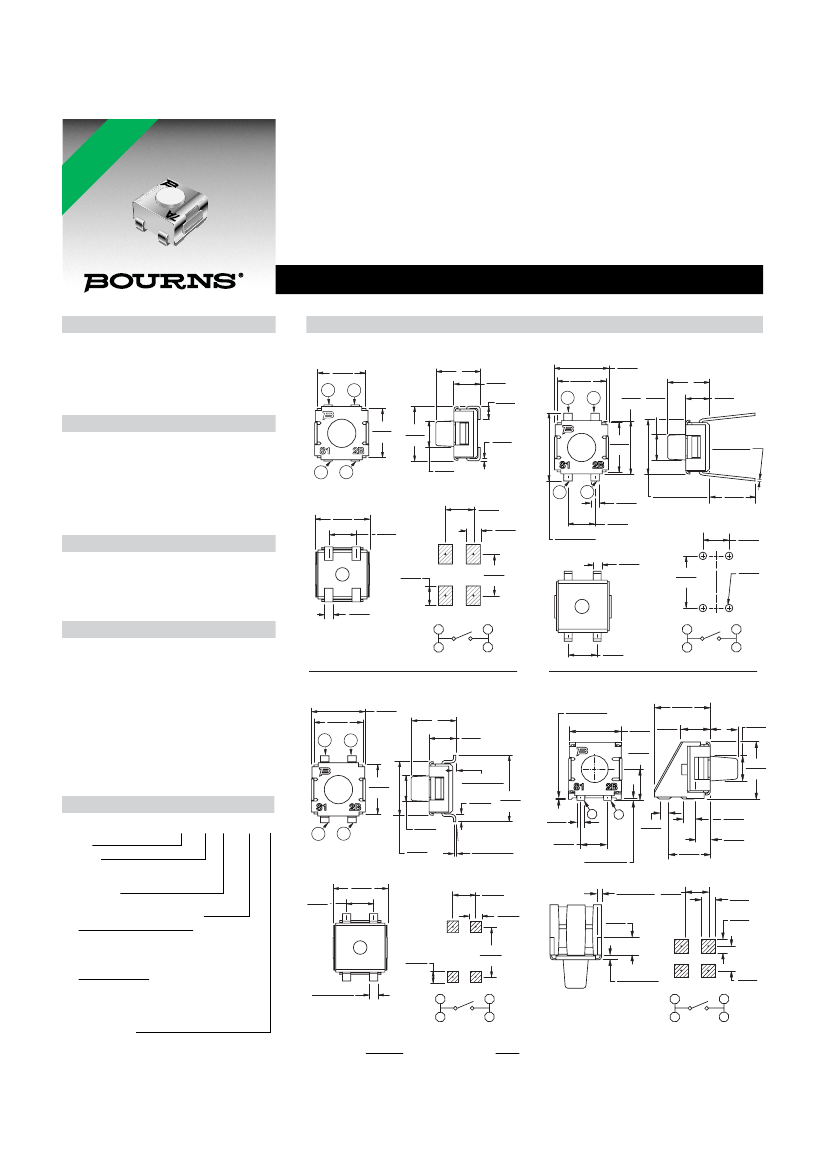

7914 4 mm SMD & Through-hole Sealed Key Switch

Electrical Characteristics

Contact Rating

Maximum Current ..............100 mA max.

Maximum Voltage ............................16 V

Contact Resistance .....100 milliohms max.

Insulation Resistance .. 100 megohms min.

Dielectric Strength ........................ 250 VAC

Product Dimensions

7914J

J-Hook

4.50

(.177)

L

2.54

(.100)

1.23

(.048)

TYP.

0.20

(.008)

2.39

DIA.

(.094)

RECOMMENDED PCB LAYOUT

2.54

(.100)

1.27

(.050)

TYP.

3.81

(.150)

7914H

Through-hole

4.50

(.177)

5.00

(.197)

L

1

2

1

2

5.00 2.39

(.197) (.094)

DIA.

4.50

(.177)

2.17

(.085)

General Characteristics

Switch Type .........................Normally open

Operating Temperature Range

................................... -55 °C to +125 °C

Storage Temperature Range

................................... -55 °C to +125 °C

Seal Test ..........................85 °C Fluorinert†

Vibration ............................................. 20 G

Shock ............................................... 100 G

4.50

(.177)

5.00

(.197)

0.20 ± 0.10

(.008 ± .004)

1

2

1

2

5.00

(.197)

Mechanical Characteristics

Actuator Force .........................300 ± 100 g

Pushover Strength (S Style)

............................. 2 kilograms minimum

Cycle life, loaded ......... 100,000 actuations

Contact resistance ......100 milliohms max.

2.54

(.100)

6.20 ± 1.00

(.244 ± .039)

TYP.

0.76

(.030)

2.54

(.100)

2 PLCS.

0.76

(.030)

TYP.

5.00 +0.10/-0.15

(.197 +.004/-.006)

4.00

(.157)

RECOMMENDED PCB LAYOUT

2.54

(.100)

5.00

(.197)

0.80

(.031)

DIA.

1.78

(.070)

TYP.

0.76

TYP.

(.030)

-

1

-

1

Physical Characteristics

Cover Material .....................Stainless steel

Base Material....... Thermoplastic, UL94V-0

Terminal Material ............ Phosphor bronze

Dome Material .....................Stainless steel

Actuator Material ............High temperature

silicon rubber

Marking...................... Manufacturer’s code

and date code

Packaging Options

J & G ............500 pcs./reel; 50 pcs./tube

S......................................... 200 pcs./reel

H .........................................50 pcs./tube

2

+

2

+

-

1

2.54

2 PLCS.

(.100)

-

1

2

+

2

+

SPST N.O.

RECOMMENDED POLARITY

SPST N.O.

RECOMMENDED POLARITY

7914G

Gull Wing

4.50

(.177)

4.93

(.194)

L

2.54

(.100)

7914S

Right Angle

0.13

±

0.05

(.005

±

.002)

5.18

(.204)

2.75

(.108)

DIA.

2.38

(.094)

1

2

5.00

(.197)

2.86

(.113)

B

4.50

(.177)

How to Order

7914 J - 1 - 000 E

Model

Terminal

J = J-Hook H = Through-hole

G = Gull Wing S = Right Angle

Switch Type

1 = N.O. Au Contacts

Product Code for Button Height

“L” (For Styles J, G and H)

000 = 4.0 mm FMS

024 = 2.4 mm FMS (Flush Actuator)

032 = 3.2 mm FMS

050 = 5.0 mm FMS (Tube packaging only)

“B” (For Style S)

000 = 1.68 mm FTS

032 = 0.91 mm FTS

024 = Flush Actuator

050 = 2.7 mm FTS (Tape & Reel packaging

only)

Embossed Tape

(Option applicable to Styles J, G and S only -

Consult factory. Omit for Style J & G tube

packaging.)

G, J = 500 pcs./reel S = 200 pcs./reel

FMS = From Mounting Surface

FTS = From Top Surface

1

2

2.39

DIA.

(.094)

5.00

(.197)

5.00

(.197)

0.28

±

0.20

(.011

±

.008)

6.20

0.60

(.024) (.244)

TYP.

±5° TYP.

0.20

±

0.08

(.008

±

.003)

5.44

(.214)

0.76

(.030)

2.54

(.100)

1

2

0.78

(.031)

0.2

±

0.13

(.008

±

.005)

3.89

(.153)

0.89

(.035)

1.5

(.059)

2.54

(.100)

RECOMMENDED PCB LAYOUT

2.54

(.100)

1.27

(.050)

TYP.

5.50

(.216)

RECOMMENDED PCB LAYOUT

1.3 TYP.

(.051)

1.25 TYP.

(.049)

0.38

±

0.2

2.54

(.015

±

.008)

(.100)

1.50

(.059)

1.27

(.050)

TYP.

0.76 ± 0.10

(.030 ± .004)

TYP.

-

1

-

1

0.48

±

0.2

(.019

±

.008)

2

+

2

+

2.33

(.092)

-

1

-

1

2

+

2

+

SPST N.O.

RECOMMENDED POLARITY

SPST N.O.

RECOMMENDED POLARITY

MM

DIMENSIONS:

(INCHES)

±0.2

TOLERANCES:

(.008)

EXCEPT WHERE NOTED.

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.

†“Fluorinert” is a registered trademark of 3M Co.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
