2SD2150T100Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD2150T100Q

2SD2150T100Q: DescriptionSmall Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size75KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SD2150T100Q Overview

Small Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,

2SD2150T100Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	120
JESD-30 code	R-PSSO-F3
JESD-609 code	e2
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power consumption environment	2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN COPPER
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	290 MHz
VCEsat-Max	0.5 V
Base Number Matches	1

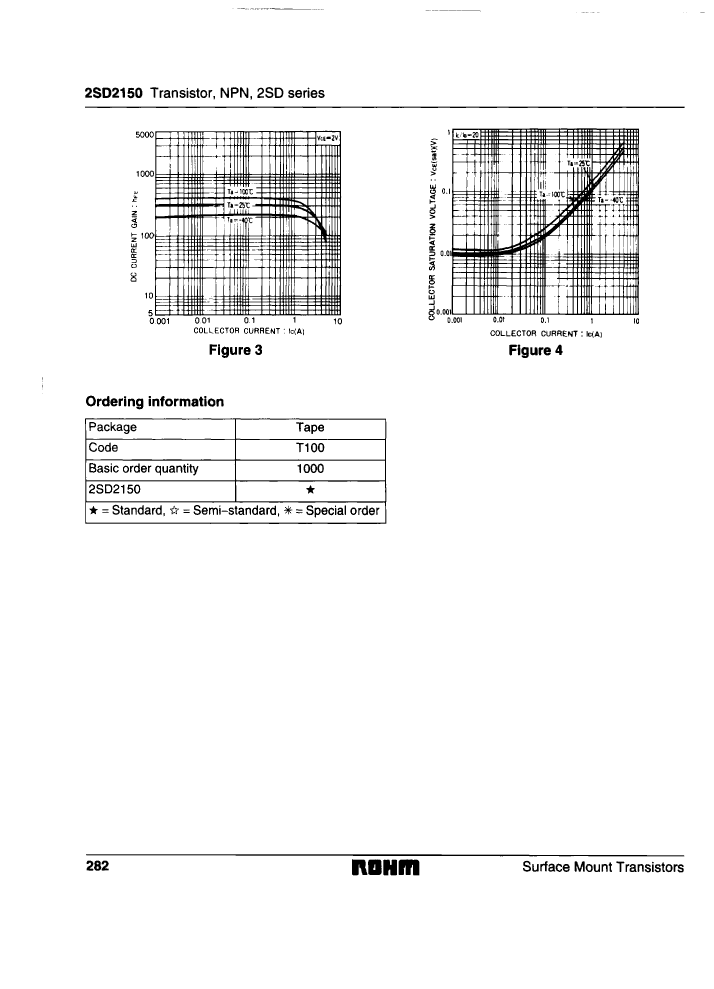

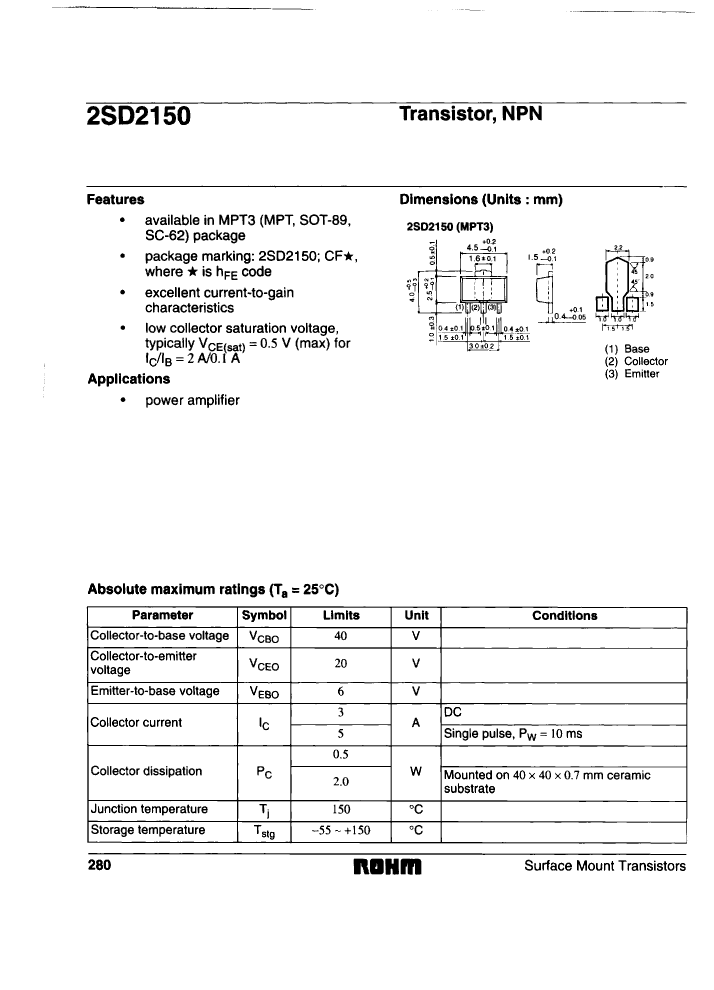

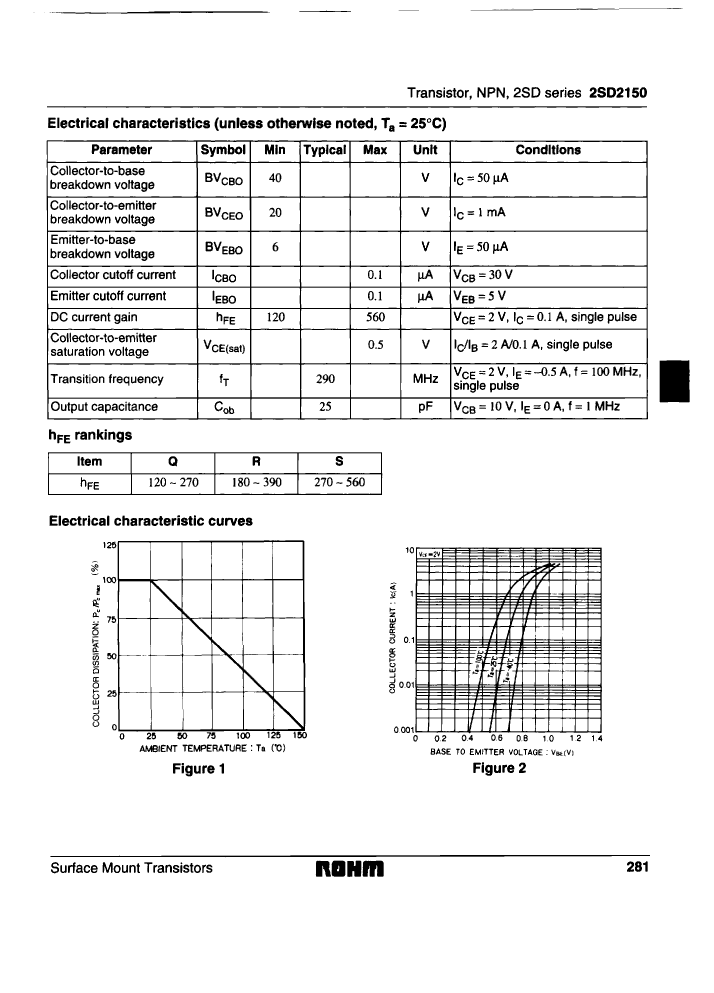

Preview

Download Datasheet

View All

2SD2150T100Q Related Products

	2SD2150T100Q	2SD2150T100/RS	2SD2150T100RS	2SD2150T100/Q	2SD2150T100/QS	2SD2150T100/QR	2SD2150T100QS	2SD2150T100QR
Description	Small Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,	3000mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,	3000mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR	3000mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR	3000mA, 20V, NPN, Si, SMALL SIGNAL TRANSISTOR	Small Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 3A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	120	180	180	120	120	120	120	120
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER	TIN COPPER
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	290 MHz	290 MHz	290 MHz	290 MHz	290 MHz	290 MHz	290 MHz	290 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
Base Number Matches	1	1	1	1	1	1	1	1
