DATA SHEET
NPN SILICON RF TRANSISTOR

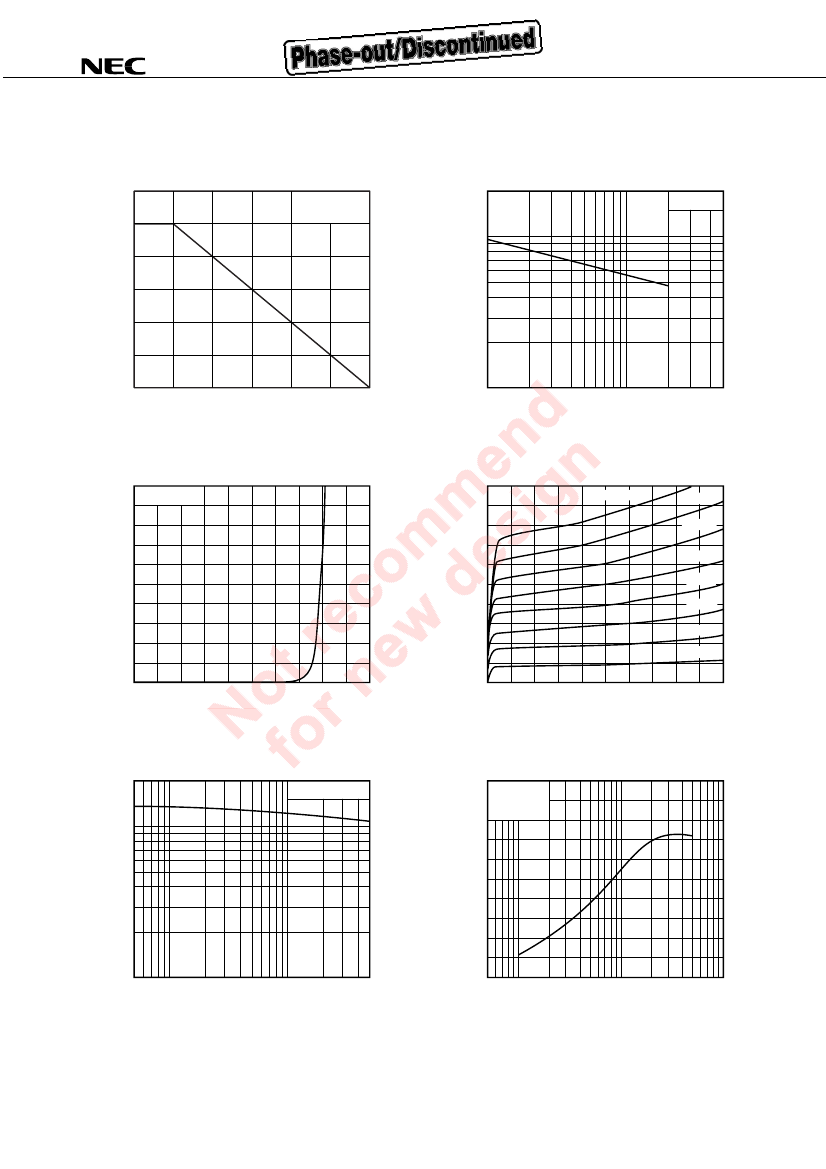

2SC5432
NPN EPITAXIAL SILICON TRANSISTOR
FOR HIGH-FREQUENCY LOW-NOISE AMPLIFICATION
FLAT-LEAD 3-PIN THIN-TYPE ULTRA SUPER MINIMOLD
FEATURES
• Contains same chip as 2SC5006
• Flat-lead 3-pin thin-type ultra super minimold package
ORDERING INFORMATION
Part Number
2SC5432
2SC5432-T1
Quantity
50 pcs (Non reel)
3 kpcs/reel
Supplying Form
• 8 mm wide embossed taping
• Pin 3 (collector) face the perforation side of the tape
Remark
To order evaluation samples, contact your nearby sales office.
The unit sample quantity is 50 pcs.
ABSOLUTE MAXIMUM RATINGS (T
A
= +25°C)
°
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Total Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
tot
Note
Ratings
20
12
3
100
125
150
−65
to +150
Unit
V
V
V
mA
mW
°C
°C
T
j
T
stg
Note
Free air
Because this product uses high-frequency technology, avoid excessive static electricity, etc.
The information in this document is subject to change without notice. Before using this document, please confirm that
this is the latest version.
Not all devices/types available in every country. Please check with local NEC Compound Semiconductor Devices
representative for availability and additional information.
Document No. PU10100EJ01V0DS (1st edition)
(Previous No. P13076EJ1V0DS00)
Date Published February 2002 CP(K)
Printed in Japan
The mark
•
shows major revised points.
©
NEC Corporation 1998
©
NEC Compound Semiconductor Devices 2002
