Wire Connection Products

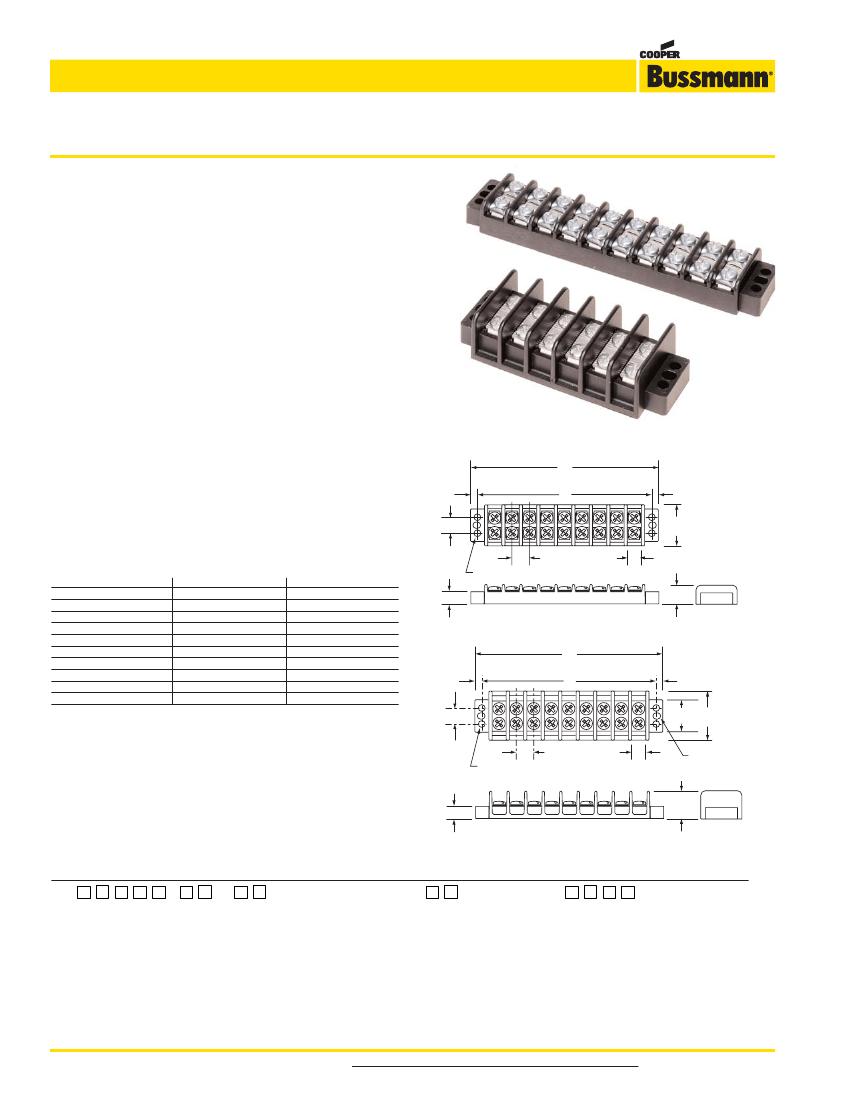

Double row terminal blocks
Series TB200 & TB200HB
Specifications
Description:
Double row terminal blocks.
Ratings:
Volts: — 300V* (TB200)
— 600V* (TB200HB)
Amps: — 30A*
Center Spacing:
0.437” or
7
⁄
16
” (11.10 mm).
Wire Range:
#12 - 22 AWG CU.
Screw Size:
#6-32 philslot screws.
Poles:
2 to 30.
Torque Rating:
9 in-lb.
Distance Between Barriers:
0.353” (8.97mm).
Mounting:
#6 screws.
Operating Temperature:
+130/-40°C (+266/-40°F).
Construction:
Molded, black thermoplastic base with tin-
plated brass terminals and zinc-plated steel screws.
Breakdown Voltage:
4800V.
Agency Information:
UL/CSA; IEC Compliance; CE
Certified.
Flammability Rating:
UL 94V0.
* Max rating shown; some options may be rated lower - consult factory.
TB200-10SP
TB200HB-06
TB200 - in (mm)
A
0.16
(4.0)
0.16
(4.0)
1.12
(28.4)
0.437
(11.1)
0.353
(8.9)
B
0.44 (11.2)
Dimensions - in
Poles
02
03
04
05
06
07
08
09
10
11
A
1.63
2.07
2.51
2.94
3.38
3.82
4.25
4.69
5.13
5.57
B
1.31
1.75
2.18
2.62
3.06
3.50
3.93
4.37
4.81
5.25
Poles
12
13
14
15
16
17
18
19
20
21
A
6.00
6.44
6.87
7.31
7.75
8.19
8.62
9.06
9.50
9.94
B
5.68
6.12
6.56
7.00
7.43
7.87
8.31
8.75
9.18
9.62
Poles
22
23
24
25
26
27
28
29
30
A
10.37
10.81
11.25
11.68
12.12
12.56
13.00
13.44
13.87
B
10.06
10.50
10.93
11.37
11.81
12.25
12.68
13.12
13.56
.31 (7.8)
0.17 dia.
(4.3)
0.56
(14.2)
TB200HB
A
0.16
(4.0)
0.16
(4.0)
B
1” = 25.4mm.
0.44 (11.2)
0.90
1.37
(22.8) (34.8)
0.17 dia.
(4.3)
0.437
(11.1)
0.353
(8.9)
0.17
x
0.22
slots
(4.3
x
5.6)
0.33 (8.4)
0.75
(19.0)
Catalog Number Build-A-Code
Series
TB —
02 to 30
200 = Standard
200HB = High barrier
Blank = Steel philslot, zinc-plated
00 = Screws shipped bulk
B = Brass philslot, nickel-plated
BS = Brass Sems philslot, nickel-plated
SP = Steel Sems philslot, zinc-plated
P = Steel Sems (P-style)
ST = Stainless steel, philslot
SS = Stainless steel Sems, philslot
STR = Stainless steel, phillips (recess)
L1 to L6 - (See page 296)
Marker strips (See page 297)
Covers (See page 296)
QC1 to QC20 = Quick connects
J201 = Flat slip-on jumper (2 position only)
0J3 = Over barrier jumpers
0J5 = Over barrier jumpers
0J7 = Over barrier jumpers
Poles
Screw Options
Marking
Hardware Options
296
For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
Wire Connection Products
Double row terminal blocks

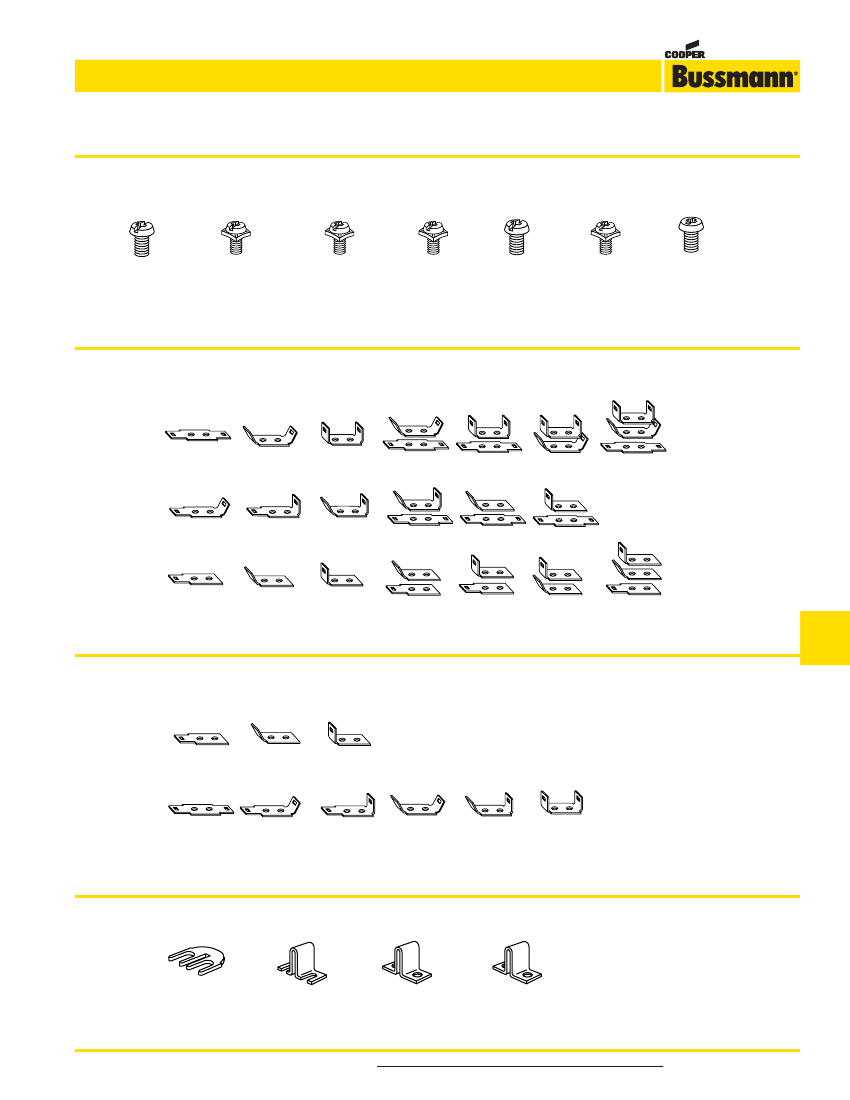

Screw Options
B
Brass Philslot
Nickel-Plated
BS
Brass SEMS
Philslot Nickel-Plated
SP
Steel SEMS
Philslot Zinc-Plated
P
Steel SEMS
(P-Style)
ST
Stainless Steel
Philslot
SS
Stainless Steel
SEMS Philslot
STR
Stainless Steel
Phillips (recess)
Hardware Options
Quick Connects – Assembled:
Terminals 0.25” x 0.031”. Maximum current rating 20 amps. For other orientations, contact Cooper Bussmann.
QC1
QC2
QC3
QC4
QC5
QC6
QC7
QC8
QC9
QC11
QC10
QC12
QC13
QC14
QC15
QC16
QC17
QC18
QC19
QC20
Wire
Management
Products
Quick Connects – Bulk:
minimum order per part no. – 100 pieces.
QC201/J
QC 45° – none
QC202/J
Flat – none
QC203/J
QC 90° – none
QC204/J
Flat – Flat
QC205/J
Flat – QC 45°
QC206/J
Flat – QC 90°
QC207/J
QC 45° – QC 45°
QC208/J
QC209/J
QC 45° – QC 90° QC 90° – QC 90°
Jumpers – Bulk:
minimum. order per part no. – 100 pieces. Contact Cooper Bussmann for jumper assembly.
J201/J
Flat slip-on
(not available on TB200HB)
OJ3/J
Slip-on over
barrier for TB200HB
OJ5/J
Closed over
barrier for TB200HB
OJ7/J
Closed over
barrier for TB200
For product data sheets, visit www.cooperbussmann.com/products/datasheet.asp
297
