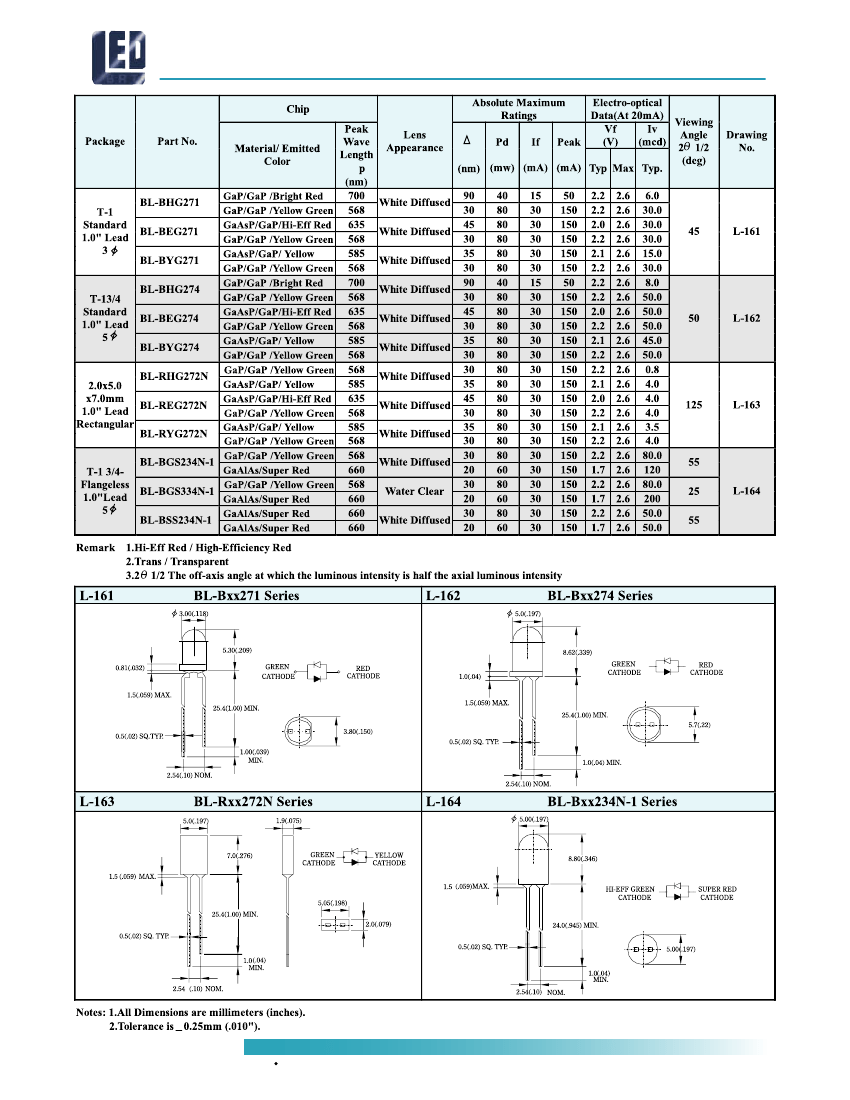

Preview

BL-BGS334N-1: DescriptionDual Color LED, Super Red/yellow Green, Water Clear, T-1 3/4, 5mm, L-164, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size928KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-BGS334N-1 Overview

Dual Color LED, Super Red/yellow Green, Water Clear, T-1 3/4, 5mm, L-164, 2 PIN

BL-BGS334N-1 Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	L-164, 2 PIN
Reach Compliance Code	unknown
color	SUPER RED/YELLOW GREEN
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	200.0/80.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	DUAL COLOR LED
total height	8.8 mm
method of packing	BULK
peak wavelength	660/568 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	25 deg

Preview

Download Datasheet

View All

Dual-Chip LED Lamps

Round & Rectangular

λ

+

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

.

www.americanbrightled.com

LMP-49

BL-BGS334N-1 Related Products

	BL-BGS334N-1	BL-BSS234N-1	BL-REG272N	BL-RYG272N	BL-RHG272N	BL-BGS234N-1
Description	Dual Color LED, Super Red/yellow Green, Water Clear, T-1 3/4, 5mm, L-164, 2 PIN	Single Color LED, Super Red, Diffused White, T-1 3/4, 5mm, L-164, 2 PIN	Dual Color LED, High Efficiency Red/yellow Green, Diffused White, 5mm, L-163, 2 PIN	Dual Color LED, Yellow/yellow Green, Diffused White, 5mm, L-163, 2 PIN	Dual Color LED, Yellow/yellow Green, Diffused White, 5mm, L-163, 2 PIN	Dual Color LED, Super Red/yellow Green, Diffused White, T-1 3/4, 5mm, L-164, 2 PIN
Maker	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
package instruction	L-164, 2 PIN	L-164, 2 PIN	L-163, 2 PIN	L-163, 2 PIN	L-163, 2 PIN	L-164, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	SUPER RED/YELLOW GREEN	SUPER RED	HIGH EFFICIENCY RED/YELLOW GREEN	YELLOW/YELLOW GREEN	YELLOW/YELLOW GREEN	SUPER RED/YELLOW GREEN
Configuration	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS	COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE
Nominal luminous intensity	200.0/80.0 mcd	50.0 mcd	4.0 mcd	3.5/4.0 mcd	4.0/0.8 mcd	120.0/80.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Optoelectronic device types	DUAL COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	8.8 mm	8.8 mm	7 mm	7 mm	7 mm	8.8 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	660/568 nm	660 nm	635/568 nm	585/568 nm	585/568 nm	660/568 nm
shape	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND
size	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	25 deg	55 deg	125 deg	125 deg	125 deg	55 deg
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C
